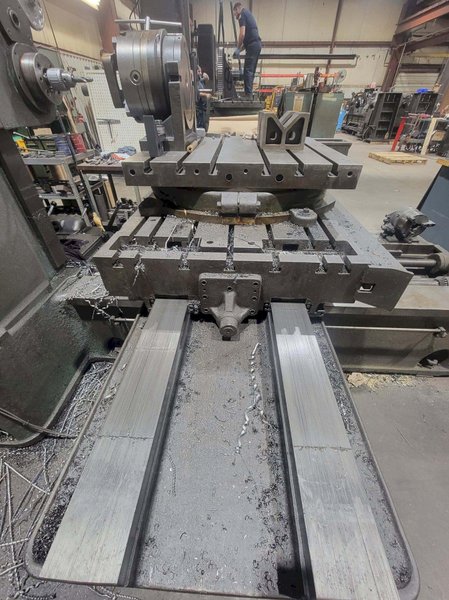

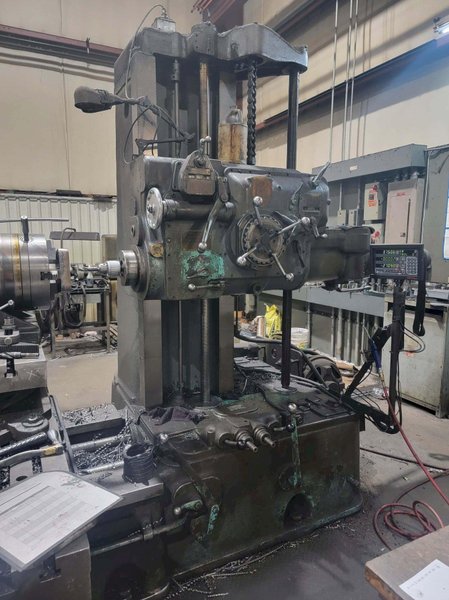

Giddings & Lewis 330T Horizontal Boring Mill – Newall Digital Readout, Rotary Table

Main Spindle: Spindle Diameter – 3″ Spindle Taper – NO. 5 MT Spindle Longitudinal Travel – 24″ Spindle Speeds – (36) 8.3 TO 500 RPM Spindle Feeds – (18) .007 TO .375 IPR

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,High Speed Spindle: Spindle Diameter: – 2″ Spindle Taper – NO. 4 MT Spindle Longitudinal Travel – 9″ Spindle Speeds – (36) 25 TO 1500 RPM Spindle Feeds – (18) .002 TO .125 IPR Milling Feeds to All Units: 120 IPM

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Table Size: 30″ X 62″ Cross Travel of Table: 48″ Longitude Travel of Table: 36″ Vertical Headstock Travel: 36″

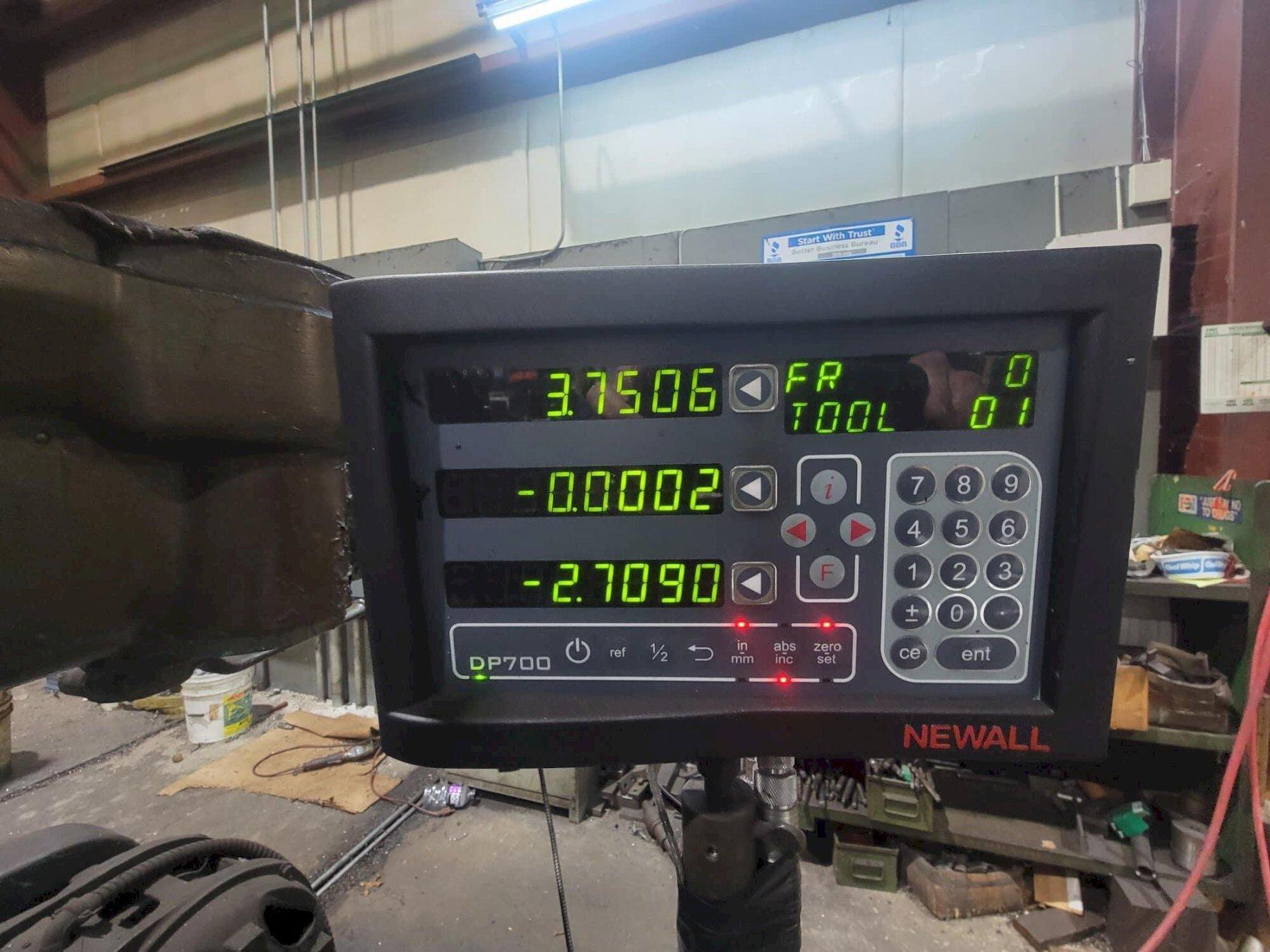

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: -Rotary Table -DRO (Digital Readout)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
