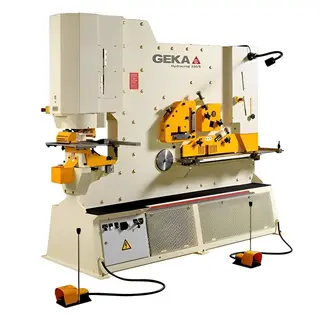

240 Ton Geka HYDRACROP 220SD Universal Ironworker, 2025 – Brand New, W/ 5 WORK STATIONS

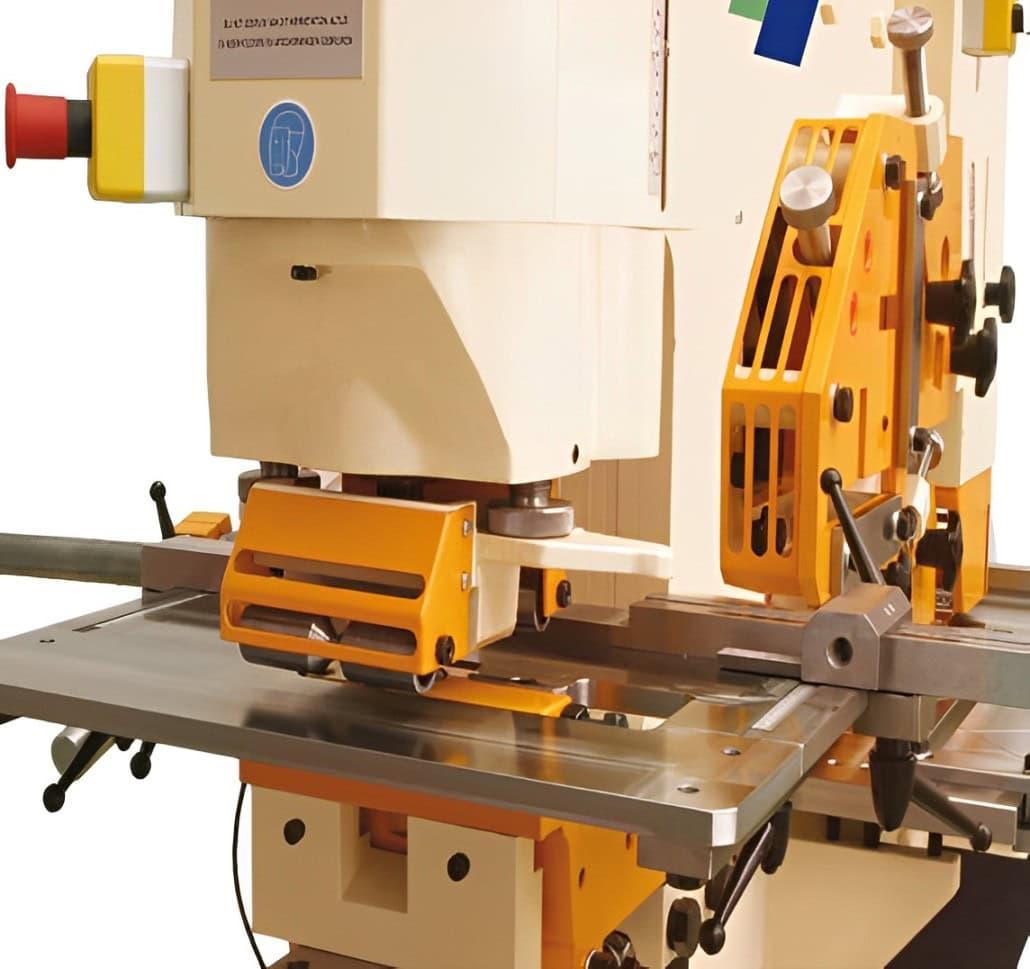

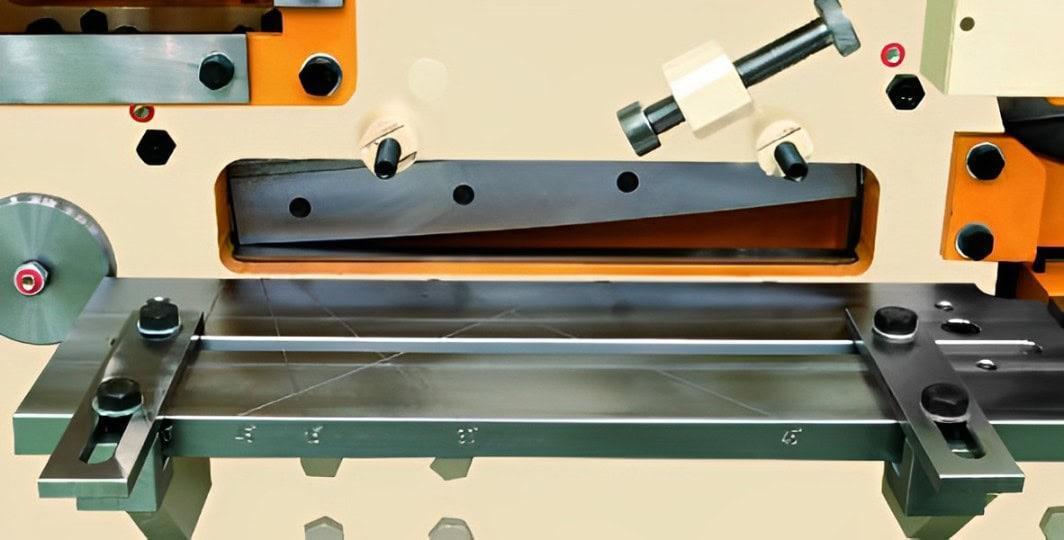

PUNCHING STATION 240 TON CAPACITY 1-1/2″ DIAMETER IN 1-1/2″ 1-9/16″ DIAMETER ROUND PUNCH 18-1/2″ THROAT 43-3/4″ WORKING HEIGHT 2-STAGE FOOT PEDAL (LOW PRESSURE ON 1ST STAGE) STEEL GUARDS WITH SLOTS AND ROLLERS EMERGENCY STOP PUNCHES 10/26 FOR UP TO 1″ DIAMETER 10/40 FOR UP TO 1-9/16″ DIAMETER DIES NO 5 FOR UP TO 1-1/4″ DIAMETER NO 10 FOR UP TO 1-9/16″ DIAMETER WHEN PUNCHING LARGE U, I AND T PROFILES CAN REMOVE GOOSE NECK DIE BLOCK WITH SUPPORTS CAPACITY IS REDUCED TO 90 TONS GAUGING TABLE WITH INLAID INCH SCALES FRONT TO BACK MOVEMENT ON ROLLERS PUNCH SLAG BUCKET FULL STROKE OR JOG MODE FOR INCHING OF THE TOOL W/AUTO RETURN WHEN LOWER LIMIT SWITCH IS TRIGGERED GIBBED AND GUIDED PUNCHING CYLINDER FOR TOOL ALIGNMENT QUICK-CHANGE PUNCH HOLDER FLAT SHEARING STATION 34-1/4″ WORKING HEIGHT 30-1/2″ BLADE 30″ X 3/4″ OR 20″ X 1″ CAPACITY

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,2-Year Warranty
