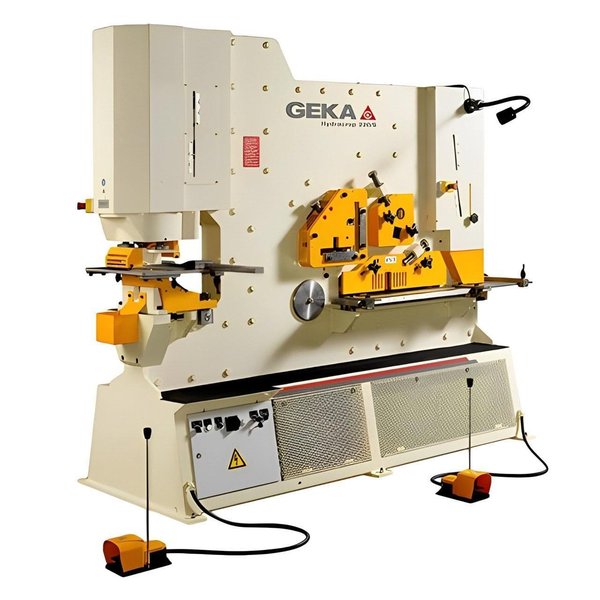

240 Ton Geka Hydracrop 220S Two-Cylinder Universal Hydraulic Ironworker, 2025 – Brand New

Punching Power: 240 US Tons Throat: 15″ Punching Capacity: Ø 1 1/2″ x 1 1/2″ Shearing Power: 300 US Tons Shearing Capacity: Flat Bars and Plates: 30″ x 3/4″, 20″ x 1″ Angles (No Deformation): 8″ x 8″ x 3/4″ Angles with Optional Blade (Small Deformation): 8″ x 8″ x 1″ Solid Round and Square Bars (with Optional Blades): Ø 2 3/8″ x 2 3/8″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Description: The Geka Hydracrop 220 Universal Ironworker belongs to Geka’s line of Hydracrop two-cylinder hydraulic machines, able to be operated by two users at once. It offers the most punching power (240 US tons) out of all the models in the Hydracrop line

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,The Hydracrop 220 Universal Ironworker is suitable for punching and shearing base plates for heavy metal construction. It features five workstations for different tasks: punching, notching, shearing flat bars and cutting plates, shearing angles, and section profiles. The stations in the universal ironworker may also be equipped with several Geka accessories and tools, largely increasing the versatility of the machine and making it an option for a wide range of metalworking jobs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Standard Features:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,The Five Workstations Included in the Geka Hydracrop 220 Universal Ironworker Machine:

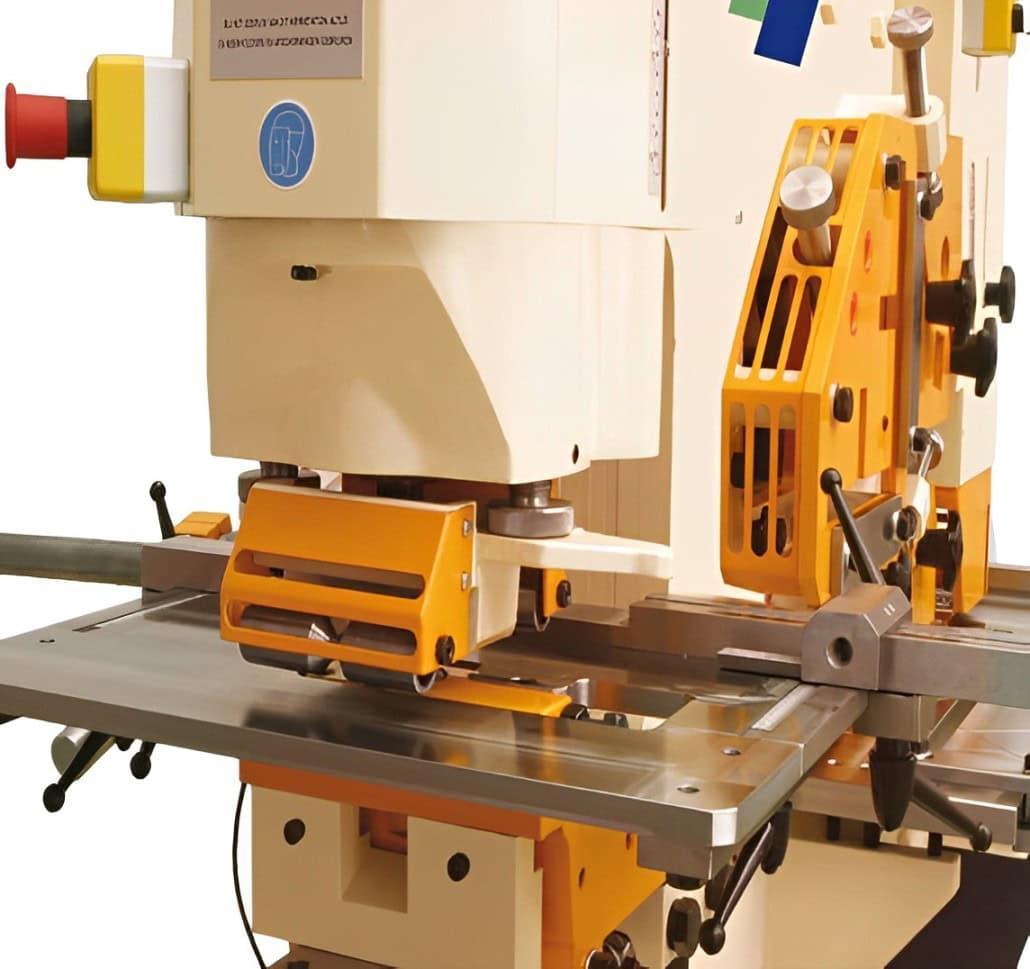

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Punching Station: Because of its independent cylinder this is a large and versatile punching station, capable of being fitted with different Geka tools and die sets

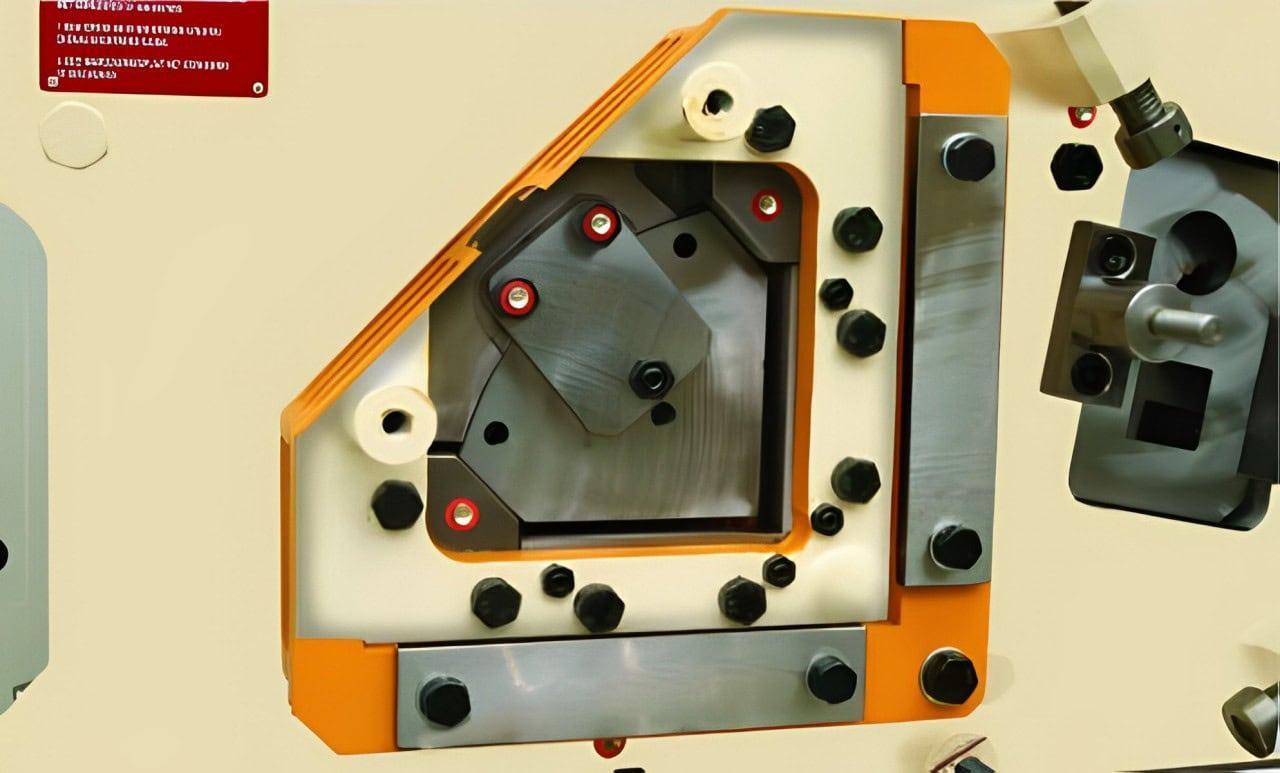

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Station for Shearing Angles at 90°: This station has a radial system patented and designed by Geka, which eliminates distortion when shearing and does not waste any material

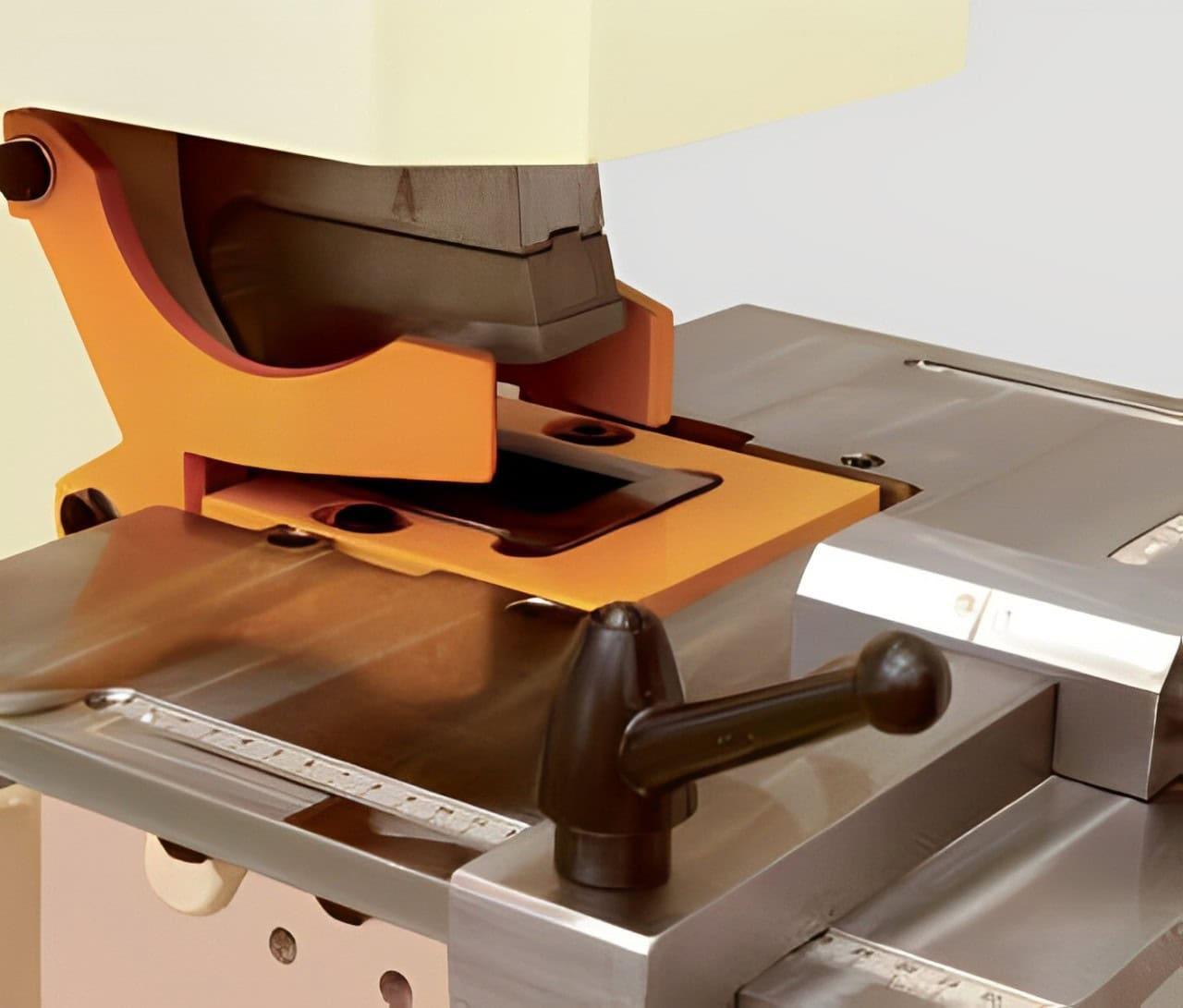

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Notching Station: The notching stations on Hydracrop universal ironworkers are very versatile. With the use of optional Geka accessories, it may be equipped to perform a range of tasks including triangular notching at 90°, pipe notching, and notching of footings, among others

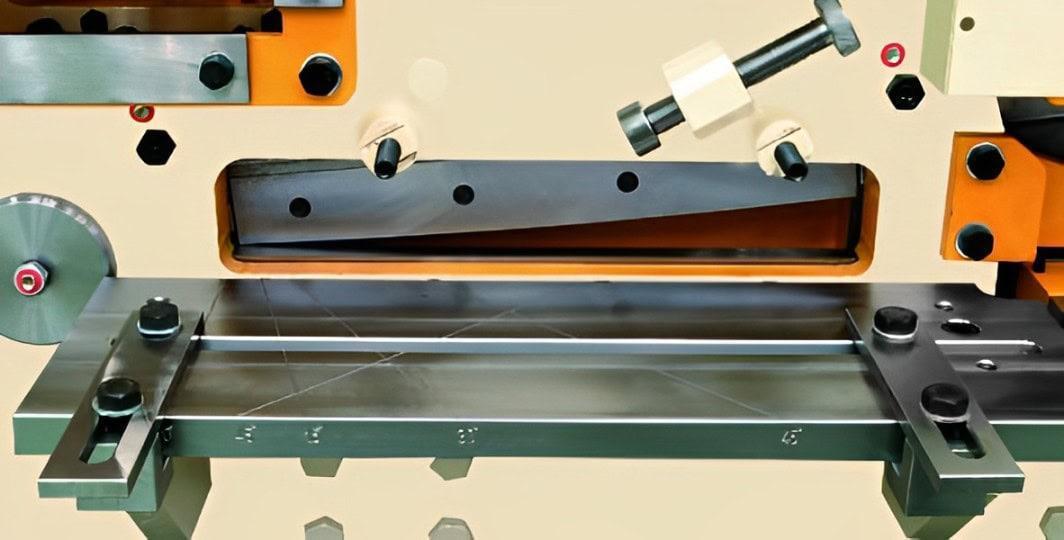

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Station for Shearing Flat Bars and Plates: This station’s monoblock blade-holder, controlled at each end, grants it great stability and its radial system provides it with a great cutting capacity

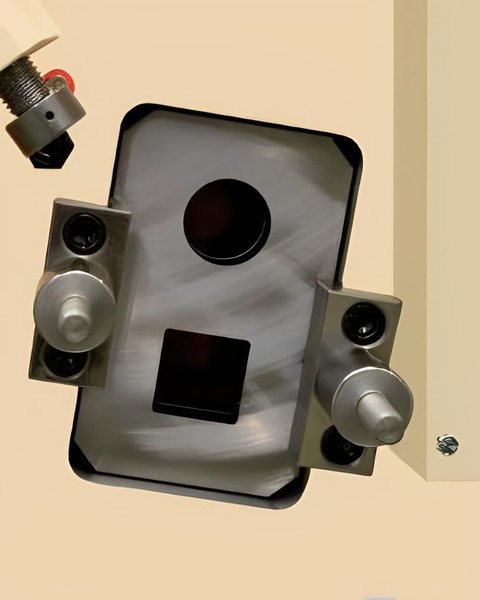

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Cutting Station for Round and Square Bars: Besides its standard blades for cutting round and square bars, the cutting station in the Geka Hydracrop 220 may also be equipped with blades for cutting U profiles, I, T, and other optional shapes

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Mechanical Specifications: Shipping Weight: approx. 14,960 lbs.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,2-Year Warranty
