12‑Stage Automated Ultrasonic Cleaning & Citric/Nitric Passivation Line – Turnkey Stainless‑Steel System

Equipment Overview

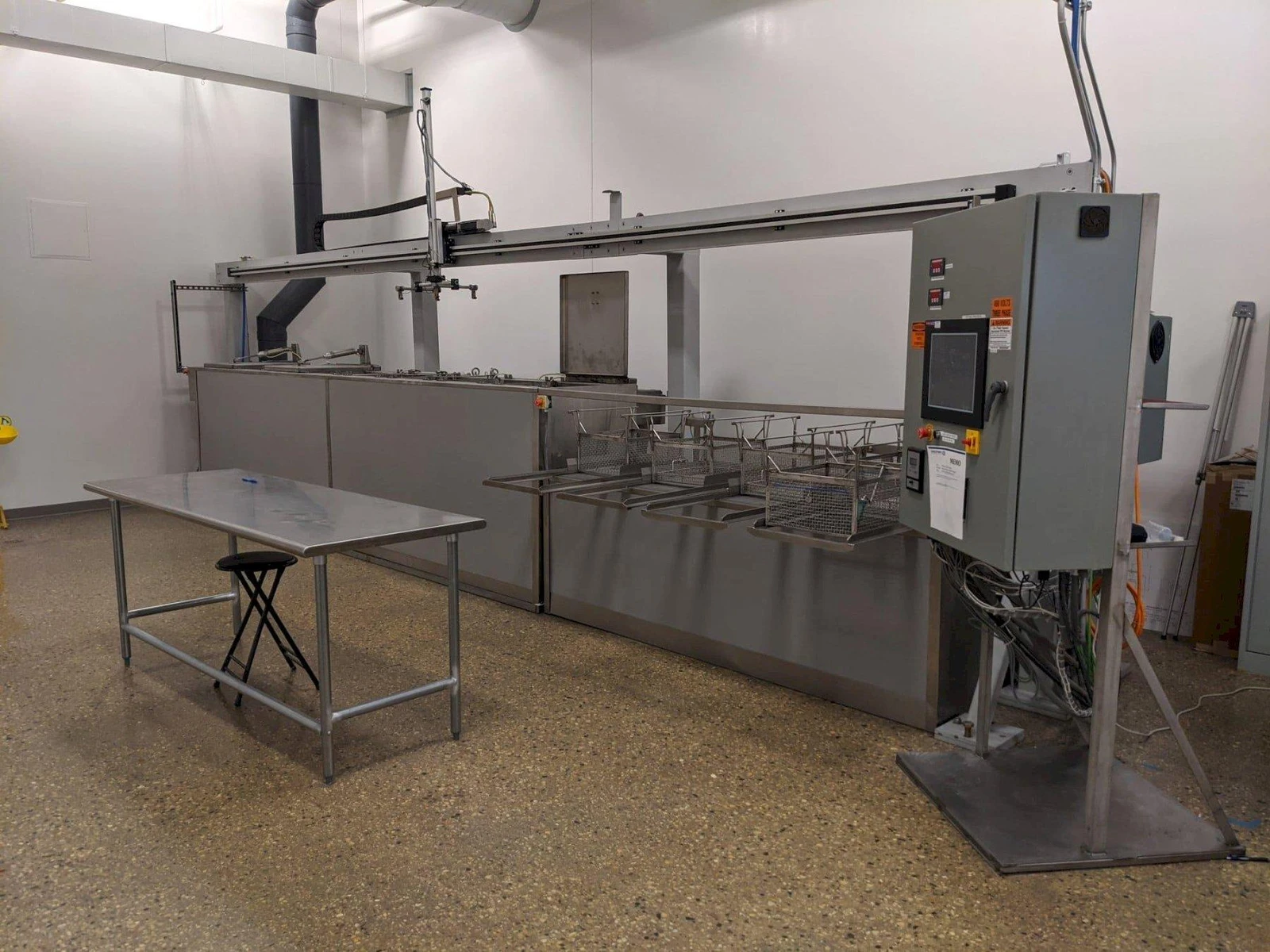

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,A twelve‑station Custom Made stainless steel ultrasonic cleaning and citric/nitric passivation line with overhead gantry automation and operator load/unload zones. Designed for precision part cleaning, the turnkey PLC‑controlled system offers heat‑regulated chemical processing with safety features and ventilation for compliant applications.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Key Features and Specifications

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,• 12-stage line: ultrasonic clean, multiple water rinses, citric passivation, nitric passivation, hot rinse, dryer; manual load/unload stations

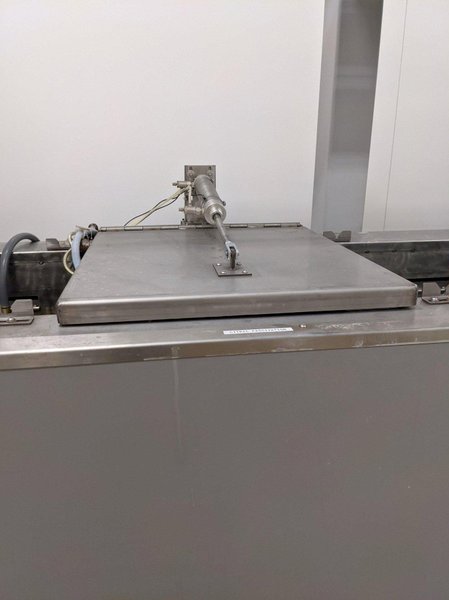

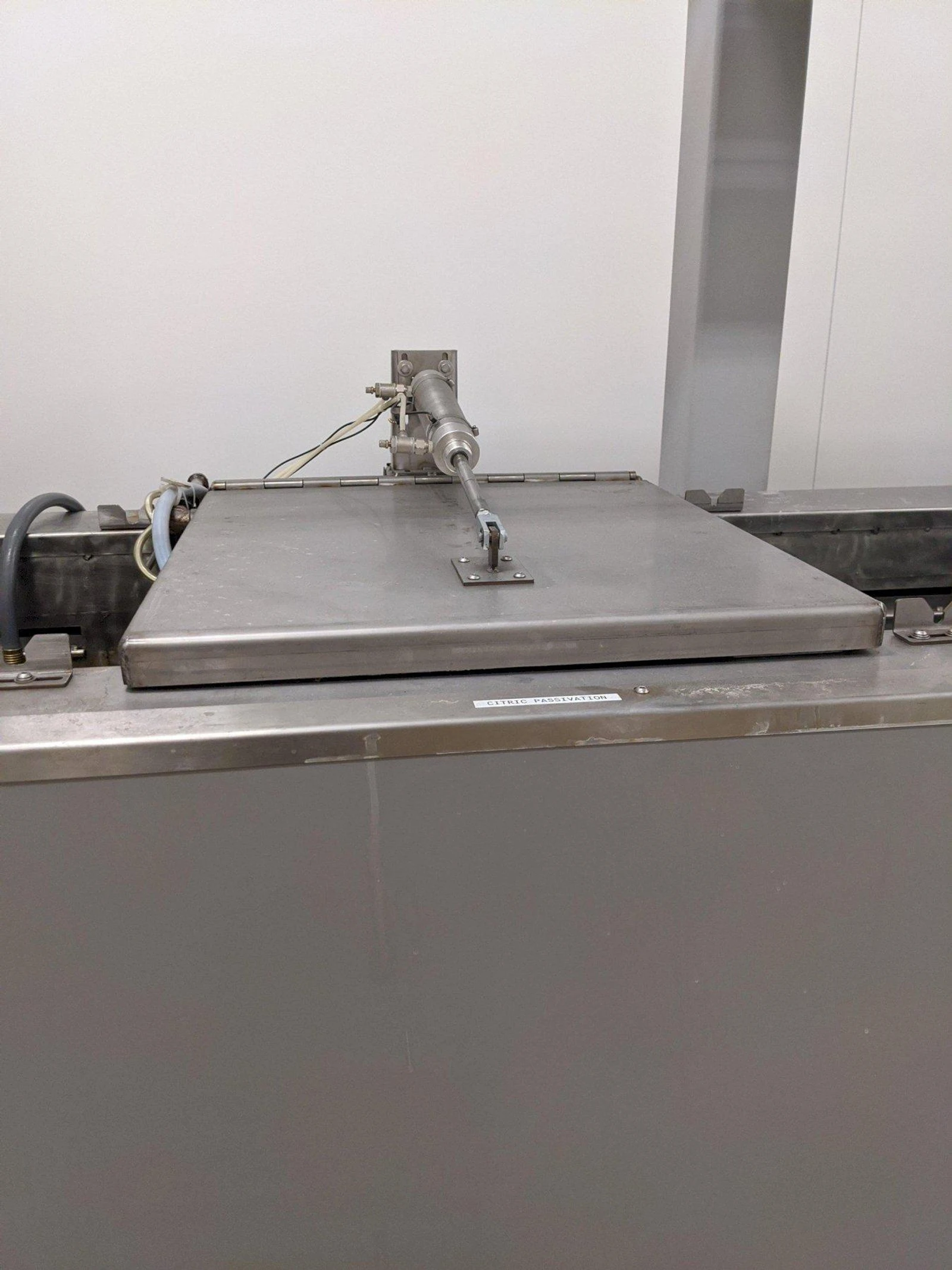

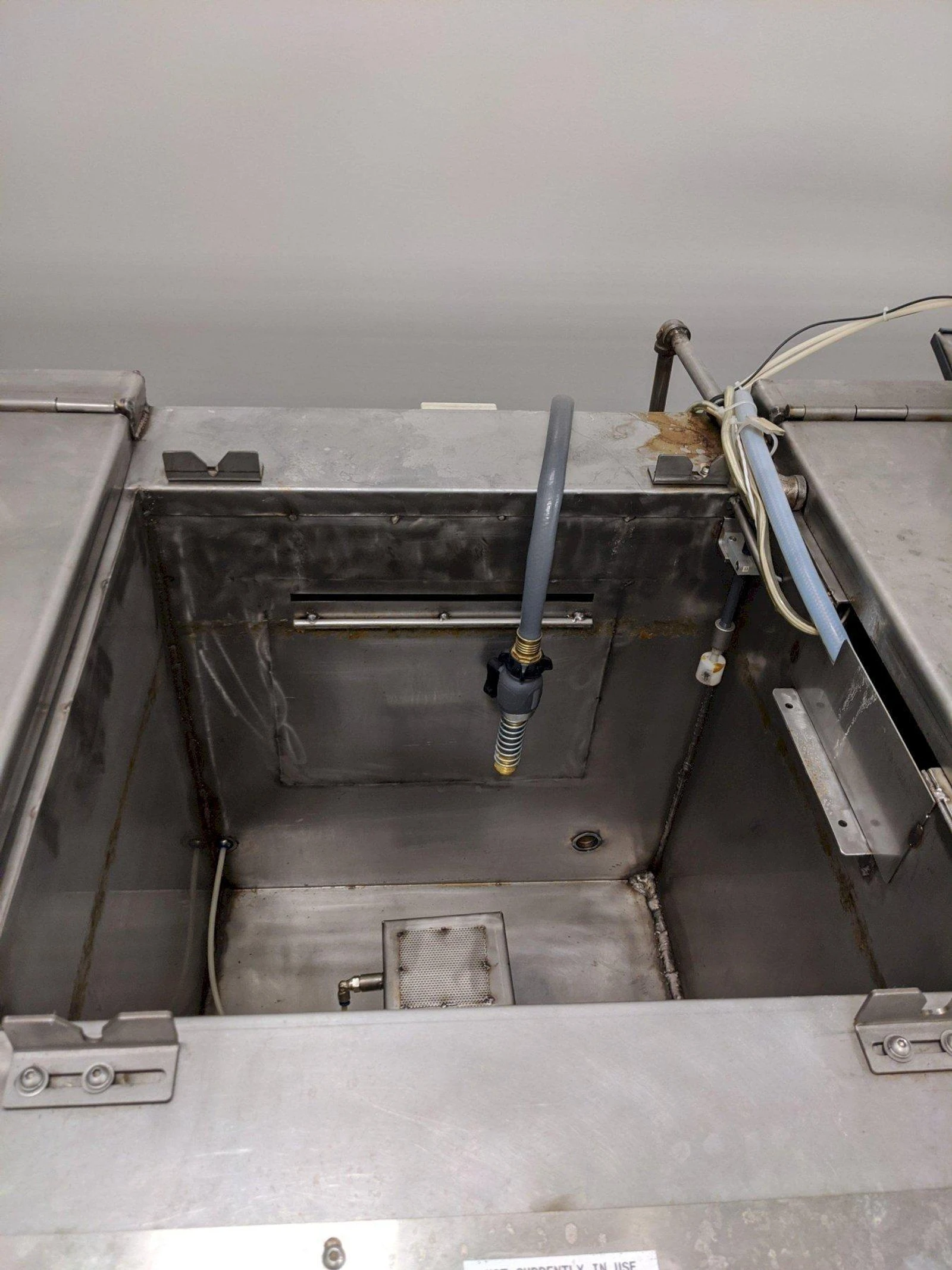

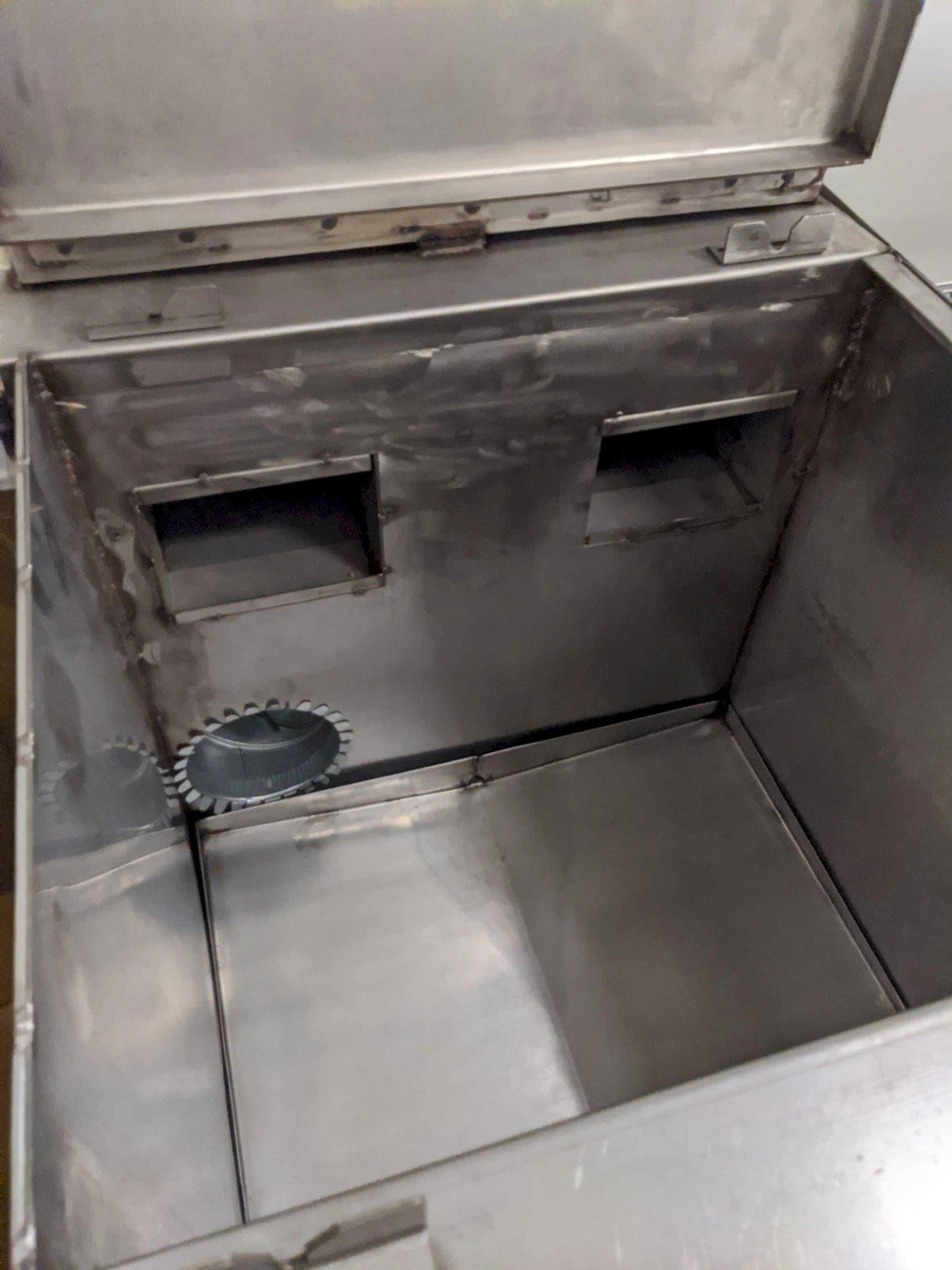

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,• Tanks: 20″ × 23″ × 24″ stainless steel; baskets ~17″ × 17″ × 8″

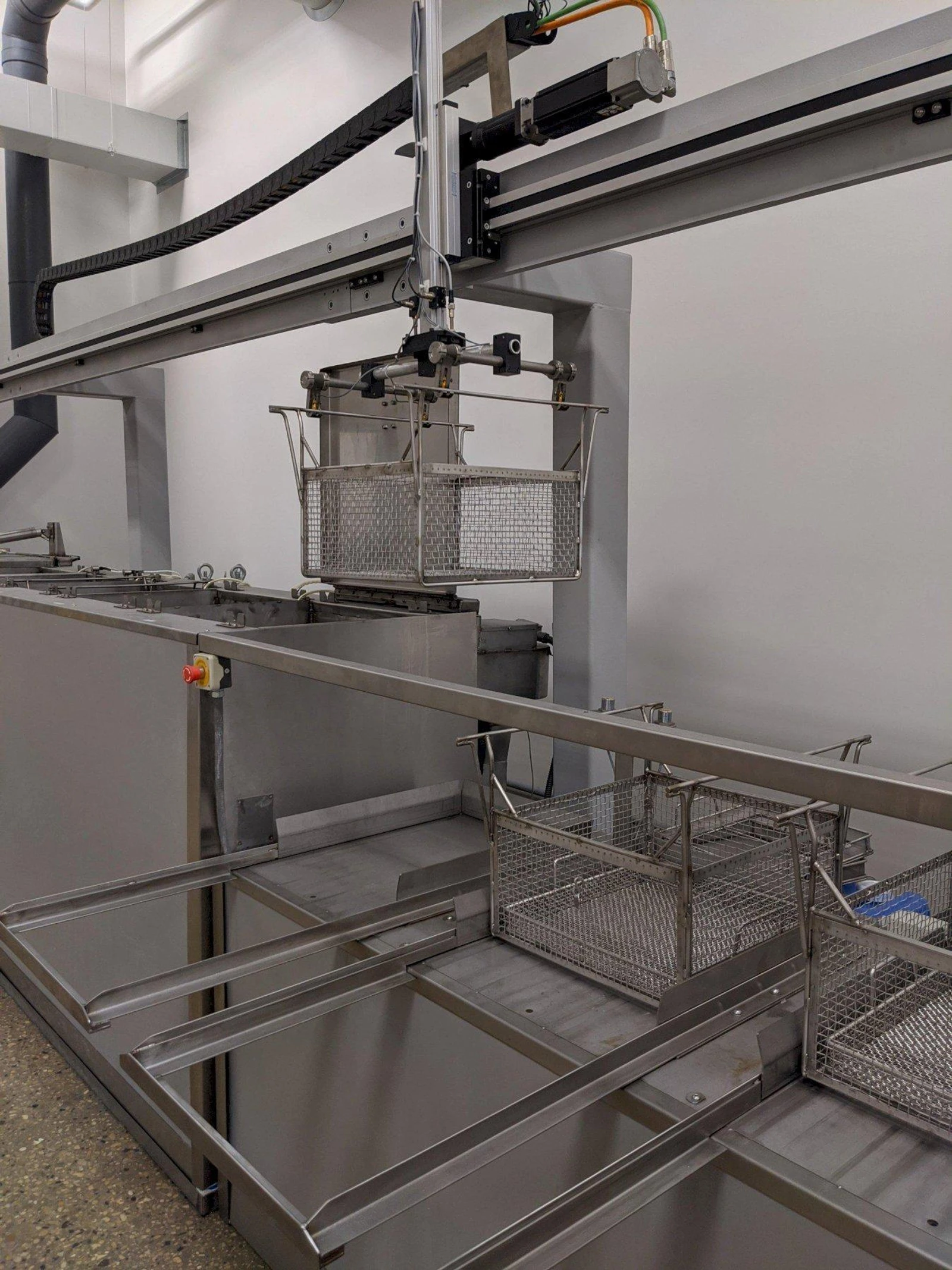

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,• Automated gantry: dual hook PBC Linear slides with proximity detection

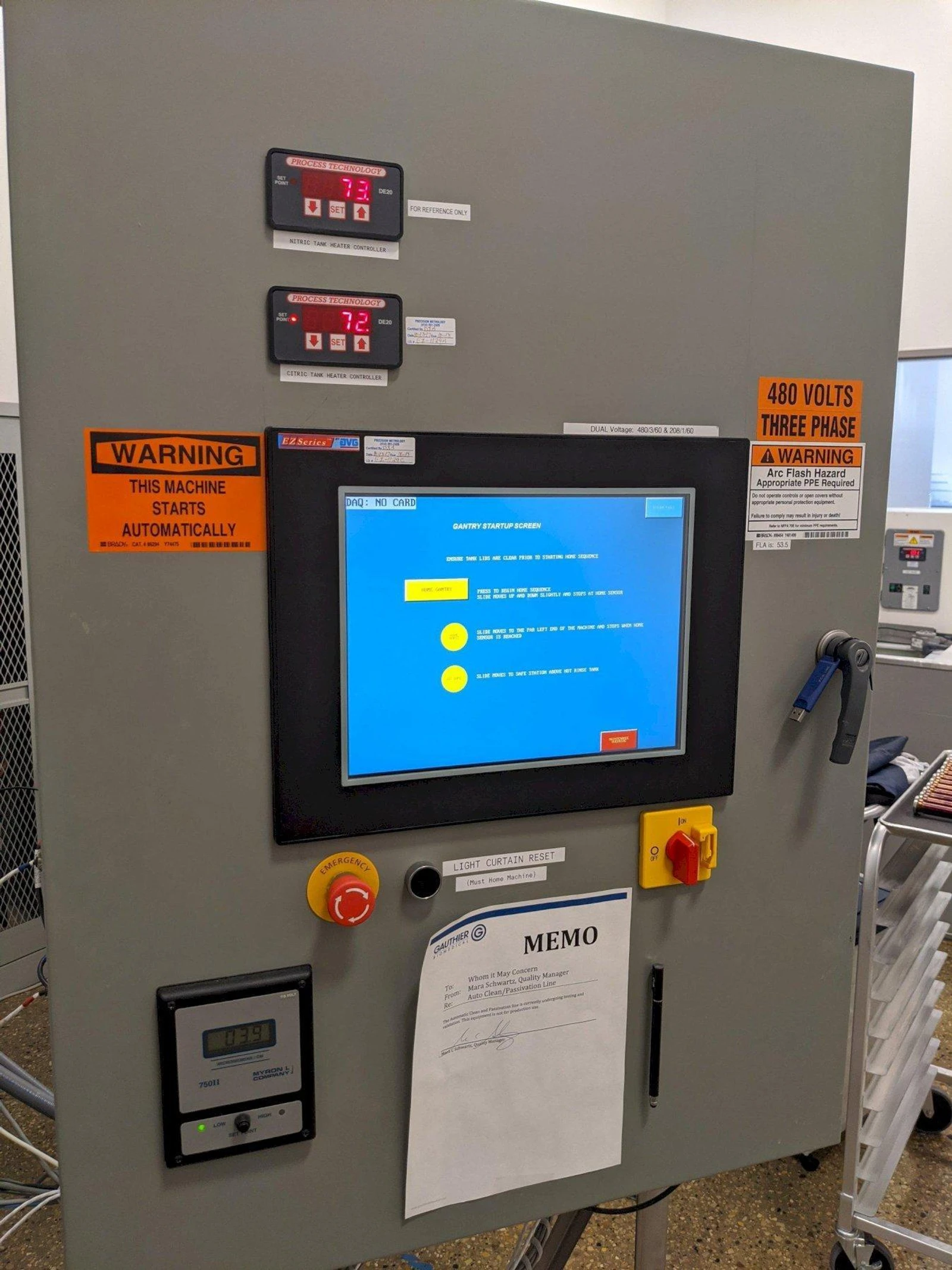

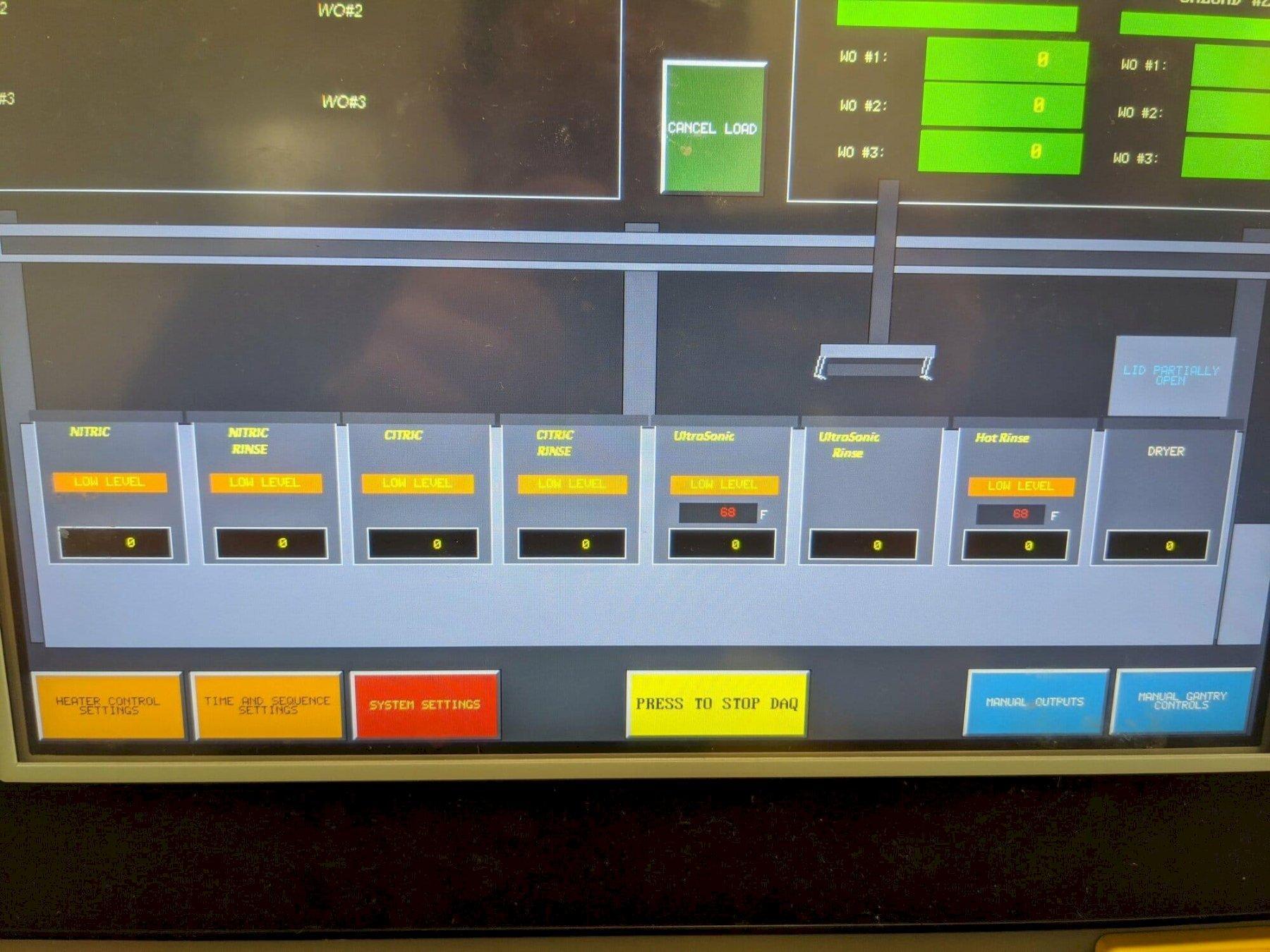

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,• Control: 15″ touchscreen (T10C‑E), CE Win, PLC with Ethernet, USB, RS‑232/422/485 ports, data logging

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,• Temperature: Ultrasonic & citric ~160 °F; nitric ~130 °F; hot rinse ~180 °F; 3–4 h heat-up

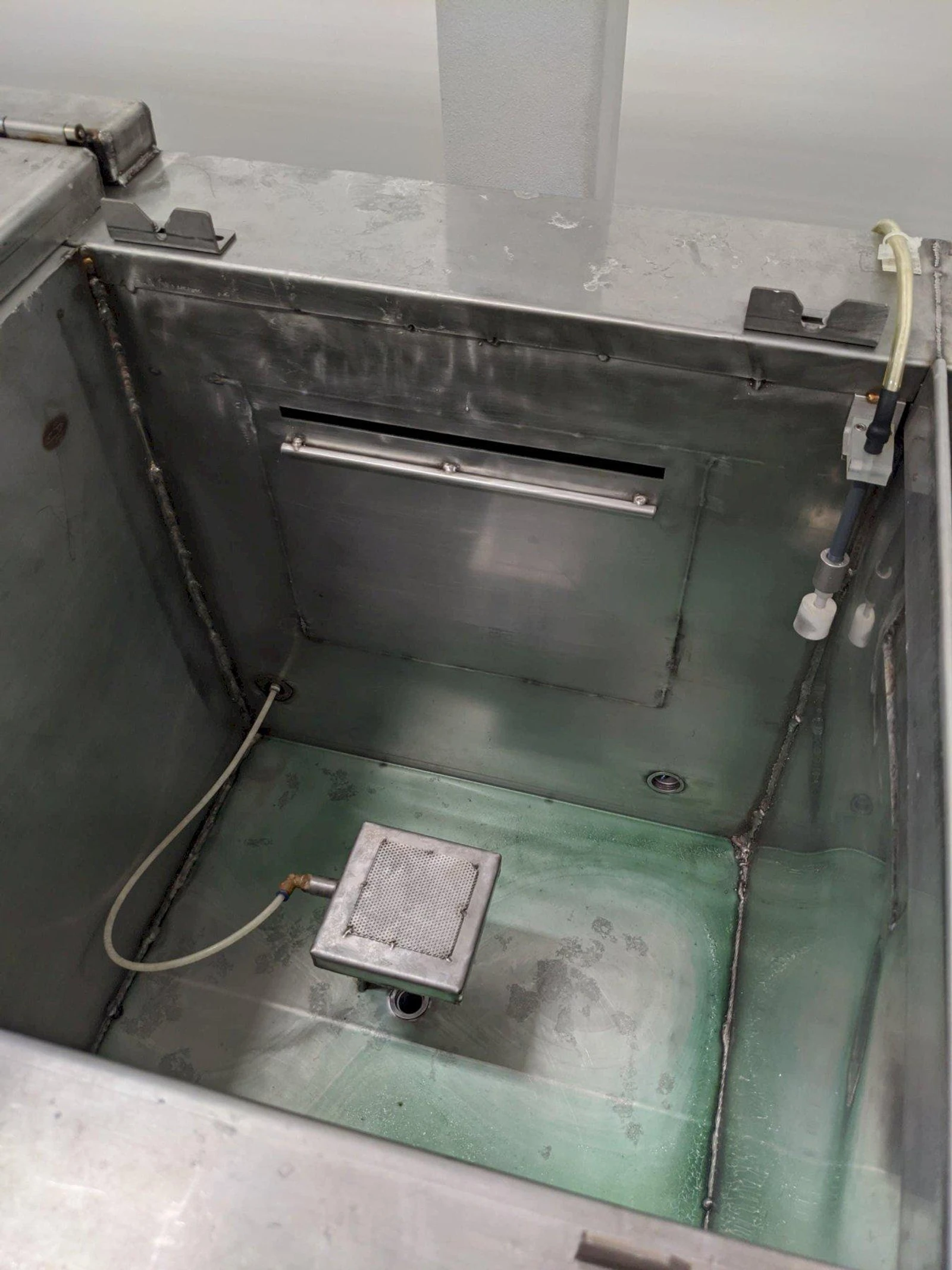

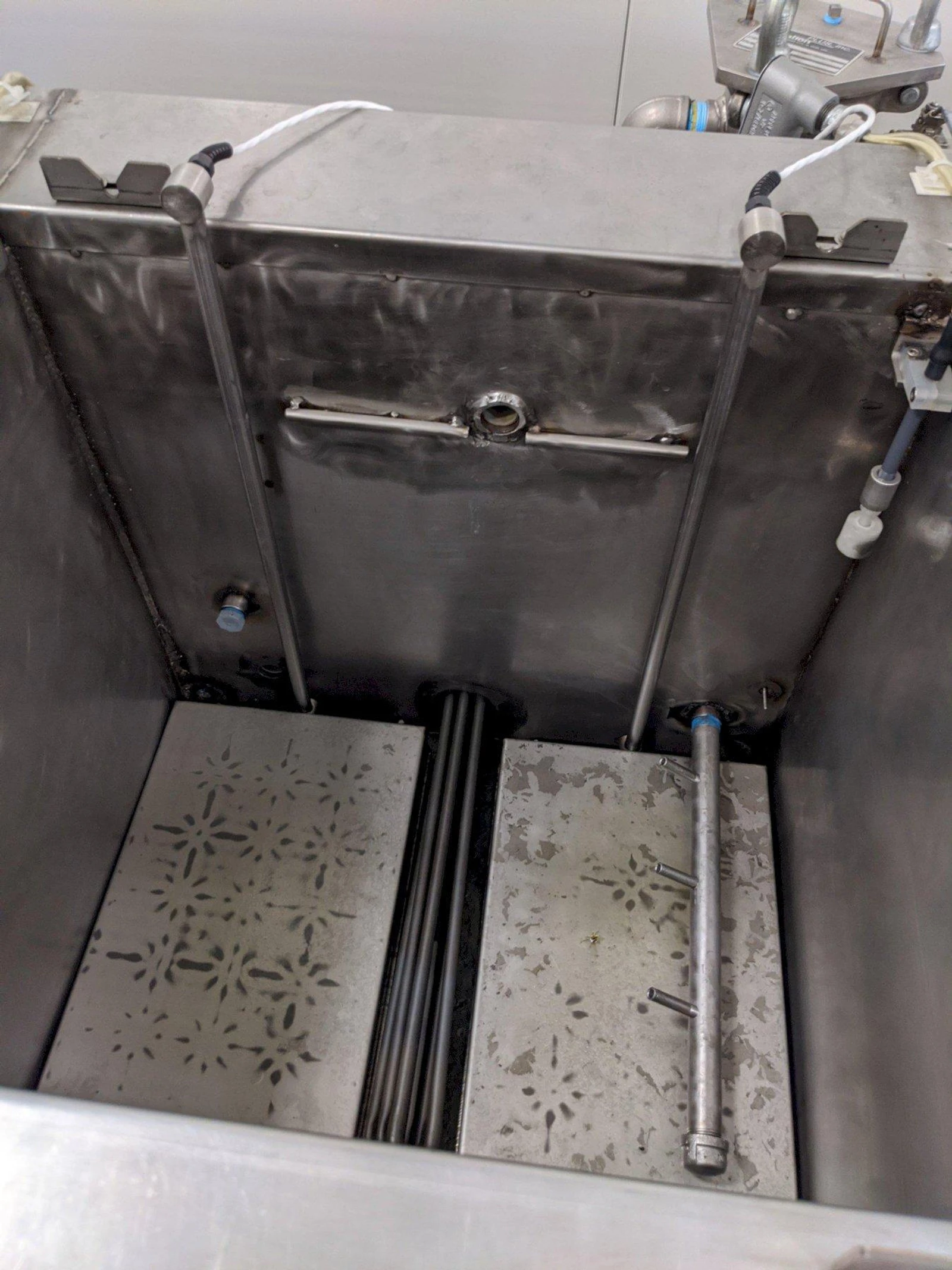

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,• Spargers in every processing tank; ultrasonic tank includes filtration and oil skimmer

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,• Safety protections: light curtain, emergency stop, NEMA 4 enclosure

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,• Final rinse water controlled via conductivity sensor; overflow drain system; centralized plumbing

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,• Ventilation: MAPCO 2 K mist eliminator, GP #12 exhaust fan

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,• Power spec: 480 V, 3-phase, 60 Hz
