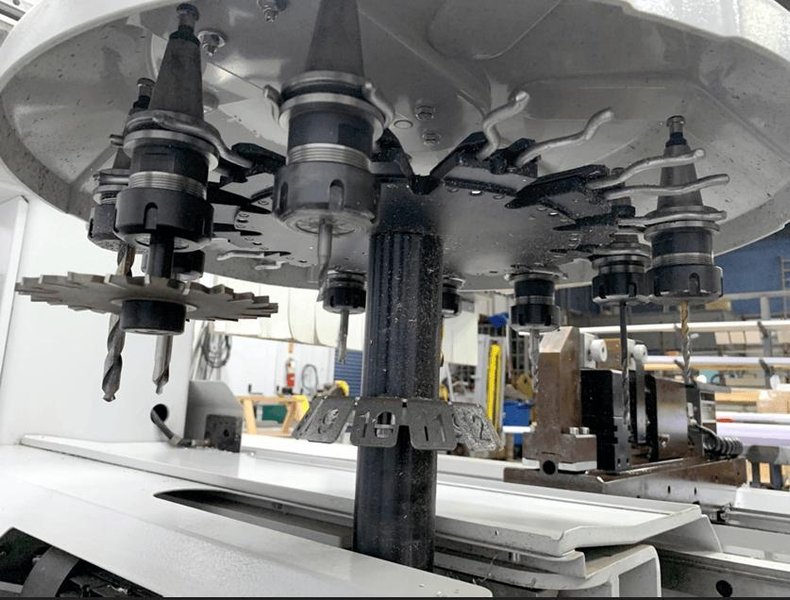

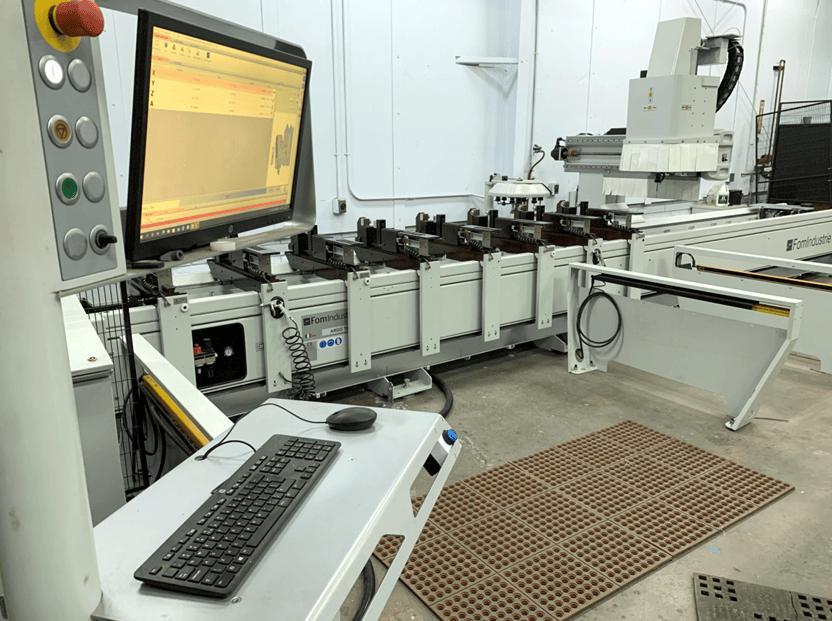

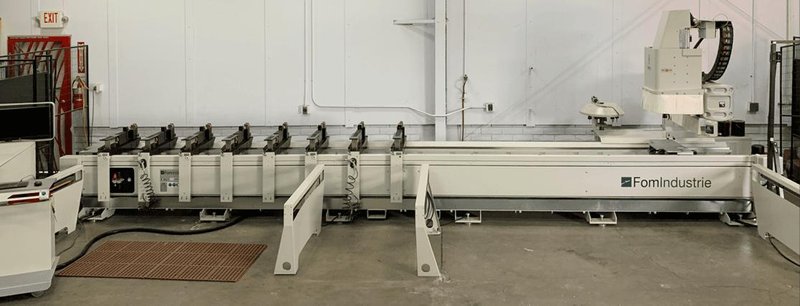

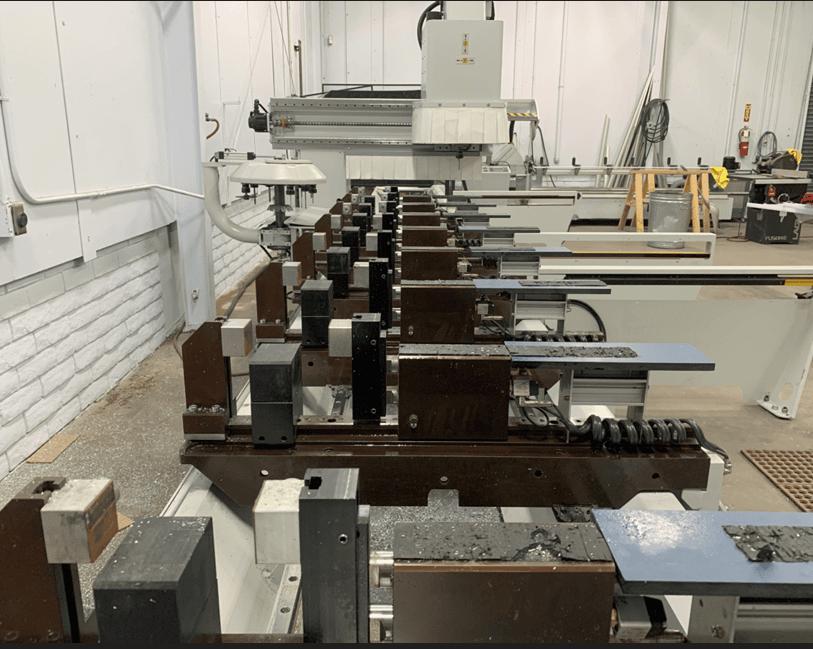

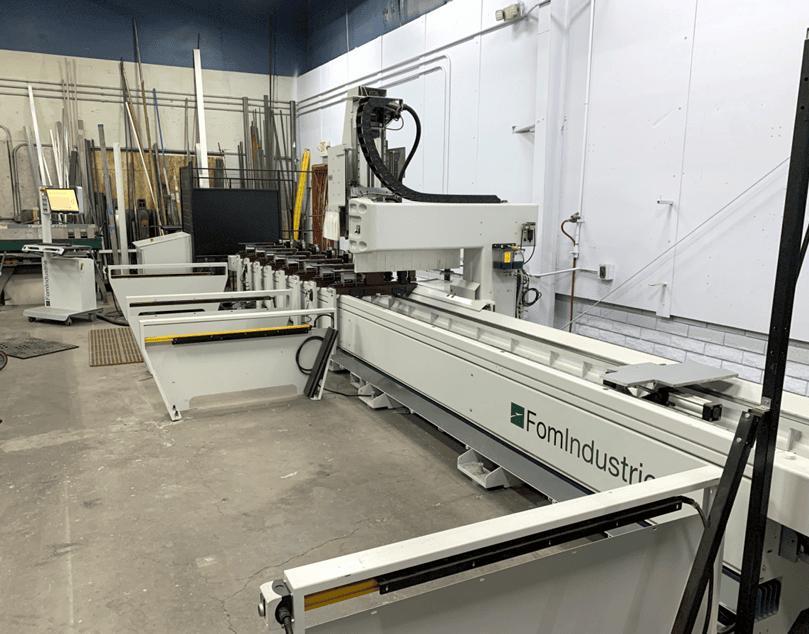

FOM ARGO 70 3+1 CNC Profile Machining Center, 2022

Number of Axis: 3 + 1 Control: Omega 200 (23″ Touch Screen Monitor) Software: Windows 10 Operative System (FOMCAM Software) Machine Dimensions: 27.3″ X 6.2″ X 8.1″ Machine Weight: 8,377.6 Lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: – Electrospindle FOM 6,5 Kw 17.000 rpm (ISO 30) -Electric cabinet cooling – Flow drilling kit – Lubrication system kit for angular heads – Cooling system by emulsified oil with coolant recovery – Forced lubrication for guideways movement – Wireless bar code optical reader, including data import module for Fom Protocol – Wireless bar code optical reader, including data import module for Fom Protocol and data conversion drive – Angular unit for blade – Single tool angular unit – Double tool angular unit – ISO cone for blade – 12 position tool magazine. – 8 Pneumatic vices with automatic positioning by numerical controller – No.4 pneumatic vices with independent positioning – Left sliding pneumatic stop – Full soundproof cover of the machining head – Minimum quantity lubrication (MQL) with pure oil – Greasing gun – Chip conveyor belt – Chip bin – Set up for fumes extraction – Photoelectric cell barrier. – Rear and side fences and swinging gate – Machine handling kit – Electronic equipment ”Power E-Box” – Mobile control console with PC, 21,5” touch screen monitor, mouse and keyboard

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,*Specifications Subject to Buyer Verification

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
