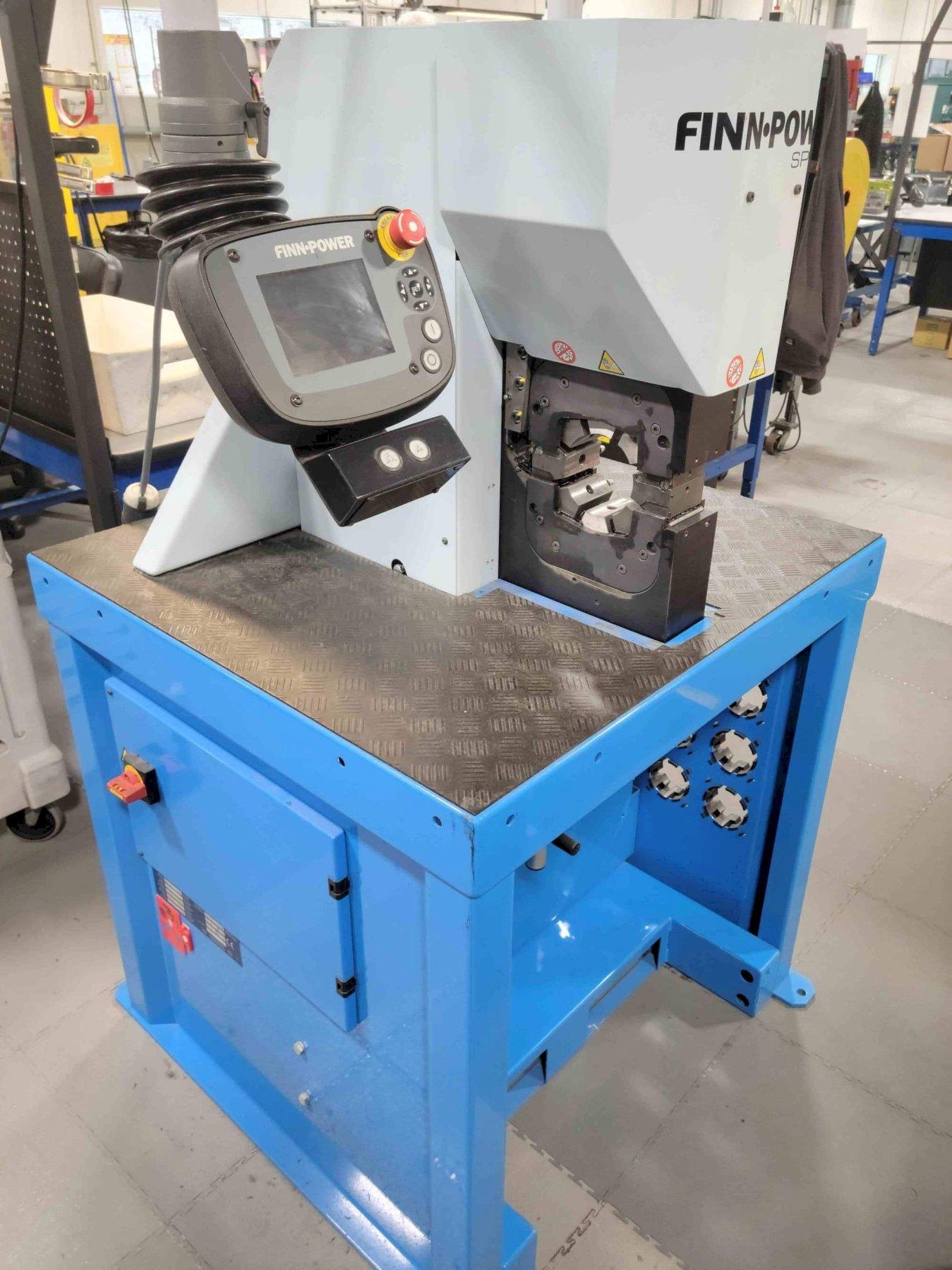

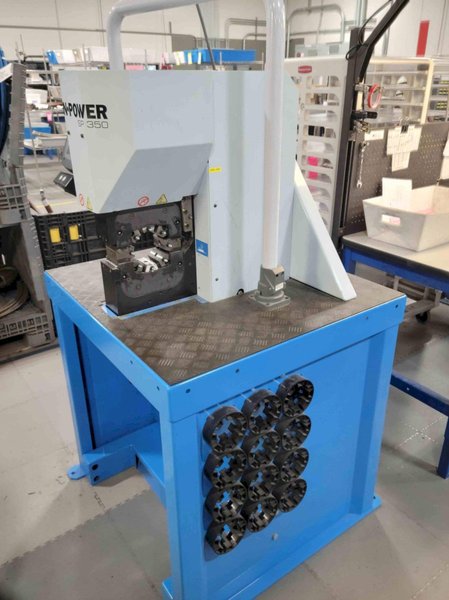

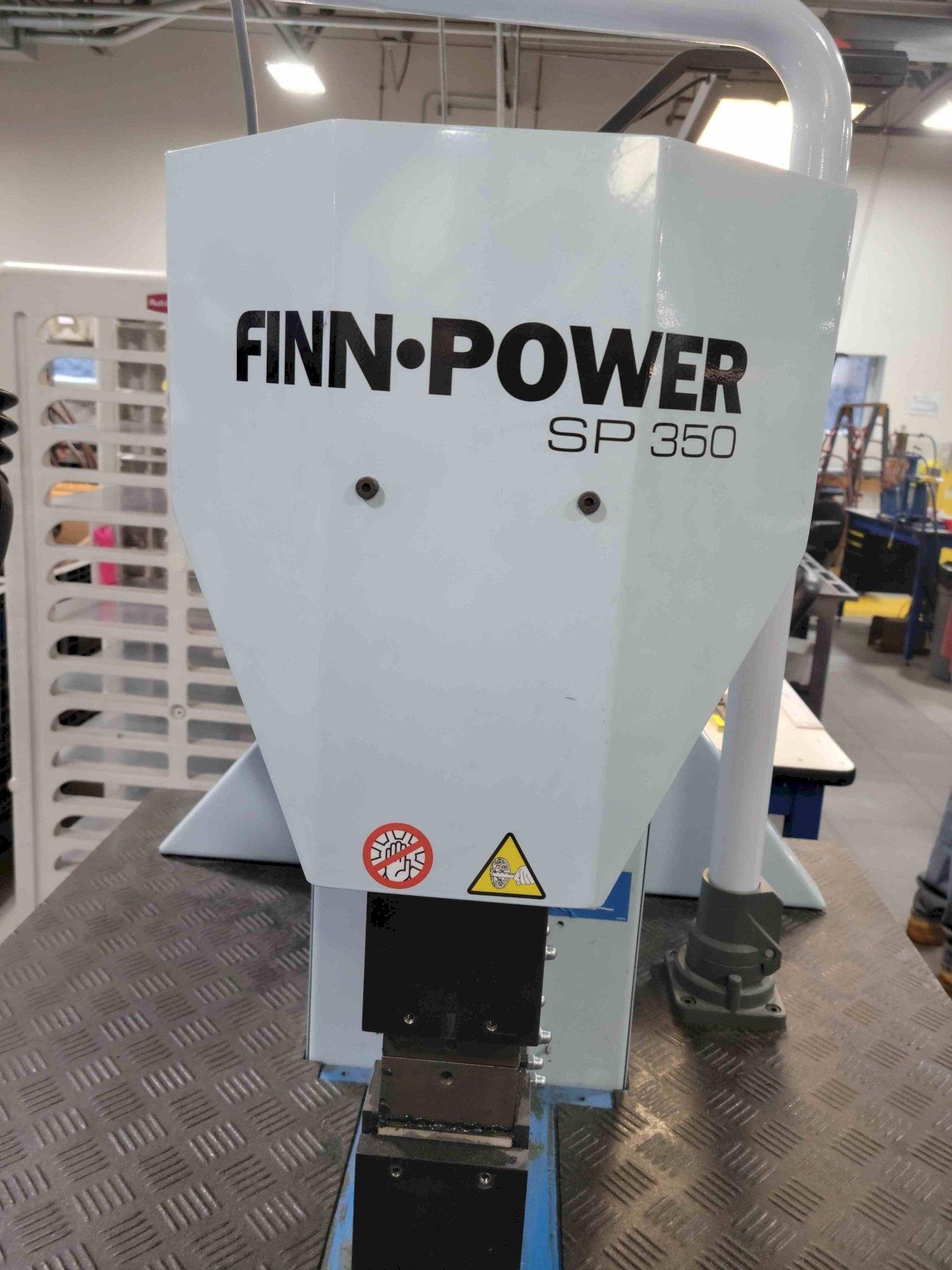

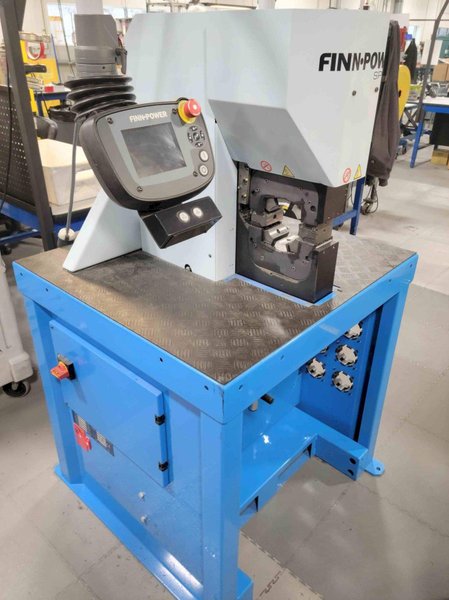

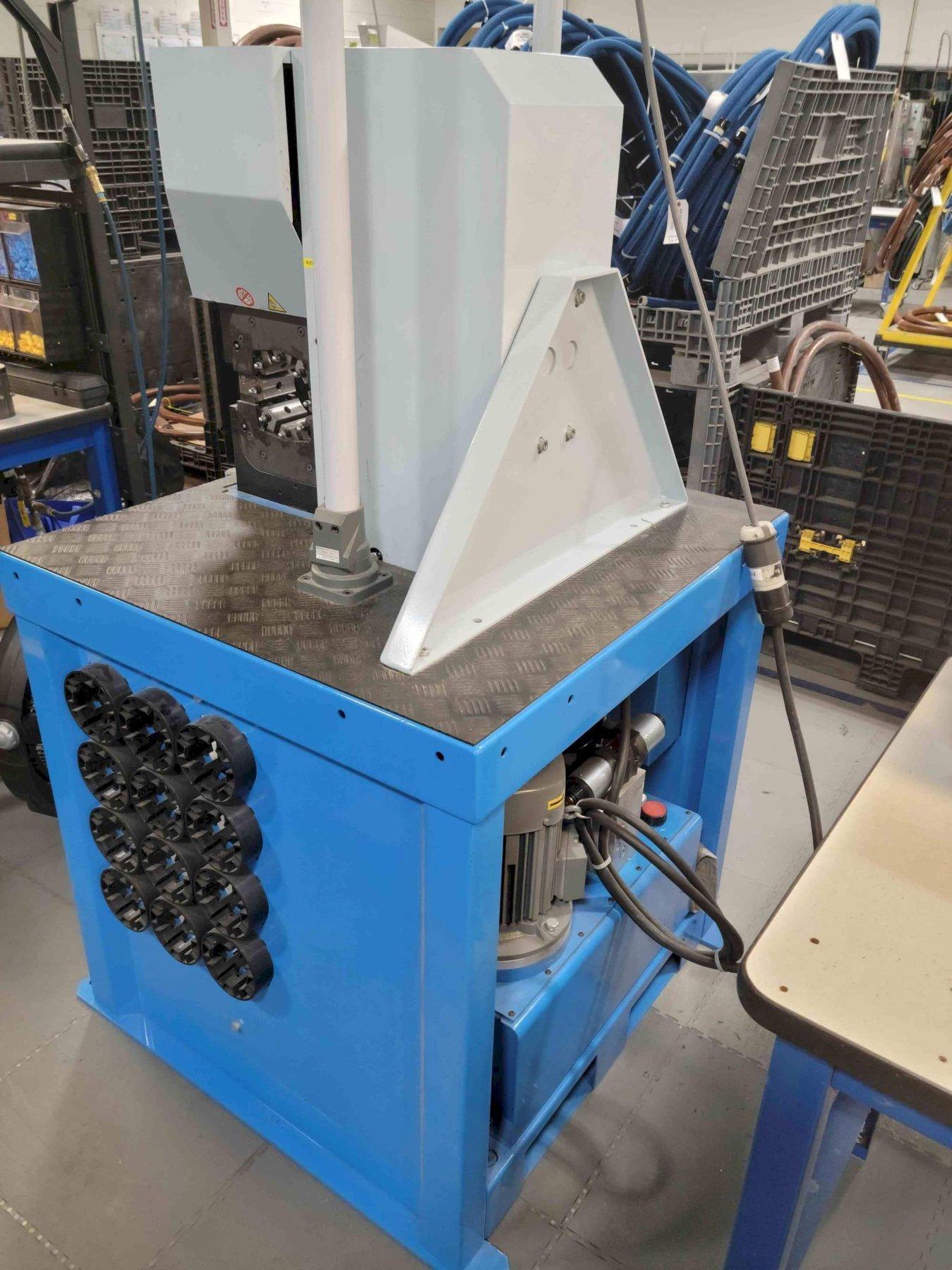

Finn SP-350 Crimping Machine, 2017
Brand
Category
Type
Model
SP350
Stock #
946329
Year
2017
Condition
Not specified
Location
Not specified
|
– Crimping range (mm) ¹: 10-54
– Crimping range (inch) ¹: 0.39-2.12
– Max crimping force (kN): 350
– Max crimping force (tonnage): 35
– Cycle time 10 mm (s) ²: 1.1 (S-model: 0.7)
– Hose size ID (inch): 1 1/4
– Die set series ³: CC22
– Max. opening (mm) ⁴: +25/+48
– Master die D/L (mm): 84/78
– Master die D/L (inch): 3.31/3.07
– Motor Power (kW/HP): 3.0/4.0
– Oil tank volume: 50 l
– Voltage: 230V, 60hZ, 3 Phase
All specifications are assumed to be correct but must be confirmed by the purchasing entity.,-Machine Dimensions (mm): 970x1020x1871 – Machine Dimensions (in): 38.2×40.2×73.7 All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
