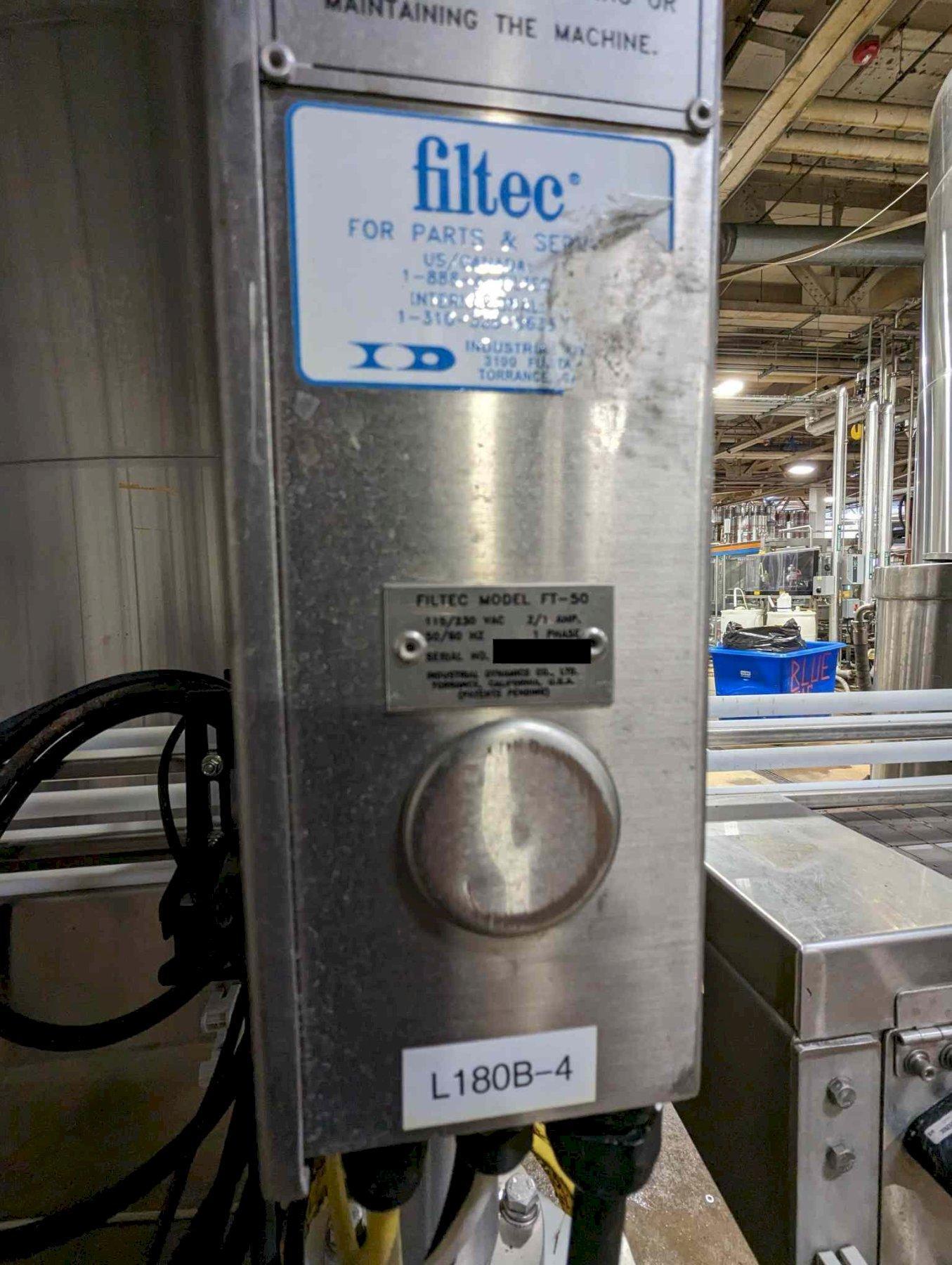

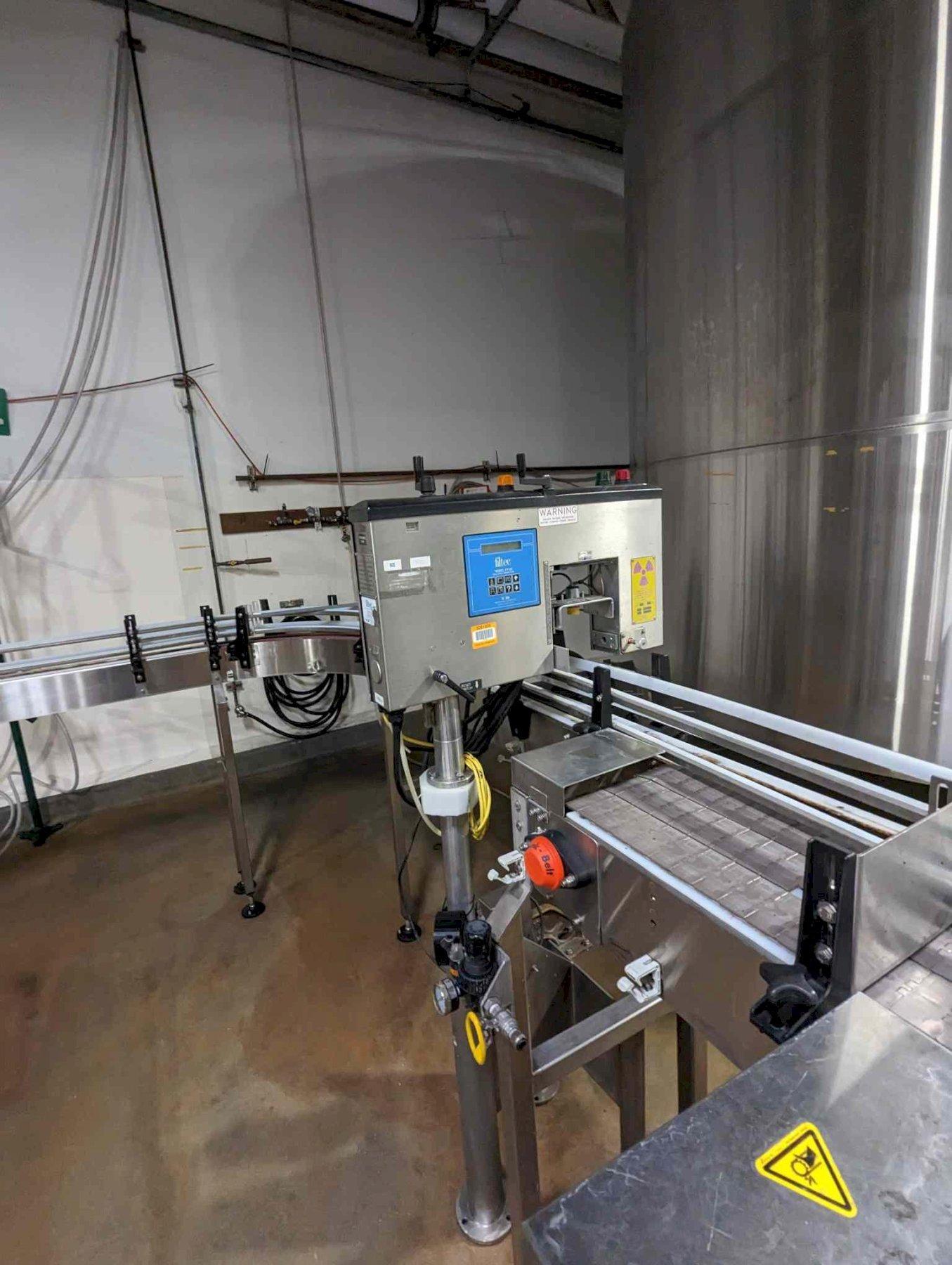

High-speed gamma-based Filtec FT‑50 fill level inspector with FVM and reject integration

Specs Make: Filtec (Industrial Dynamics Co., Ltd.) Model: FT‑50 Inspection type: Gamma radiation profile Radiation source: Americium‑241 (typical: 100 or 300 mCi) Power: 115/230 V, 1 phase, 50/60 Hz, 2/1 A Inspection speed: High-speed compatible Container types: Bottles and cans (plastic, glass, metal) Mounting: Line-mount over conveyor, adjustable pedestal Enclosure: Stainless steel with gamma warning Control panel: Integrated HMI Reject system: Present Footprint: Small line integration

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Installed Options Valve Fill Monitoring (FVM) for valve-specific diagnostics Conveyor-mounted reject mechanism HMI control panel with inspection feedback

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Feature Spotlight

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,This FT‑50 model is equipped with valve-level tracking via the FVM option, allowing real-time diagnostics of filler valves for underfill detection trends. The integrated reject system removes defective containers immediately post-inspection, reducing downstream quality control load. Ideal for high-throughput bottling and canning lines where non-contact, radiation-based fill monitoring ensures product consistency and compliance.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
