Filamatic Econofil Dual Head Filler and CT-100 Cap Tightener, 2019

Filamatic Econofil Filler and CT-100 Cap Tightener, 2019

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Previously used for food grade liquid product in 5 ML, 10 ML, 15 ML, and 30 ML bottles.

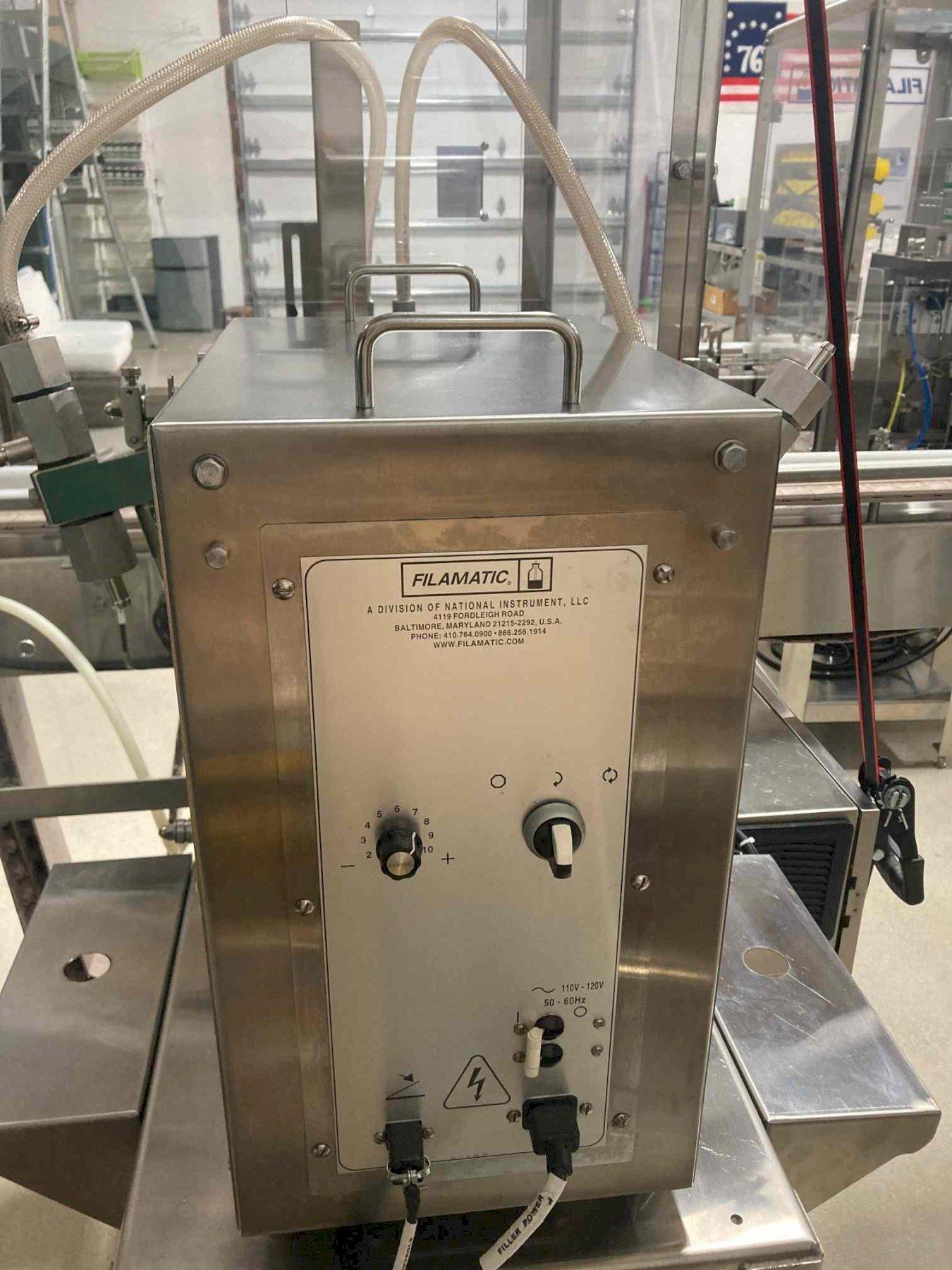

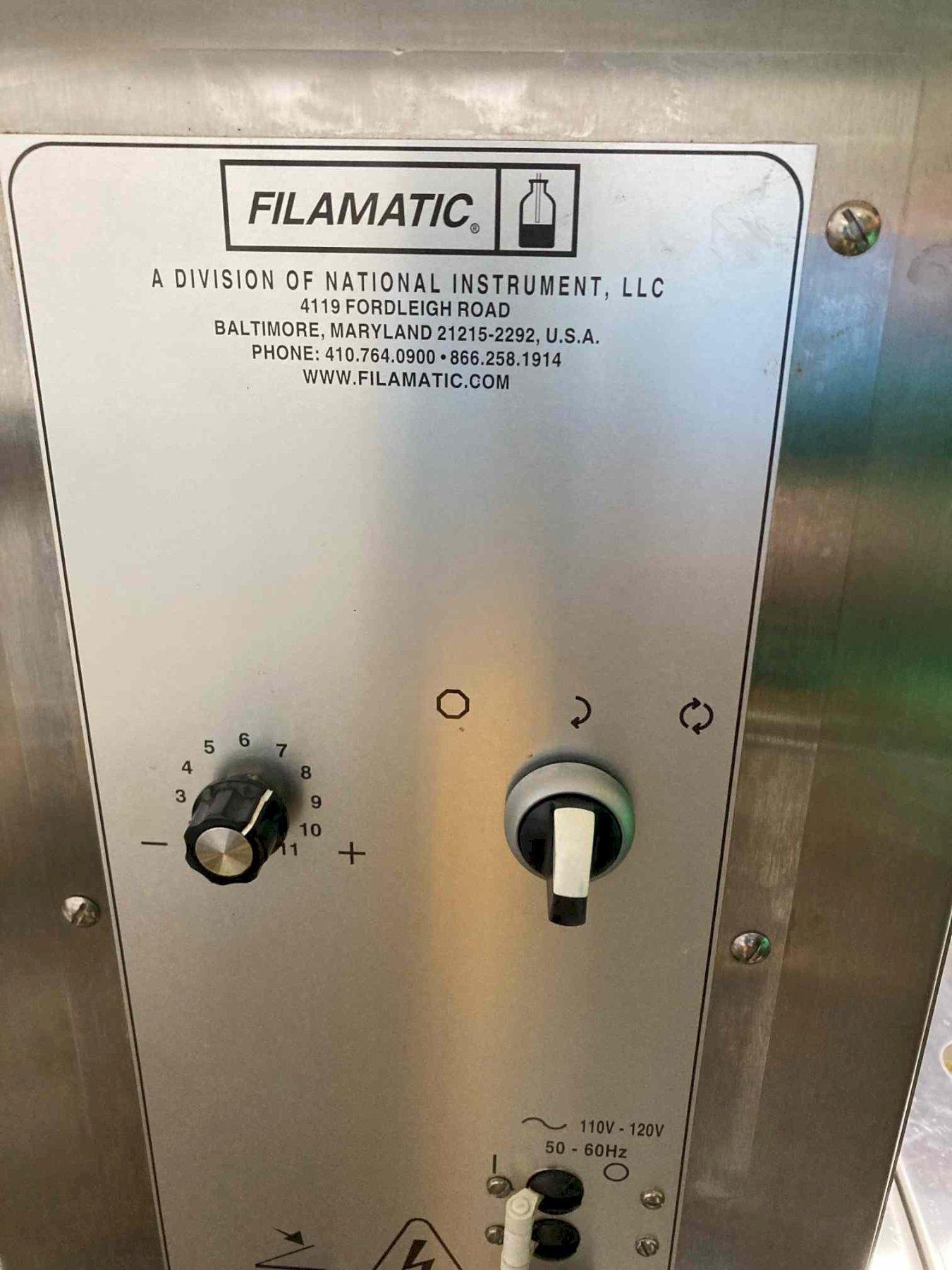

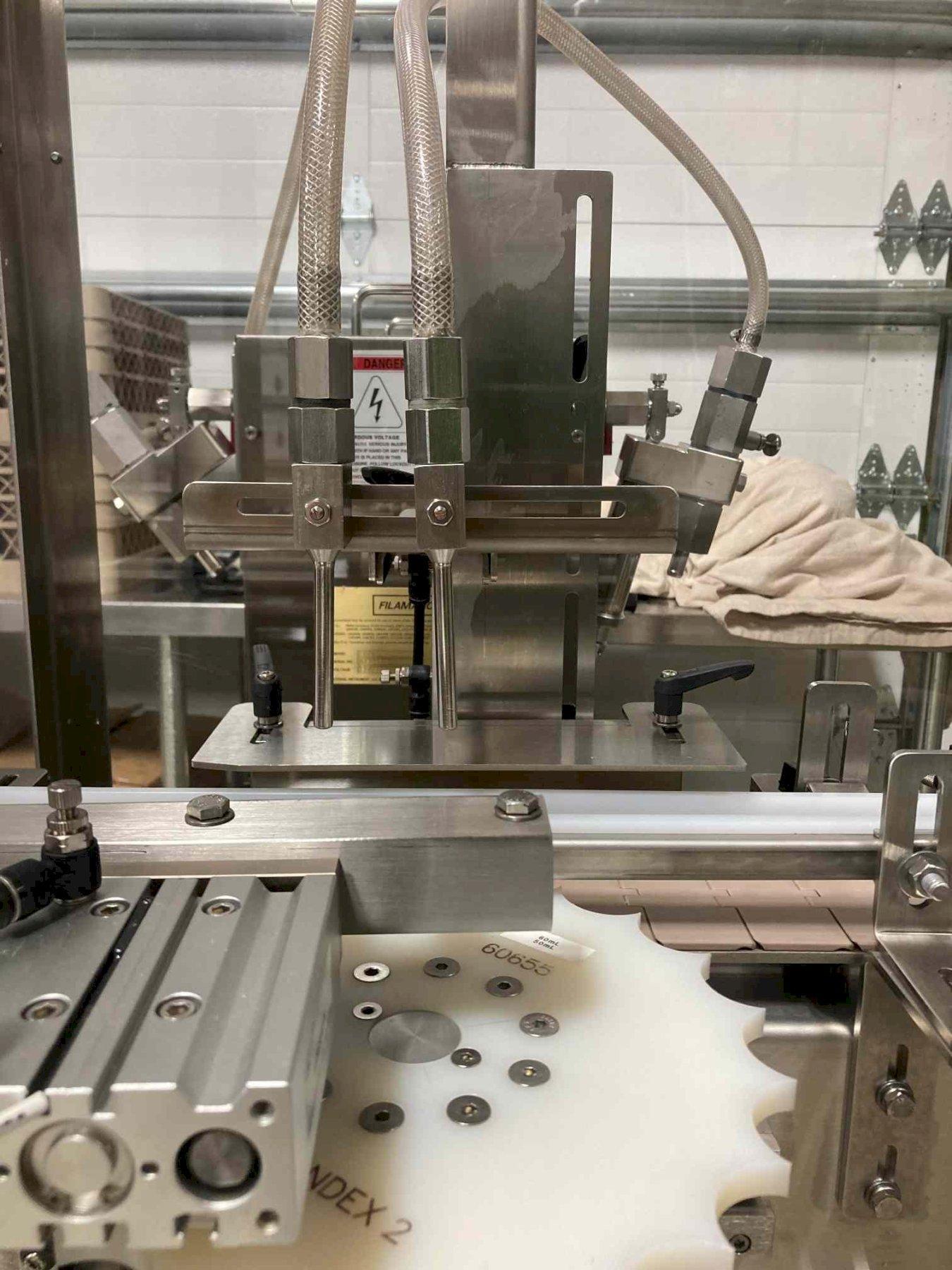

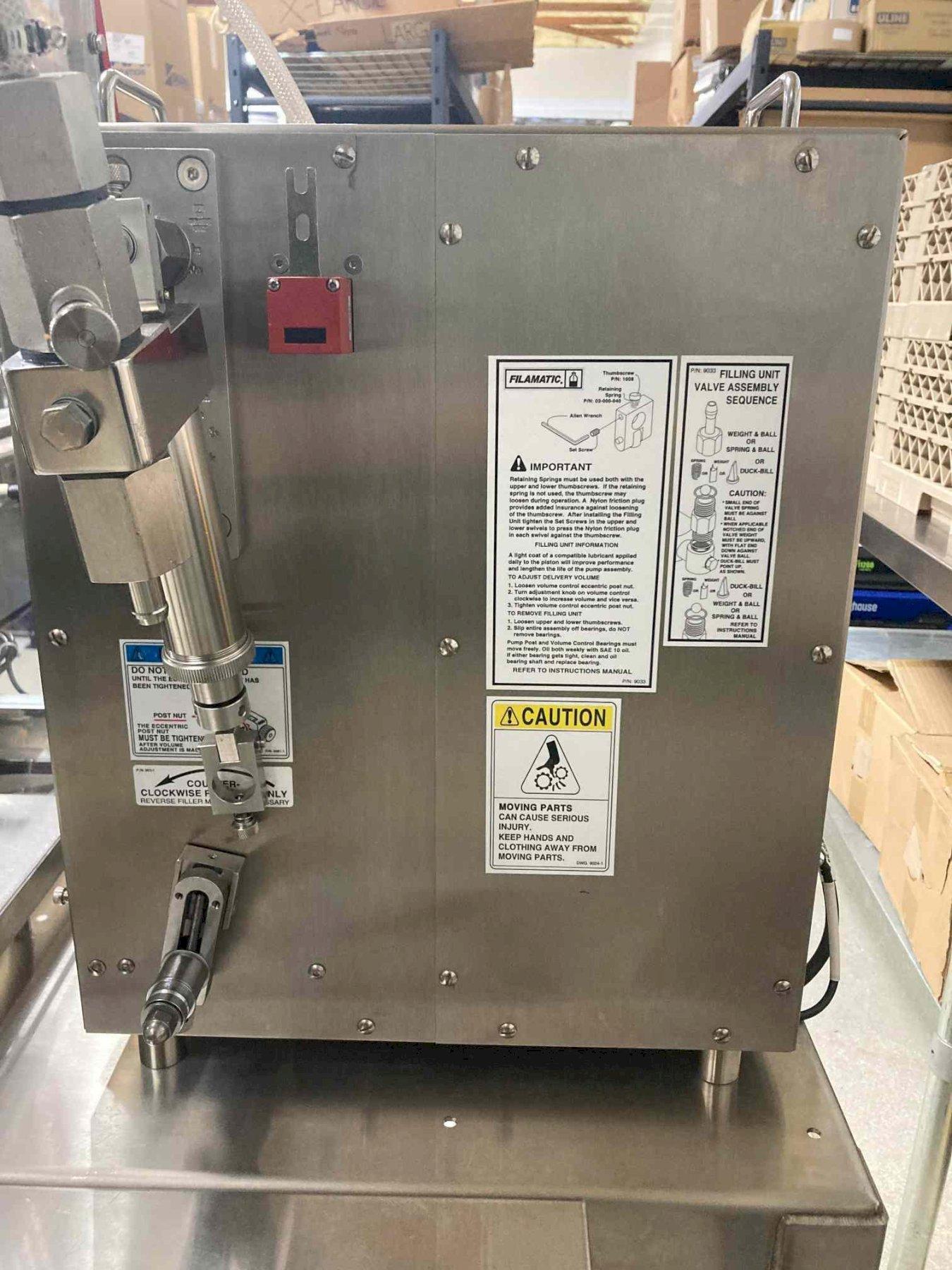

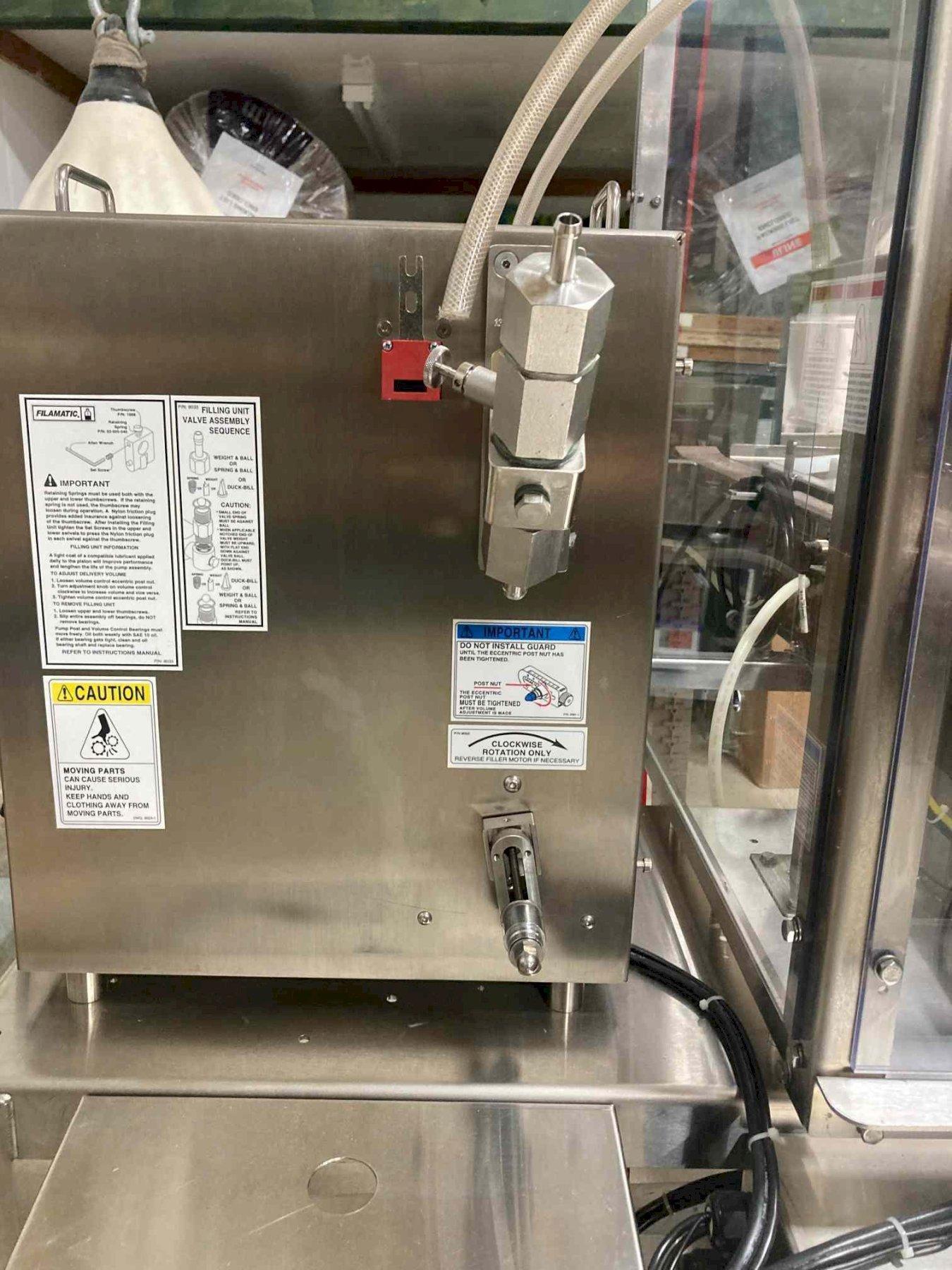

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Filamatic Econofil: – Currently set up with two filling heads – Material of construction: stainless steel plate frame with transparent polycarbonate panels – Air requirements: 1 – 2 SCFM @ 80 PSI – Filling speed: adjustable to 3 to 16 rpm – Filler motor horsepower: 1/8 hp – 110 V, single phase

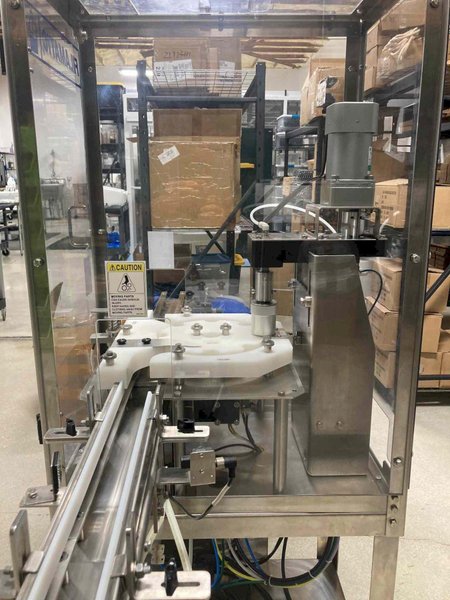

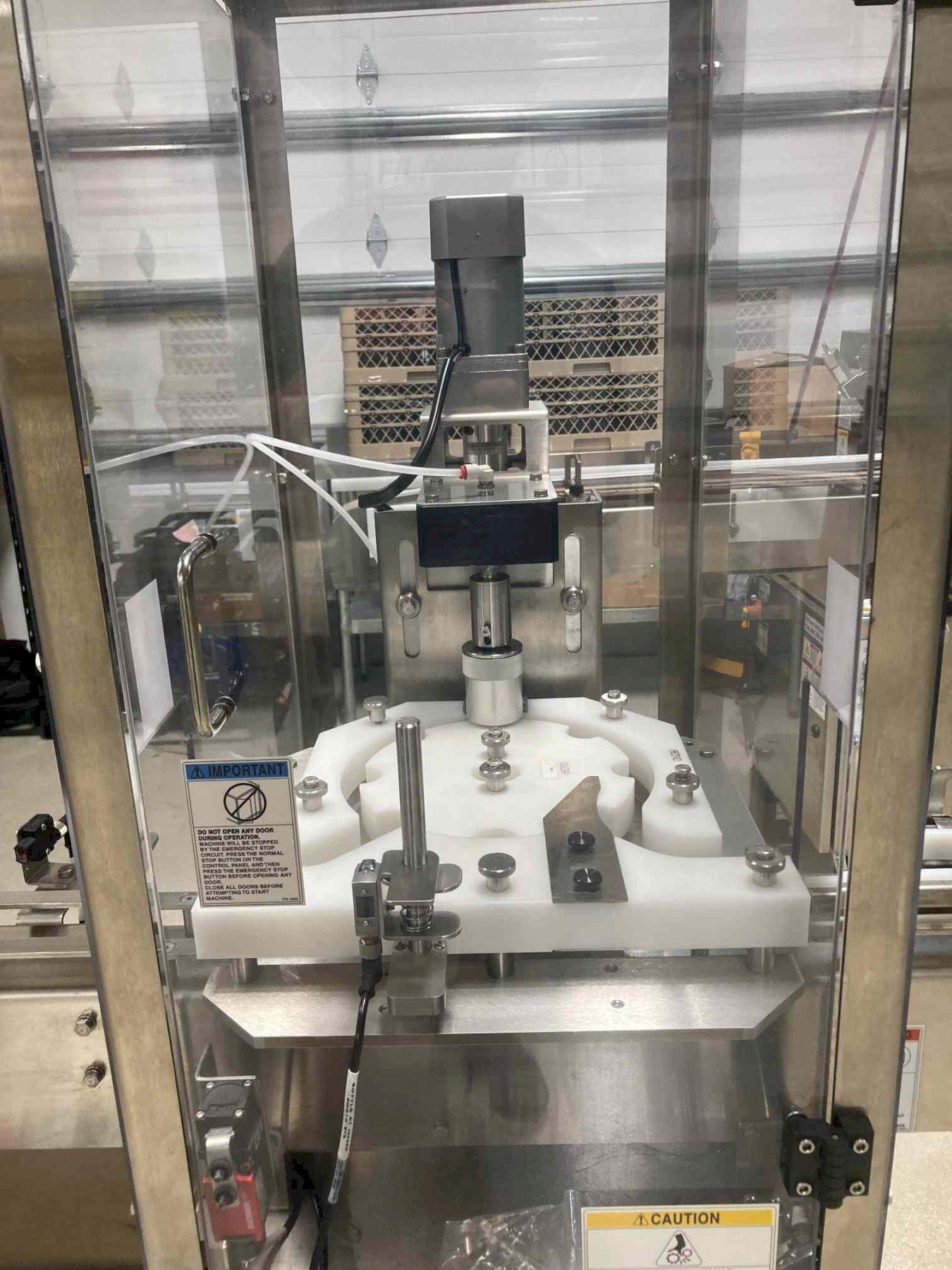

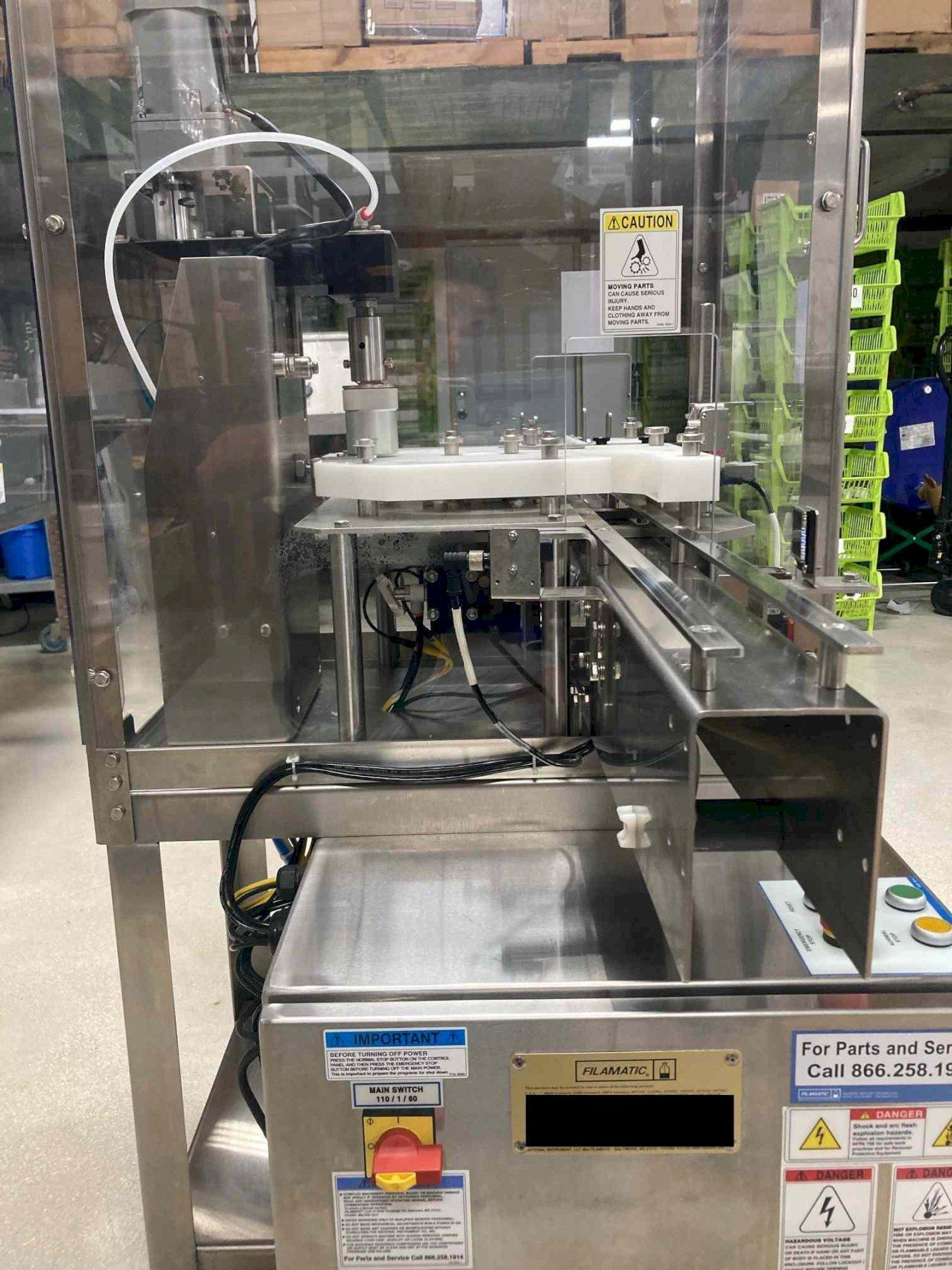

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,CT-100 Cap Tightener: – Material of construction: corrosion resistant materials, engineered plastics, and 300 series stainless steel – Air requirements: 3 – 4 SCFM @ 80 PSI – Cap tightening speed: adjustable to around 30 – 38 caps per minute – Tightener drive: AC induction motor/belt power train – Container with closure height: 1.62″ min, 4.5″ max – Container diameter: .62″ min, 2.37″ max – Closure diameter: 13mm min, 24mm max – 110 V, single phase

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
