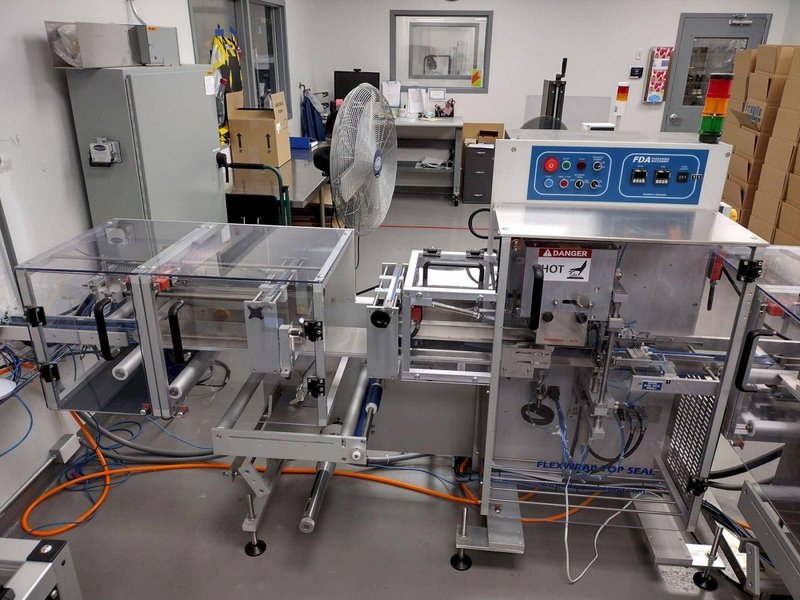

FDA Packaging Machinery – Flexwrap Right Angle Horizontal Form Fill and Seal Machine (2020 Model)

Equipment Overview The FDA Flexwrap Right Angle is a modern, servo-assisted horizontal form-fill-seal packaging machine producing pillow packs with a cross seal at both ends and a single fin seam down the back/top. This model is designed for automatic loading from upstream pouring or feeding equipment and is capable of high-speed, consistent packaging for products requiring sealed flexible film. It supports a wide variety of film materials and offers fine-tuned controls for pack length, sealing temperature, and product positioning.

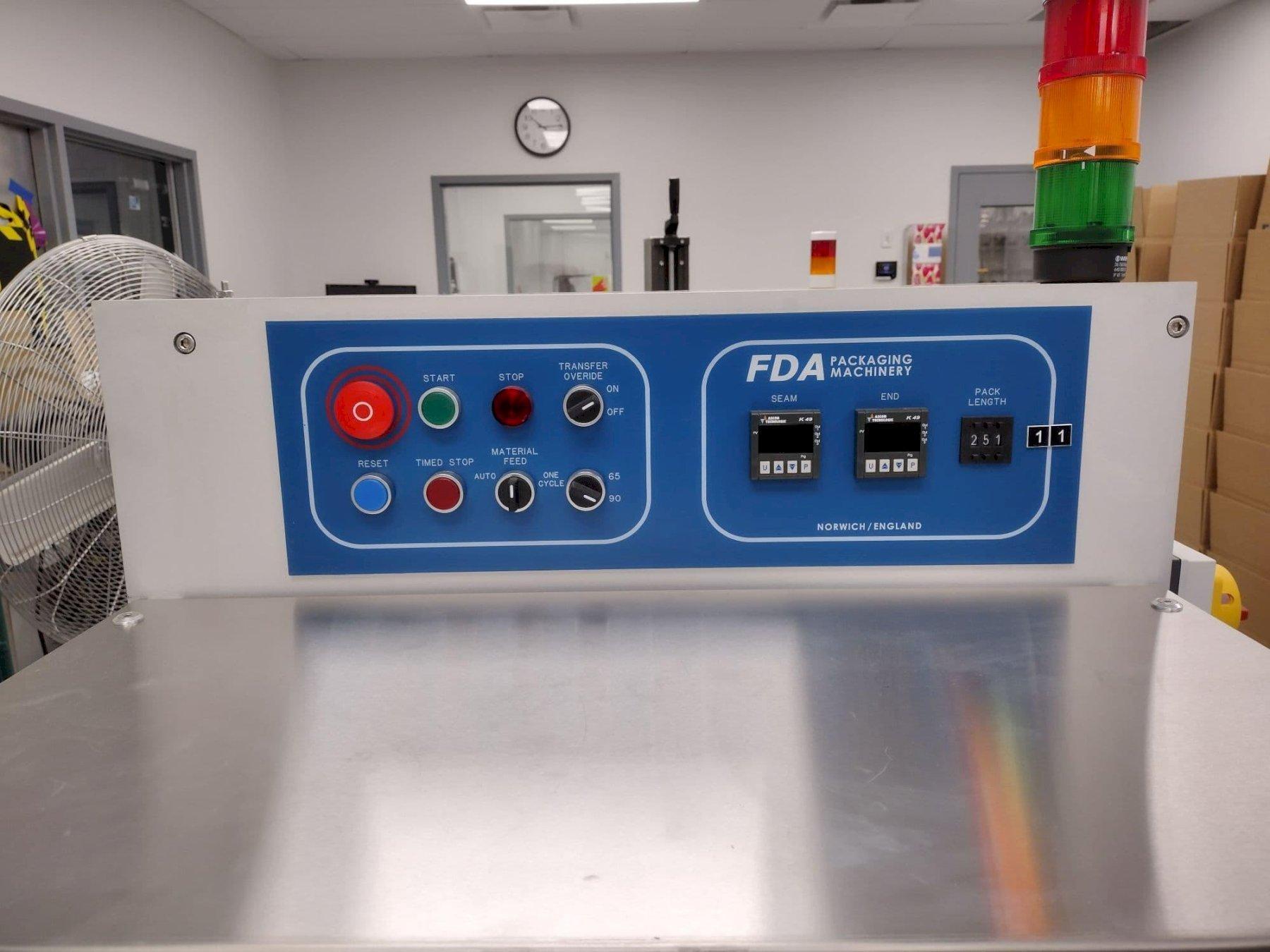

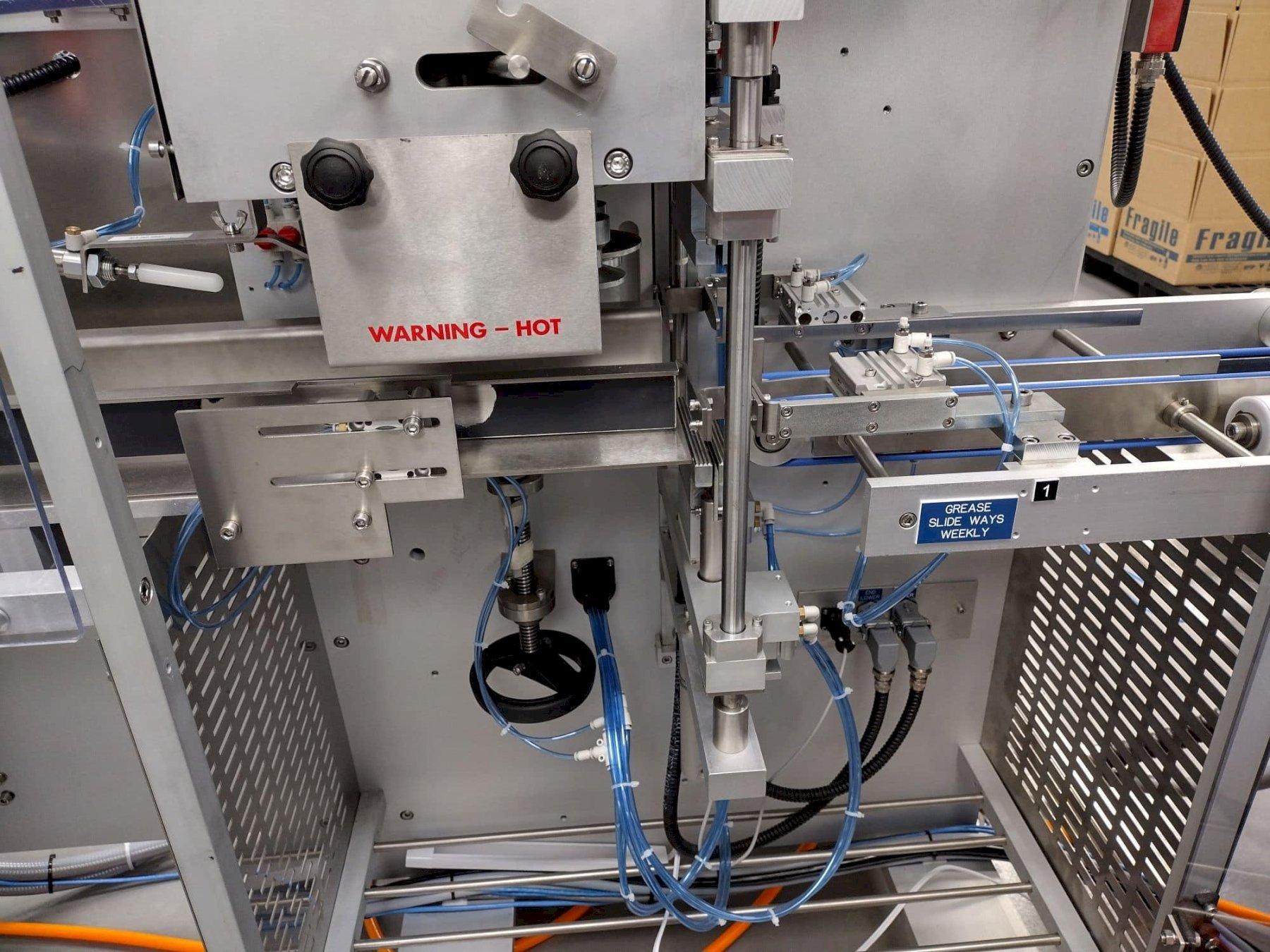

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,The machine is enclosed with full interlocked safety guarding and fitted with a clear operator control panel including emergency stop, start/stop, timed stop, mode selector, and temperature controls. Pneumatic and electrical systems are easily accessible for maintenance, and the machine features daily/weekly maintenance points as per the OEM manual.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Key Features & Specifications

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Form-Fill-Seal Method: Pillow pack, fin-seam on top, cross end seals.

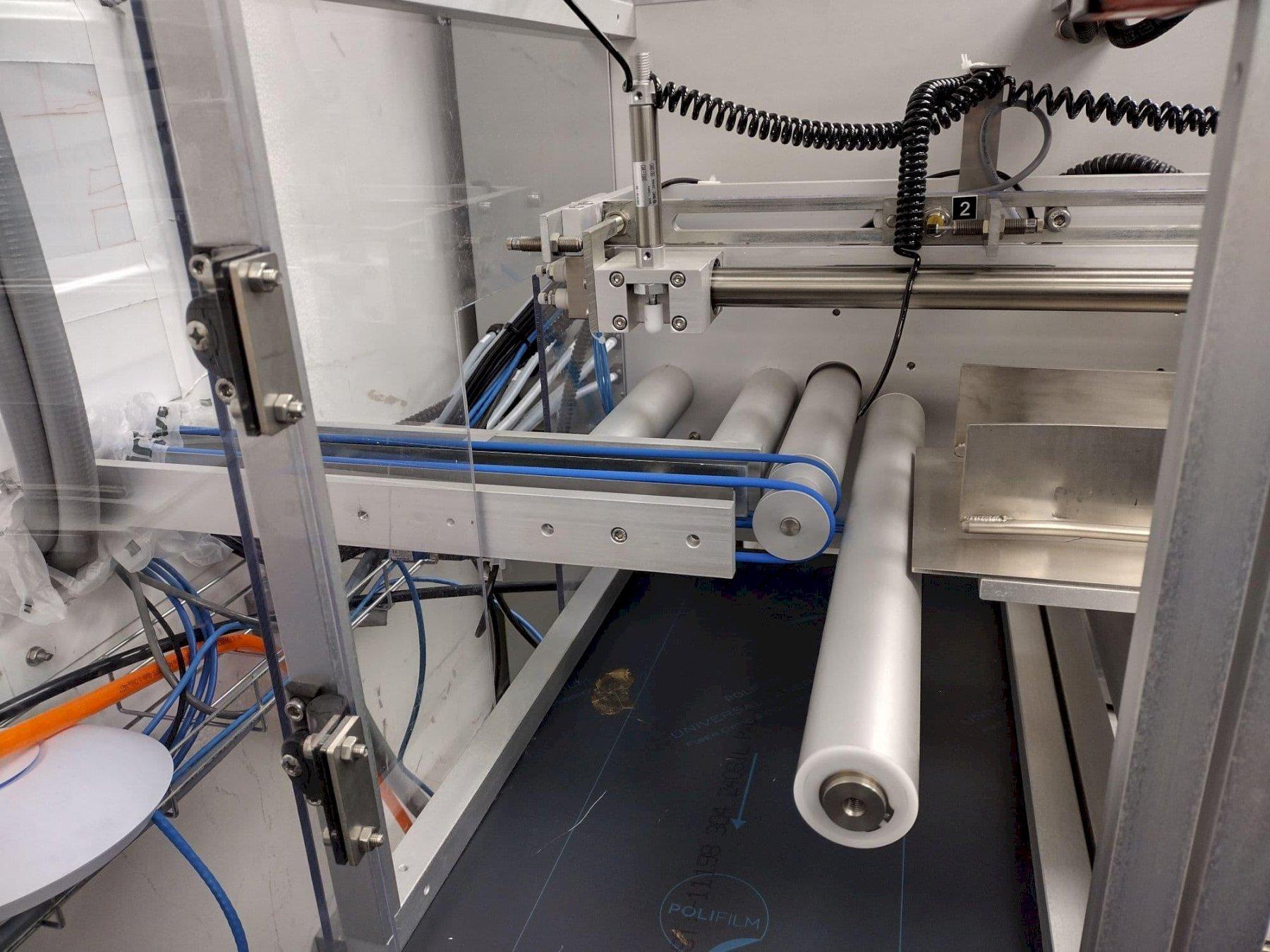

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Adjustment Capabilities: Film reel (75 mm core, up to 330 mm outer diameter, width 450 mm); reel tension and firewall adjustable

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Control System: Mitsubishi micro PLC and inverter, with heating via Tecnologic controllers

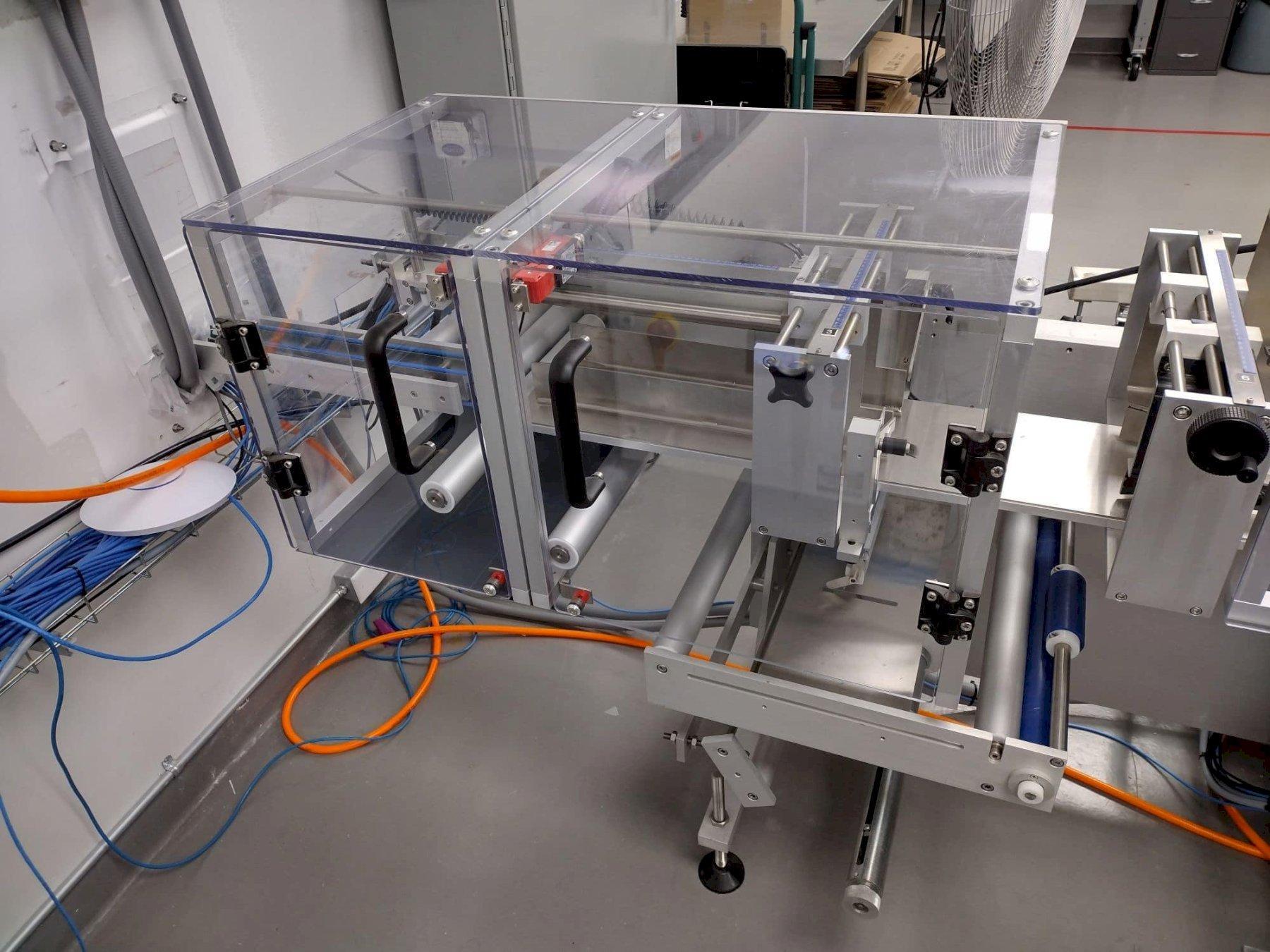

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Safety System: Full interlocked guarding (polycarbonate hinged doors), E-stop with air dump and reset, lockable main isolator .

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Pneumatic System: Single cycle 1.6 L/cycle at 6 Bar; requires 120 L/min supply .

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Installation Requirements: Requires stable flat floor, clear space, ventilation, and safe lifting points for installation .

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Weight & Mobility: 500 kg frame with forklift/crane lifting support .
