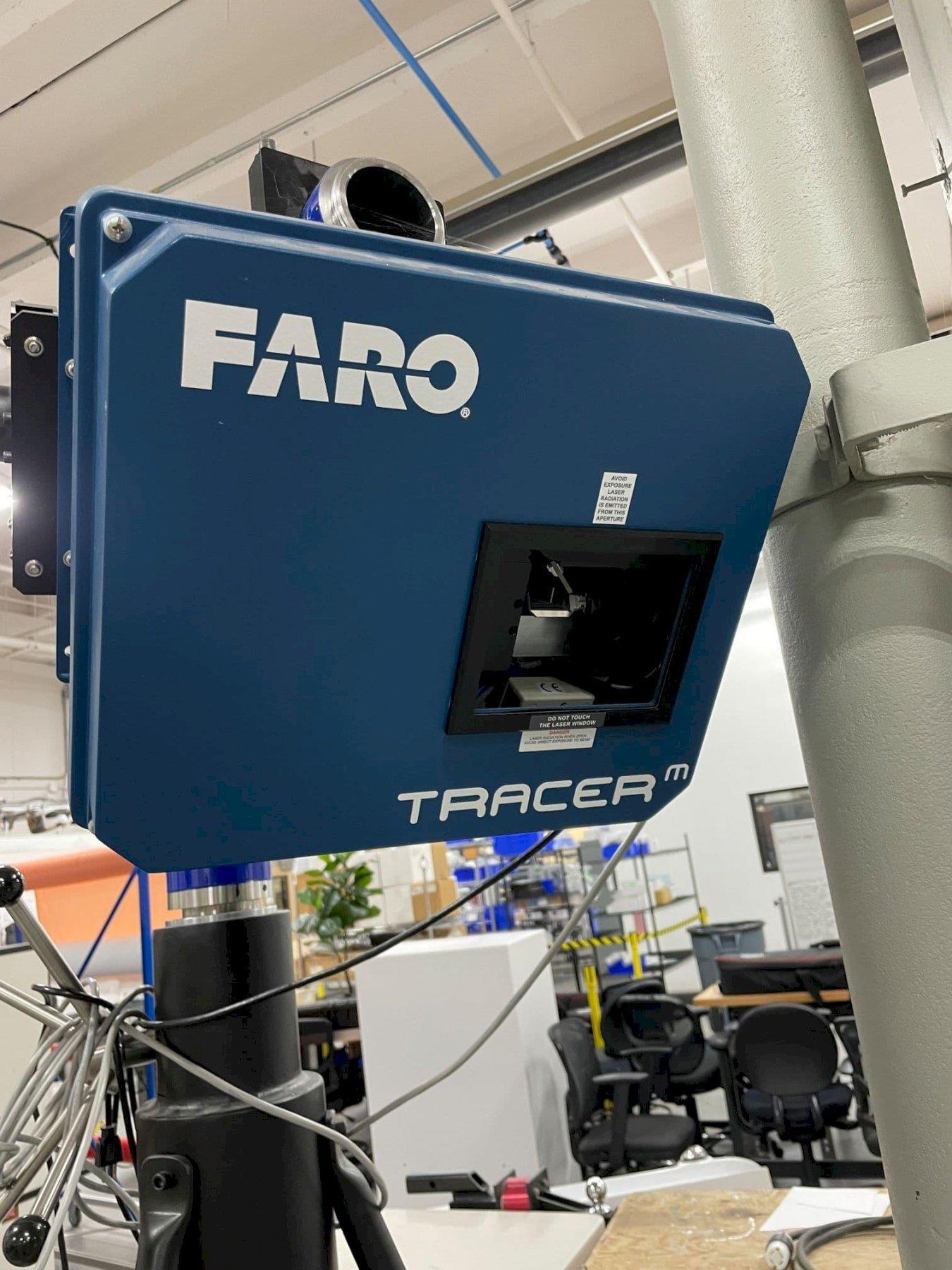

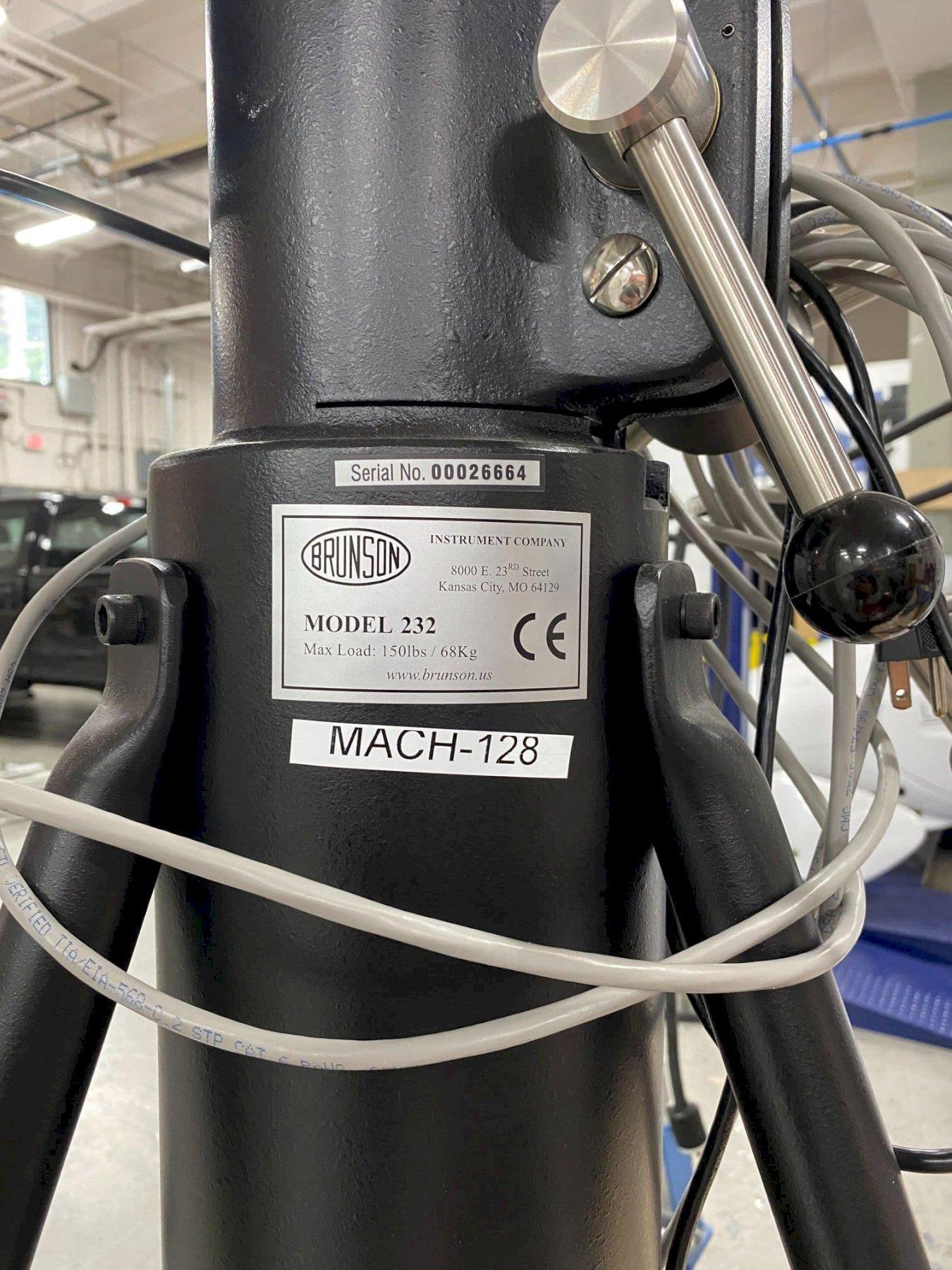

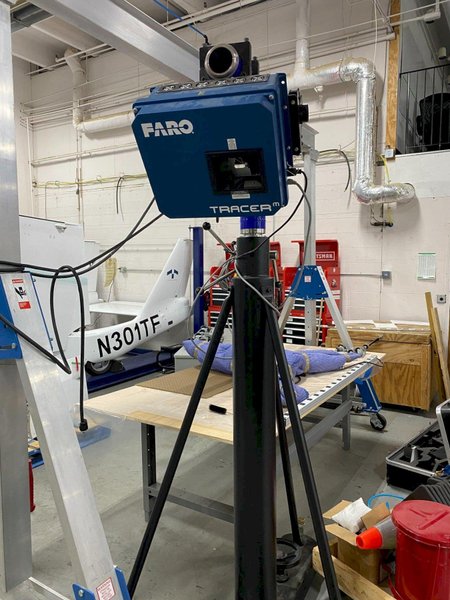

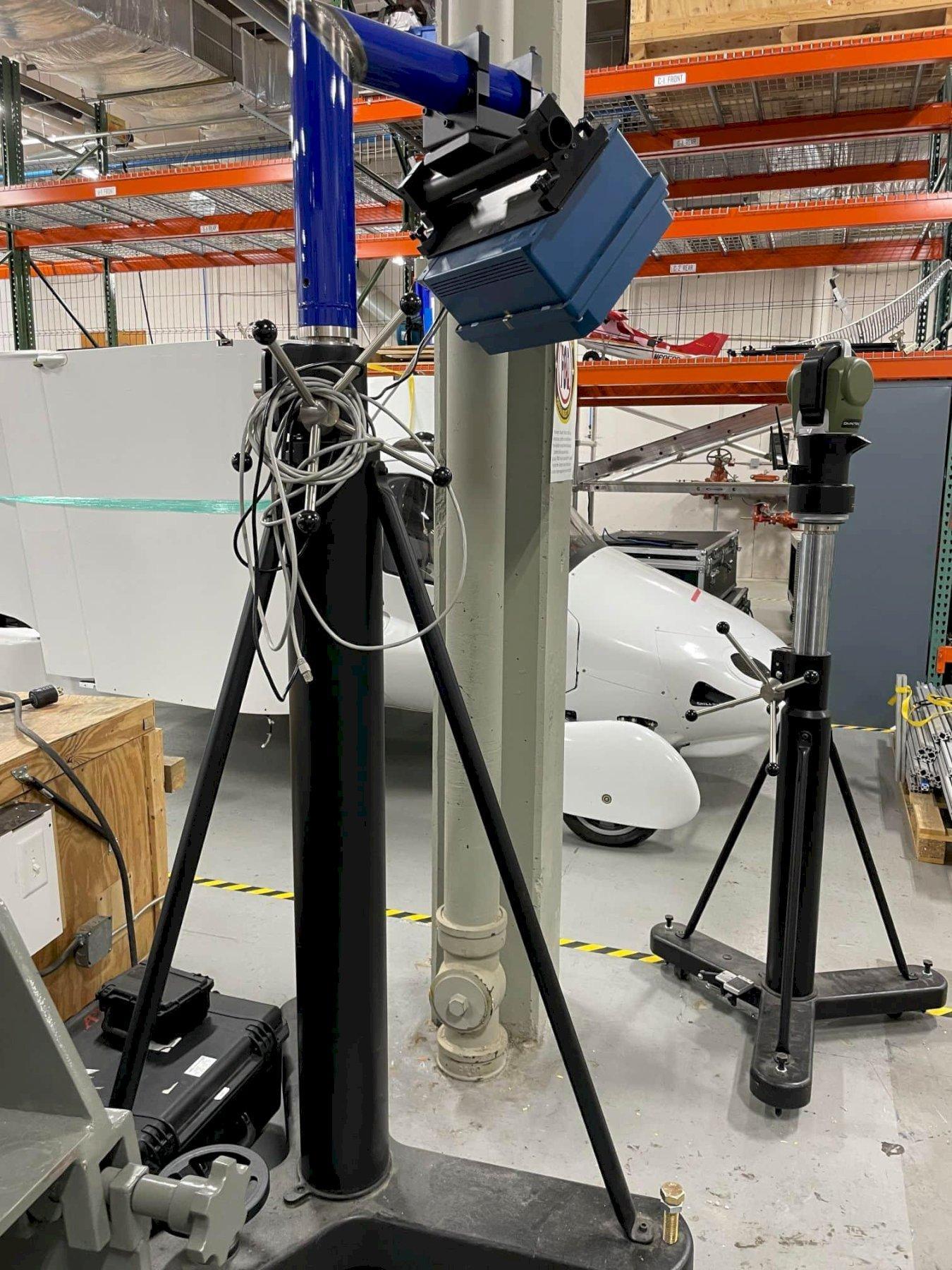

Faro Tracer M, 2018 – Includes Brunson 232 Stand
Brand
Category
Model
Tracer M
Stock #
950835
Year
2018
Condition
Not specified
Location
Not specified
|
Positional Accuracy @ 4.7m (2 RMS): .25mm (.01 in.)
Projection Range: 1.8 – 15.2m (6 – 50ft.)
Angular field of View: 60° Az x 60° El
Focused Line Width (1/e2): .5mm (.02 in.)
Laser Wavelength (nm): 532 nm, Green
Connectivity: Ethernet
Projector Size L x W x H (mm): 445 x 239 x 338
Projector Size L x W x H (inches): 17.5 x 9.4 x 13.3
Projector Weight: 17.2kg (38 lbs)
Ambient Temperature Range: 10 – 35°C (50 – 95°F)
Power Input: 100/120/240 VAC; 50/60Hz (0.75A/0.32A)
Laser Class: CDRH II; Class 2 (<1mW) or CDRH IIIa; Class 3R (<5mW). Complies with IEC 60825-1:2014
Certifications: EU – RoHS; UL listed
All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
