2023 FANUC P-350iA/45 – Class 1 Div 1 Hazardous Duty Robot w/ OEM Controller

Equipment Overview

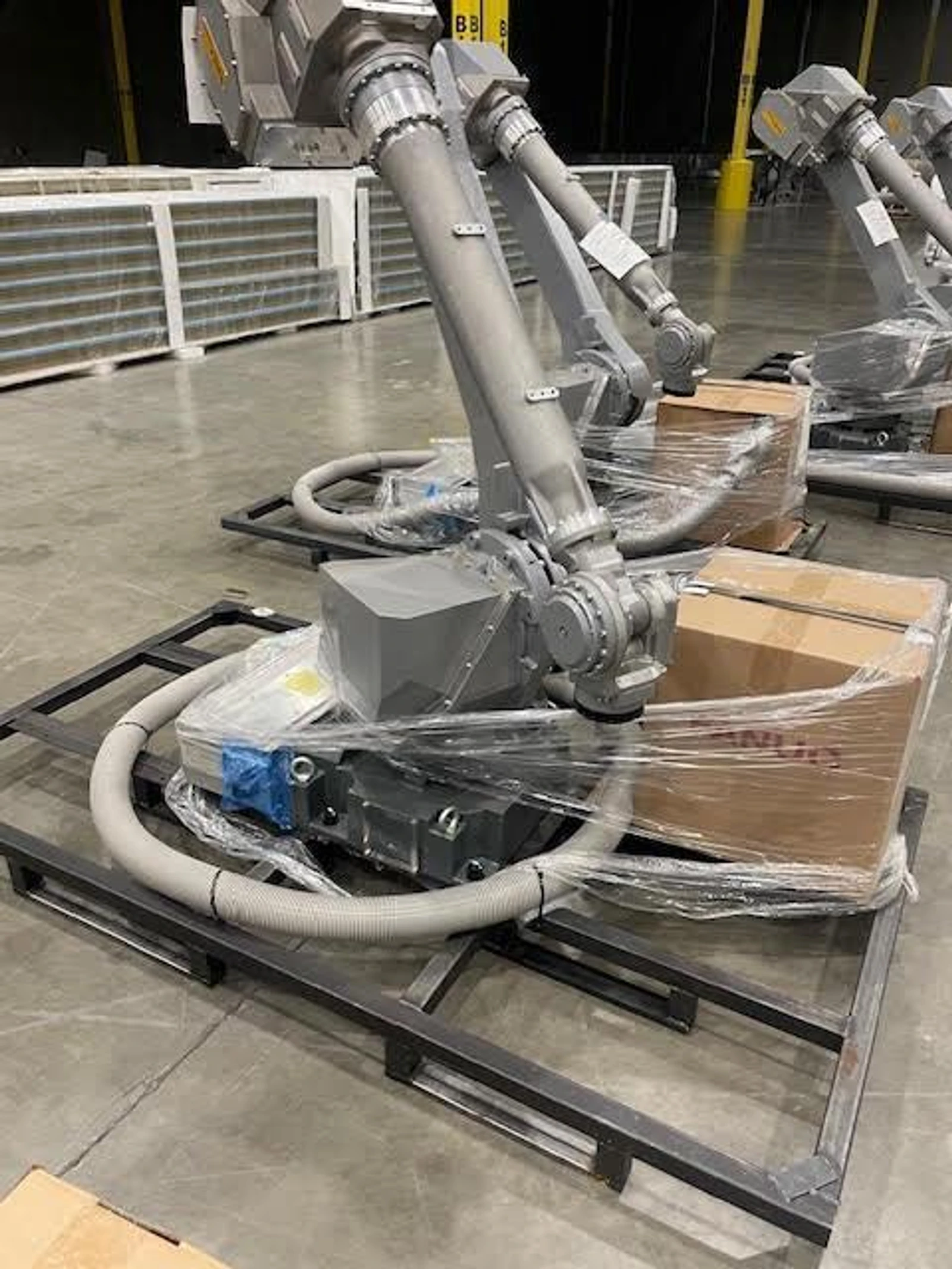

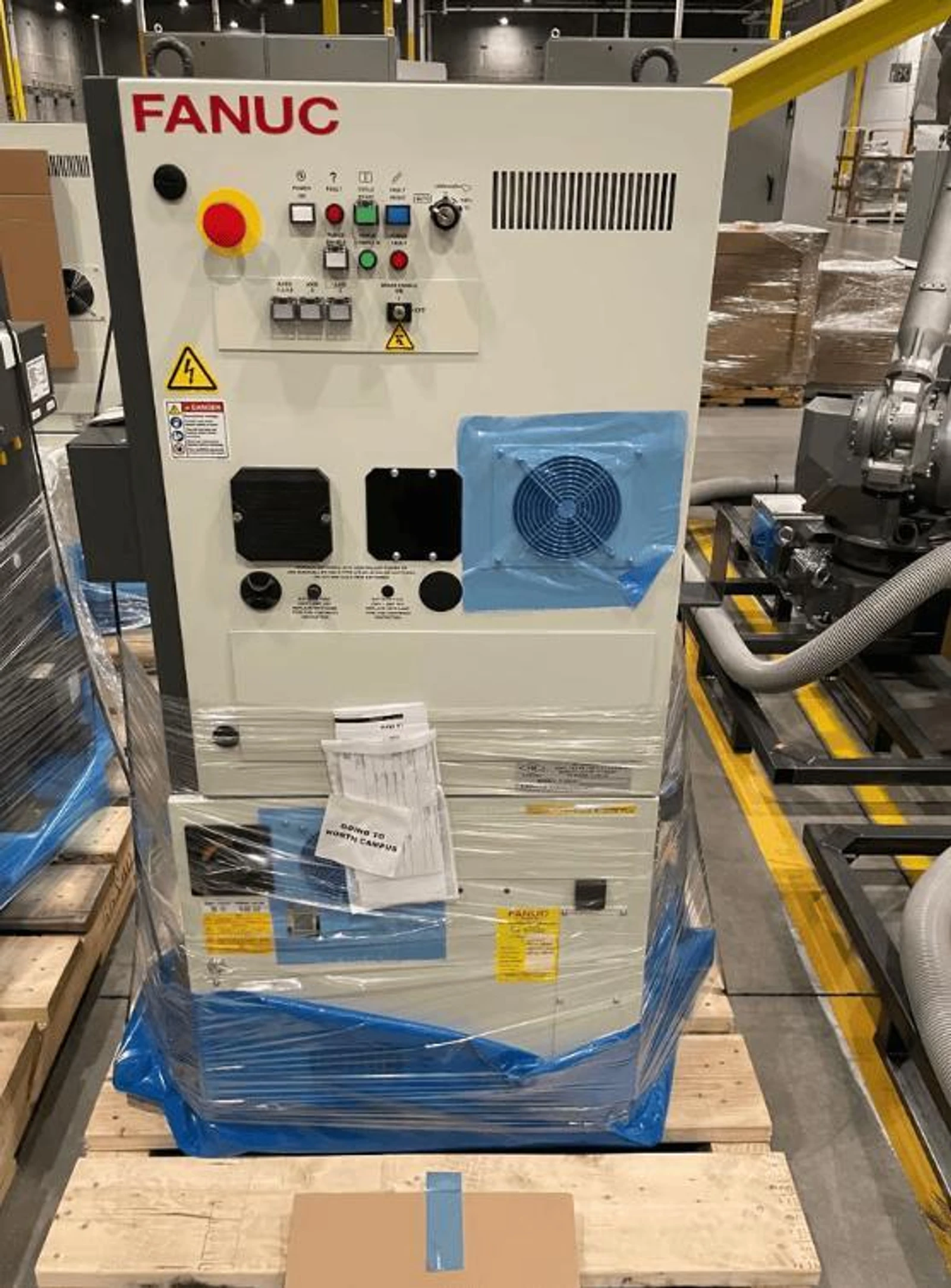

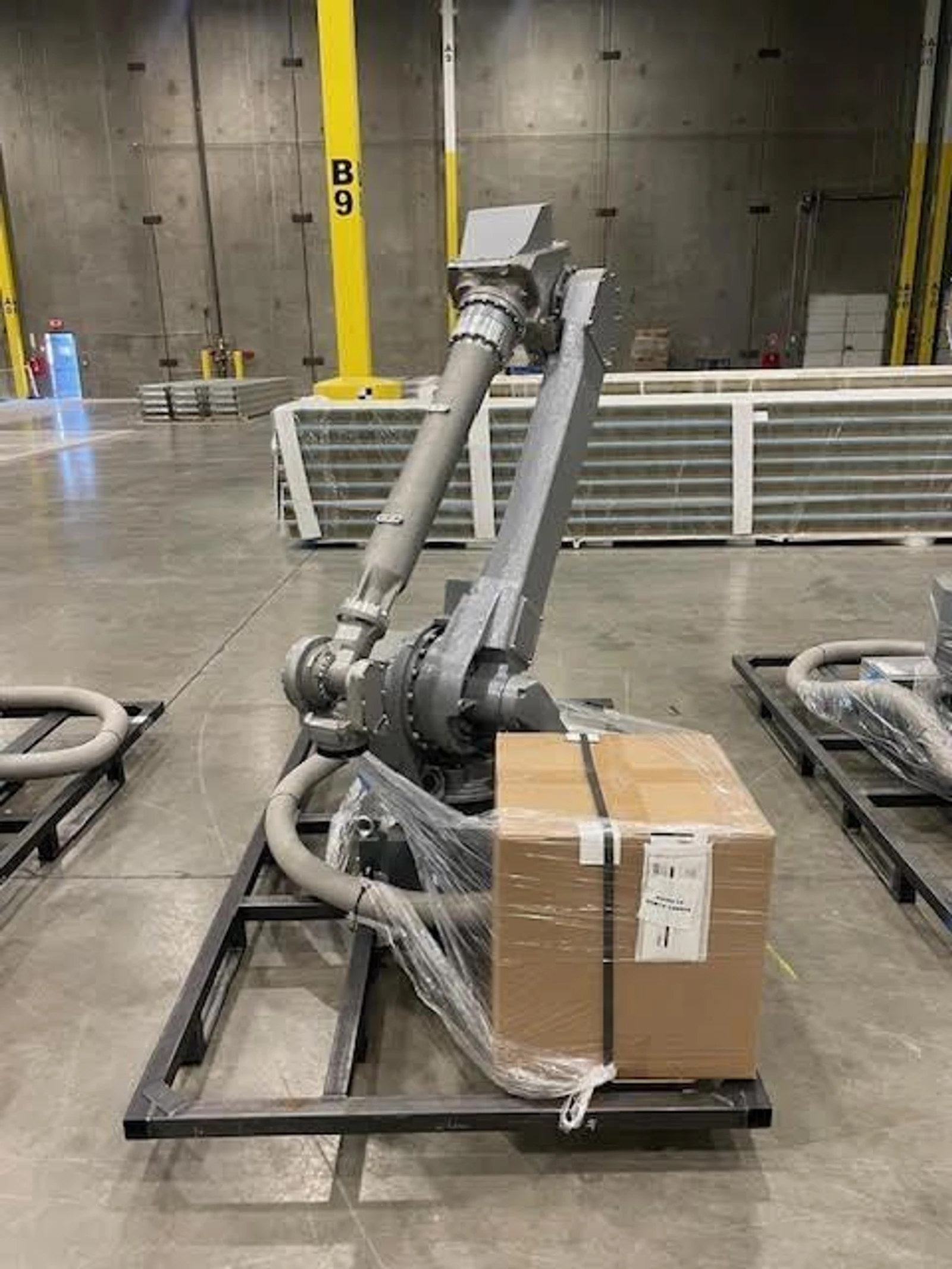

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,The FANUC P-350iA/45 is an industrial paint robot engineered for hazardous, Class 1 Division 1 environments. With a 45 kg payload and a 2.6-meter reach, it supports multi-gun, rotary atomizer, sealing, and surface prep operations. This unit is unused and shipped with an R-30iB controller and all original documentation.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Key Features and Specifications -Payload Capacity: 45 kg Max. Reach: 2606 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,-Axes: 6

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,-Repeatability: ±0.1 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,-Mechanical Weight: 590 kg

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,-Motion Range (°): -J1: 170 | J2: 150 | J3: 1295 mm reach | J4: 440 | J5: 800 | J6: 250

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,-Max Speed (°/s): -J1–J3: 180–250 | J4–J6: 250–300

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,-Tooling Load Specs: -Moment at Wrist: J4/J5 = 206 Nm, J6 = 127 Nm -Inertia: J4/J5 = 28 kg·m², J6 = 20 kg·m²

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,-Power Input: 200–230 VAC | ±10–15% | 50–60 Hz

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,-Control Software: Compatible with PaintTool, HandlingTool, SpotTool, Dispense Plug-In

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,-Certifications: FM & ATEX Approved

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,-Construction & Mounting: -Floor/ceiling/angled mounting options -Left-/right-hand symmetry configuration -Sealed for use in explosive atmospheres

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,-Application Types Supported: -Automotive & aerospace paint lines -Surface cleaning/prep -Sealant dispensing -Material handling or inspection
