6.7.5 Erowa ER-069000 CMM Qi 3D and EROWA Lift, 2016

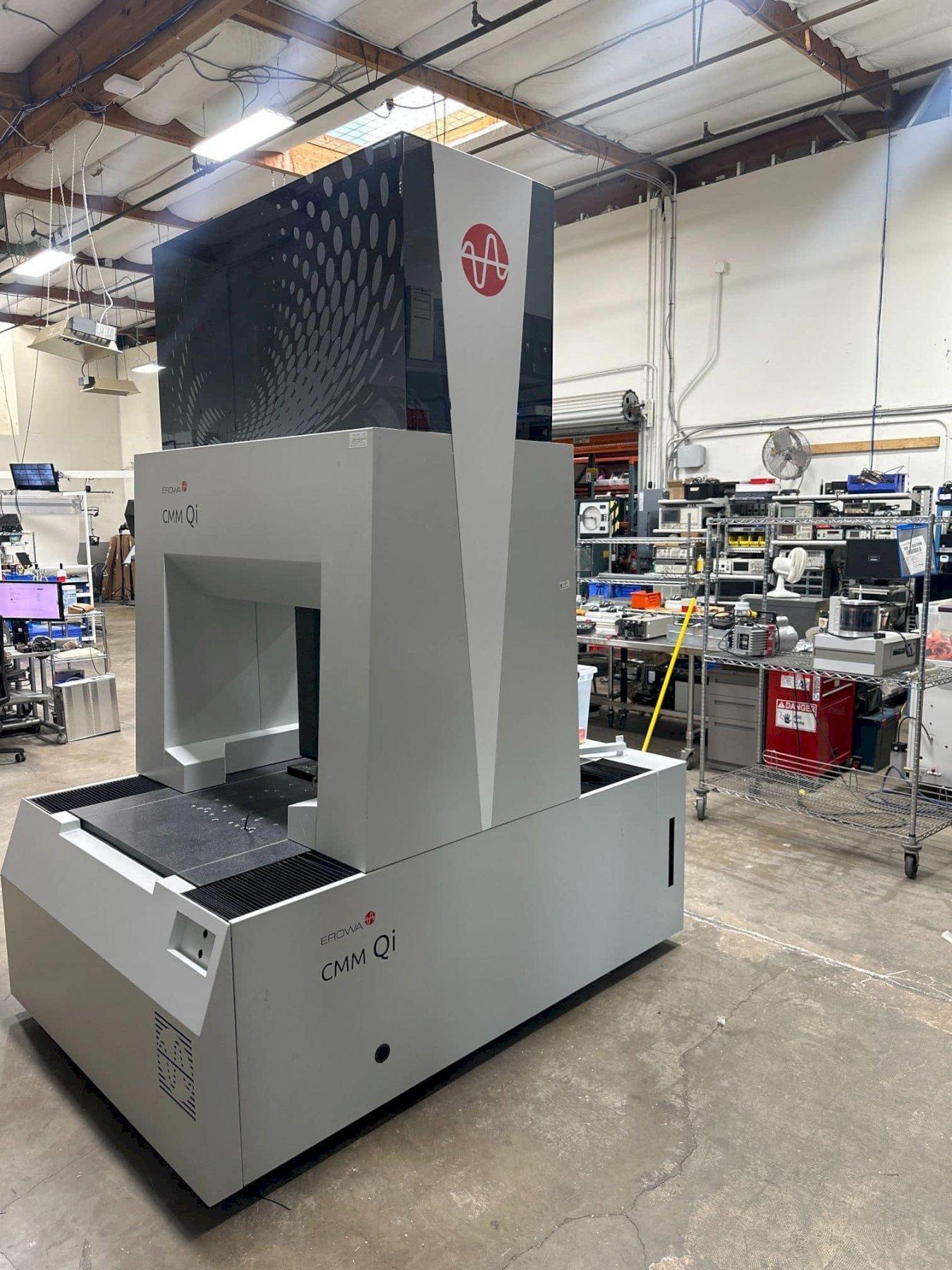

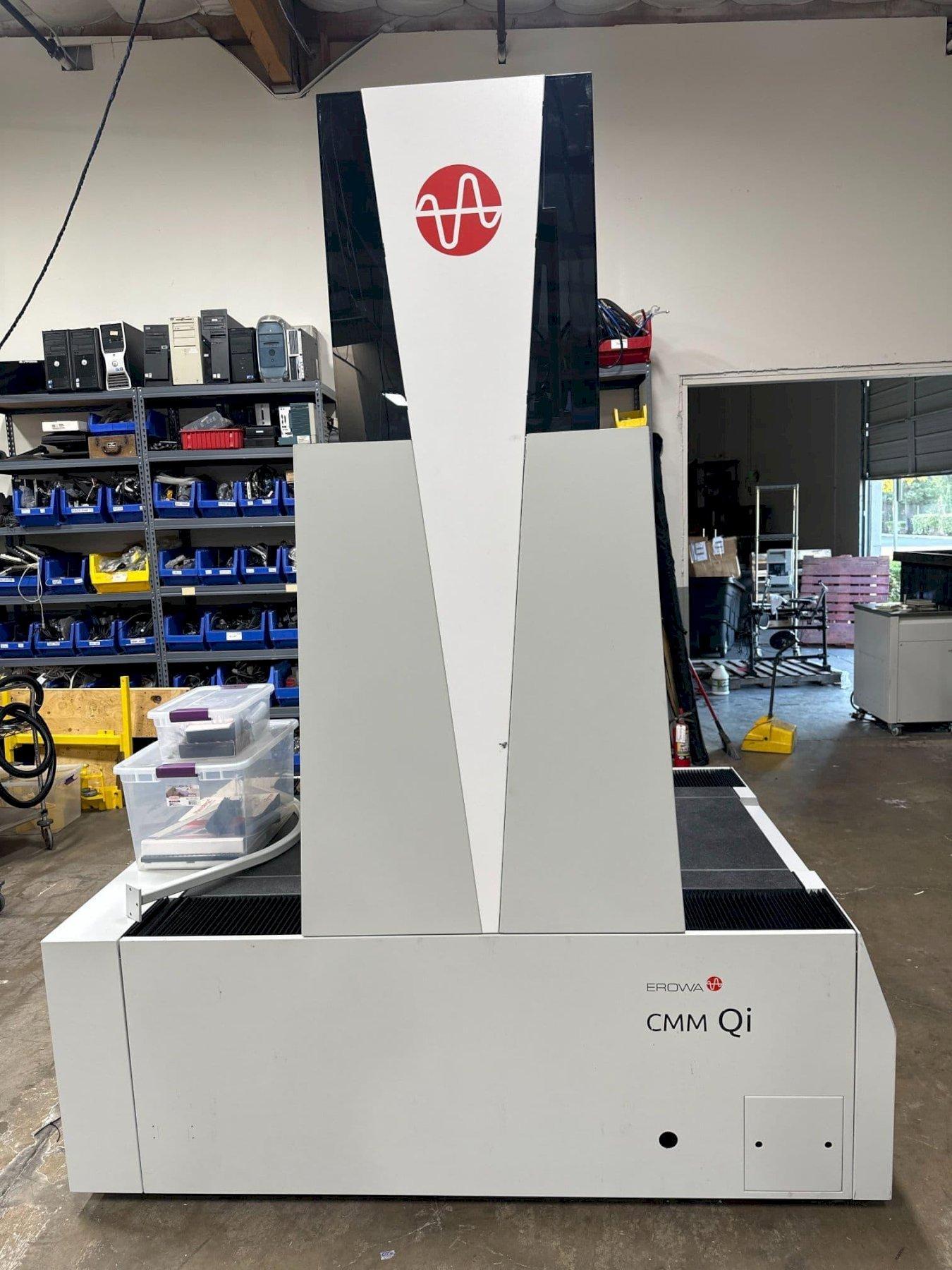

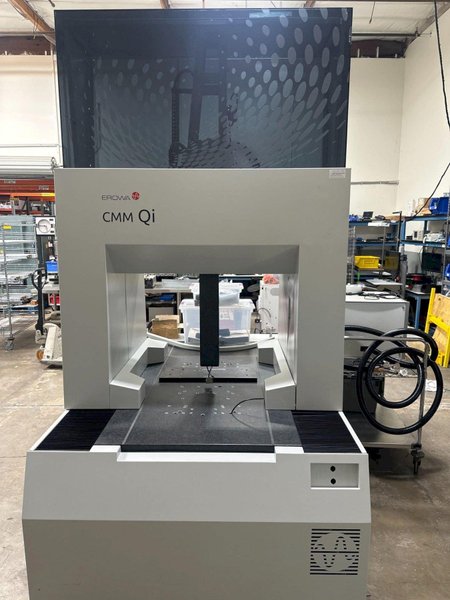

CMM Qi 3D CNC Measuring Machine

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Range: X axis 600mm Y axis 700mm Z axis 500mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Metrolog X4 Measuring software

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machine Dims.: 1424mm x 2105mm x 2700mm Weight: 2350 kg

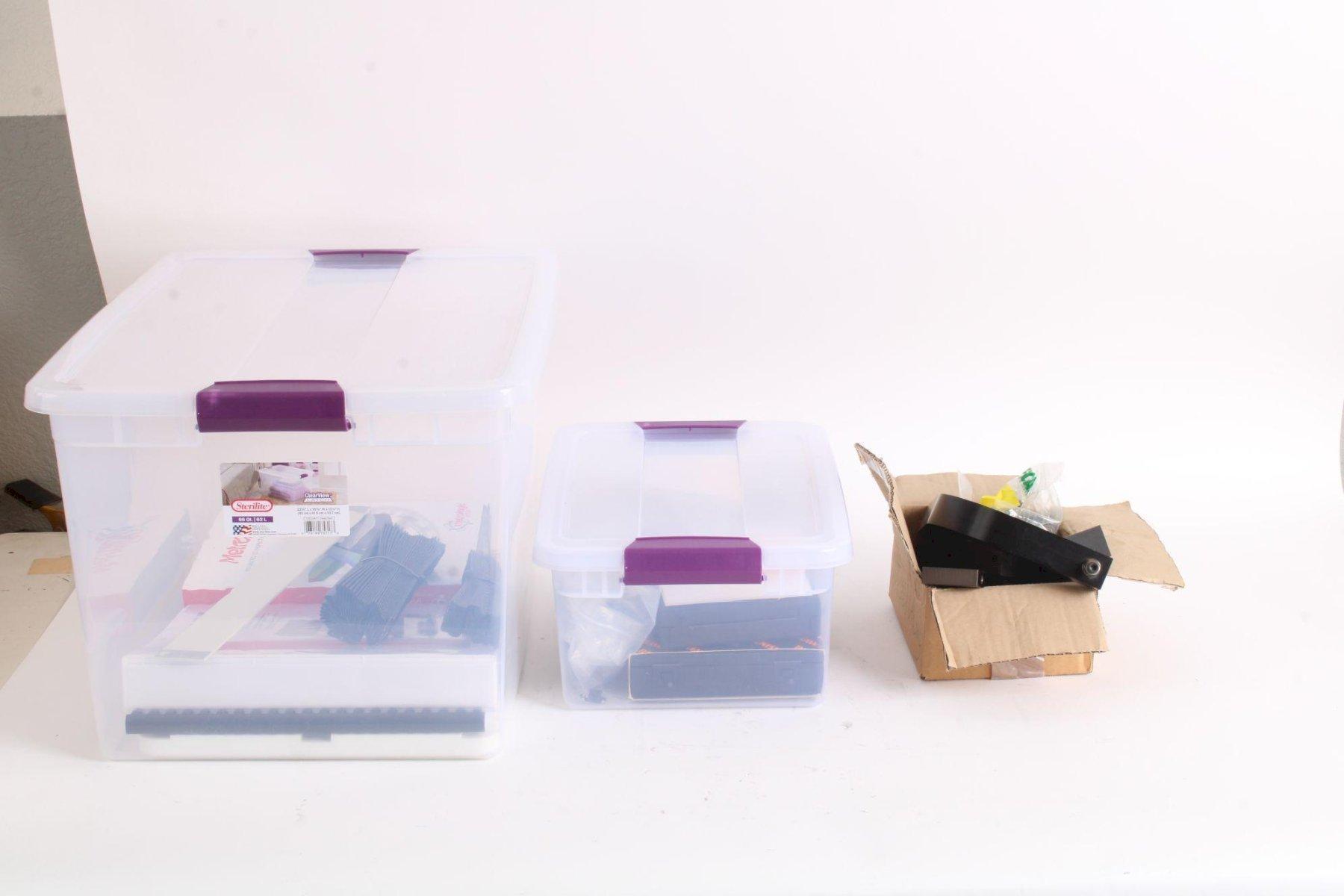

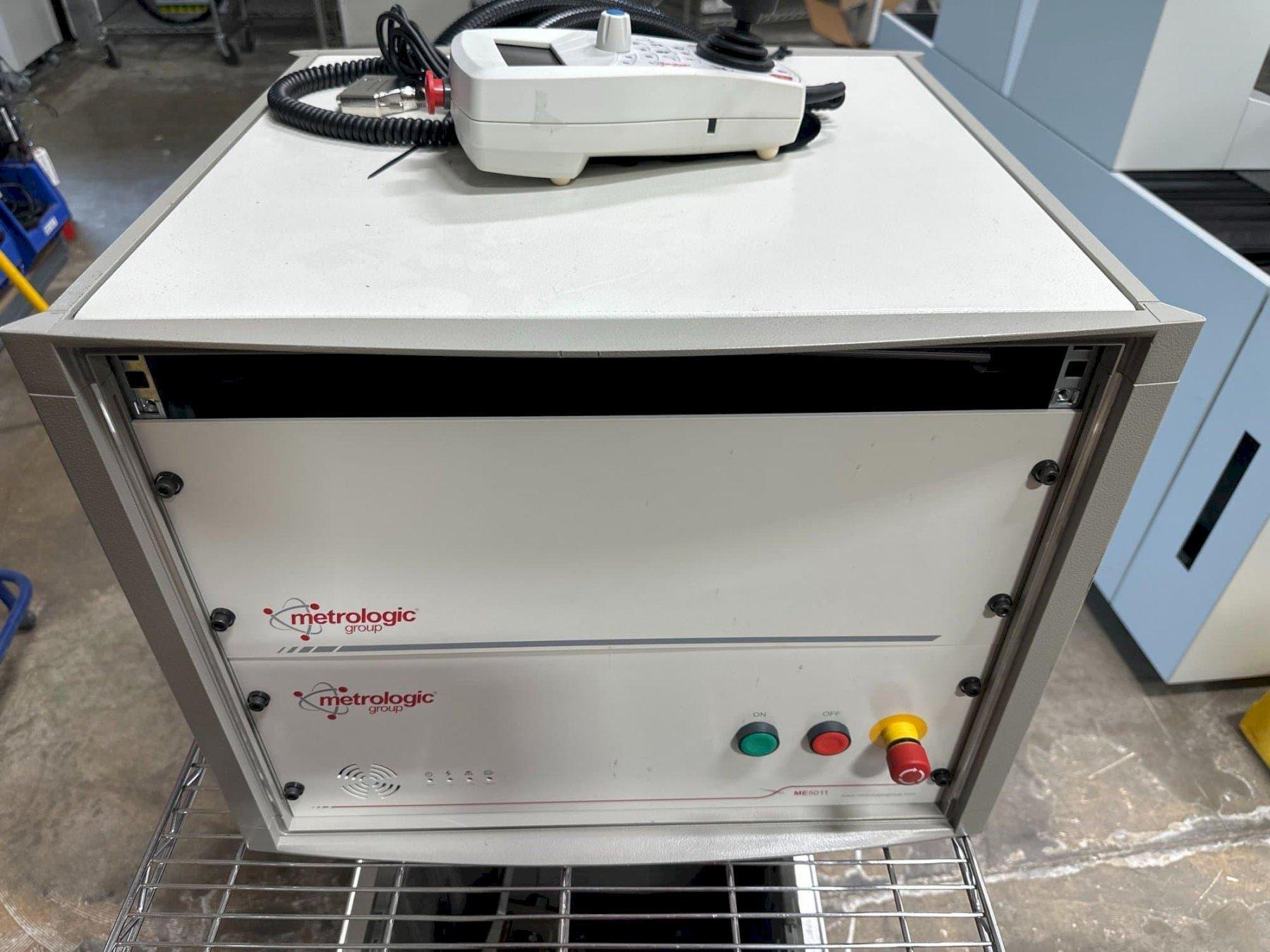

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,CMM Qi Metrologic Metrolog X4 Software install CD (no license dongle, license will need to be transferred to new owner by Metrologic) Metrolog X4 Training Manual Schematic/Installation Report Binder PICO USB Datalogger 2x Spare Accordian Covers Calibration Template Metrologic M471 Joystick / Pendant Metrologic ME5011 CNC Controller Renishaw PHC10-3 Plus Probe Head Controller Renishaw PH10MQ Probe Head Renishaw SP25M 25mm Scanning Probe Renishaw FCR25-L3 three port standalone change rack Saphirwerk Calibration Sphere w/ Cal Certificate Spare Renishaw head connector Operating Manual Binder Renishaw PH10 Plus CD Renishaw PHC10-3 Plus CD PICO PicoLog R5.24.8 CD Metrologic MetroTune Controller Utility Software CD Shipping Brackets Small bag of spare hardware and hex keys Box of levelling shims

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Renishaw A-2237-1102 SM25-2 Scanning Module Kit: 1x SM25-2 Scanning Module 1x SM25-1 Scanning Module 2x SH25-2 stylus holder for SM25-2 2x SH25-1 stylus holder for SM25-1 3x M-5000-3540 M2 and M3 Stylus Tool 1x A-5000-7630 M3 Ø5 mm ruby ball, stainless steel stem, L 21 mm, EWL 21 mm Straight Stylus 1x A-5000-3553 M3 Ø3 mm ruby ball, stainless steel stem, L 21 mm, EWL 14.7 mm Straight Stylus 1x A-5003-0059 M3 Ø3 mm ruby ball, tungsten carbide stem, L 50 mm, EWL 42.5 mm Straight Stylus 1x unlabeled end adapter

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Renishaw A-5003-6151 M3 Carbon Fibre Stylus Kit for SP25M/SM25-1/SH25-1: 1x A-5003-5970 M3 STY D3R L21 EWL13.5 d2CF 1x A-5003-5971 M3 STY D4R L21 EWL13.5 d3CF 1x A-5003-5977 M3 STY D4SIN L21 EWL13.5 d3CF 1x A-5003-5972 M3 STY D4R L31 EWL23.5 d3CF 1x A-5003-5973 M3 STY D4R L40 EWL32.5 d3CF 1x A-5003-5974 M3 STY D5R L50 EWL42.5 d3CF 1x M-5000-3540 M2-M3 Stylus Tool

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
