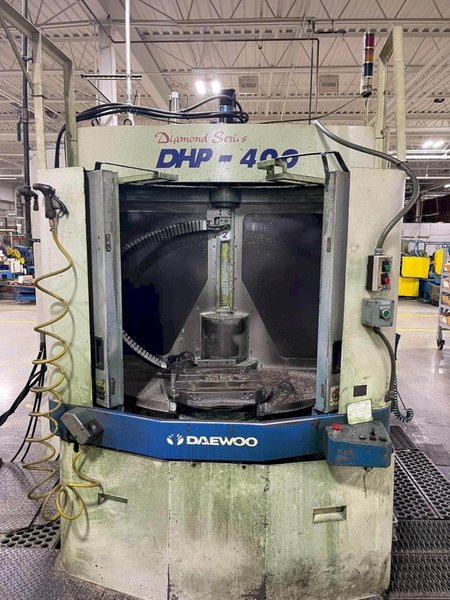

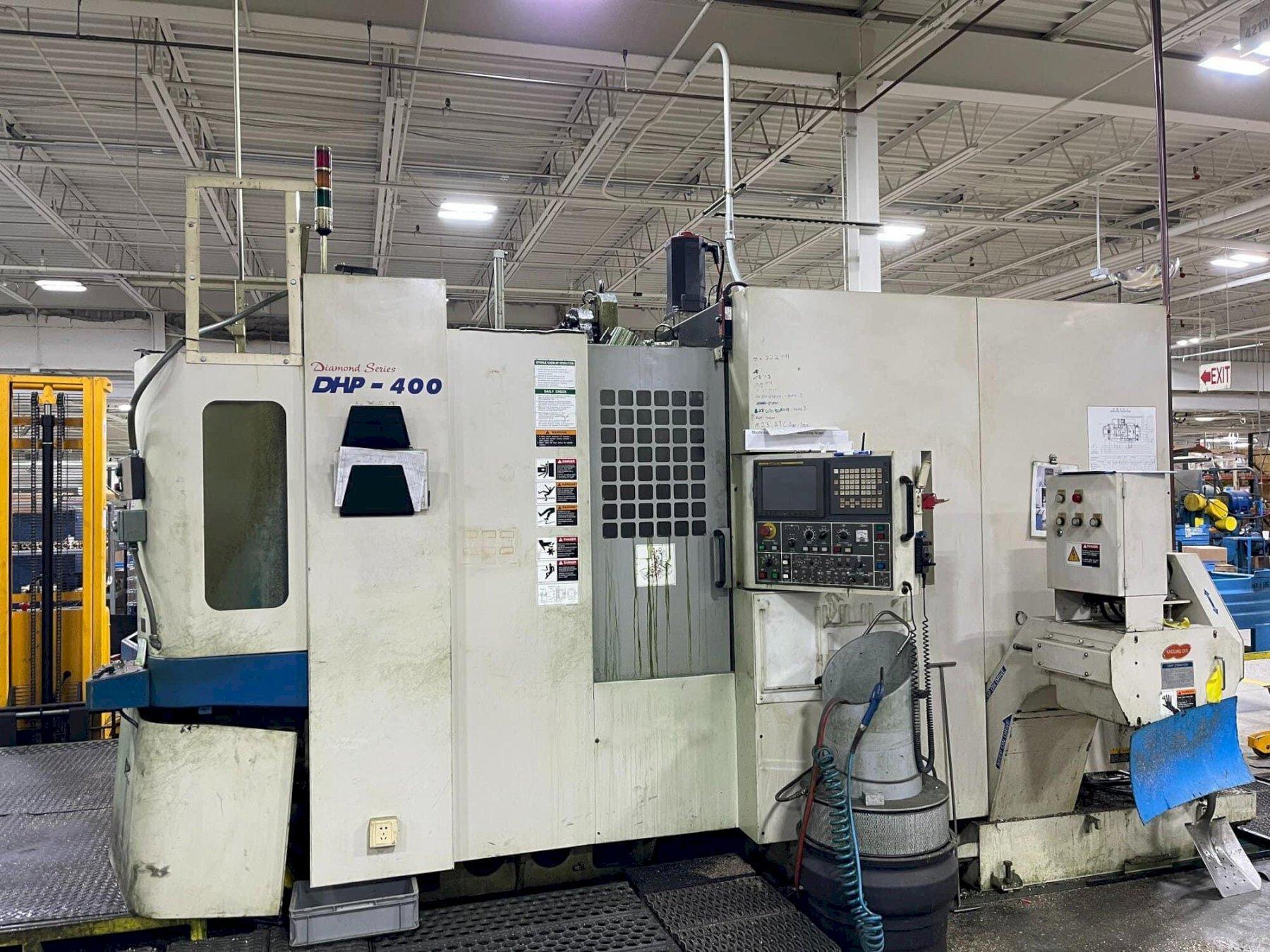

Daewoo DHP-400 HMC, 2002 – Fanuc Control, Chip Conveyor
Brand
Category
Model
DHP-400
Stock #
581770
Year
2002
Condition
Not specified
Location
Not specified
|
X-Axis Travel ……………………. 23.62″
Y-Axis Travel ……………………. 22.05″
Z-Axis Travel ……………………. 22.24″
Spindle Center to Table Top ……….. 1.97″-24.02″
Spindle Nose to Table Center ………. 5.91″-28.15″
Number of Pallets ………………… 2
Pallet Size ……………………… 15.7″ x 15.7″
Pallet Load Capacity ……………… 880 LBS.
Pallet Indexing ………………….. 1 Degree
Spindle Speeds …………………… 140-12,000 RPM
Spindle Drive Motor ………………. 25 HP
Spindle Taper ……………………. CAT #40
Rapid Traverse Rate ………………. 1890 IPM
Cutting Feed Rate ………………… 0.04″-945 IPM
All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped with: Fanuc Control All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
