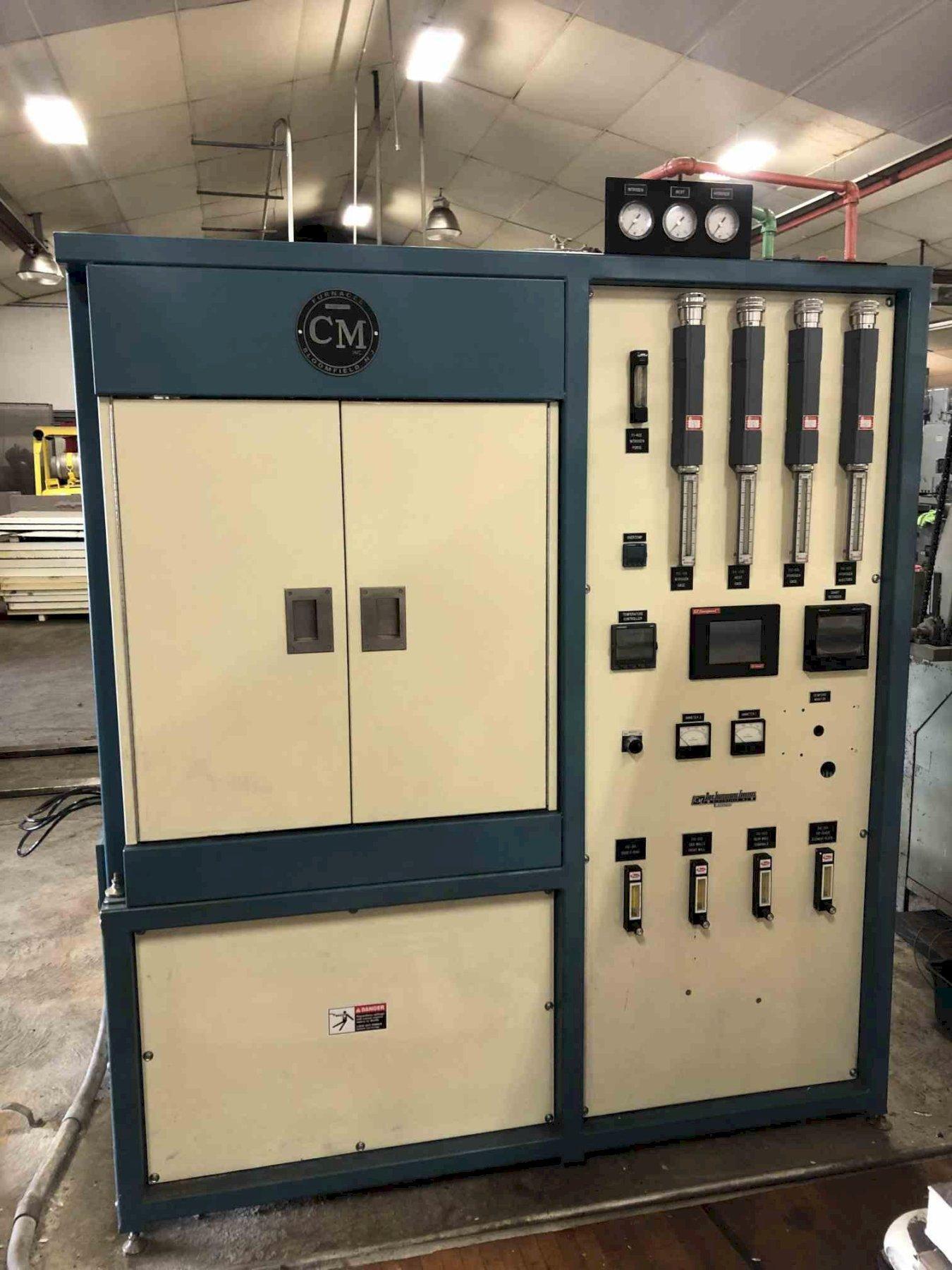

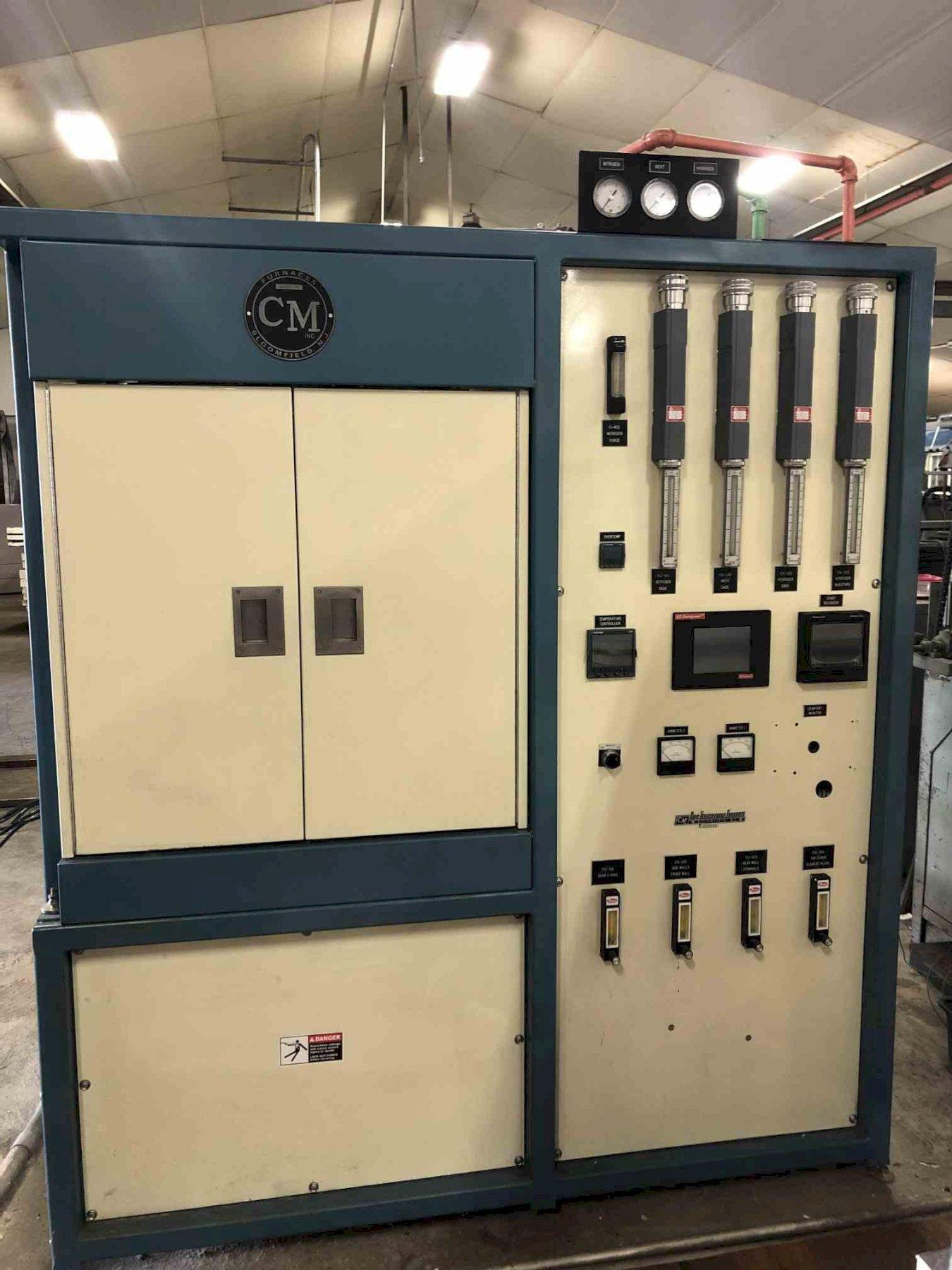

2552°F CM Furnace, 2012 – 16″ x 16″ x 16″
Brand
Category
Type
Model
1516 GS H2 FL
Stock #
263281
Year
2012
Condition
Not specified
Location
Not specified
|
Max Temp: 2,552°F
Inner Dimensions: 16″ x 16″ x 16″
Power Rating (Kw) 30 Kva
Supply Line Voltage 480 Volts
Amps – Maximum Furnace Load 38.7 Amps
Amps – Circuit Breaking Rating 50 Amps
Supply Line Phase(S) 3
Supply Line Frequency (Hz) 60
Maximum Temperature 1650c

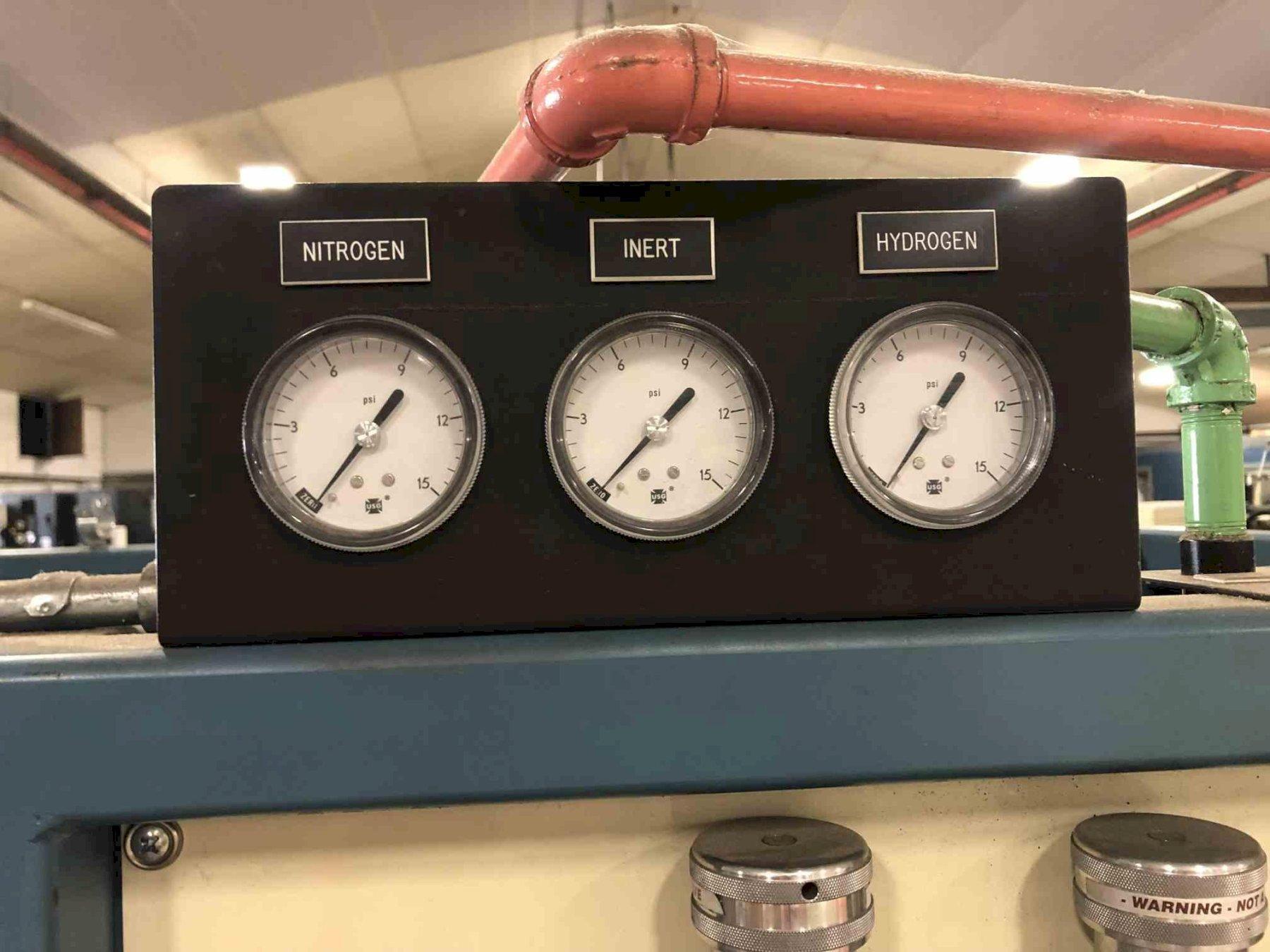

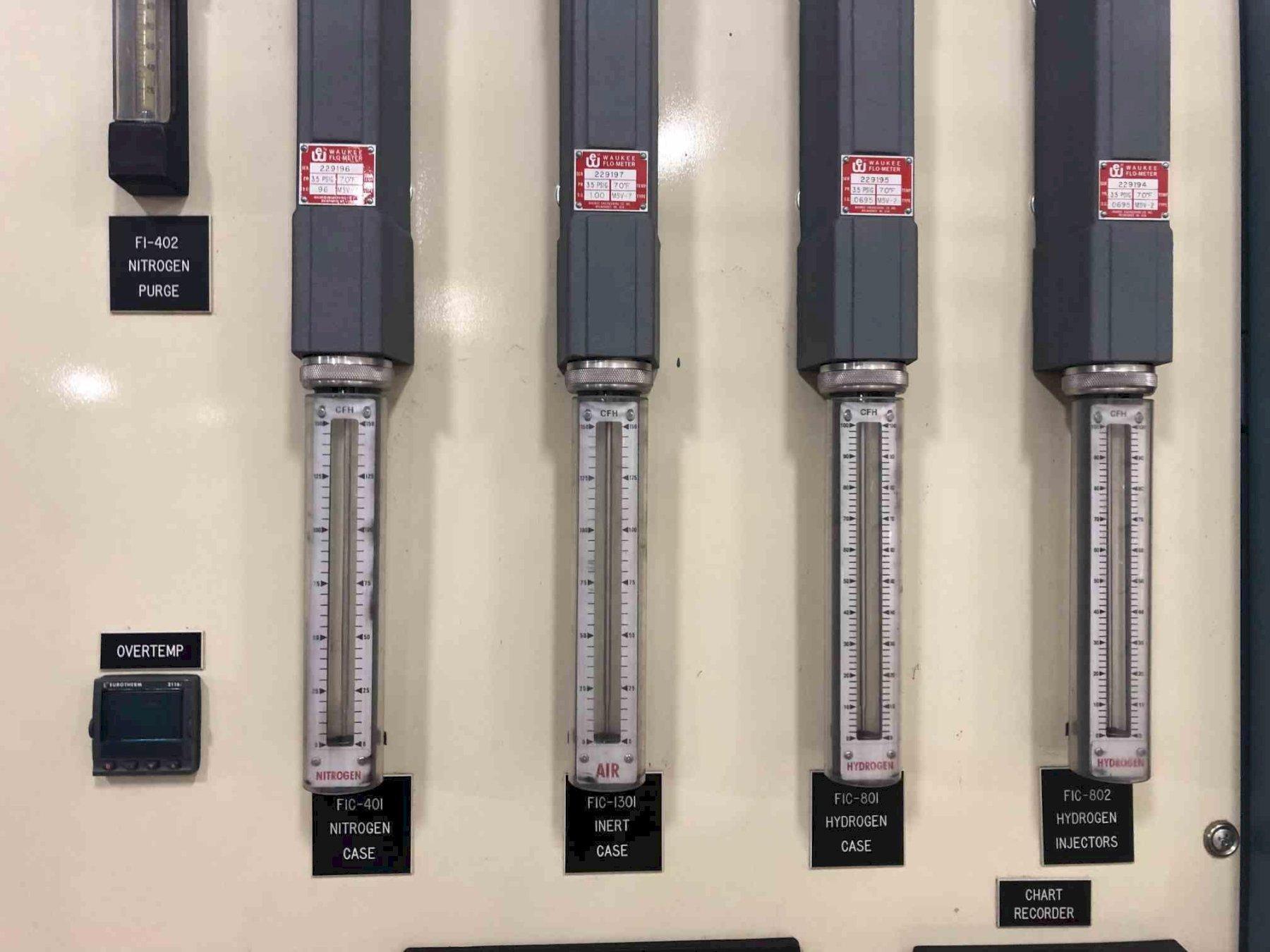

Process Atmosphere Hydrogen / Inert
Protective Atmosphere Nitrogen
Number Of Control Zones 1
All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
