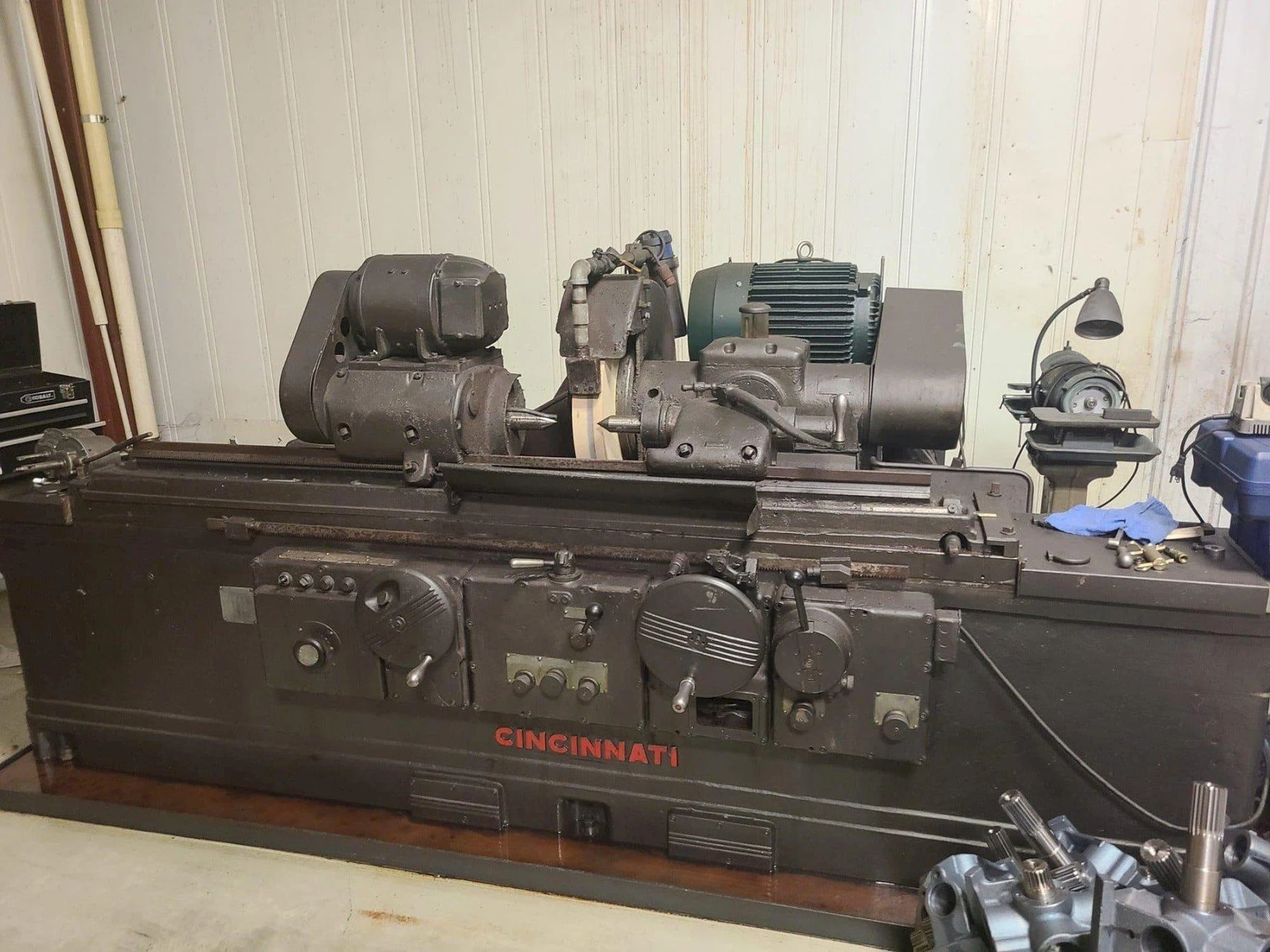

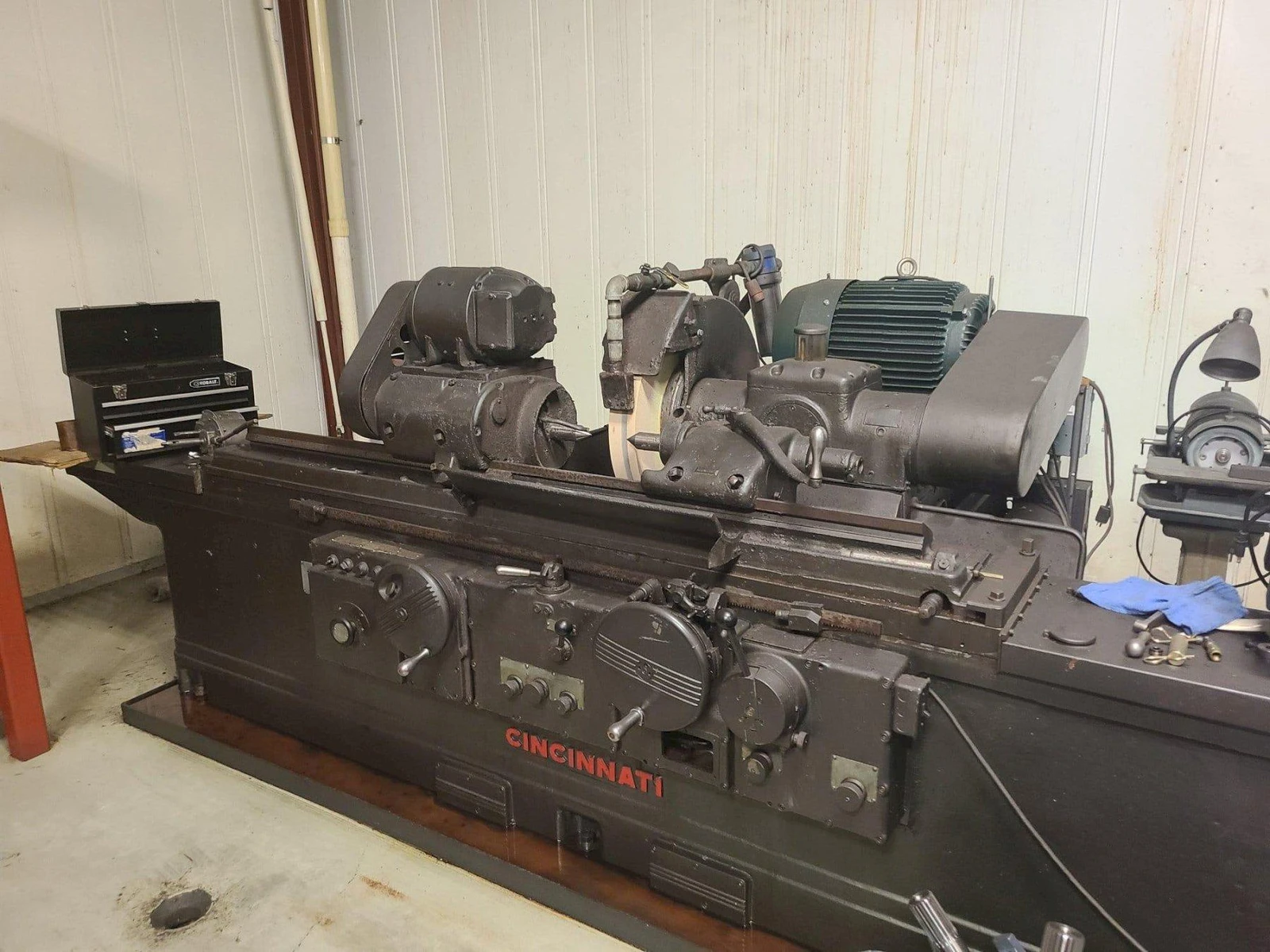

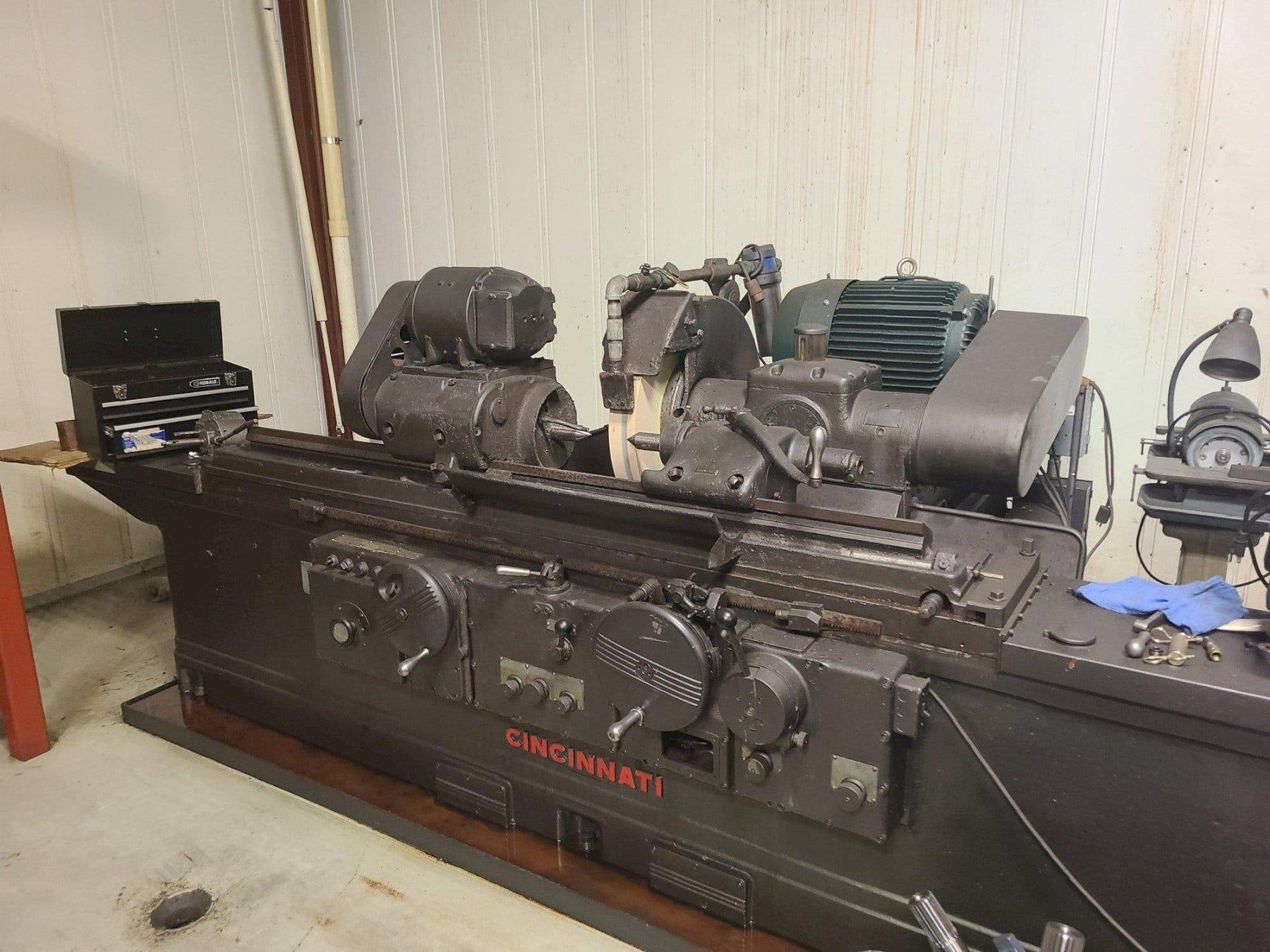

12″ X 48″ Cincinnati Universal Cylindrical Grinder, 1990

Swing Over Table, Maximum: 12.9375″ Grinding Diameter w/14″ Wheel: 12.9375″ Distance Between Centers, Nominal: 48″ Grinding Wheel Diameter, Standard: 14″ Grinding Wheel Width, Standard: 1.5″ Grinding Wheel Hole Diameter: 5″ Table Swivel Taper Toward Wheelhead: 3.5″ TPF Table Swivel Taper Away Wheelhead: 1″ TPF Table Swivel Angle Toward Wheelhead: 8.5-Degrees Table Swivel Angle Away Wheelhead: 3-Degrees Lower Grinding Wheelhead Swivel Range: 90-Degrees Upper Grinding Wheelhead Swivel Range: 30-Degrees Workhead and Tailstock Center Tapers: #9 B&S Workhead Spindle Speeds, Range: 50 to 500 RPM Table Longitudinal Feeds, Infinite: 3 to 240 IPM Grinding Wheelhead Spindle Motor: 2 HP

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Overall Dimensions, L x W: 15’4″ x 5’2″ Weight, Approximately: 6700 LBS

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
