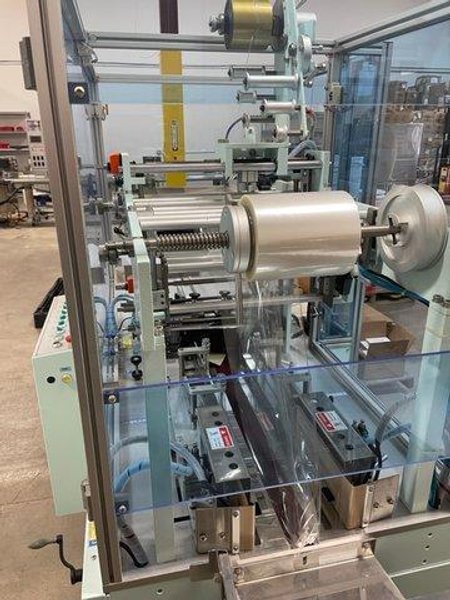

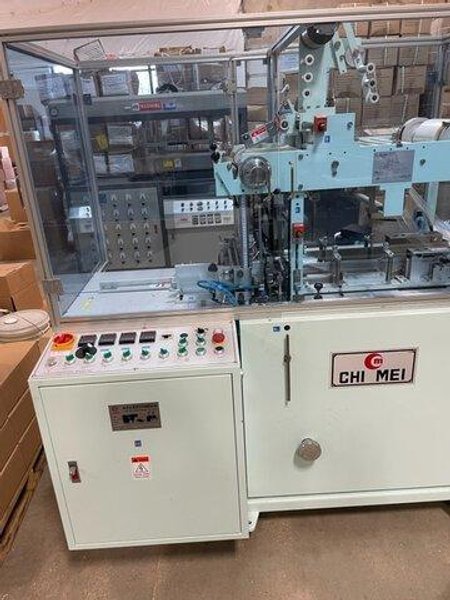

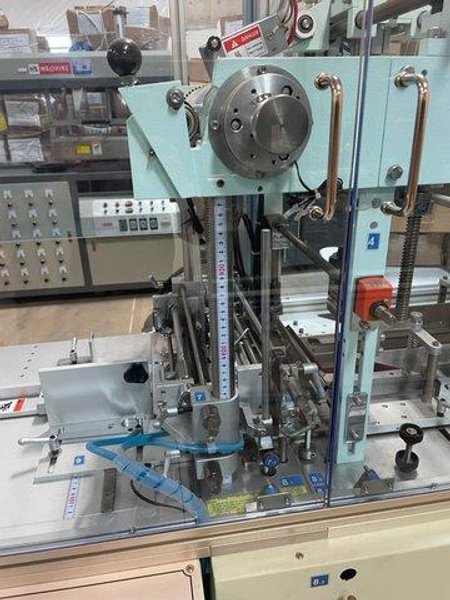

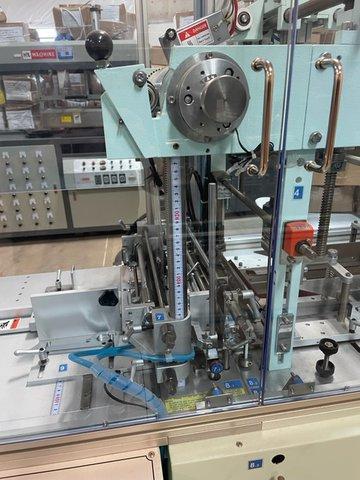

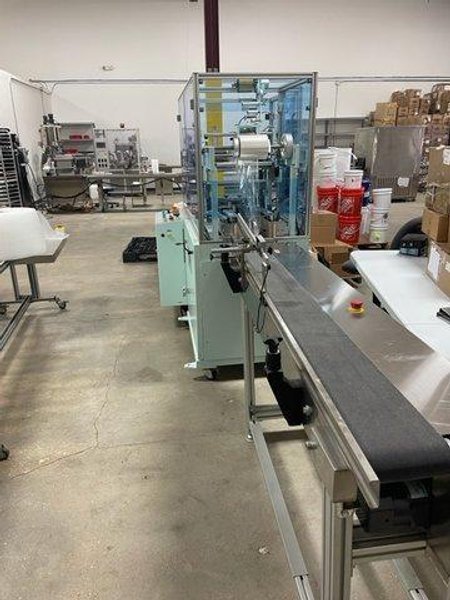

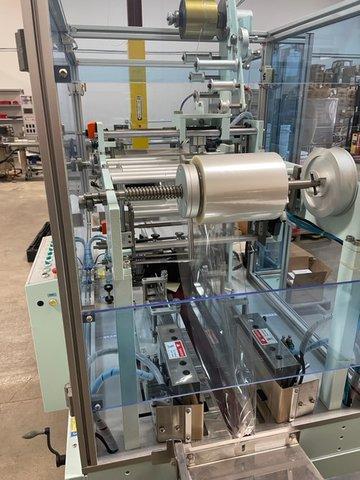

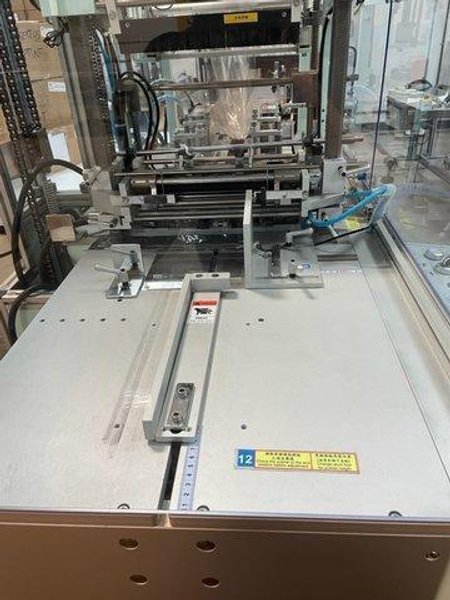

Chie Mei PM-808C Automatic Cellophane Overwrapping Machine, 2016

Equipment Overview

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,This 2016 Chie Mei PM‑808C offers automated overwrapping of small rectangular items (CD/booklet-sized) using cellophane or heat-seal films, with rapid size changeover and ease of maintenance for flexible packaging lines.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Key Features and Specifications – Cam-driven mechanism – robust and low maintenance – Quick changeover system – size switch in ~15 min – Conveyor feeding for line integration – Supports optional add-ons: tear tape, side seal, stacker, shrink tunnel, safety interlocks – Product dimensions: L 55–160 mm × W 30–80 mm × H 50–200 mm – Speed: 20–40 packs/min – Heater power: 1.2 kW – Motor configuration: 1/4 HP + accessory drives – Overall machine size: 1630 × 2640 × 1880 mm (L×W×H) – Accepts cellophane, BOPP/OPP, KOP, and heat-seal papers

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
