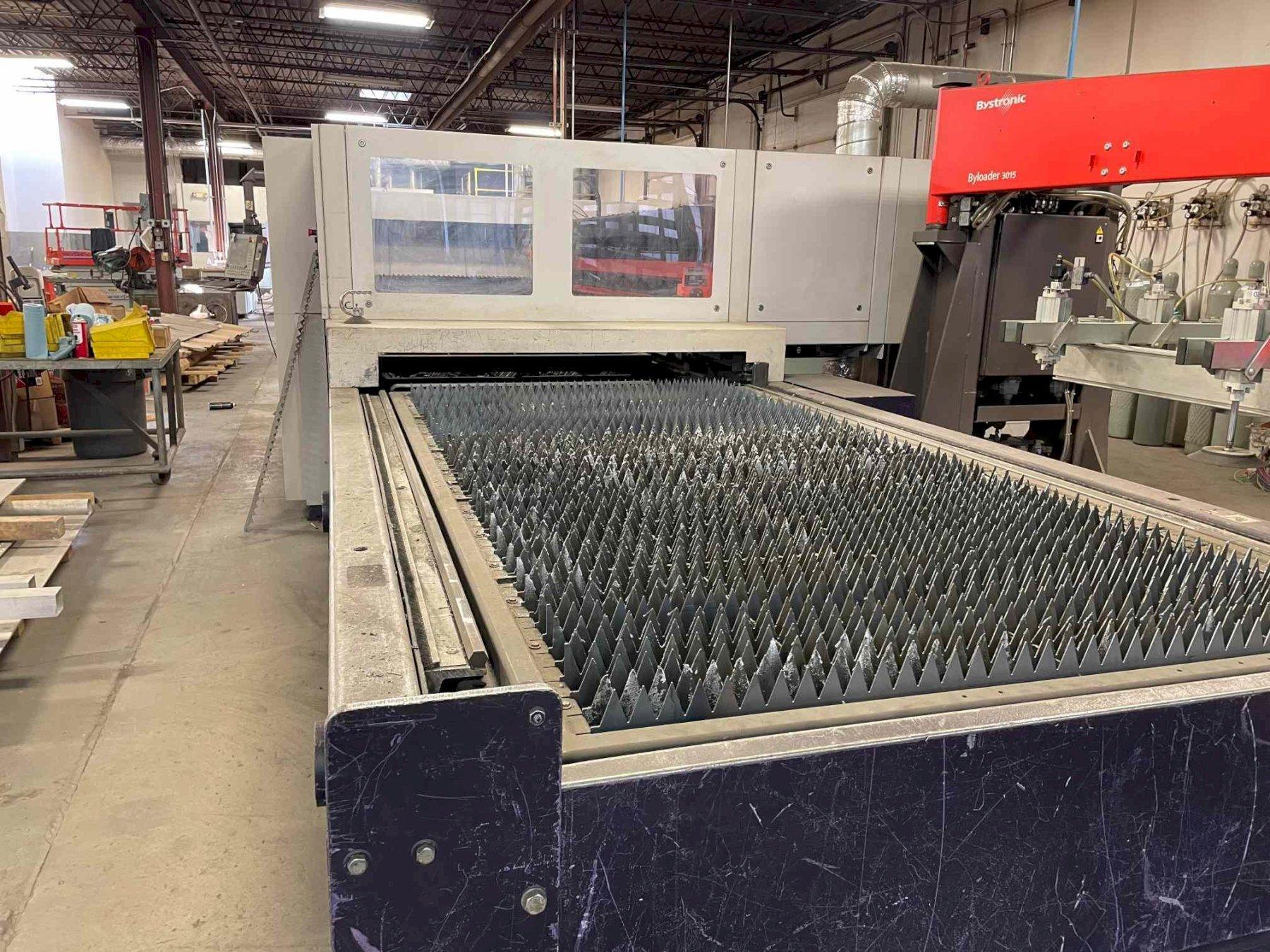

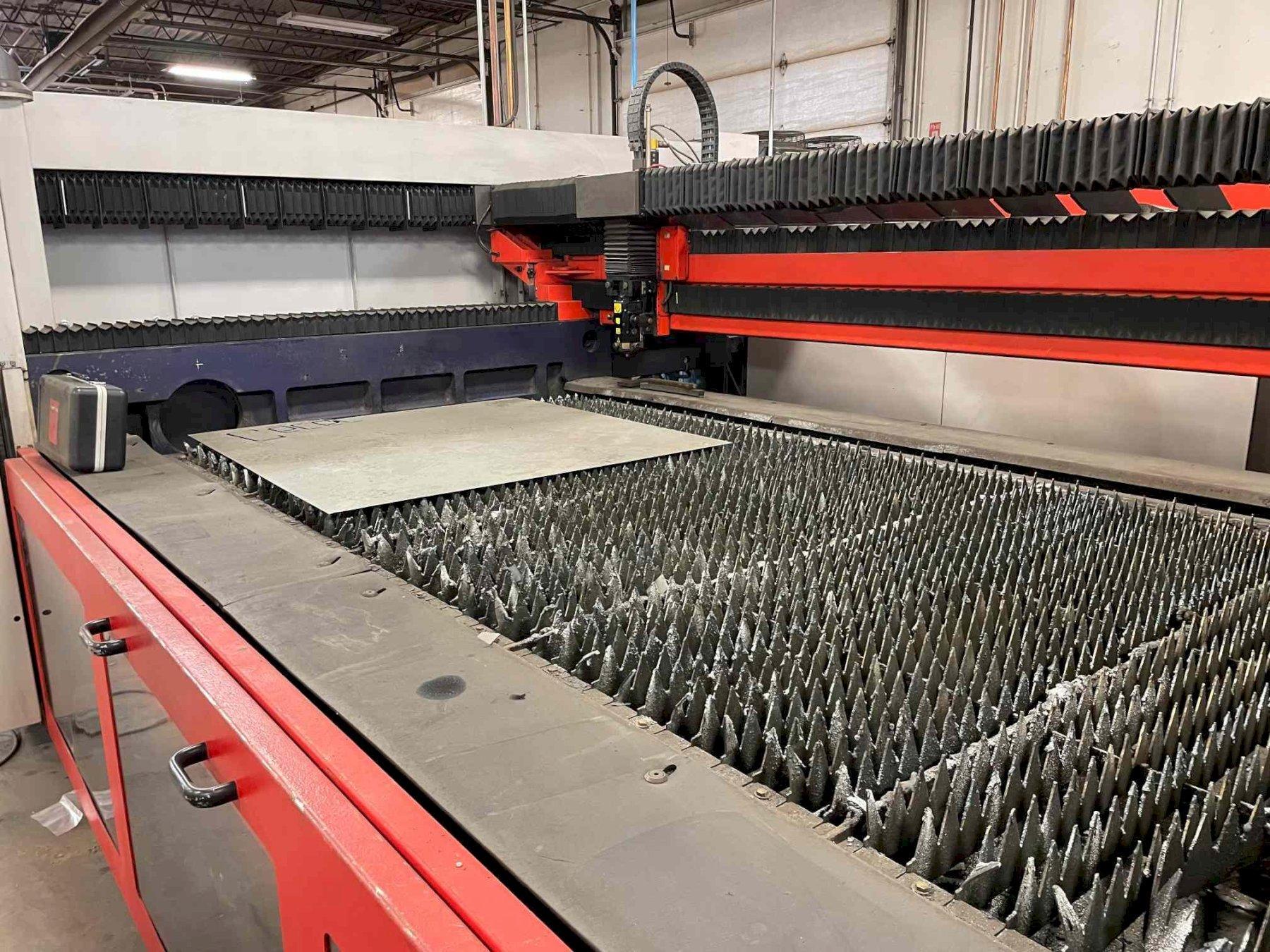

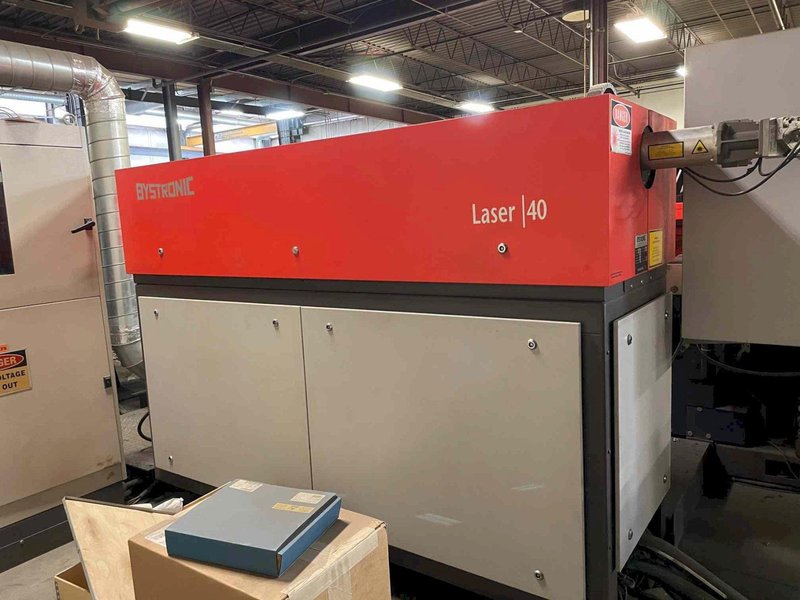

4000 Watt Bystronic Bystar II 3015 CO2 Laser – Bystronic Byloader 3015, 2002

Year: 2002 Approx. Shipping Weight: 32,500 Lbs.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Specifications:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Table Size: 5′ x 10′ Laser Rating: 4,000 Watts Cutting Velocity: 1900 In/Min Positioning Speed (Per Axis): Maximum 4727 In/Min Positioning Speed (Simultaneous): Maximum 6654 In/Min Part Accuracy: ± .001 In/Ft (± .1 Mm/M) Part Repeatability: ± .002 In. (± .05 Mm) Polarization: Circular Wavelength: 10.6 ?m Air Supply: 90 Psi (6 Bar) Air Requirement: 700 Scfh (20 Nm3/H) Cooling Water: Closed Cooling Circuit Approximate Power Requirements: 36.8 KVA Electrical: 480V / 3 Ph

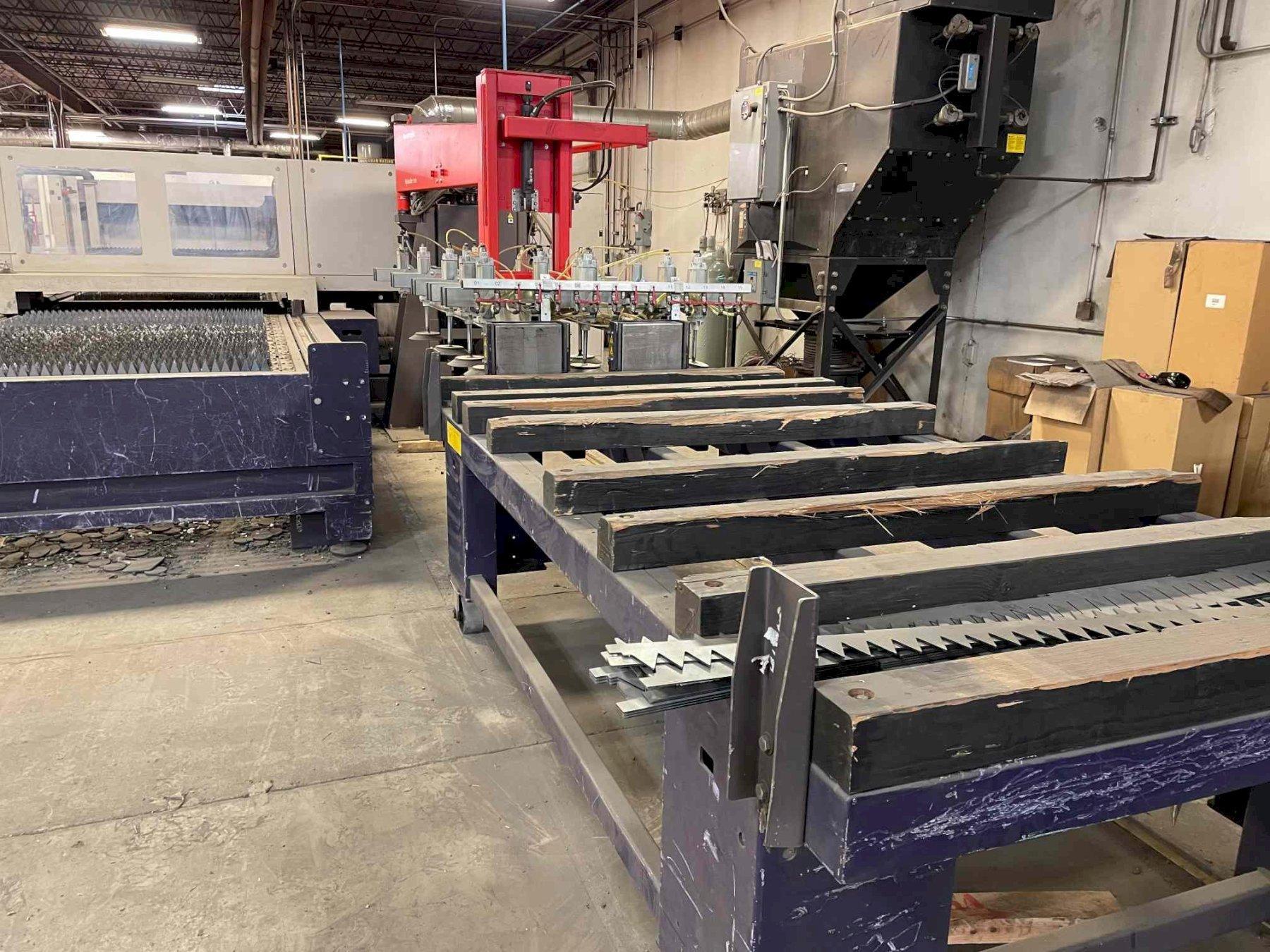

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Byloader 3015

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
