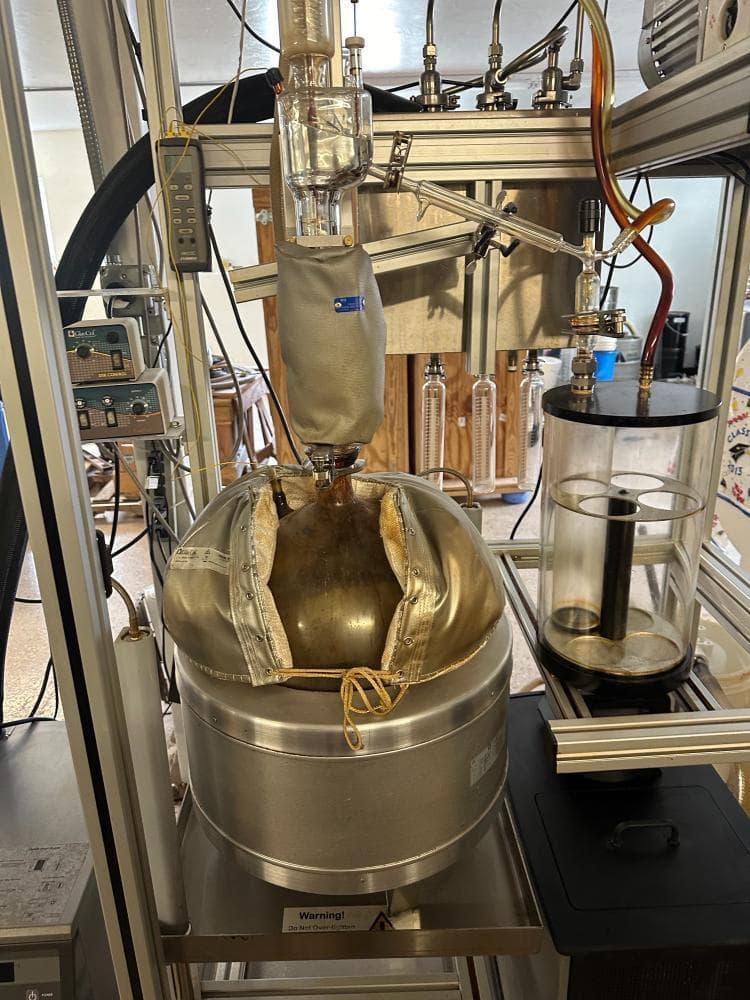

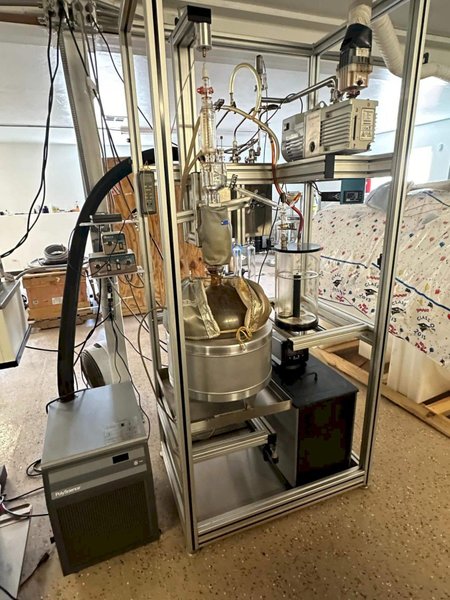

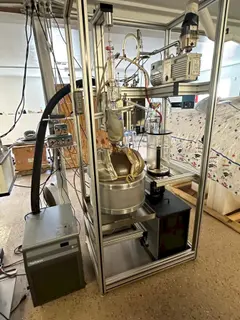

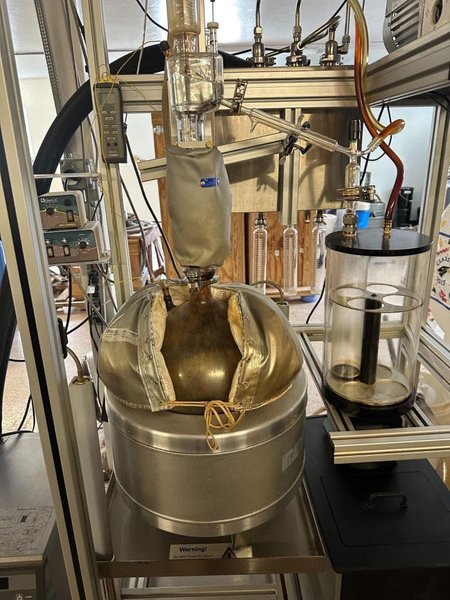

B/R Instruments 9200 CODS M22 Spinning Band Distillation System, 2019

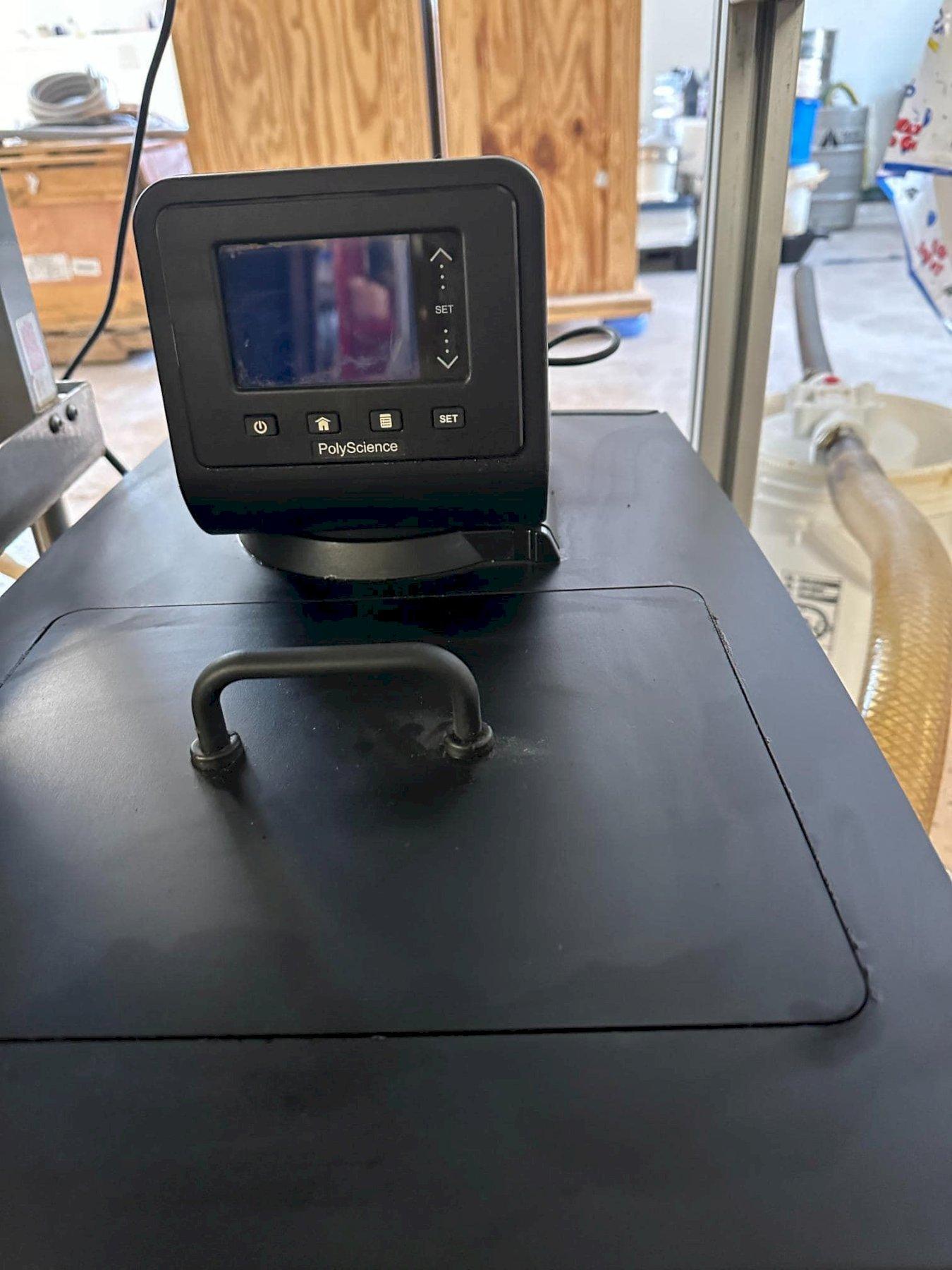

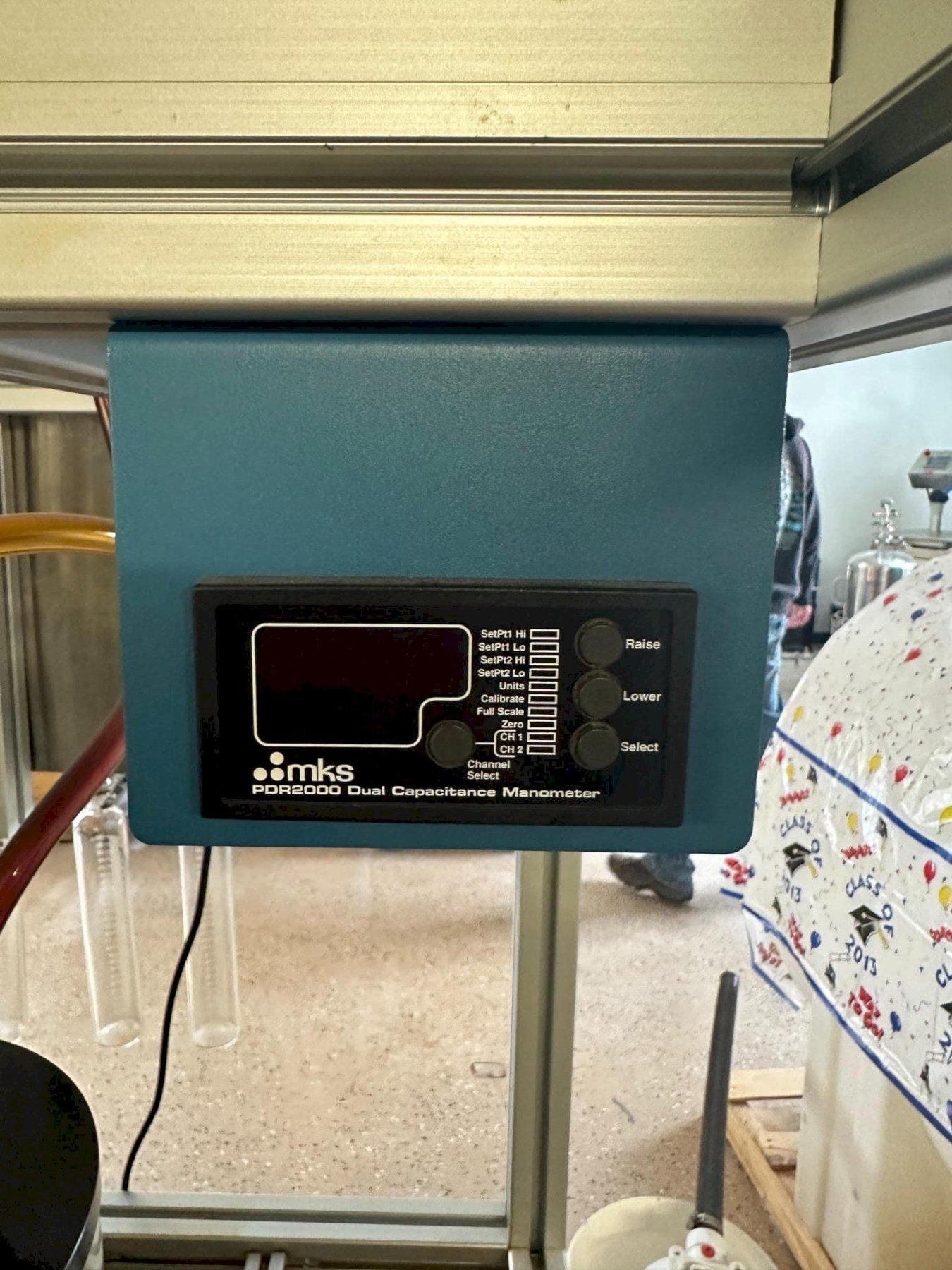

-Spinning Band Distillation Column with two, 22 liter glass boiling flask. -22 liter heating mantle and controller. -Six, 1000ml graduated receivers. -Manual Carousel 4 place fraction collector. -Pot and Vapor Temperature Display. Vacuum System with Vacuum Display and vacuum pump. -3 position stainless steel cold trap. -Circulating Bath. -Mounting Rack. -Hydraulic Jack for raising and lowering the pot flask.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Specs: -Column Diameter: 32 mm -Column Material: Borosilicate Glass -Packing Type: Teflon Spinning Band -Theoretical Plates: 12 @ atmospheric pressure -Vapor Temperature Probe: PRT temperature probe for measuring vapor temperature. -Column Vacuum Jacket: Integral glass column and reflux divider totally enclosed in a highly reflective vacuum jacket having a permanent vacuum of less than 0.1 mPa. -Distillation Rate: 1 liter per hour @ a 0:1 Reflux Ratio. -Insulating Column Jacket Provides extra thermal insulation

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Electrical:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,115VAC, 40A, 5 receptacles

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Mounting Rack Dimensions 26” D x 48” W x 80” H

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Weight: 250 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
