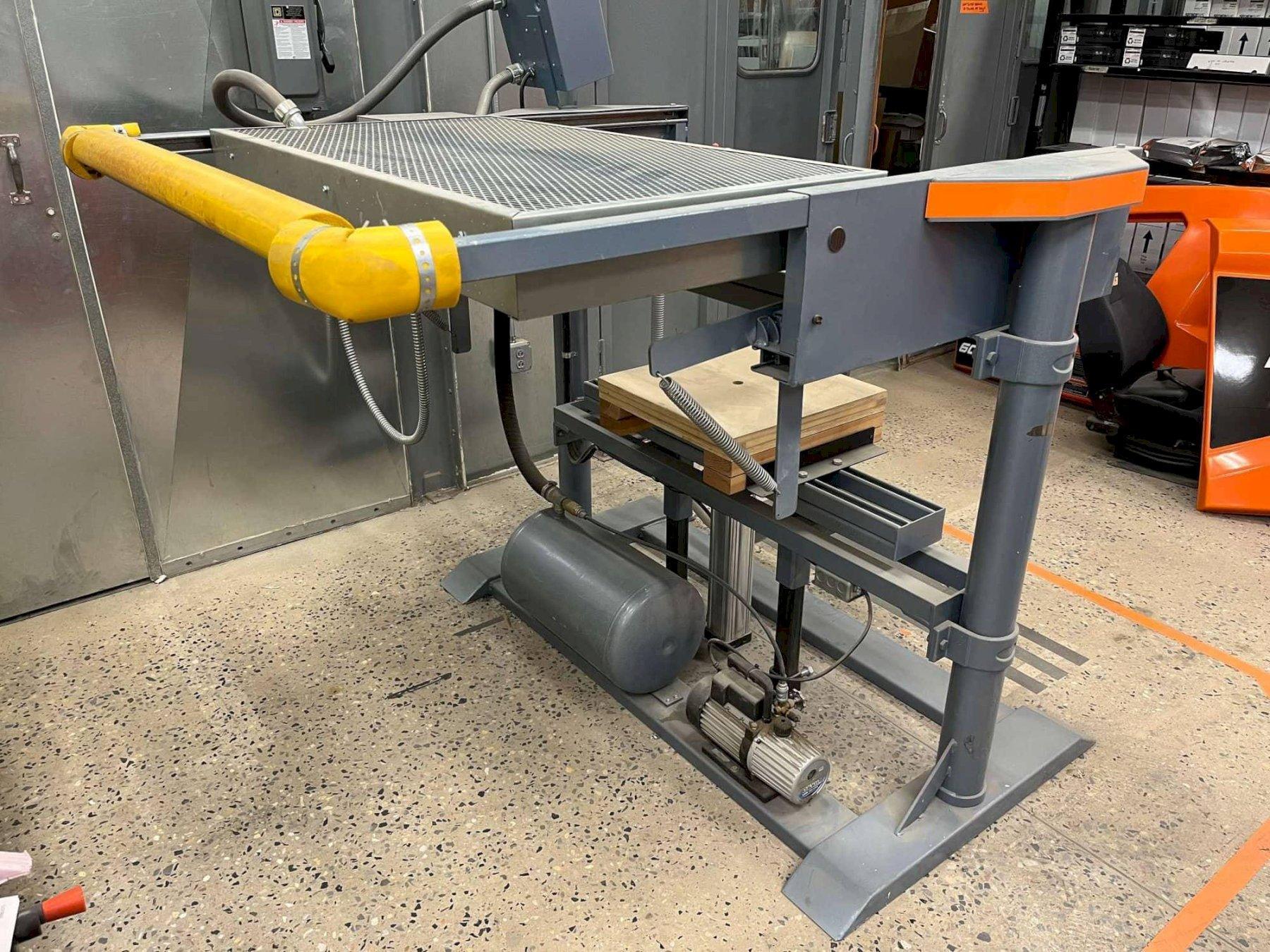

Belovac BV C-class 24″ x 48″ Vacuum Forming Machine, 2018
Brand
Category
Model
C-Class 24x48
Stock #
888328
Year
2018
Condition
Not specified
Location
Not specified
|
Sheet size: 24×48 (61 x 122cm)
Depth of draw: 18 inches
Fully adjustable material clamping
Tooling table: 3 1/4″ (8cm) Pneumatic drive cylinder 300lb (136kg) seal pressure with an adjustable slotted track for rapid tool mounting
Solid state programmable heat timing unit, coupled with programmable percentage control unit
Heater Panel: 20,000 watts infrared radiant panel, with size-down option
Vacuum Pump: High volume, Hi-vacuum pump, Onboard 20 Gallon surge tank
Construction: Post and Beam, Modular Frame System
Recommended for plastics
Plastic gauges up to 1/4″ (.64cm)
Electric Requirements: 220, 3 phase, 40 amps
All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
