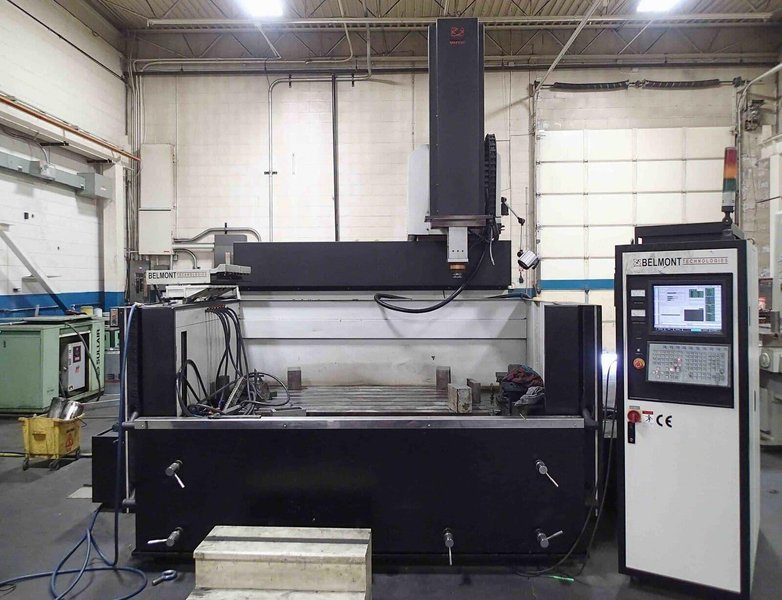

Belmont MX-166W CNC Sinker EDM, 2014 – 200 Amp, 8 ATC, 51″ x 28″, C-Axis

Belmont MX-166W CNC Sinker EDM, 2014 – 200 Amp, 8 ATC, 51″ x 28″, C-Axis

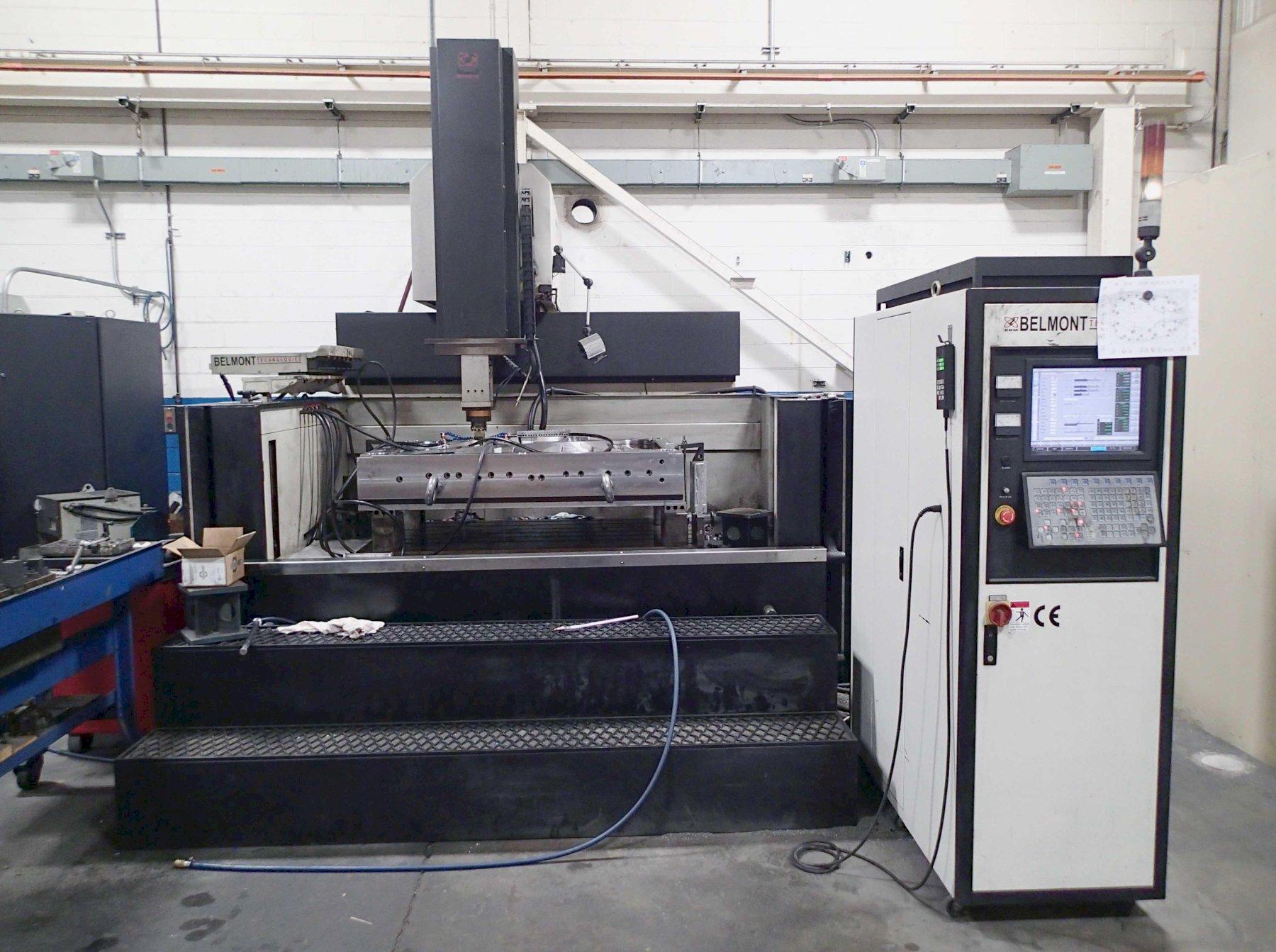

Name: Belmont MX-166W CNC Sinker EDM, 2014 – 200 Amp, 8 ATC, 51″ x 28″, C-Axis
Brand: BELMONT
SKU: 303095
Availability: PreOrder

Brand

BELMONT

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

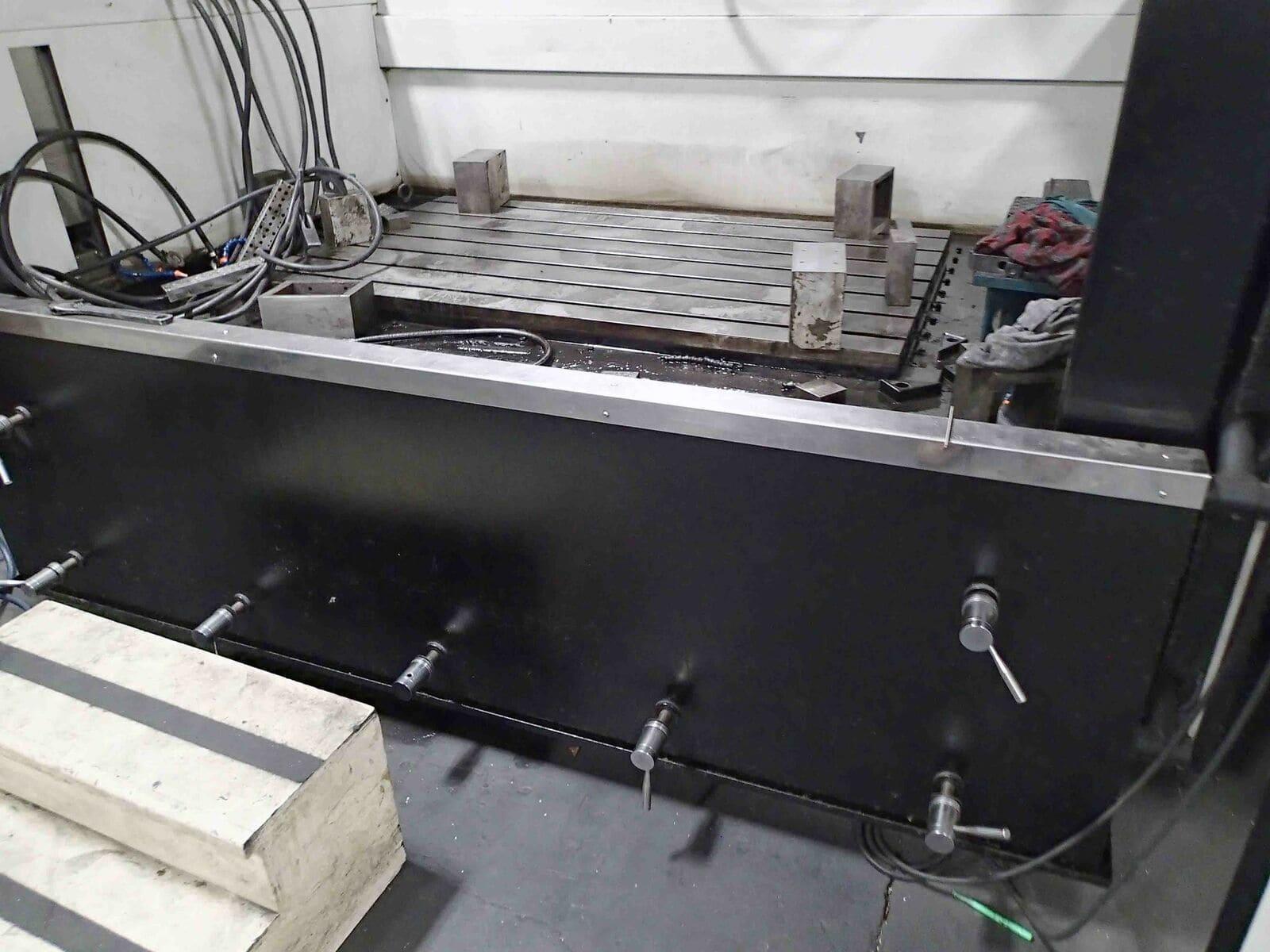

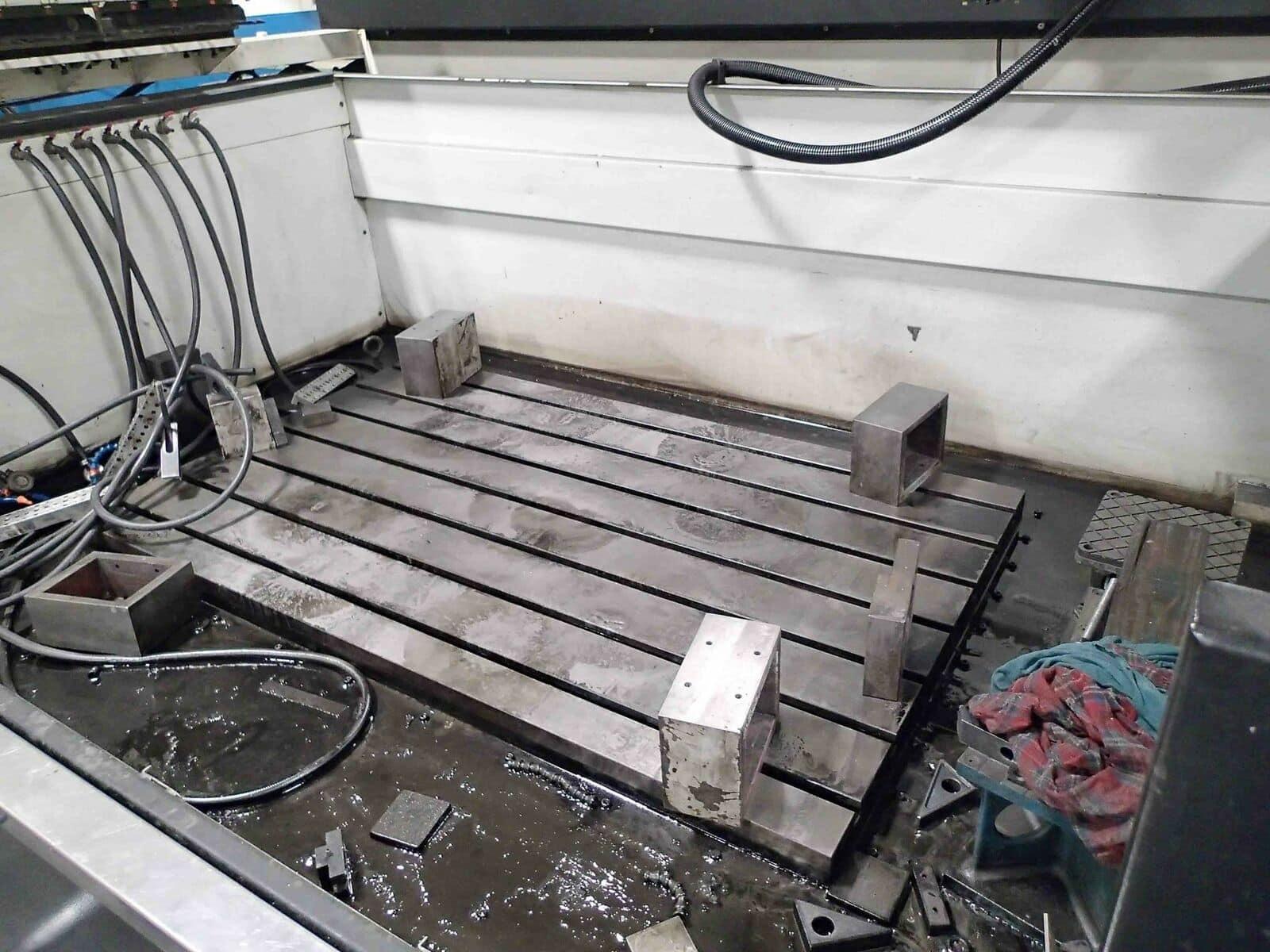

X-Axis Travel: 51.1″ Y-Axis Travel: 27.5″ Z-Axis Travel: 23.2″ C-Axis: Rotational Table Size: 62.9″ x 37.4″ Open Height: 26.7″ – 50″ Max Table Weight: 11,000 lbs.

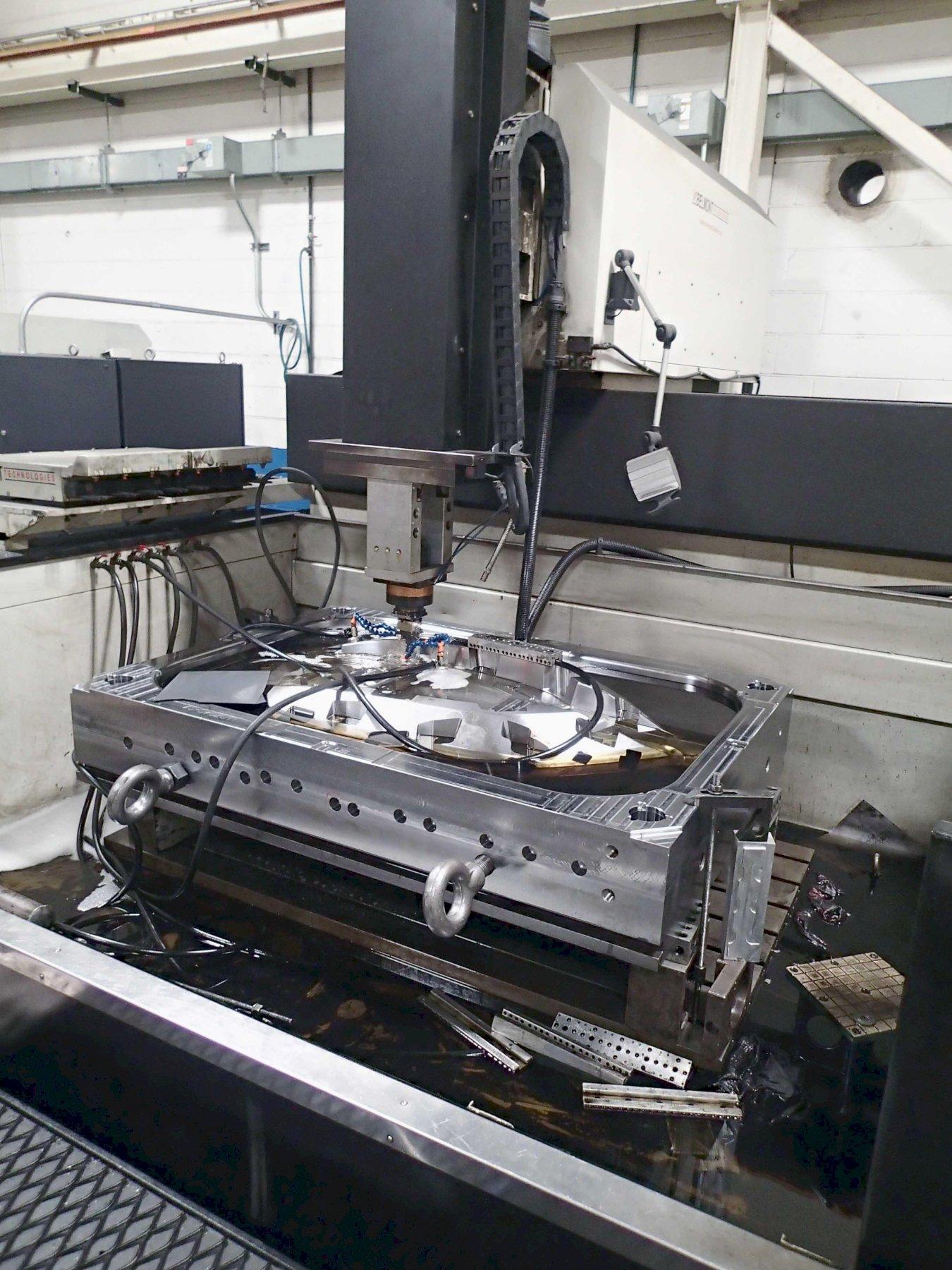

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Auto Tool Changer Positions: 8 Work Tank Capacity (l x w x h): 82.6″ x 45.2″ x 24.8″ (19″ Oil Level) Dielectric Tank Capacity: 605 Gal Peak Power Output: 200 Amp

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Electrical Requirements: 220 V; 3 Ph; 60 Hz (11 KVA) Approx Dimensions (l x w x h): 180″ x 165″ x 134″ Approx Machine Weight: 18,000 lbs

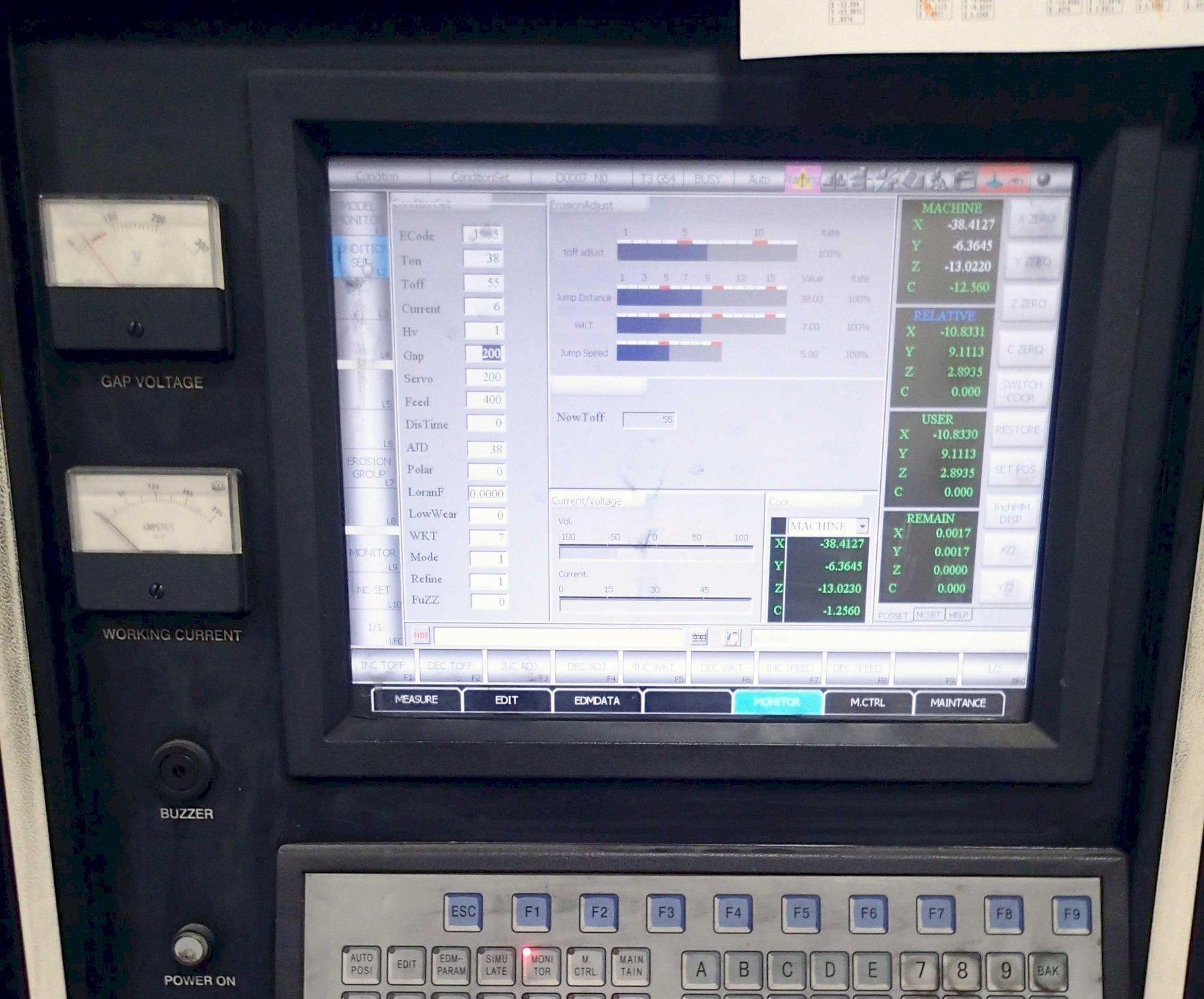

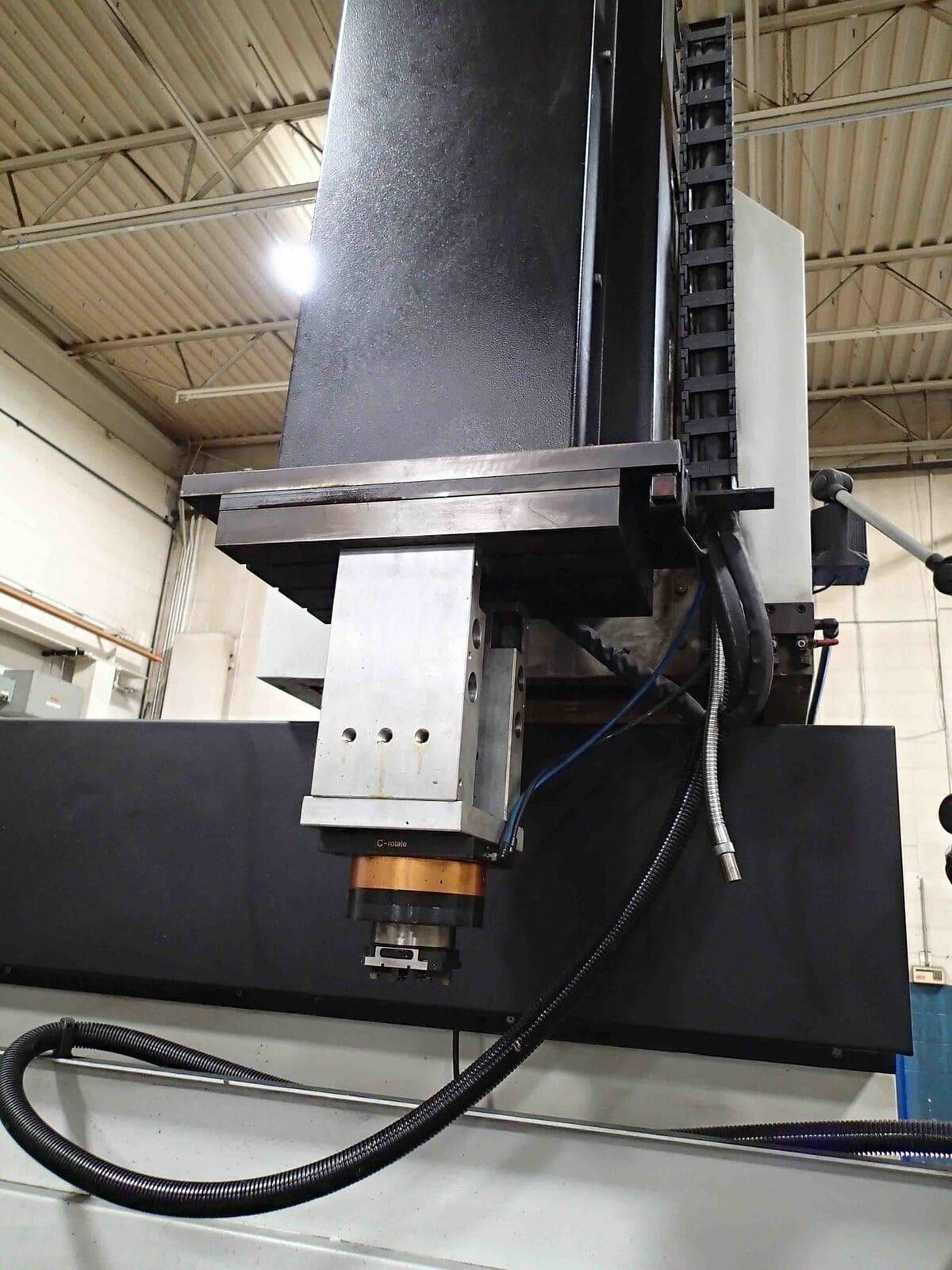

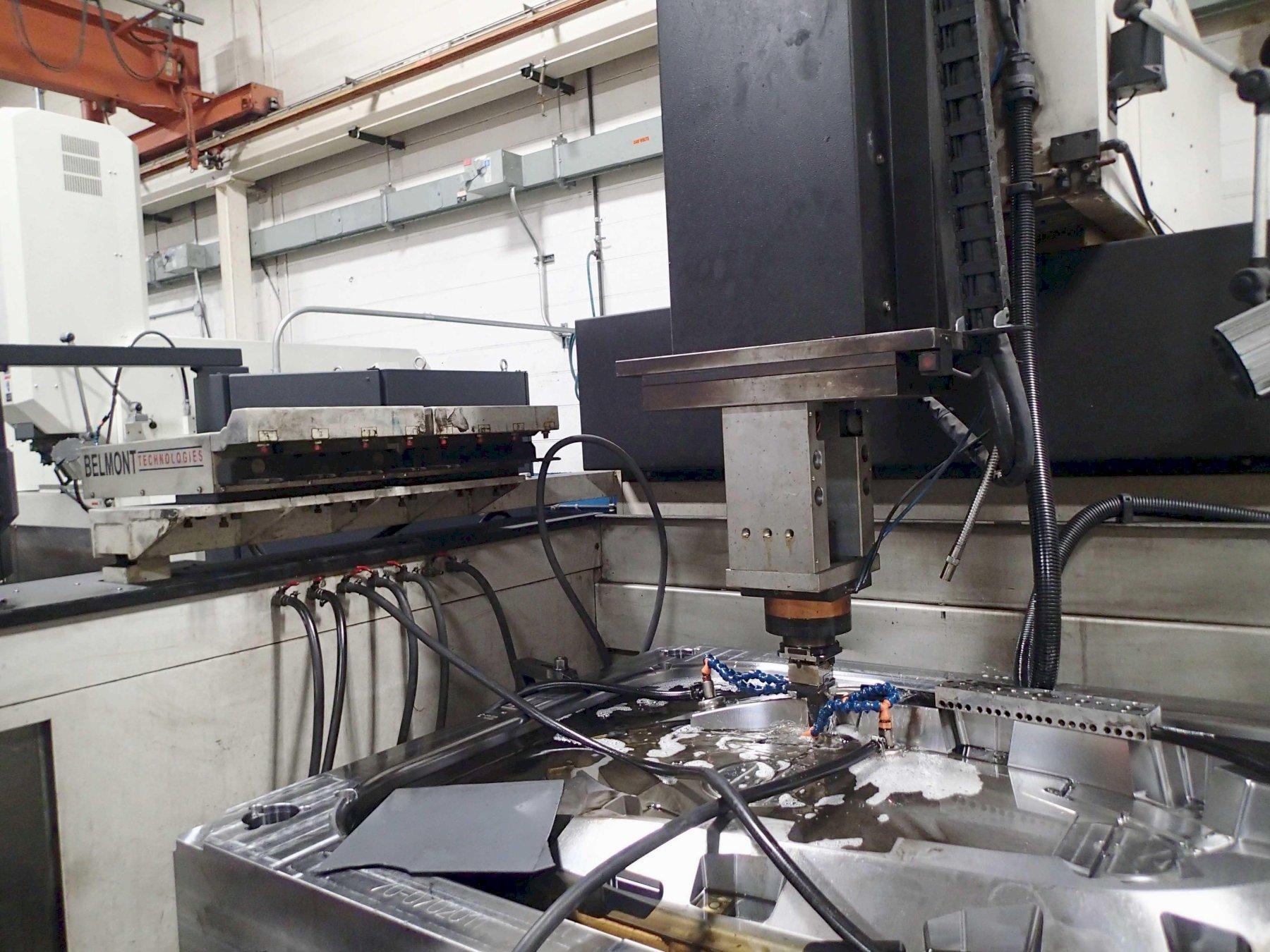

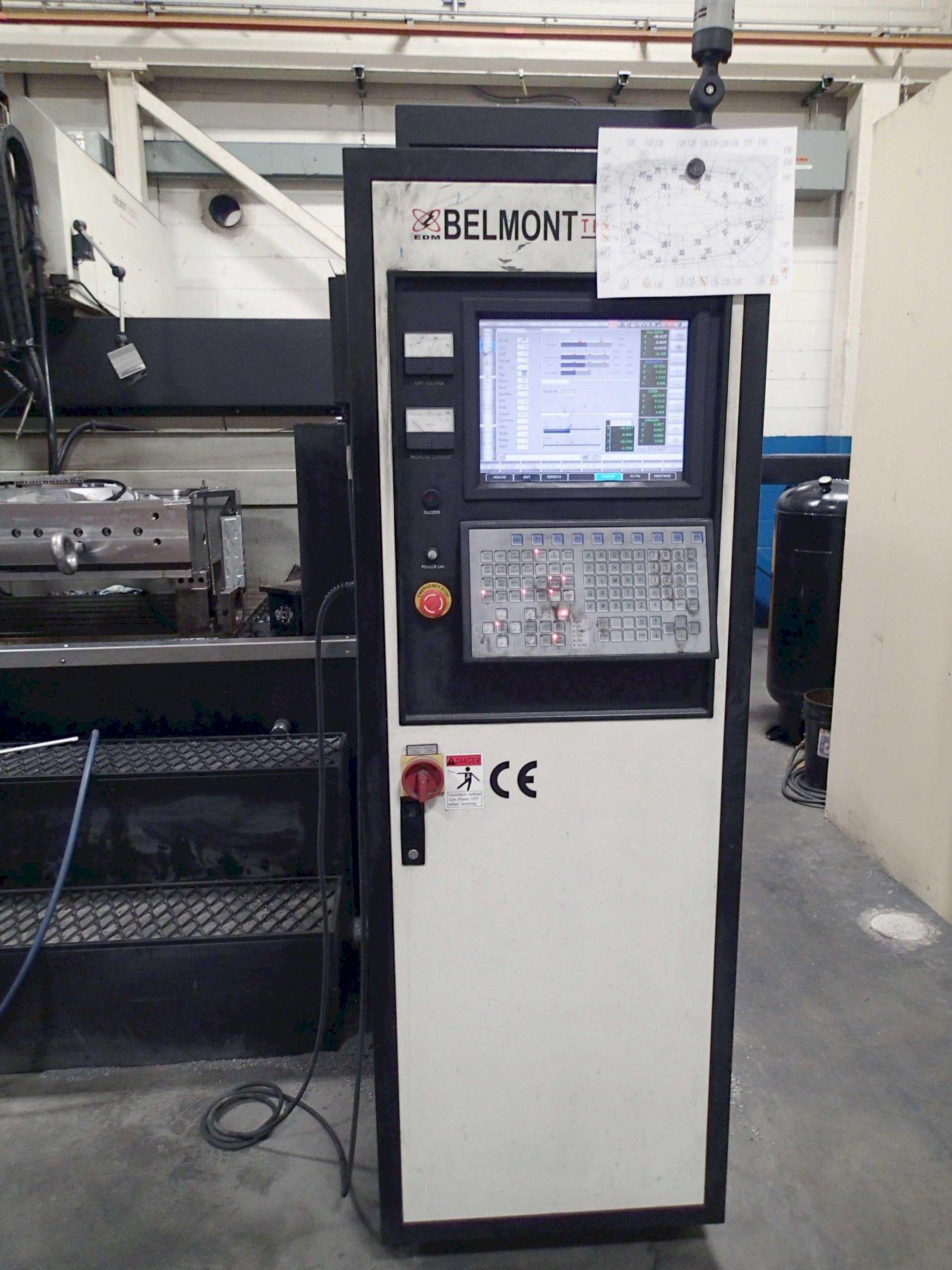

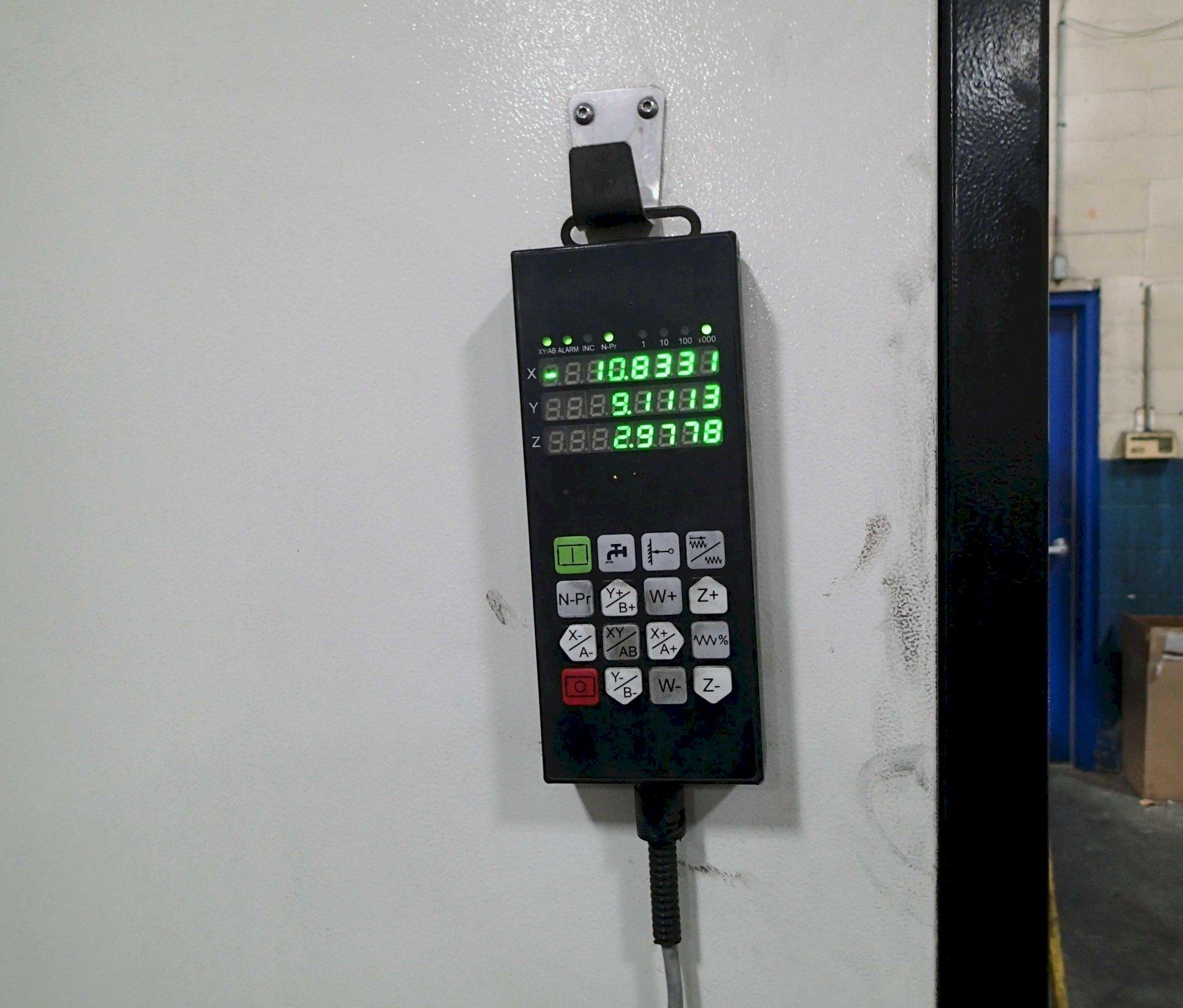

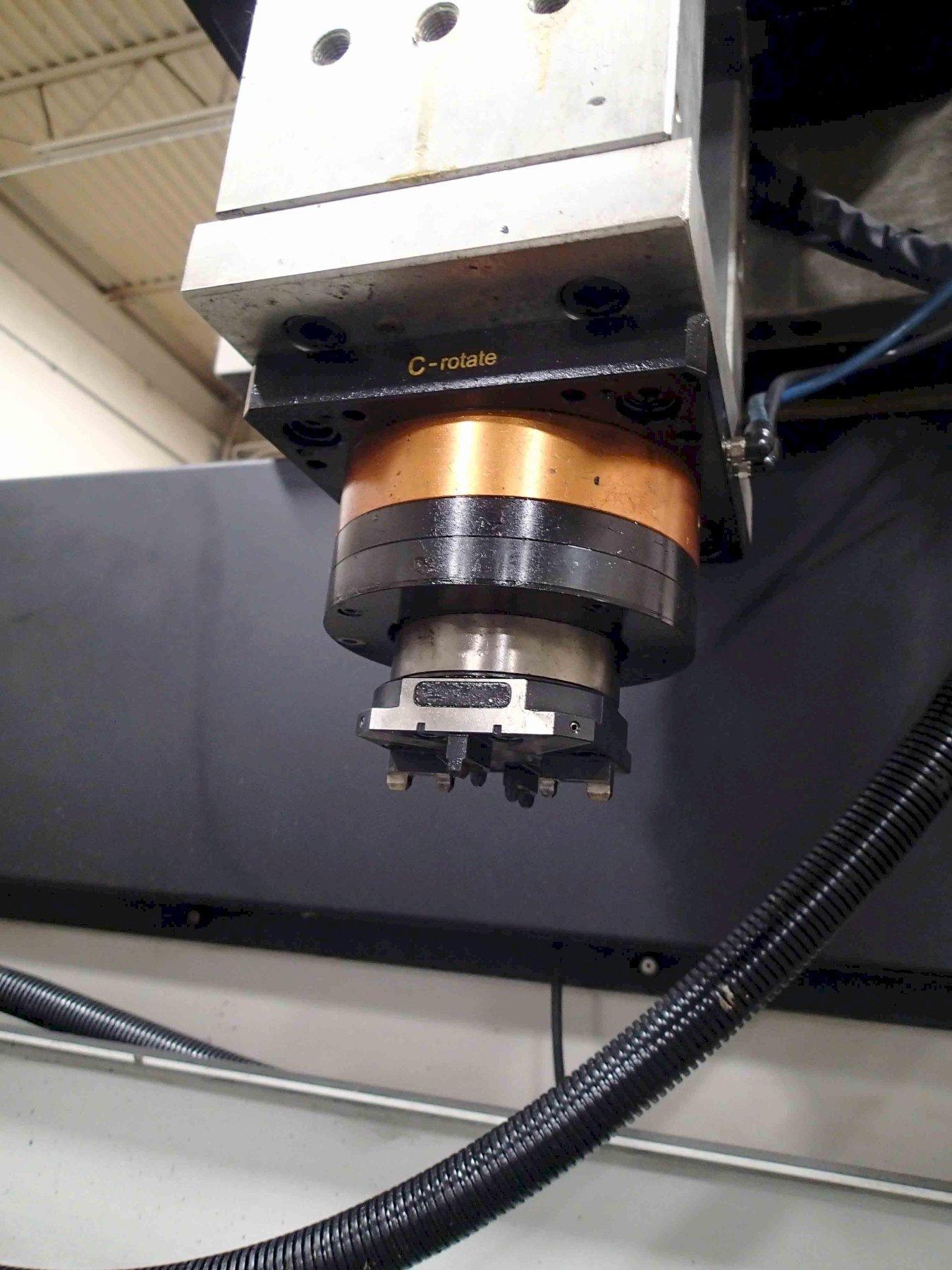

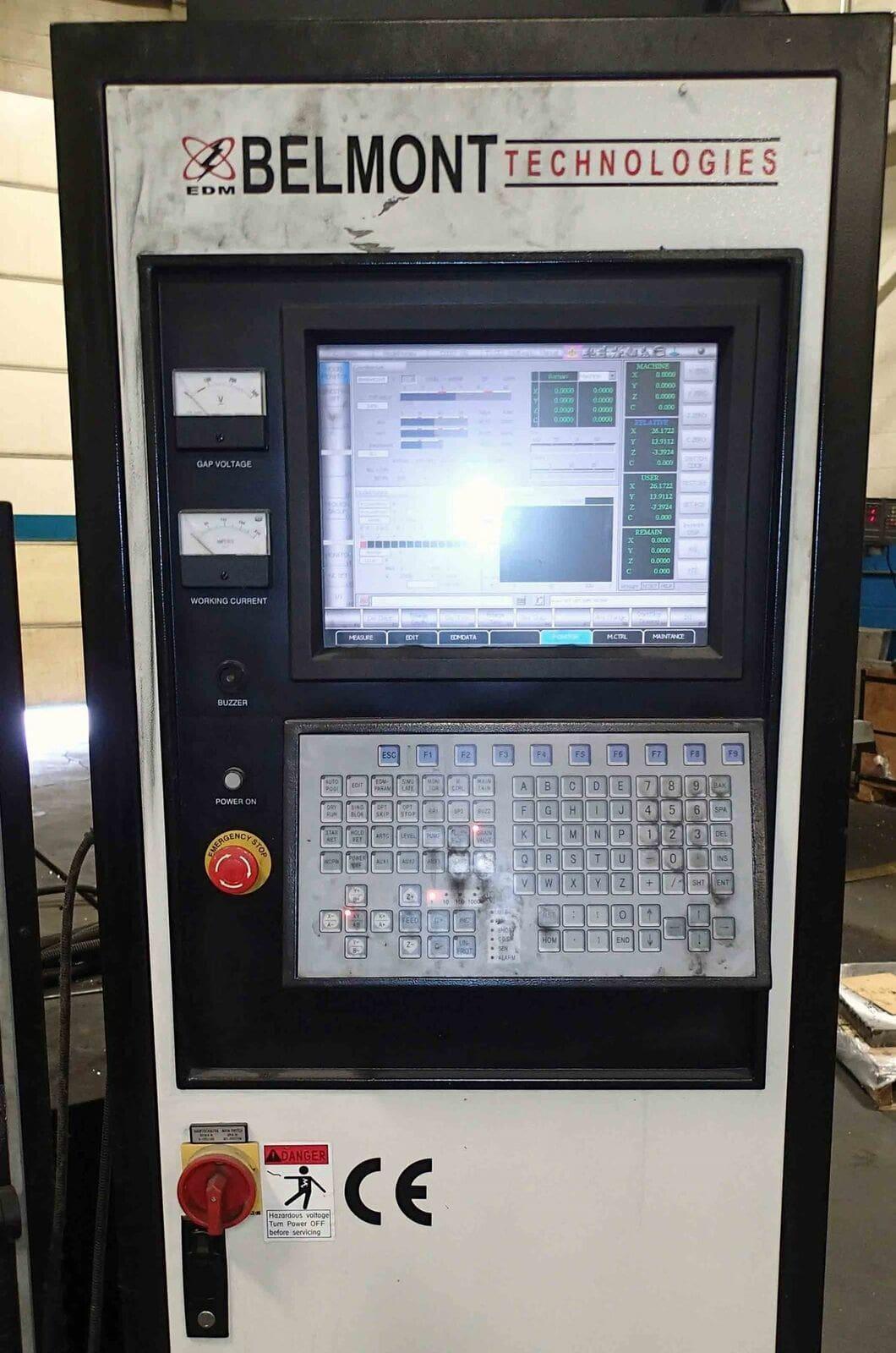

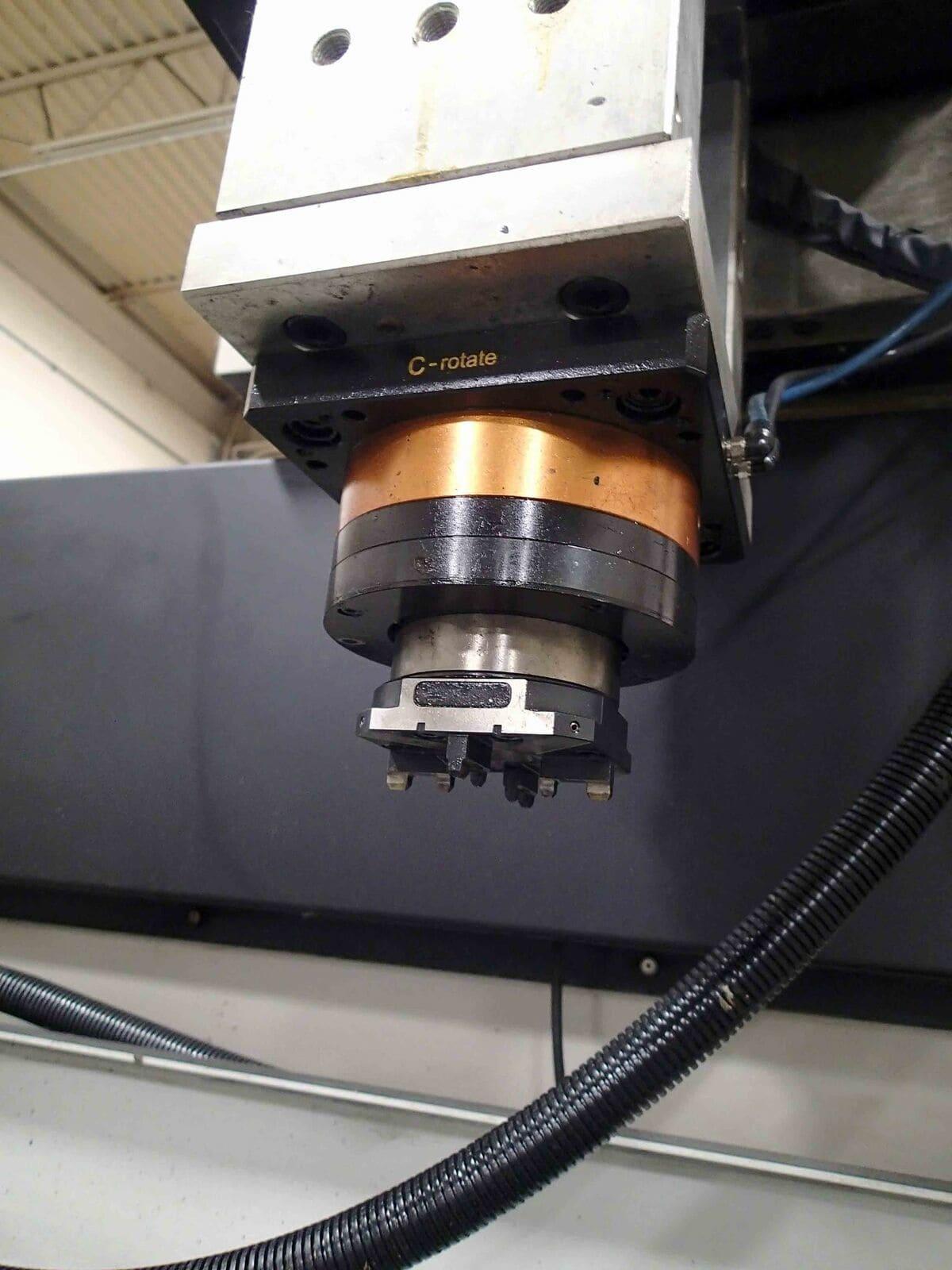

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: CNC Control Panel 8 Position Automatic Tool Changer C-Axis Rotational Head Glass Linear Scales 10 Orbit Patterns Remote Pendant Control Dual Dielectric Tanks

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
