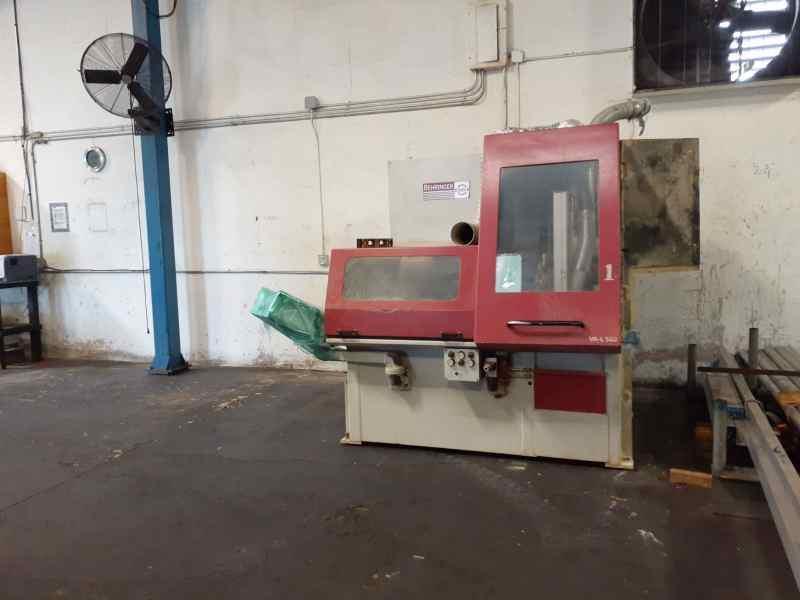

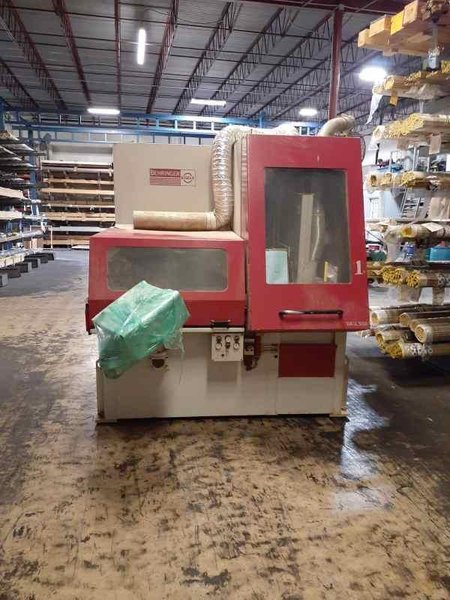

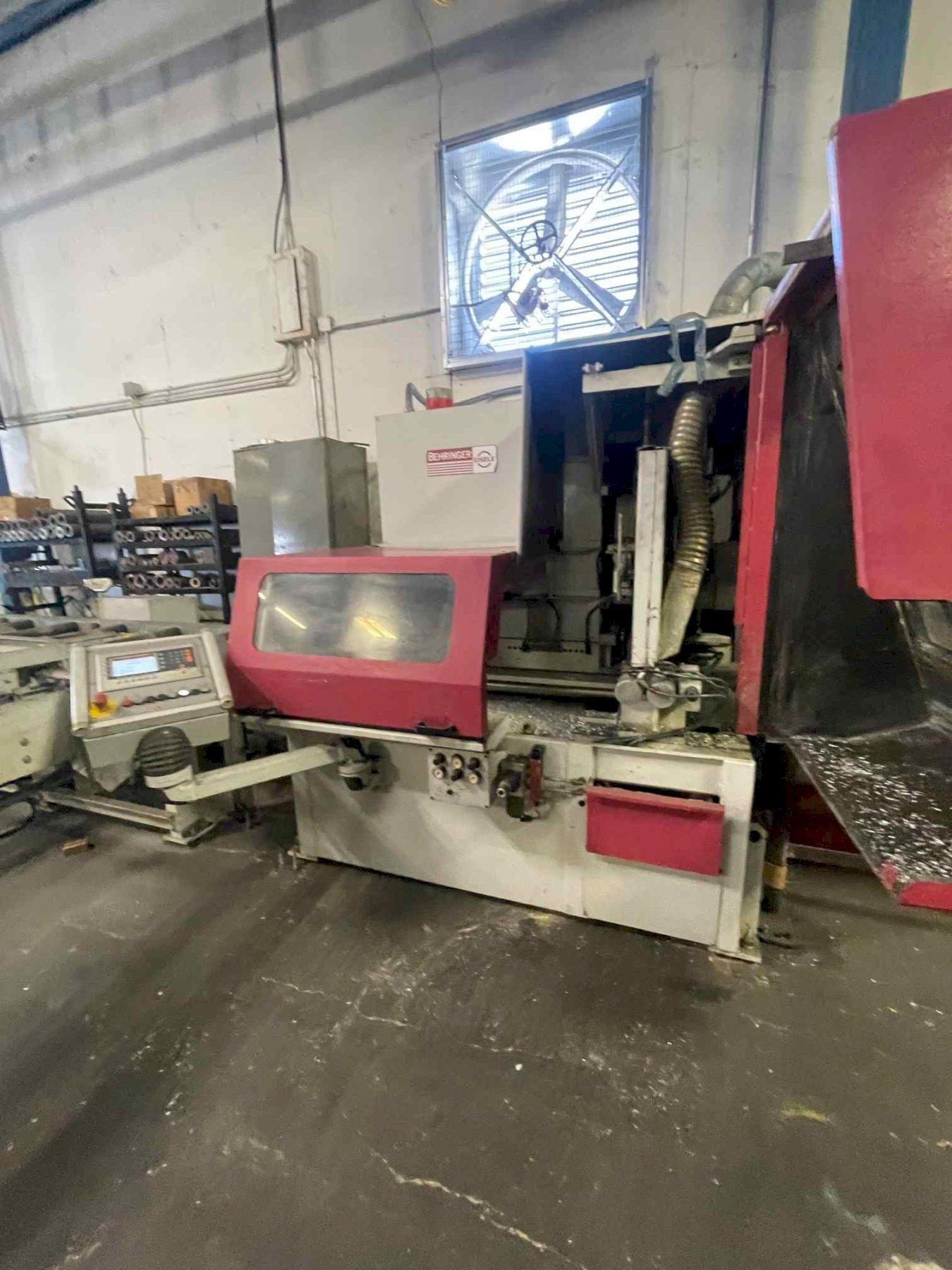

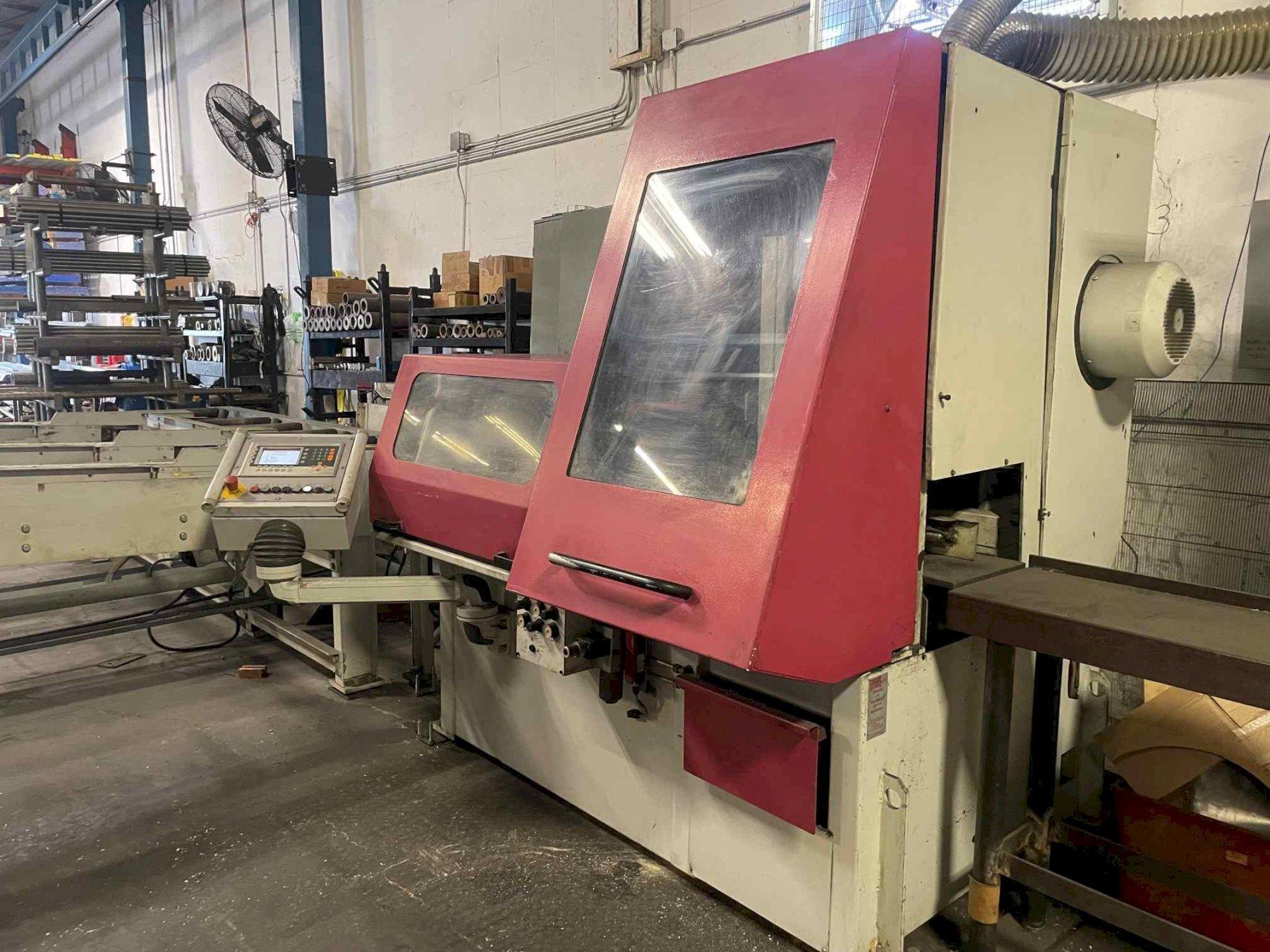

7.9″ Behringer Val-560 NC1 Automatic Cold Saw, 2014
Brand
Category
Type
Model
VAL-560 NC1
Stock #
869715
Year
2014
Condition
Not specified
Location
Not specified
|
Blade size: 22″
Cutting range 90° round: 0.4 – 7.9 in
Cutting range 90° flat: Cutting range 90° flat
Cutting range 90° square: 6.7 in x 6.7 in
Smallest dimension to be sawn round: 0.4 in
Smallest dimension to be sawn flat: 0.4 in x 0.4 in
Drive power: 34.9 hp
RPM: 800 – 3,400 min-1
Saw blade diameter: 19.7 in – 22.0 in
Feeding length single stroke: 39.4 in
Feed rate: 0 – 78.7 in/s
Saw feed: servo-driven
Material clamping: servo-driven
All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped with: Bar Loading Magazine Conveyor Out Feed System All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
