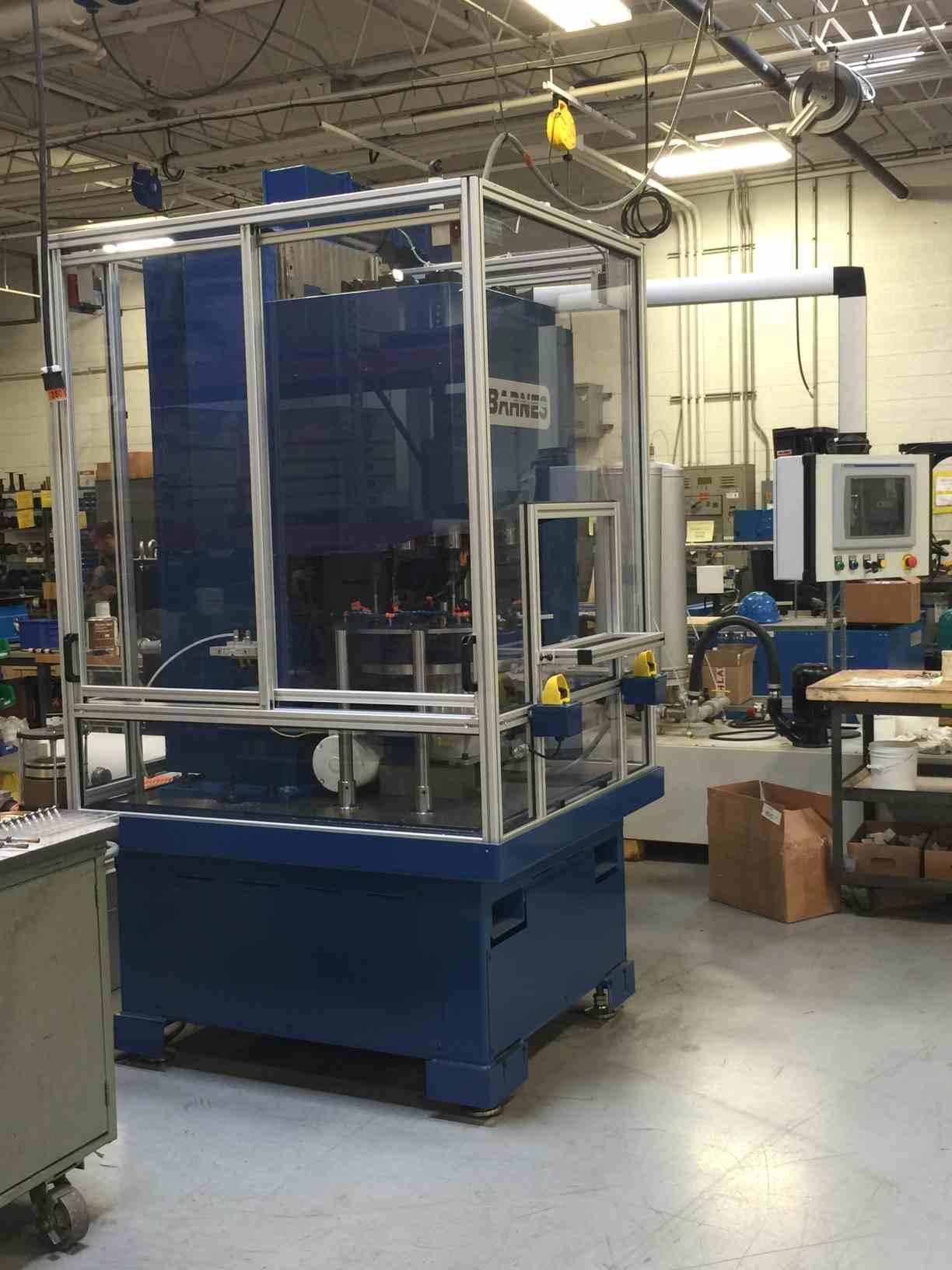

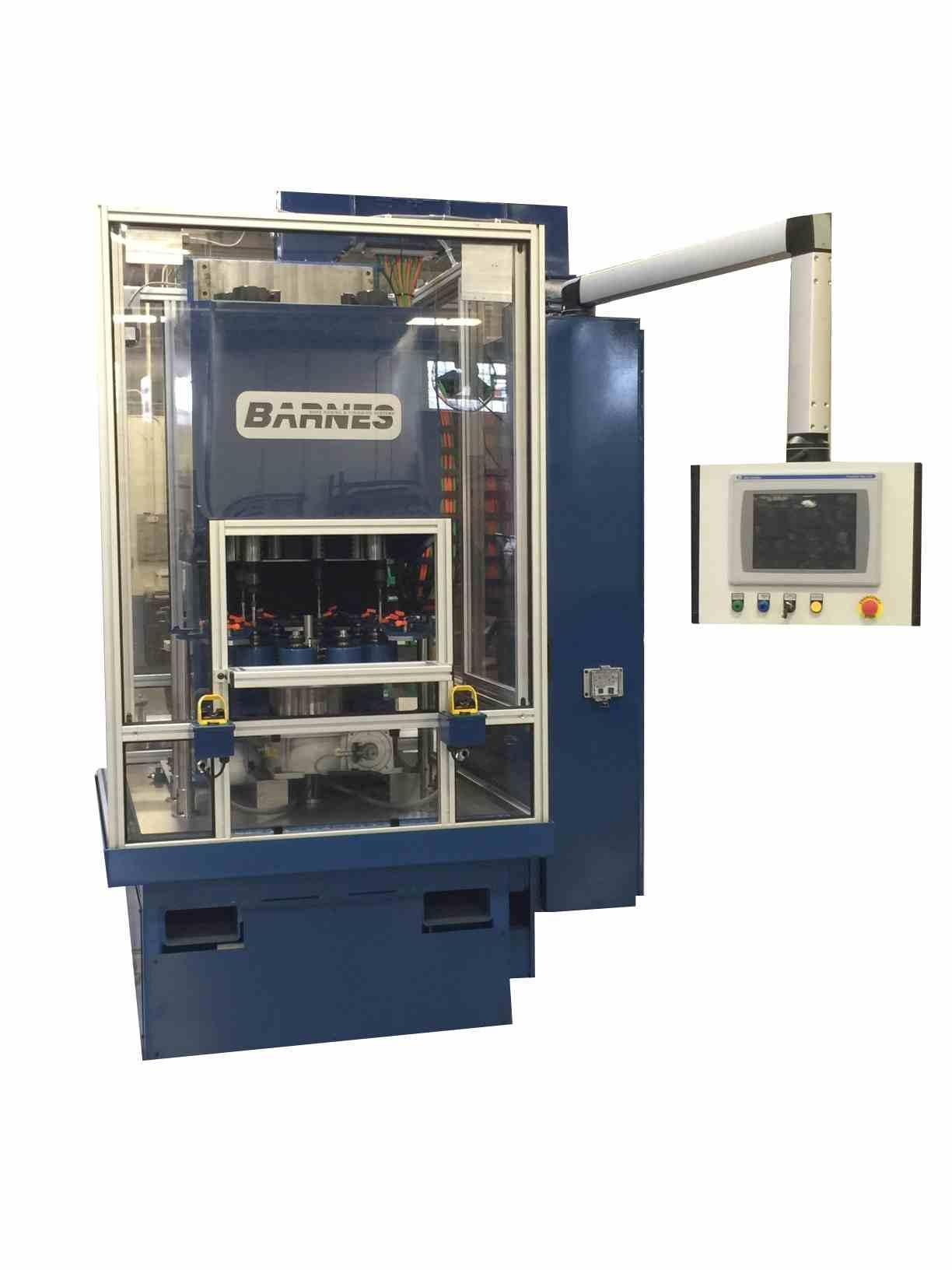

Barnes MSSP-1000 R8 Multiple Spindle Single Pass Vertical Honing Machine, 2014 – Never Been Used

Fabricated steel base designed to accept column and rotary index table.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Fabricated steel column designed to accept multiple – eight (8) – spindle head assembly. Complete with linear guide ways and ball screw and servo motor assembly for precise alignment and movement of head assembly. Advance and retract speeds are programmable thru the HMI.

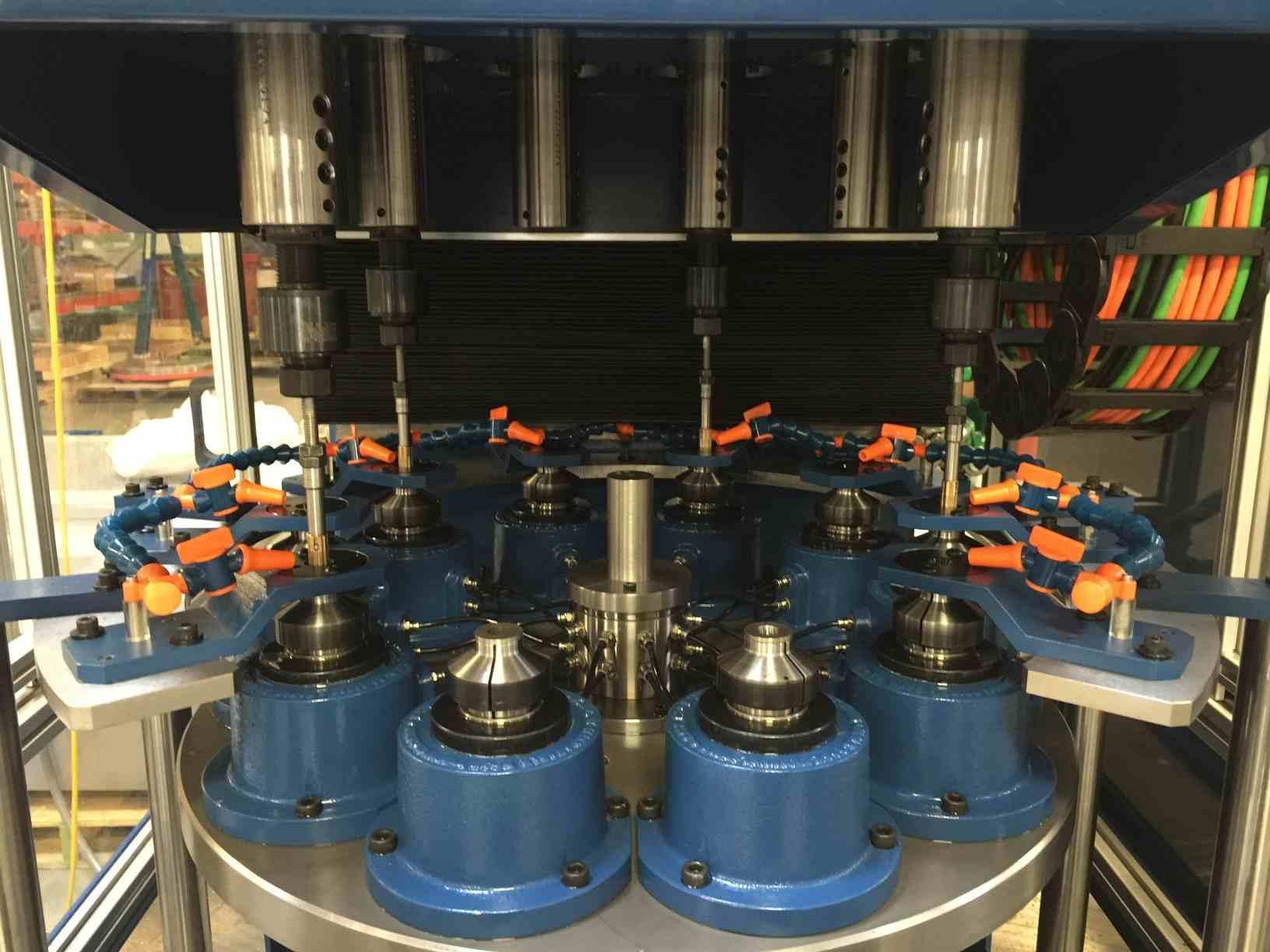

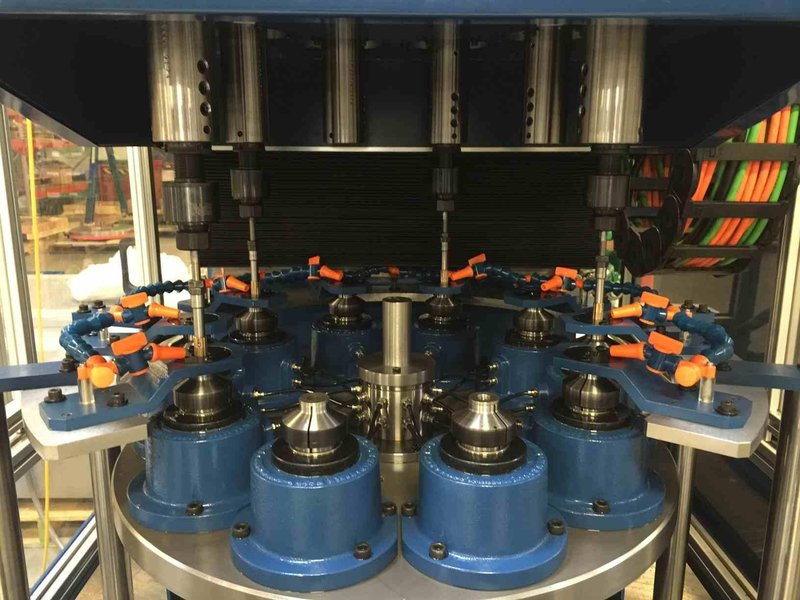

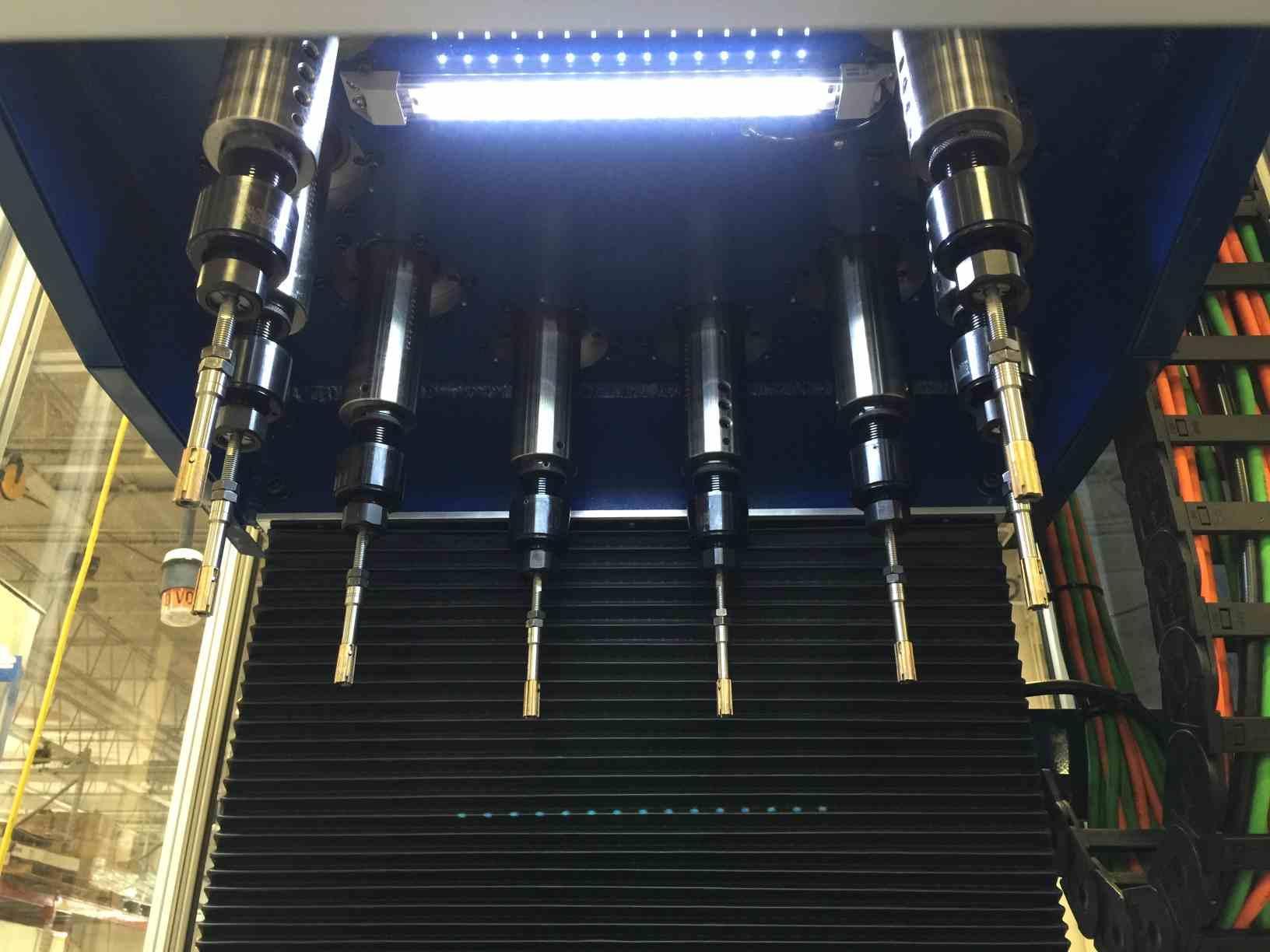

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Eight (8) spindle head assembly including eight (8) individual Allen-Bradley 0.75 kW servo spindle drive motors and gear box arrangement. Drive motors arranged to provide optimum operating speeds (RPM) for each spindle and are independently programmable thru the operator console (HMI).

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Individual spindle motor torque load monitoring system for maintaining optimum tool performance and crash protection.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Column mounted counter balance system.

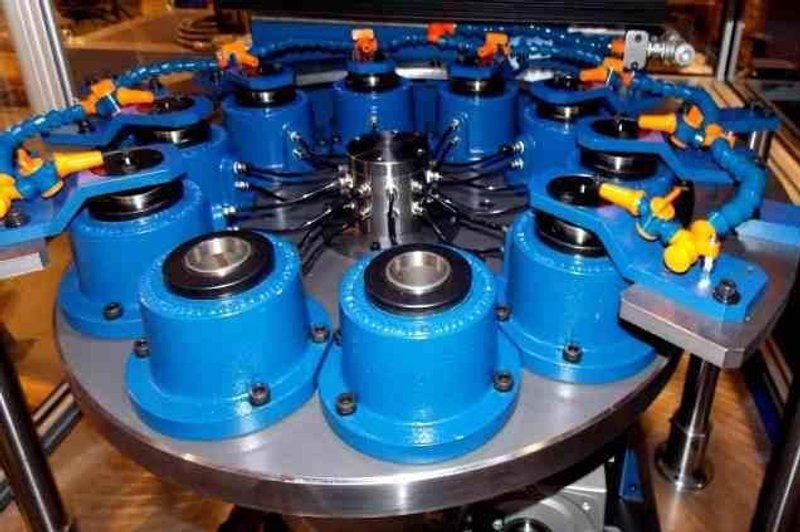

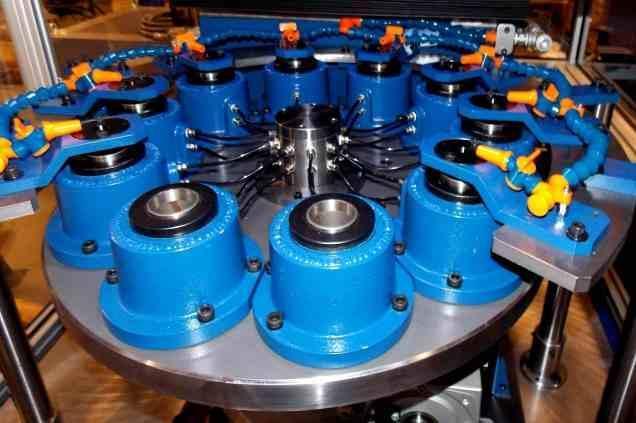

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,CAMCO model 902 RDM rotary index table, ten (10) station type with machined dial plate for mounting of fixture assemblies.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Pre-hone probe assembly to check bore diameter in load and unload stations. Includes pneumatic cylinder and probes.

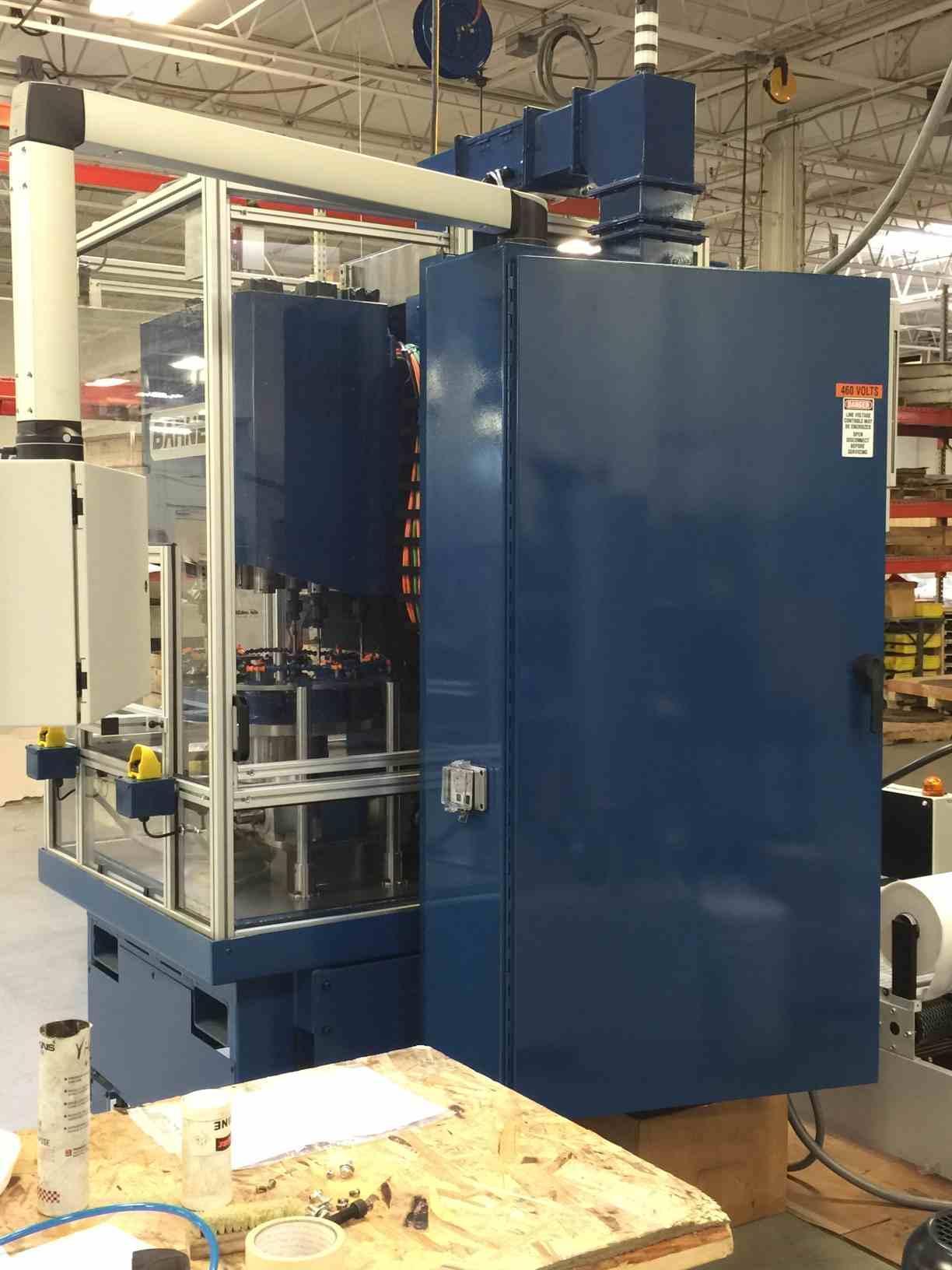

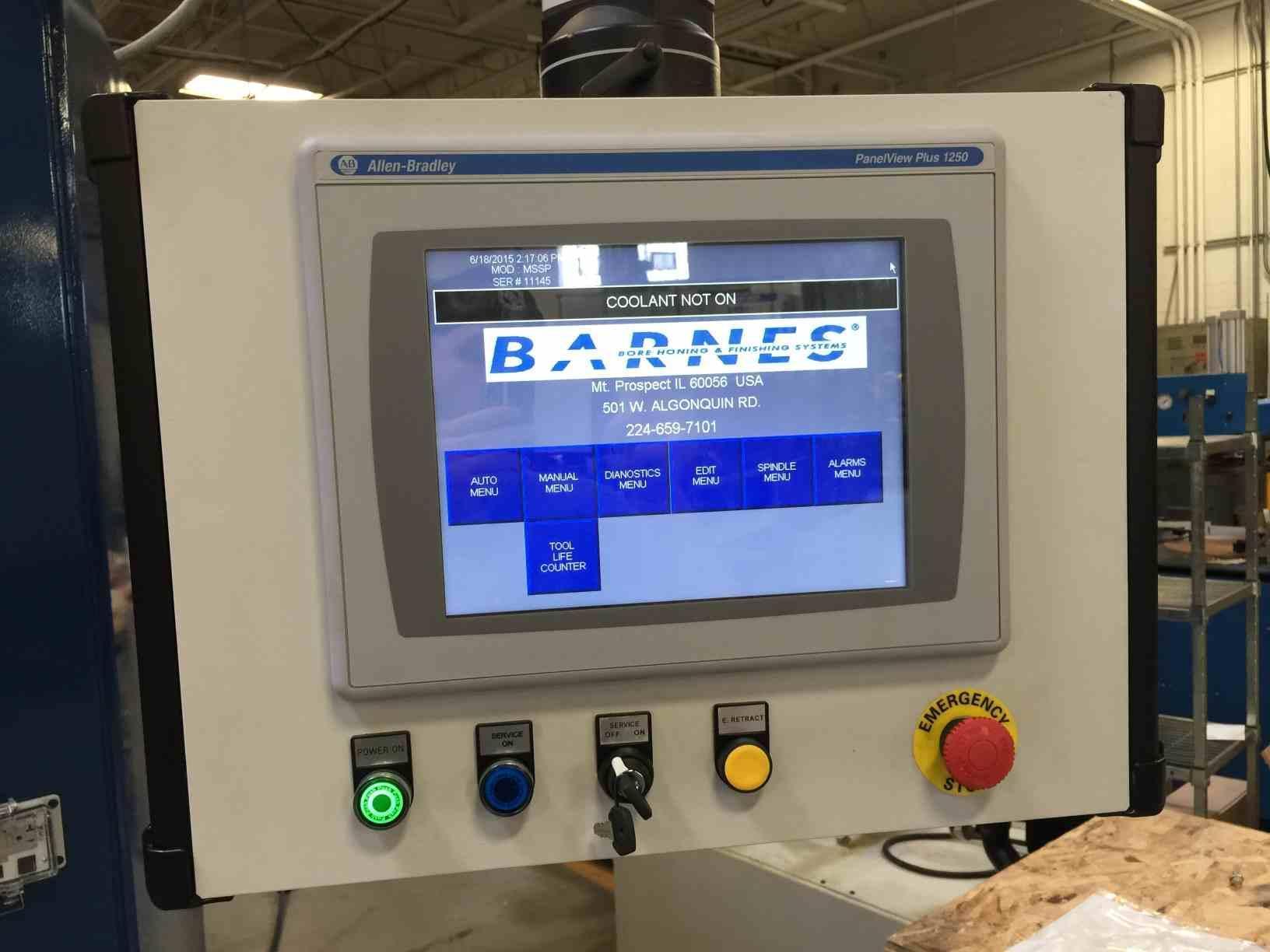

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Allen-Bradley PLC Control System complete with the following: 12” Panel view color touch screen HMI, operator interface complete with menu screens and diagnostics mounted in pendant mounted operator console panel. 24VDC control voltage. Part file system to store, recall and reset all machine parameters. Base mounted electrical enclosure for above control plus all starters, disconnects, fuses, terminal strips, and interconnecting wiring. Air conditioner for electrical enclosure. All wire ways, junction boxes and hardware. Virtual Private Network (VPN) connection for remote troubleshooting. 3 color overhead “stack” light.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Automatic lubrication system.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Pneumatic system including rotary manifold for fixture actuation.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Enclosure guarding to contain coolant splash.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
