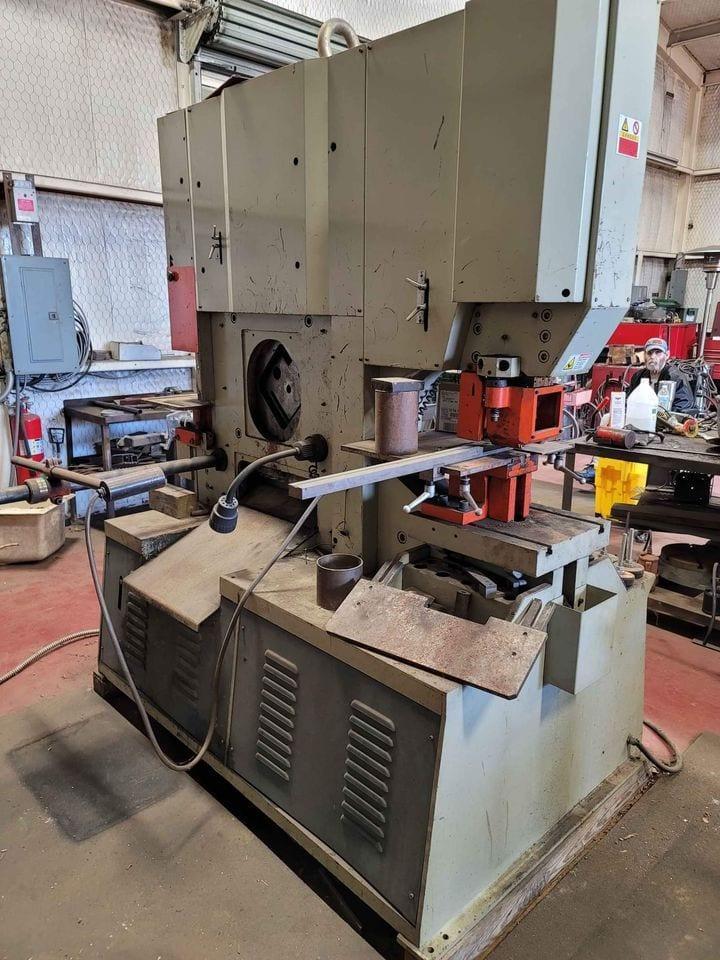

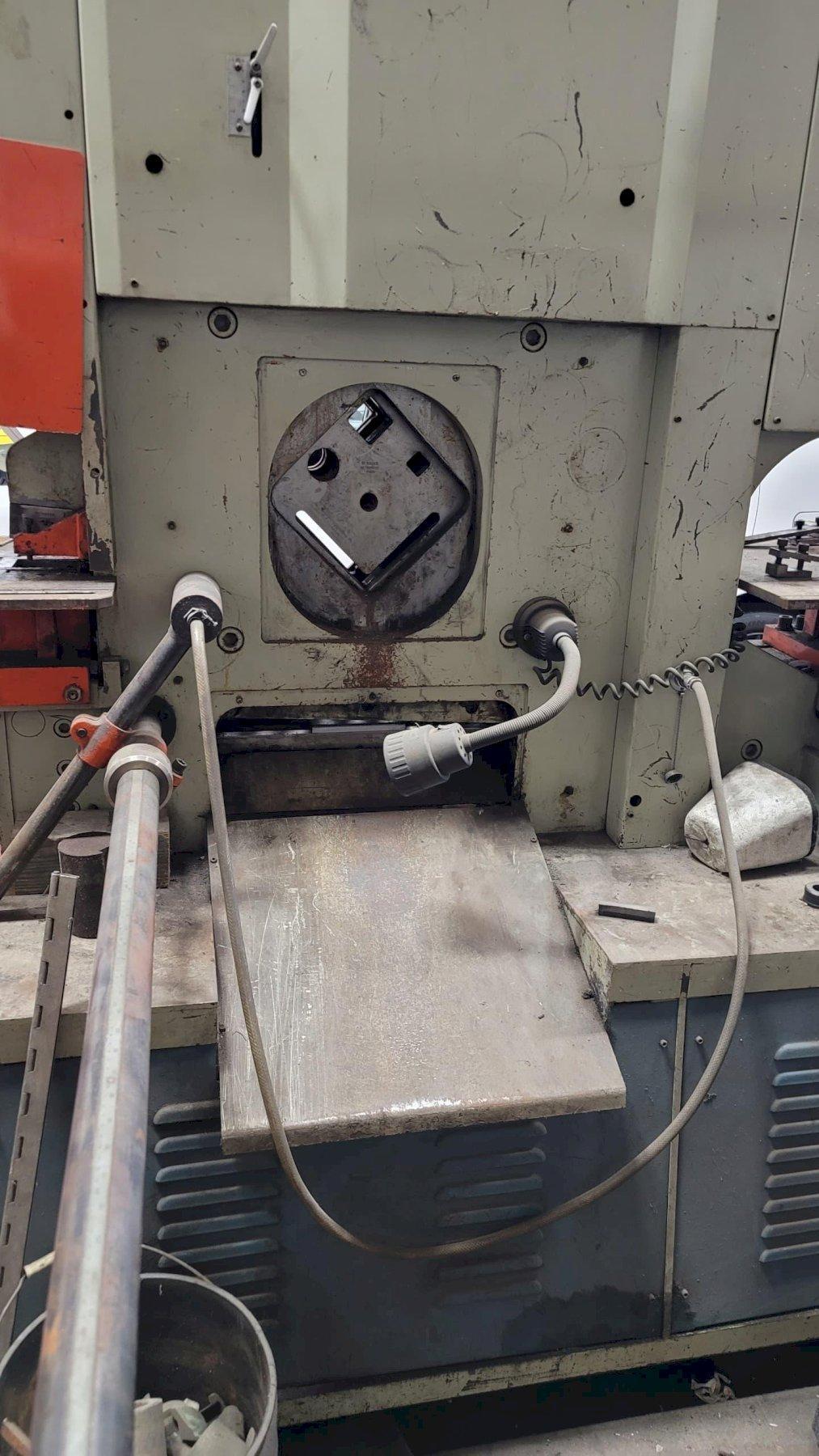

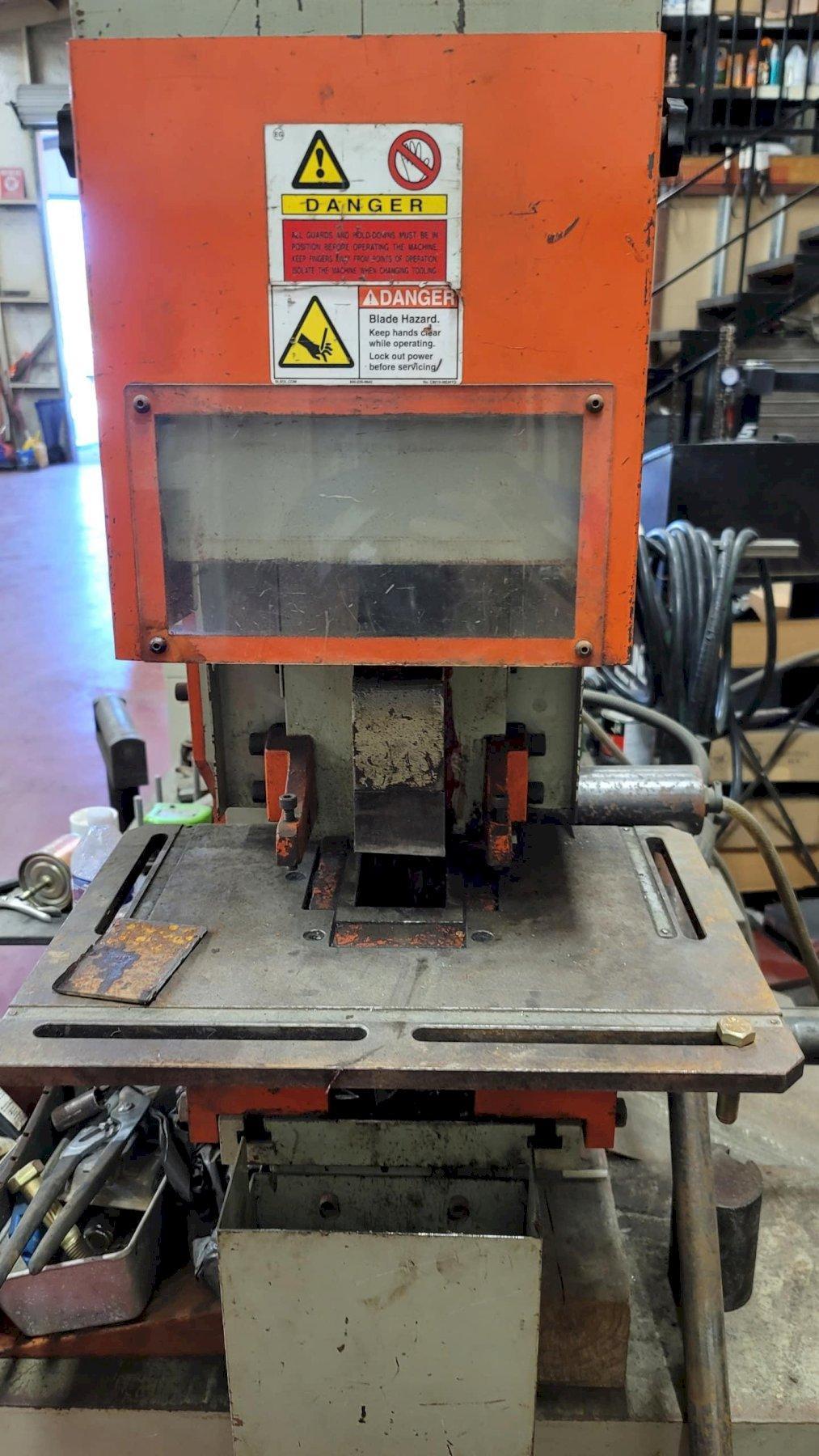

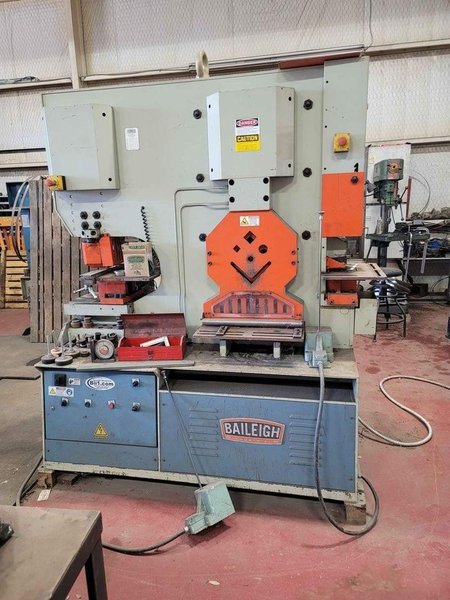

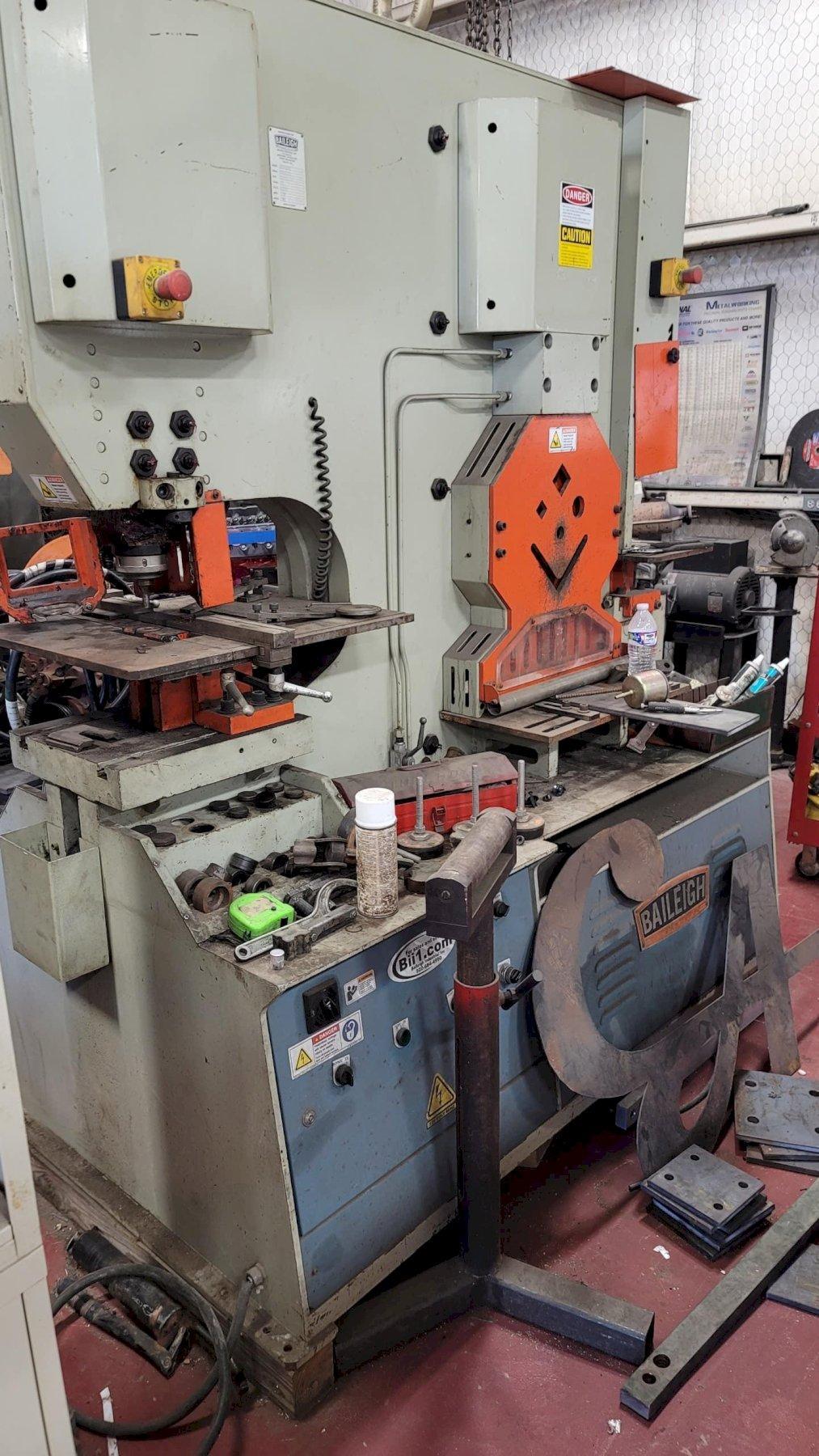

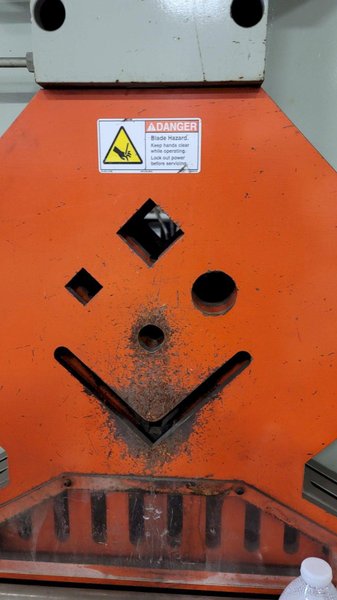

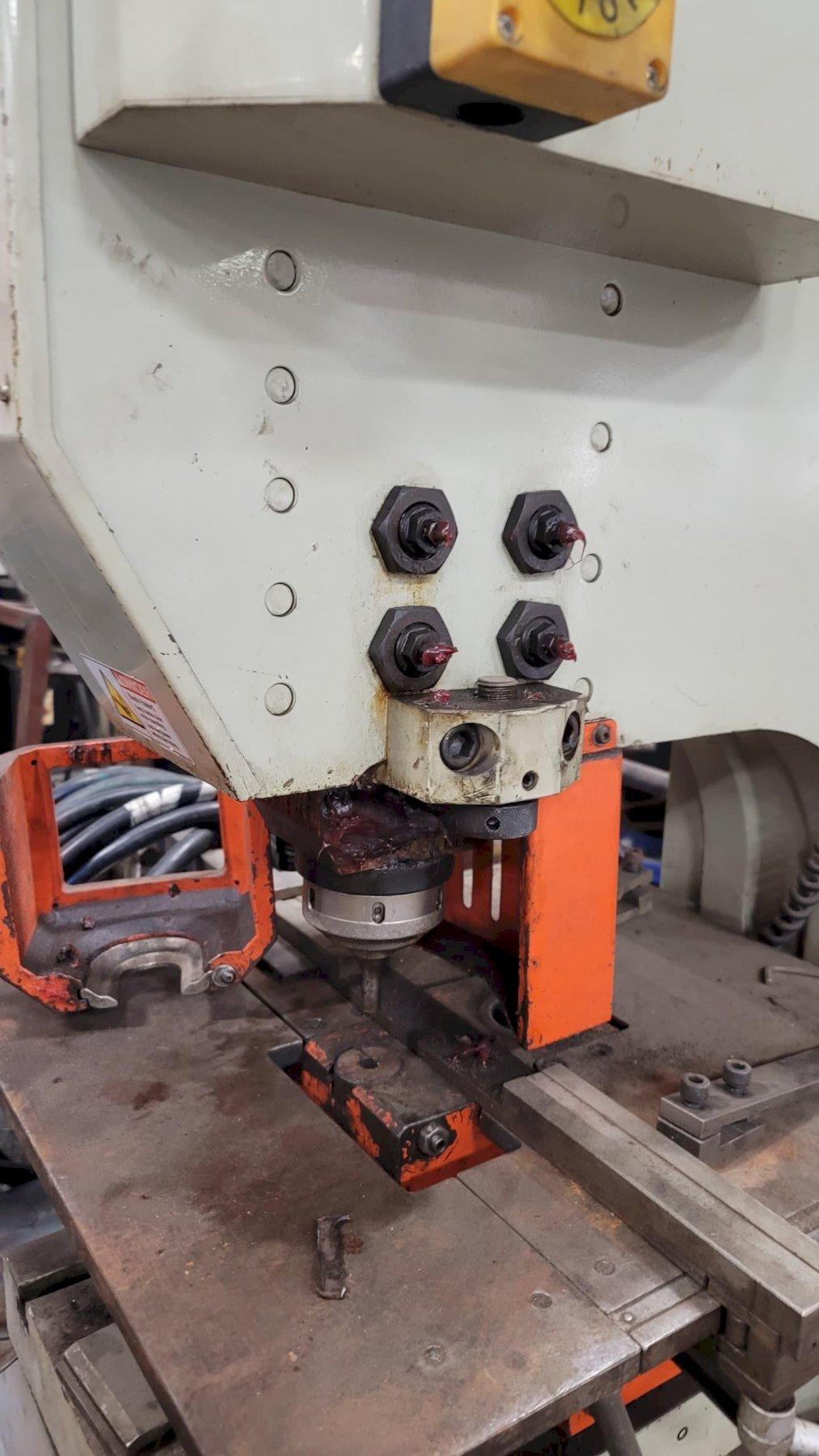

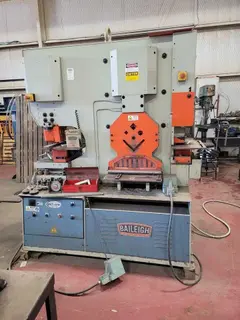

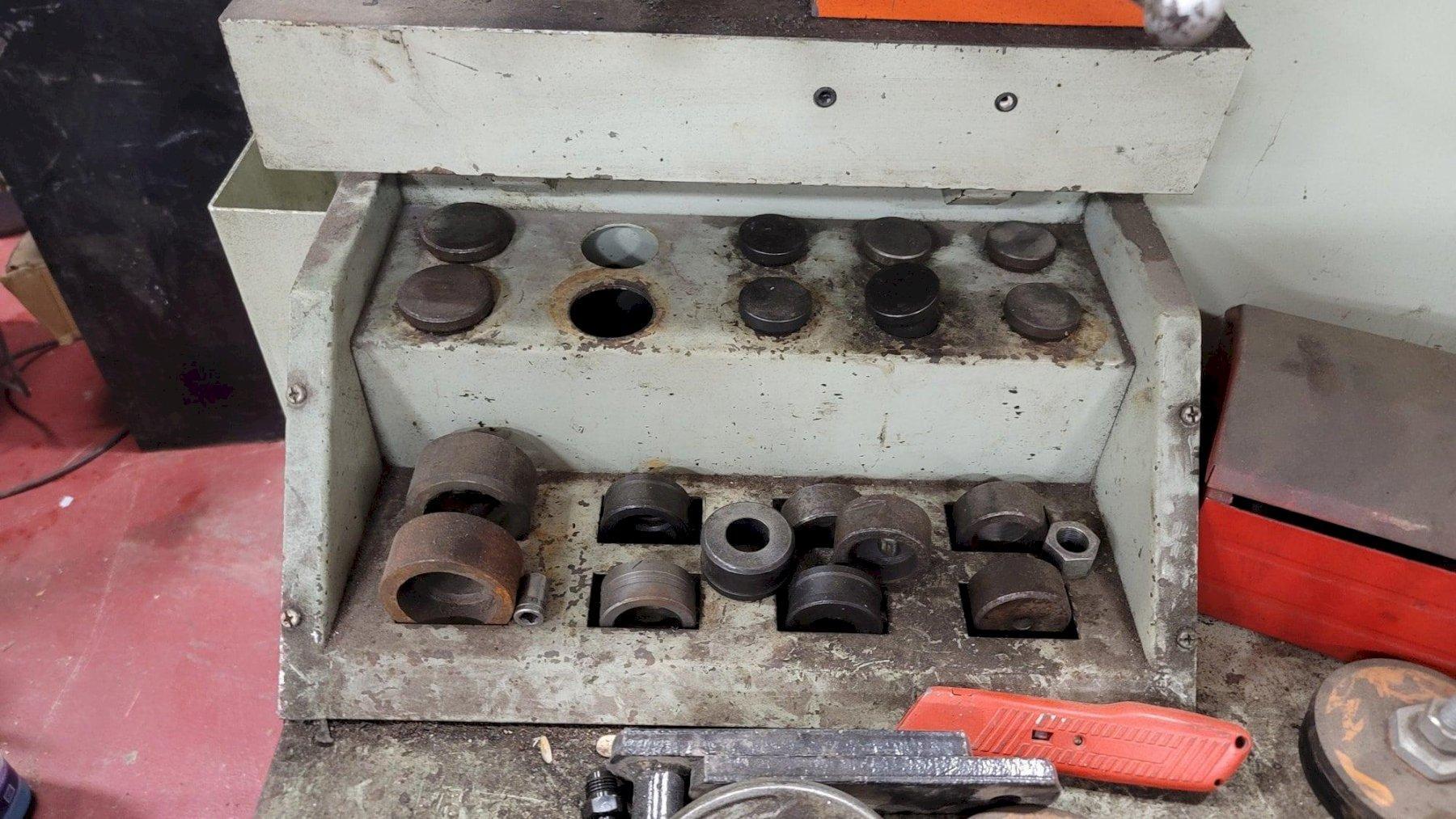

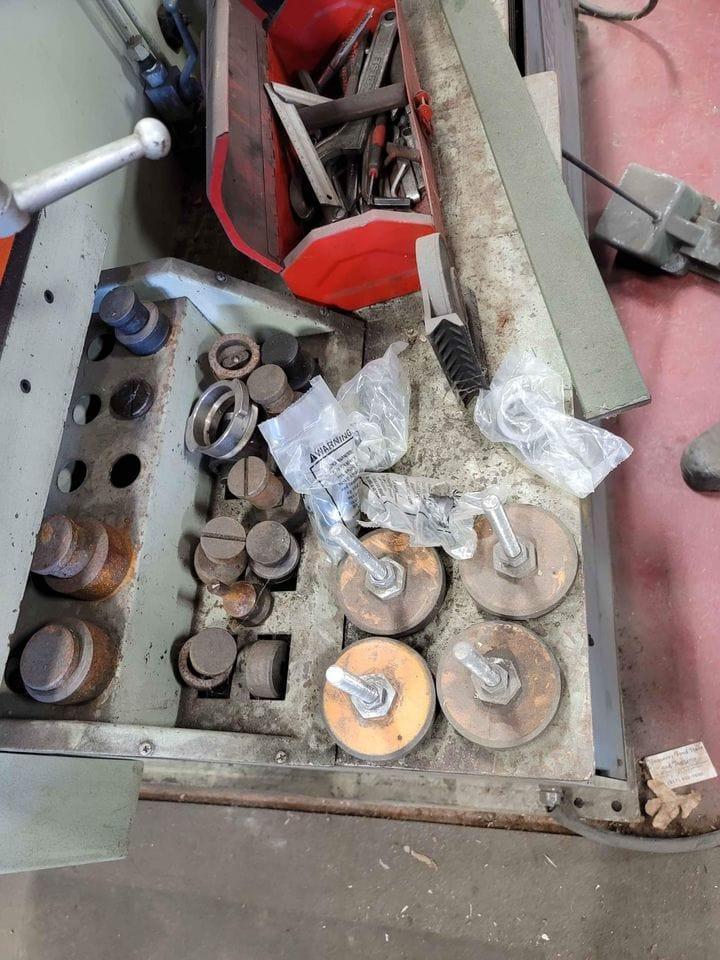

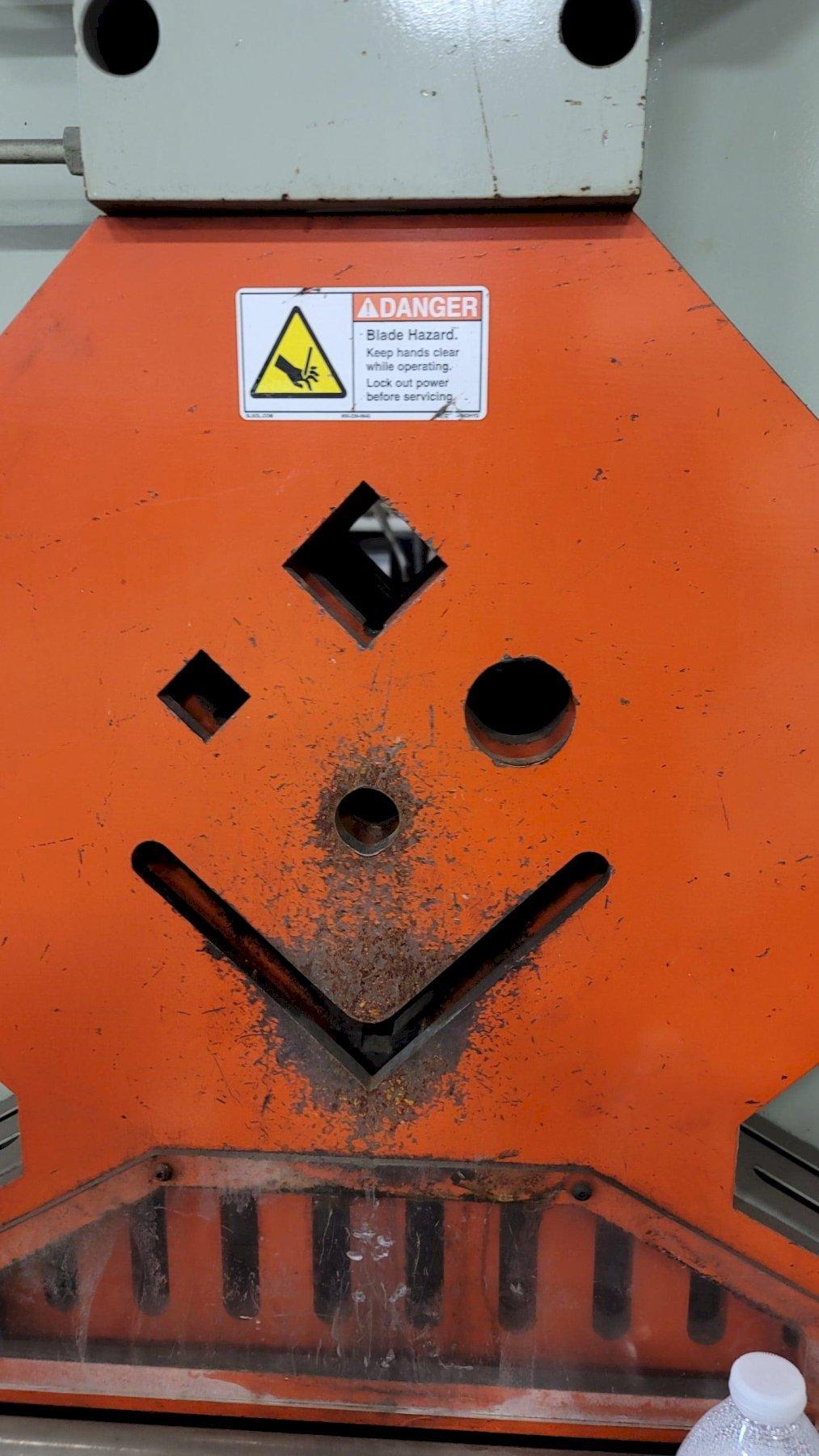

132 Ton Baileigh SW-132 Hydraulic Ironworker-2009, Tooling Included

Round Bar Shear: 1.75″ Rectangle Notcher W x D x T: 2″ x 3.5″ x .5″ Single Vee Press Brake L x T: 9.875″ x .75″* Punch Capacity: 1.125″ x 1.062″ Punching Pressure: 132 Tons Pipe Notching: 4.4″* Multi Vee Press Brake L x T: 27.5″ x .187″* Throat Depth: 16″ Vee Notcher Side x Side x T: 4.1″ x 4.1″ x .6″* Working Height: 30.3″ Square Bar Shear: 1.75″ x 1.75″ Angle Shearing at 90°: 6″ x 6″ x .6″ Angle Bending: 4″ x .5″* Angle Flange Trim 4″ Blade Length 18.3″ Large V Notcher Side x Side x T5.75″ x 5.75″ x.5″* Max. Stroke Length 3″ Diameter x Thickness 2″ x .625″ Cycles / Min. 30 @ 15 mm Flat Bar Shearing 18.1″ x .75″ Power 220V 3-Phase Shipping Weight 9,460 lbs. Shipping Dimensions 85.5″ x 44″ x 80.7″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,New replacement cost $66,000
