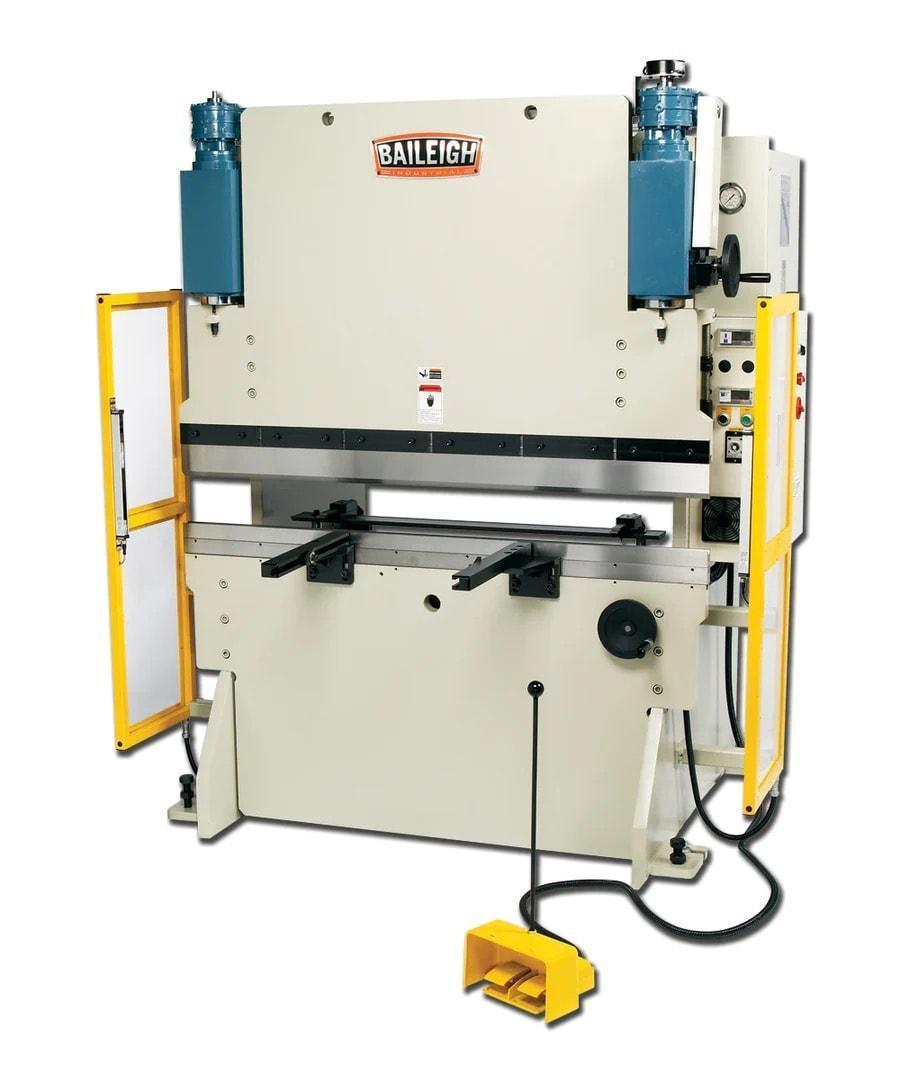

50 Ton x 4′ Baileigh BP-5060NC Hydraulic Press Brake, 2025 – Brand New, 1-Year Parts Warranty

Item Number: BP-5060NC Gauge Length: 17201 Return Speed: 2.36″ / sec. Maximum Pressure 50 tons Oil Capacity 28 gal Included Accessories Included Accessories Throat Depth 7.87″ Bending Capacity Max Length Max Thickness 61″ / .118″ Stroke Distance 5.9″ Approach Speed 3.14″ / sec. Back Gauge Motor 1/2 hp Bending Speed .275″ / sec. Main Motor 5 hp Distance Between Housings 49.21″ Distance From Table To Ram 11.81″ Power 220V / 3-phase Shipping Weight 6160lbs Shipping Dimensions (Inches) 90x63x96

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Delivers up to 50 tons of pressure. Maximum capacity of .118” thick sheet metal across the machine’s full width. 5 hp main motor requires 220-volt 3-phase power.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,POWERFUL, EASY-TO-USE HYDRAULIC SYSTEM Runs in 3 modes: jog mode for setup, manual mode for more control over descent and return, and automatic mode for full production. 2 encoder-controlled hydraulic cylinders move the top beam. Digital readout (DRO) displays the position of the downward stroke, so you can fine-tune a bend and make it right every time. It takes a just few seconds to change the top beam pressure and the top position of the stroke (for more or less travel). You can set a timer for bend delay to hold the beam down at the bottom of the stroke, so the bend keeps its shape. 2 hand wheels let you adjust the position of the beam and back gauge for consistency across the entire width of the beam. Foot pedal brings the stroke up and down, leaving your hands free to position the material. Motorized back gauge rides on a solid ball screw trolley mechanism. Back gauge encoder shows its position on its own DRO. Parallel mechanism on the beam synchronizes the top and bottom die to deliver better quality bends across the entire width of the machine.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,RIGID STRUCTURE AND LOW MAINTENANCE Heavy electrowelded frame, made of solid plate steel, keeps this press brake accurate and running smoothly in production for many years. Upper beam rides on a hardened, stabilizing track, coupled together by 3 axes of bearings, to ensure high accuracy between both dies at any position of the stroke. Includes a set of hardened single-Vee American tooling. Accepts standard press brake tooling, giving you a wide variety of options. Comes with front material rests (or support arms), which some competing machines do not include. 6-light safety curtain helps protect you from injury. This guard stops the machine from running if your hand passes through the light beam. 4 grease zerks let you add oil every few months. Large hydraulic reservoir on the back allows for convenient fluid changes every 6 to 8 months.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
