Fanuc M‑20iD/25 Robotic Grinding Cell – High‑Precision 25 kg Payload, April 2022 Build

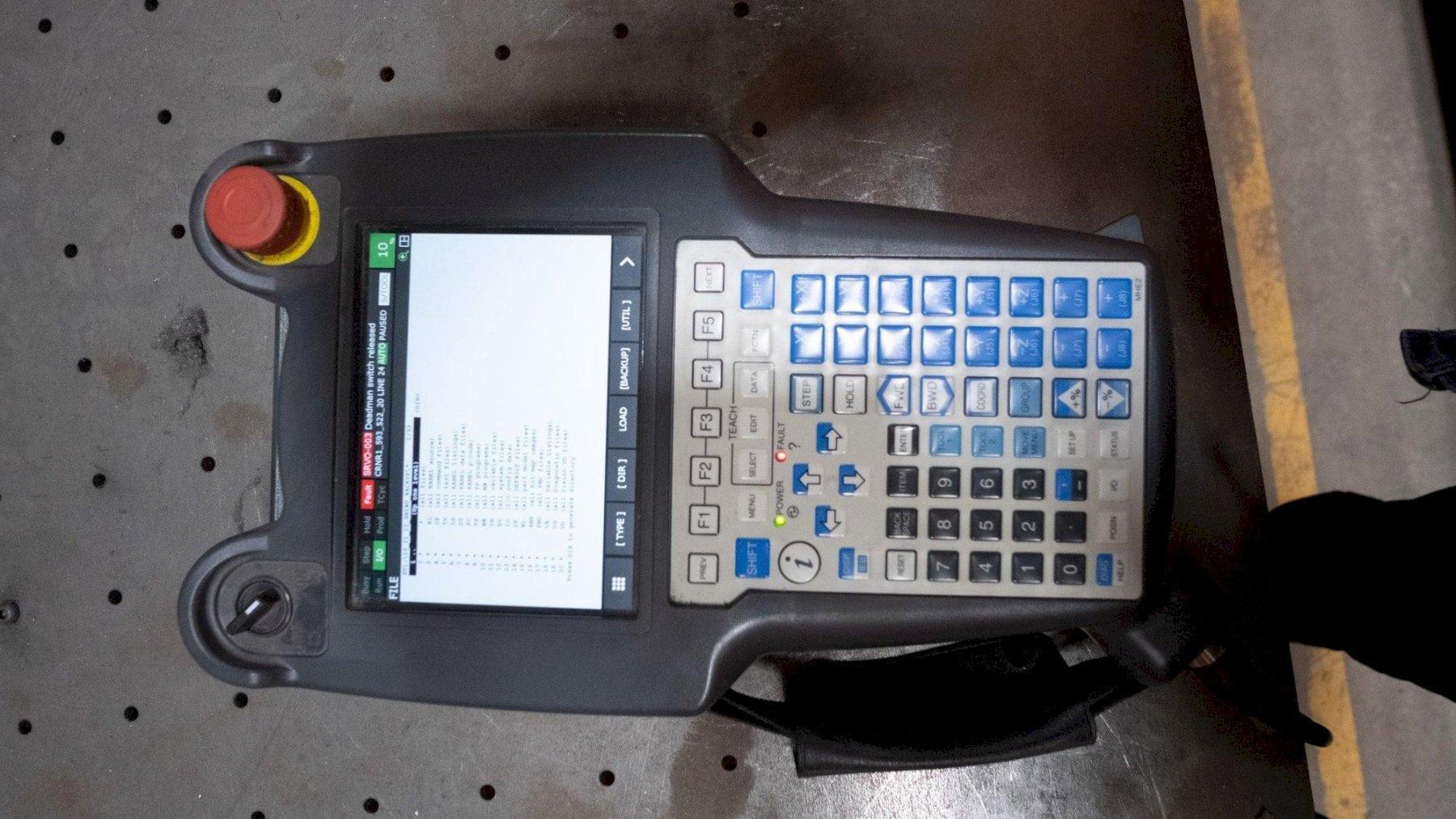

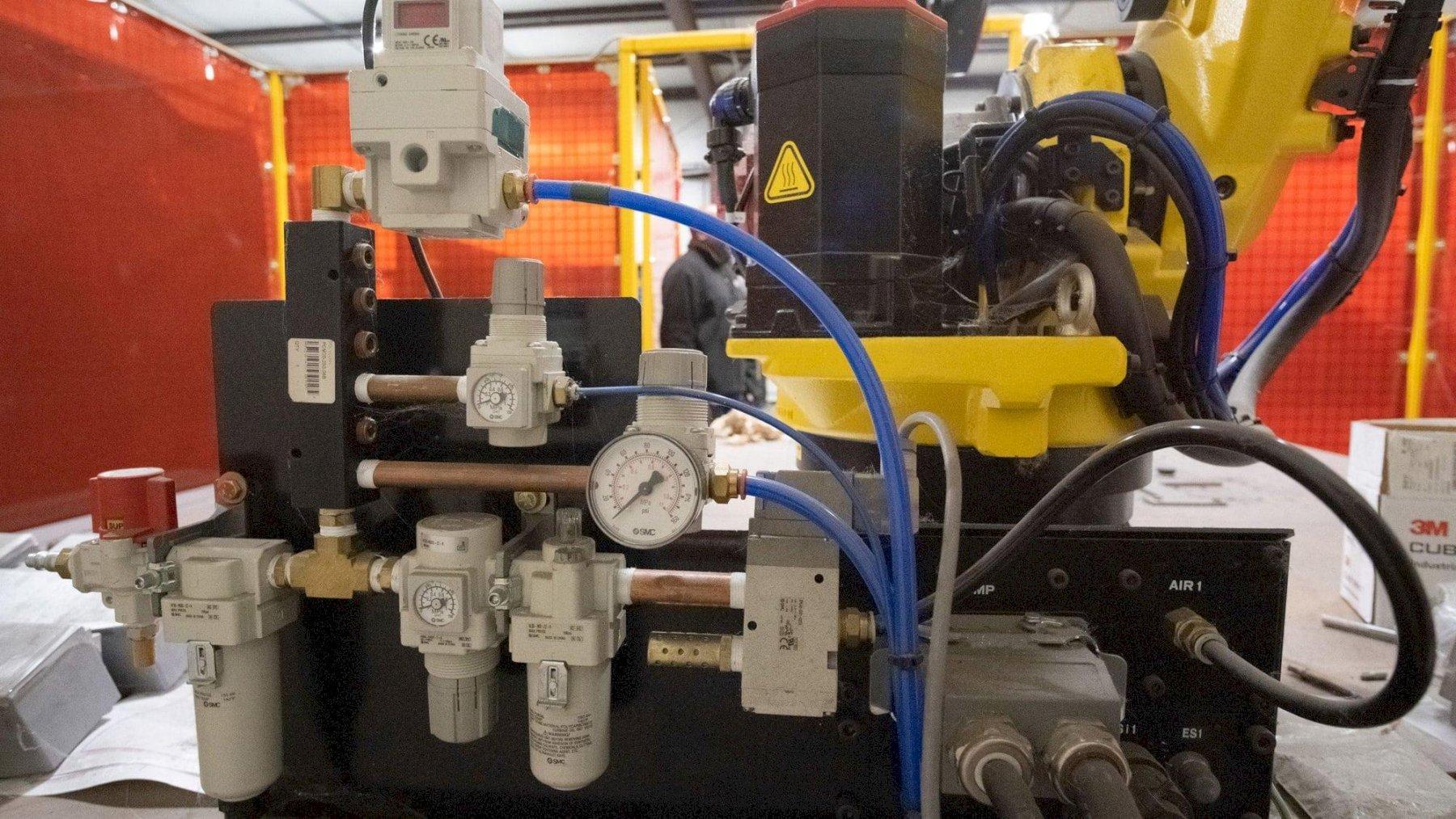

Specs Robot Model: Fanuc M-20iD/25 Payload Capacity: 25 kg Reach: 1831 mm Repeatability: ±0.02 mm Axes: 6 Controller: Fanuc R-30iB Plus Teach Pendant: Included Tooling: ATI passive compliant force control Tool Compliance Travel: 0.47 in Tool Compliance Force: 2–59 lbf (pneumatically adjustable) Power Requirement: 3-phase 480 VACFrequency: 60 HzPower Consumption: 10 kVASafety Enclosure: U-shaped, 10 ft x 15 ft x 7 ft Date of Manufacture: April 2022

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Installed Options ATI compliant force-control end effector Fanuc R-30iB Plus controller with teach pendant

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Feature Spotlight High-speed 6-axis robot with above-average 25 kg payload Precision compliance tooling ideal for surface finishing applications Compact, stackable controller for flexible layout integration

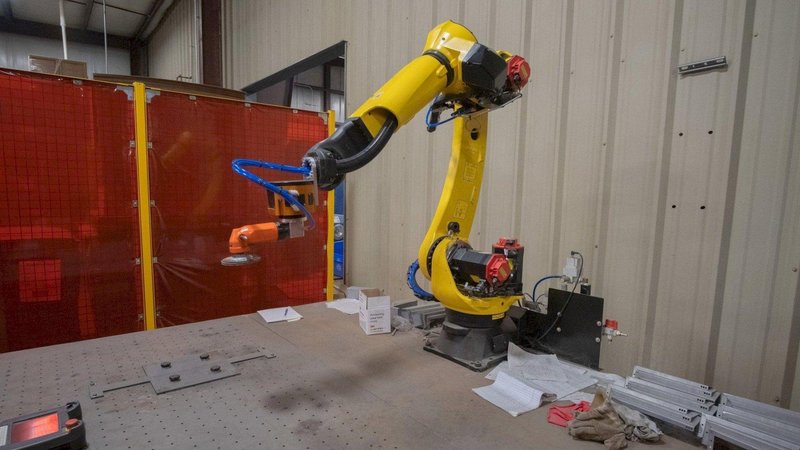

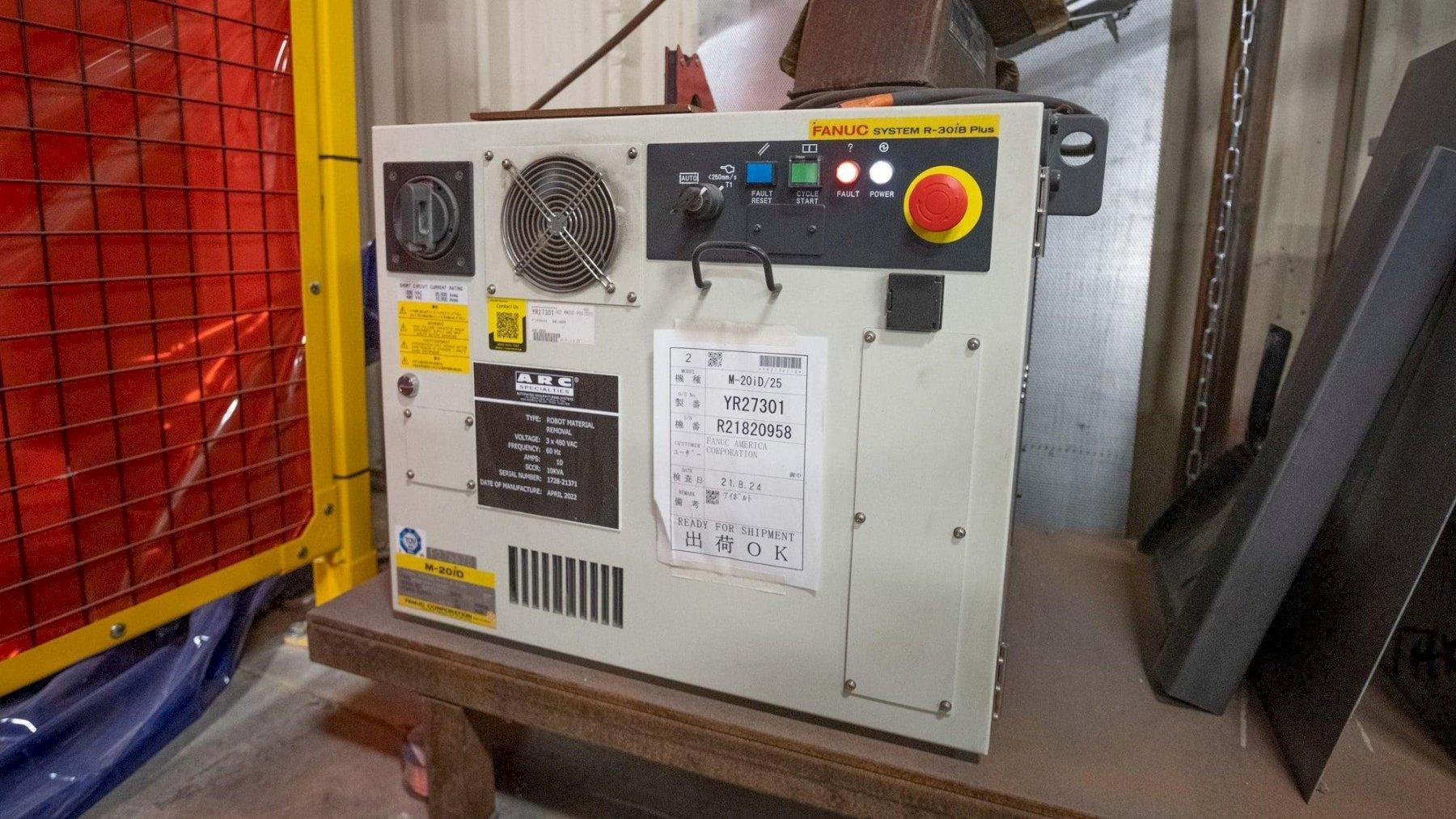

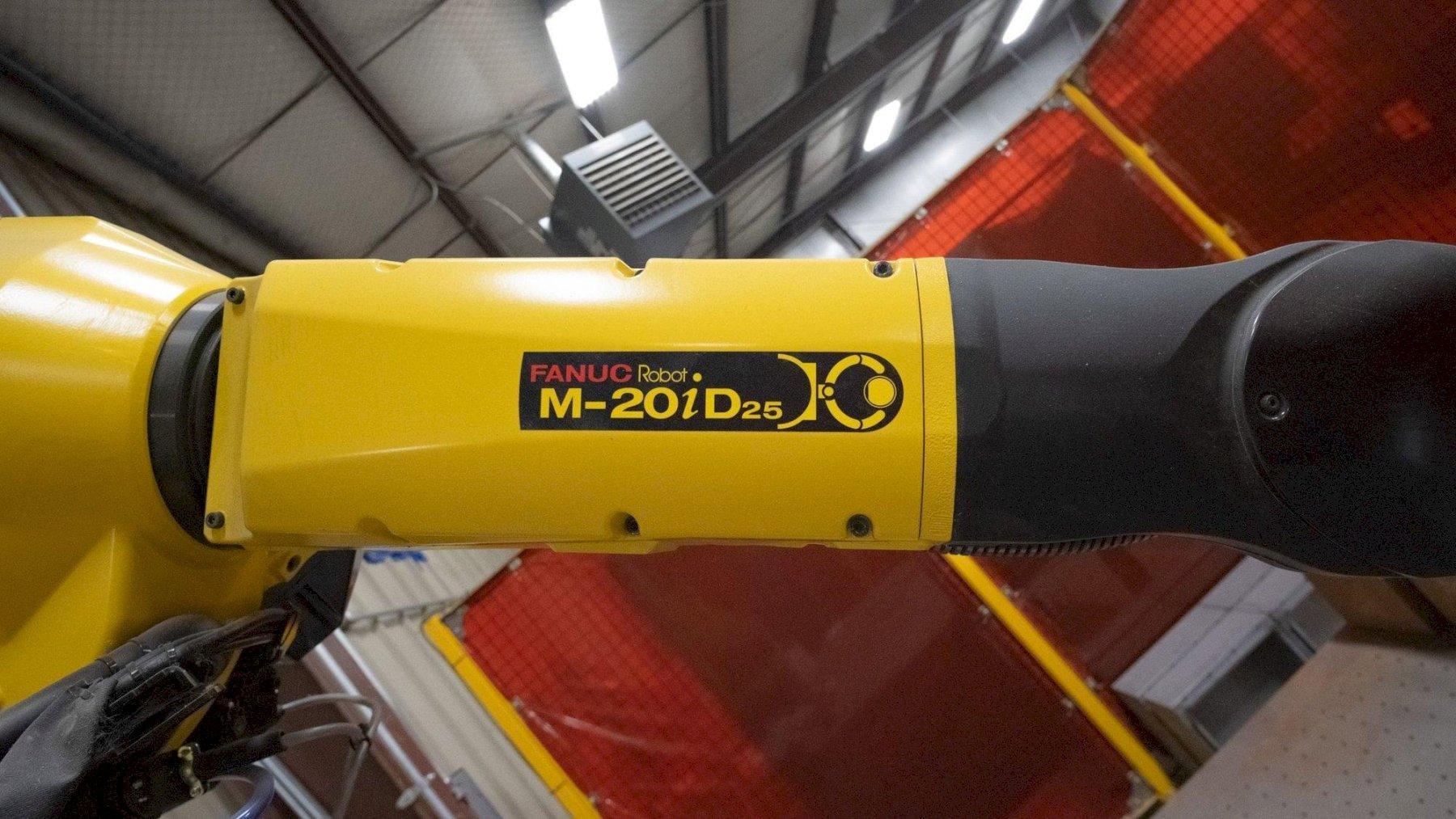

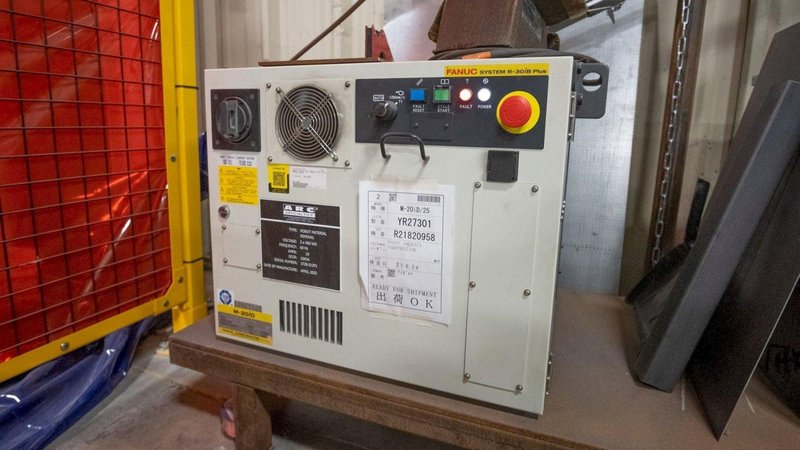

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machine Overview This robotic grinding cell features a Fanuc M-20iD/25 six-axis industrial robot offering a 25 kg payload, 1831 mm reach, and high-precision repeatability of ±0.02 mm. The system is integrated with a Fanuc R-30iB Plus controller and includes an ATI passive compliant tool that enables variable force grinding with 0.47 inches of compliance travel. A full U-shaped safety enclosure provides operational security. Built in April 2022, this unit is suited for material removal applications requiring speed, precision, and flexibility.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
