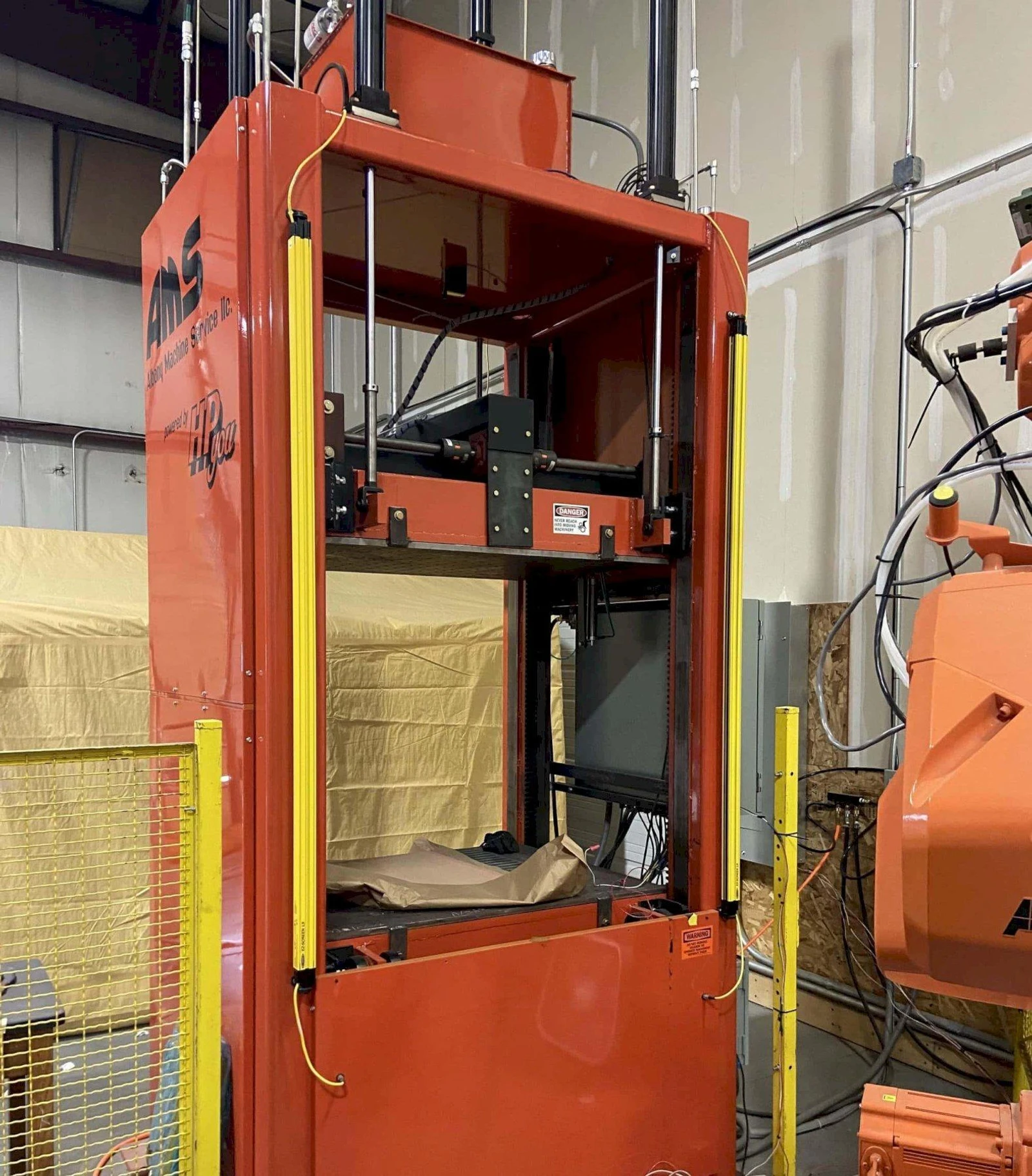

150 Ton AMS Double Action Molding Press, 2017
Brand
Category
Type
Model
N/A
Stock #
980979
Year
2017
Condition
Not specified
Location
Not specified
|
Max Structural System Pressure: 2,800 psi
Max Operating Pressure: 2,650 psi
Ultimate Load: 316,500 lbs
Max Operating Load: 300,000 lbs
Nominal Tonnage: 150 tons
Daylight Opening: 5’ 10”
Frame Height: 10’ 1”
Side Clearance: 3’
Front Clearance: (Panel Box) 5’
Rear Clearance: 5’
Ceiling Height Minimum: 17’ 4”
Positioning Cylinders: (upper) (4) 2” diameter
Load Cylinders (lower) (4): 6” diameter
Top Platen Speed Raising: 1.5 inches/second
Top Platen Speed Lowering: 1.2″inches/second
Motor Size : 5 HP
Pump Displacement: 0.25 in3 / revolution
Voltage: 460-480/60/3
All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
