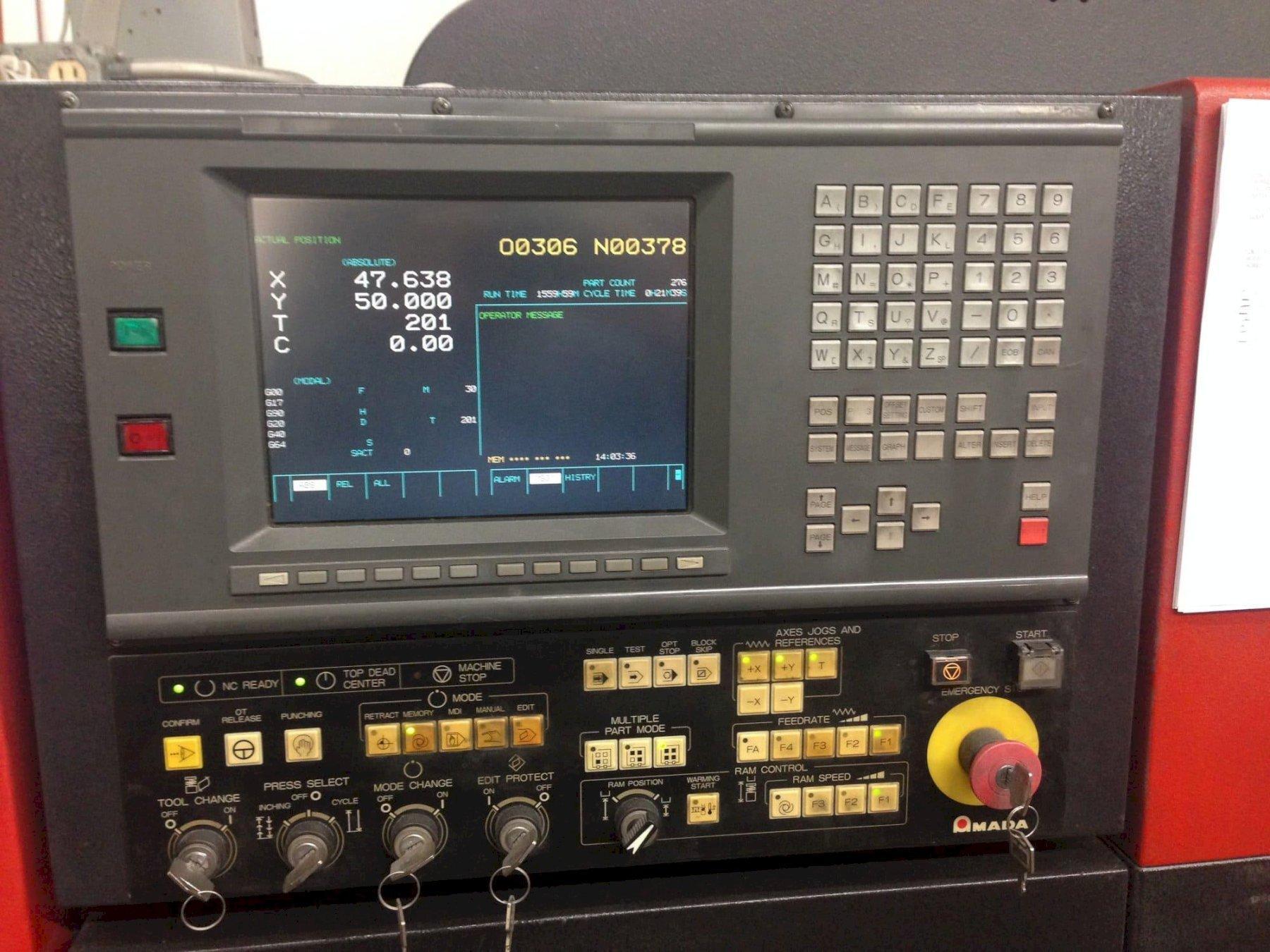

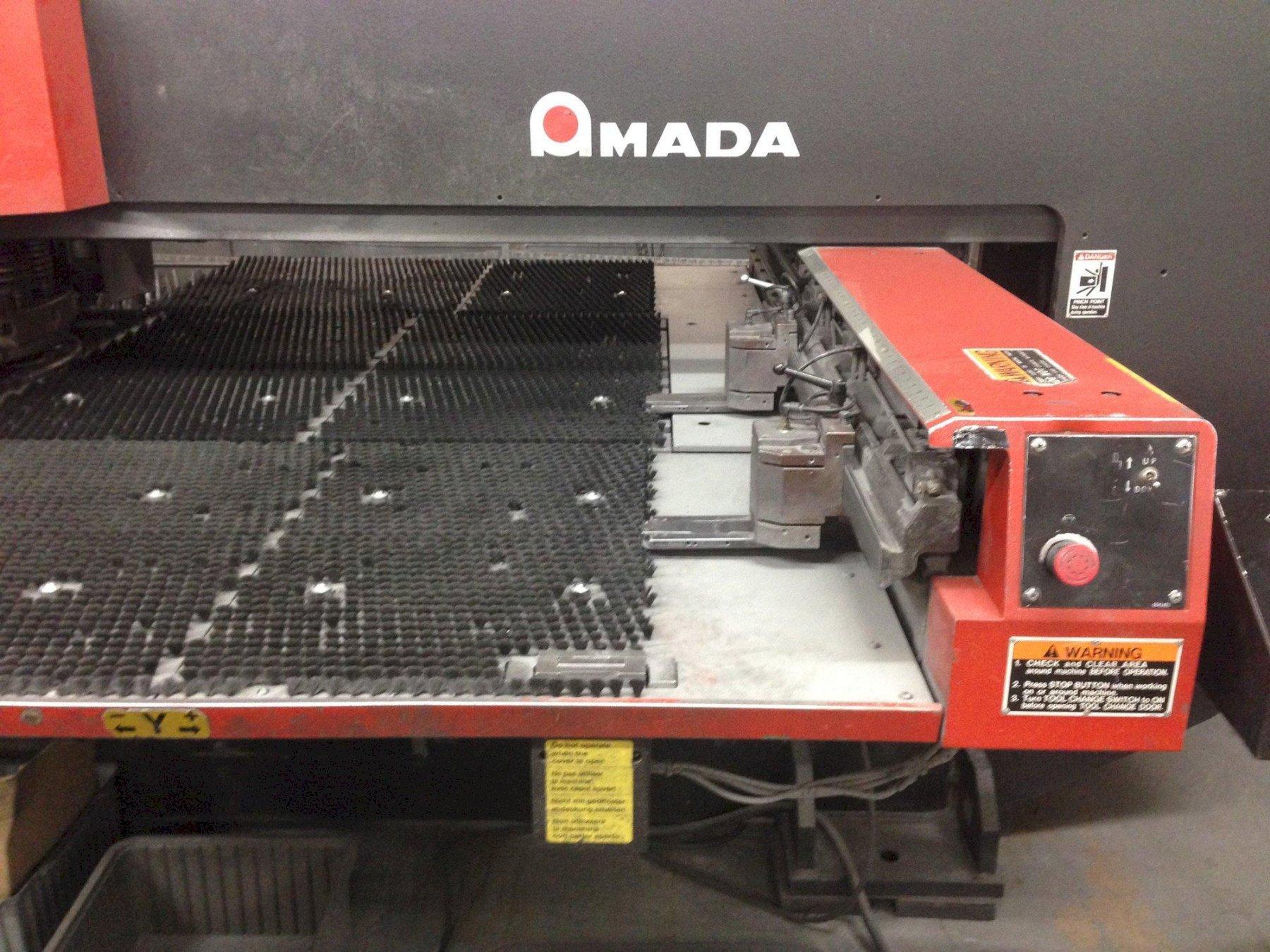

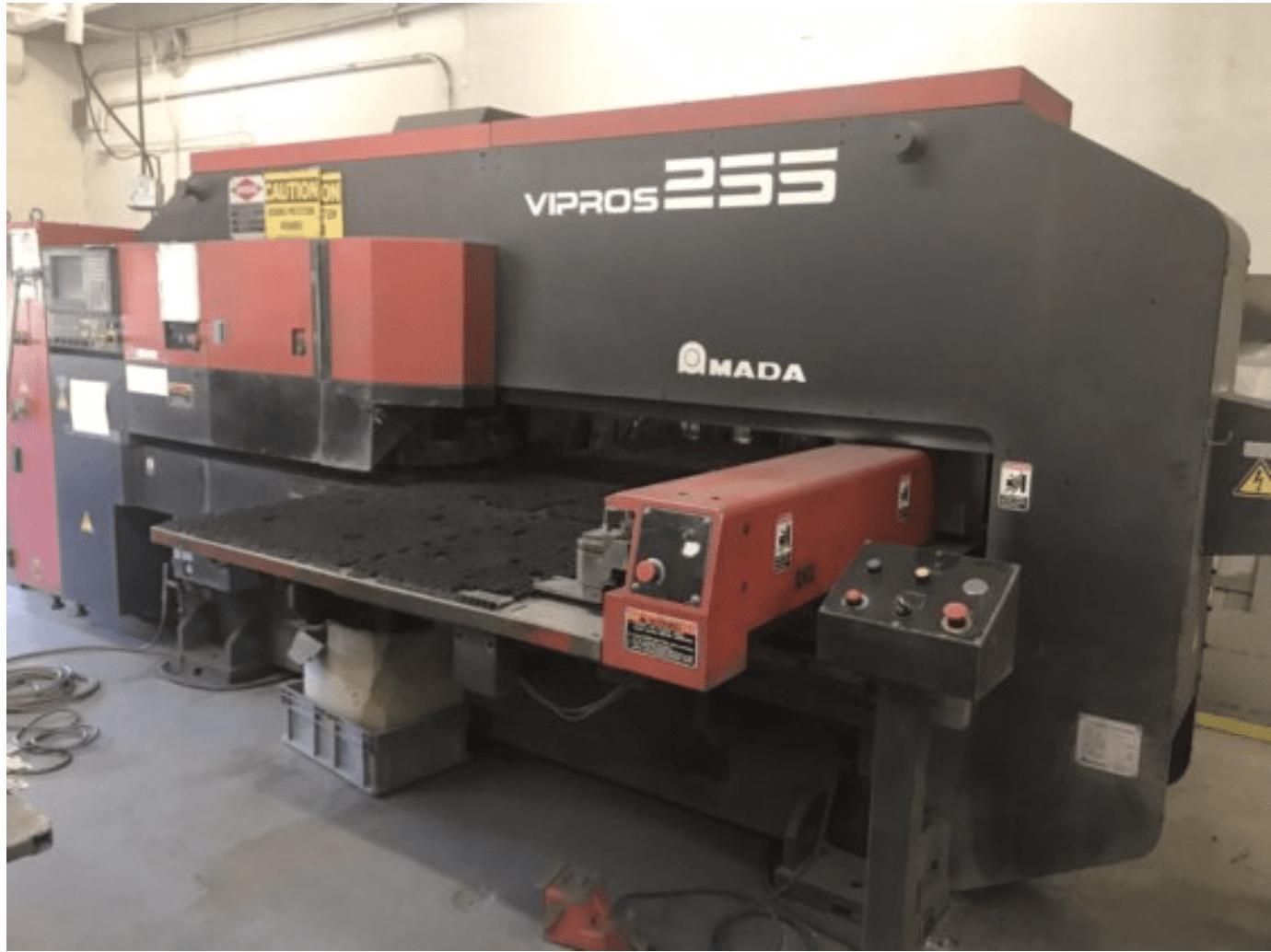

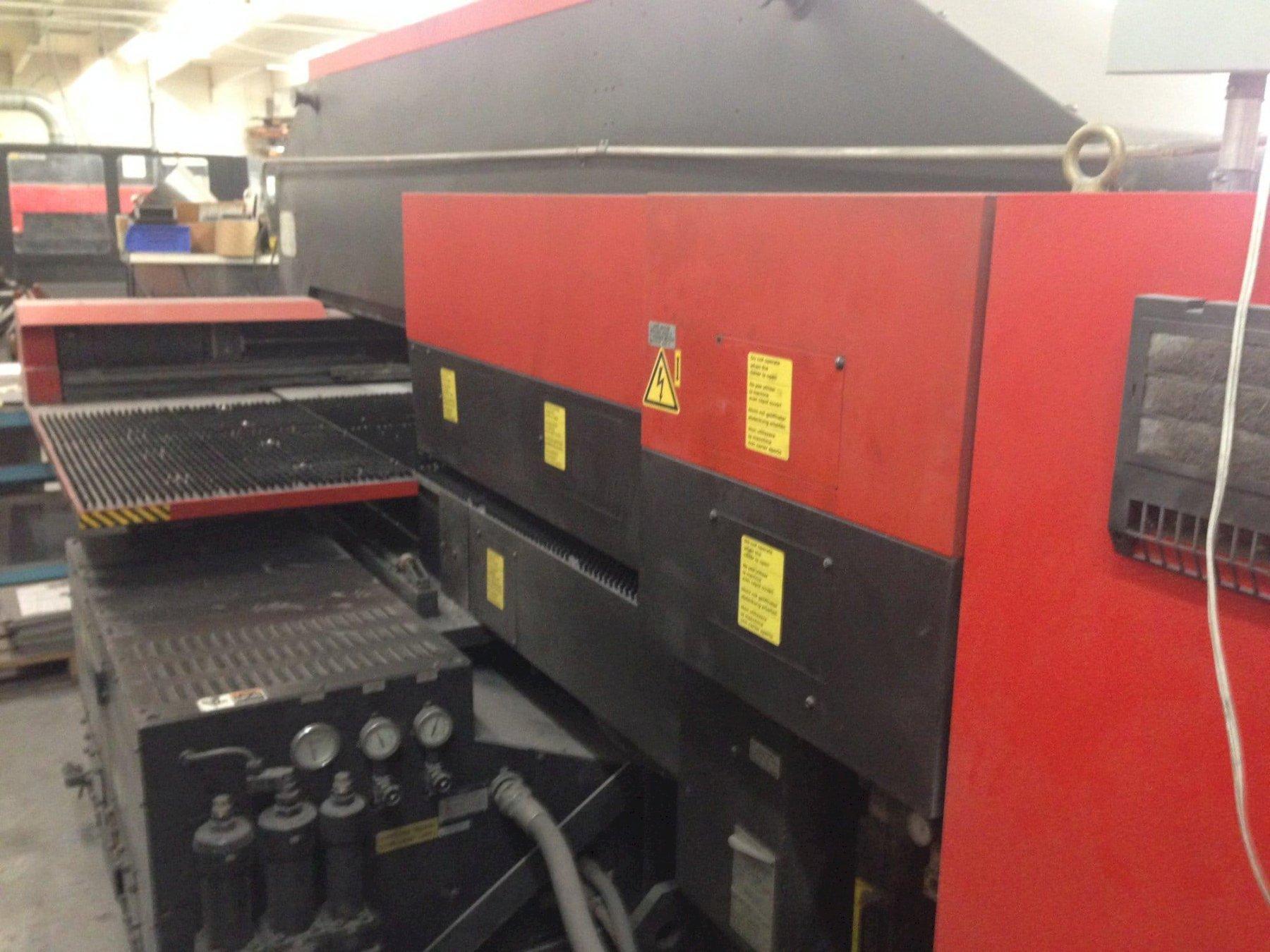

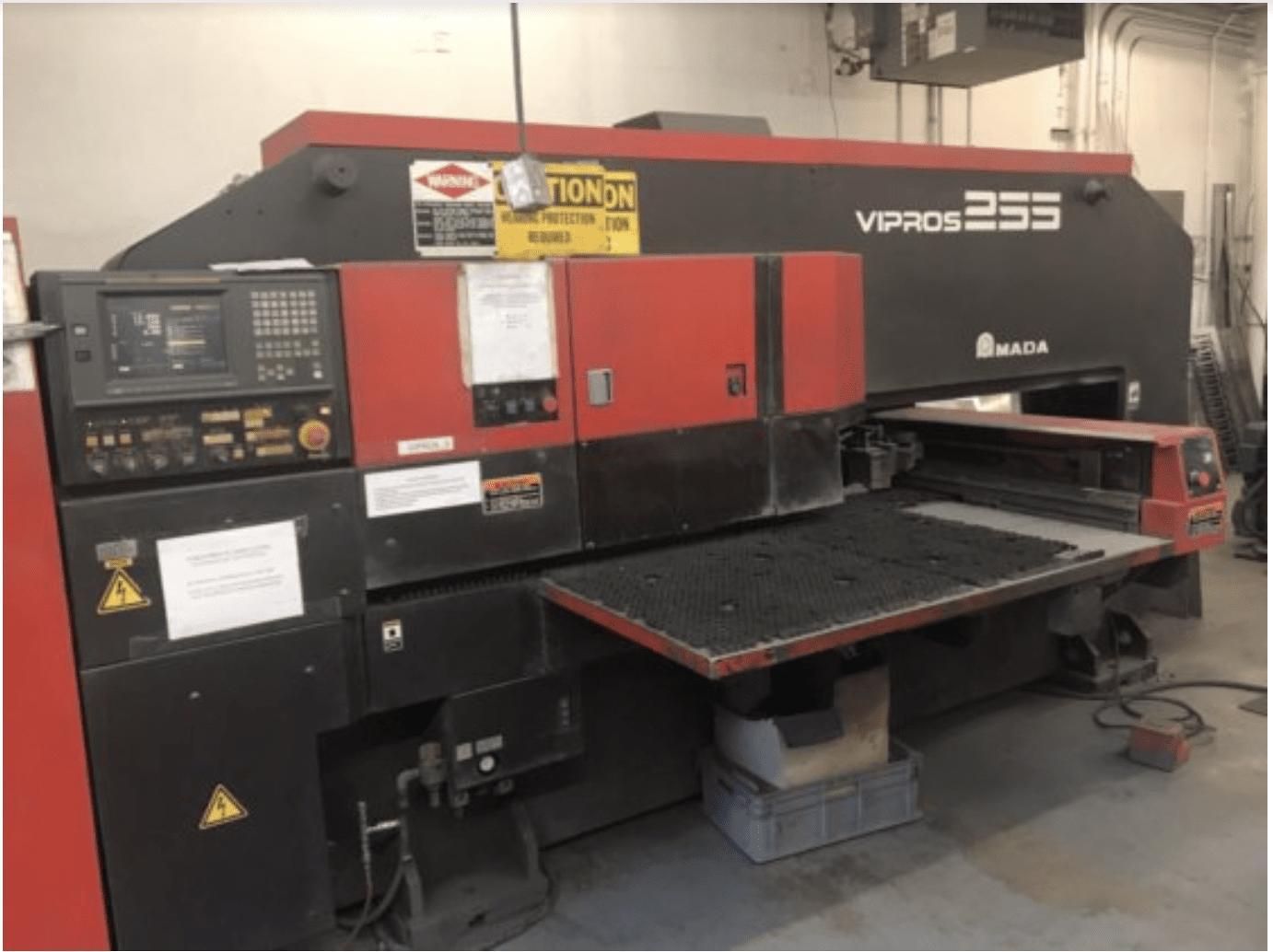

22 Ton Amada Vipros 255 CNC Turret Punch, 1998 – Fanuc 18P CNC Control, 31 Stations

Brand
Model
Vipros 255
Stock #
873546
Year
1998
Condition
Not specified

Location

Not specified

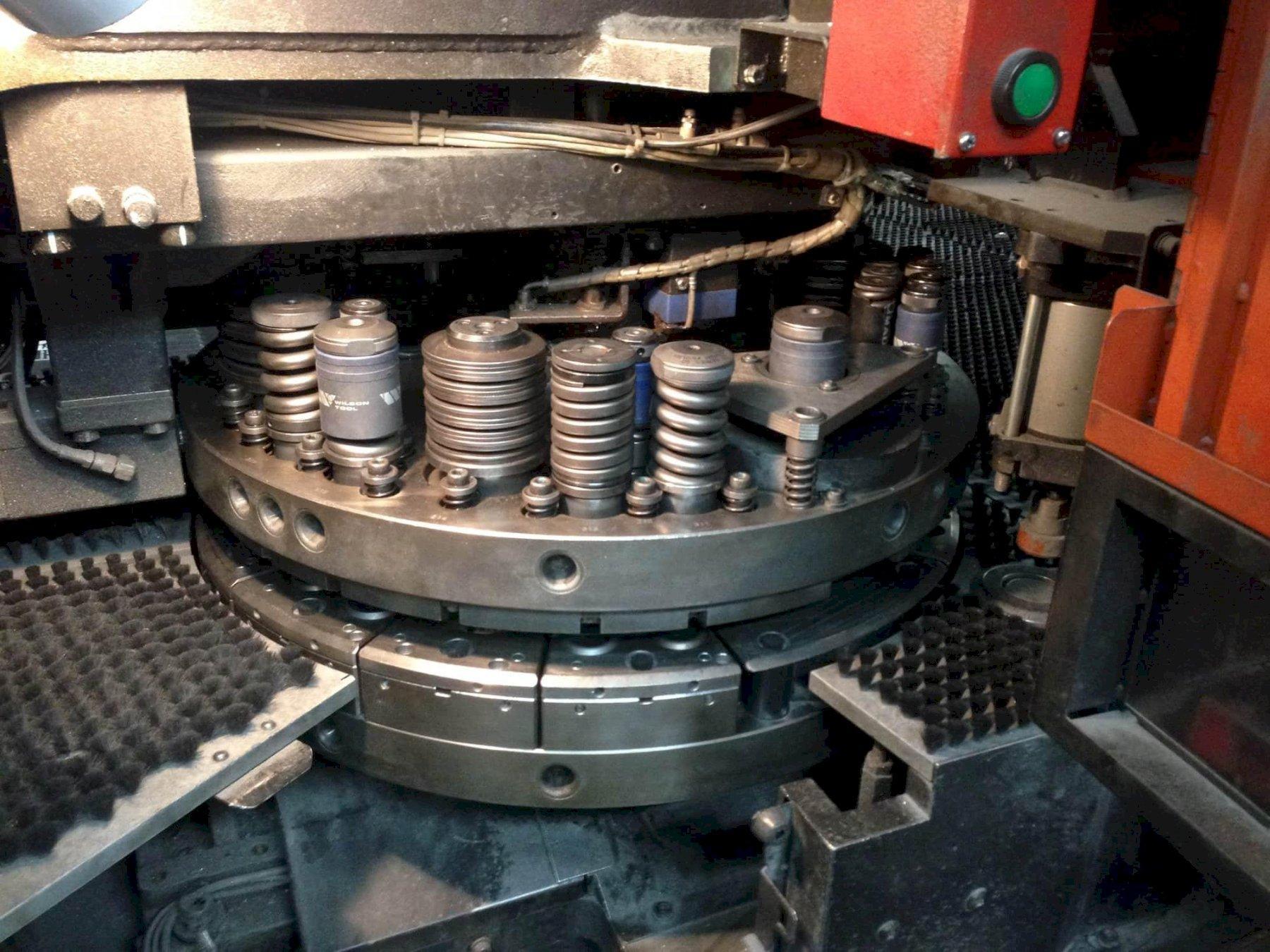

Press Capacity: 22 Tons Press Stroke: 1.575″ Maximum Traverse: 50” X 50” Maximum Sheet Size (with Repositioning): 50” X 100” Maximum Hits Per Minute On 1” Centers: 340 Maximum Sheet Weight: 110 Lbs Maximum Positioning Speed: 2559 IPM (X), 1968 IPM (Y) Total Tool Stations In Turret: 31 Turret Speed: 30 Rpm Air Requirement: 80 Psi Punching Accuracy ±0.0027″ (standard), ±0.002″ (high accuracy mode) Positioning Accuracy ±0.0014″ Repeatability ±0.0006″ Main Motor Horsepower: 5.5 Kw Approximate Overall Dimensions: 100” W X 81’h X 198’ L Approximate Overall Weight: 17,000 Lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
No files or videos to display

Want to request a quote from the owner of this listing?

Similar Listings to - 22 Ton Amada Vipros 255 CNC Turret Punch, 1998 – Fanuc 18P CNC Control, 31 Stations
AMADA Pega 344 - Light Booths
AMADA

Light Booths

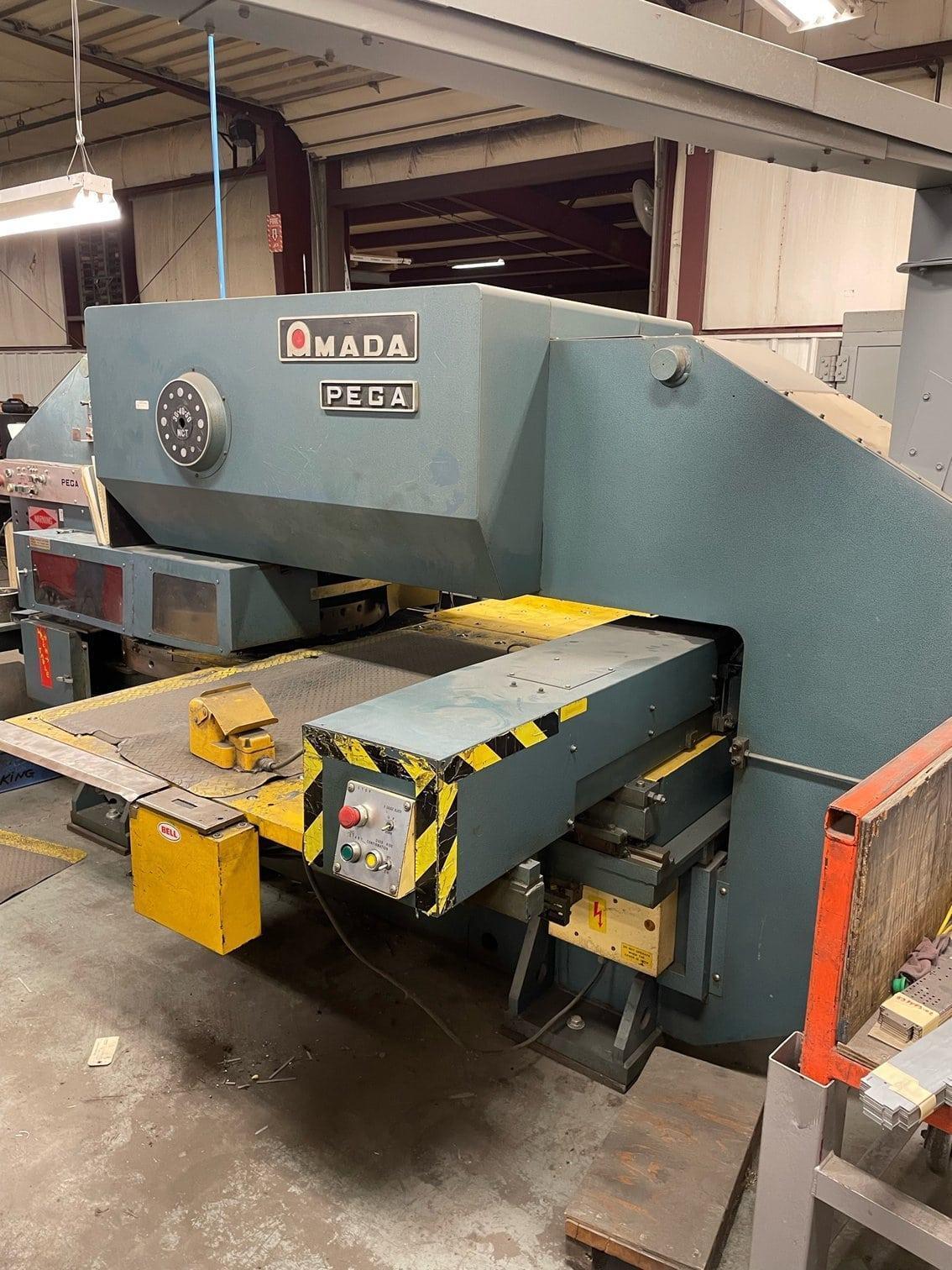

AMADA Pega 304050 - Light Booths
