Alpha BC36 (36 CPM) Automated Canning Line w Depalletizer, GR‑X Rinser, Pack Leader PL‑501 Labeler – 2018

Alpha Brewing Operations – BC36 Strike Package

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,System Type: Inline canning line (Strike Package)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Output Capacity: 36 cans per minute (rated, continuous throughput) -Optimized for 12 oz standard cans; 16 oz compatibility possible (check change parts)

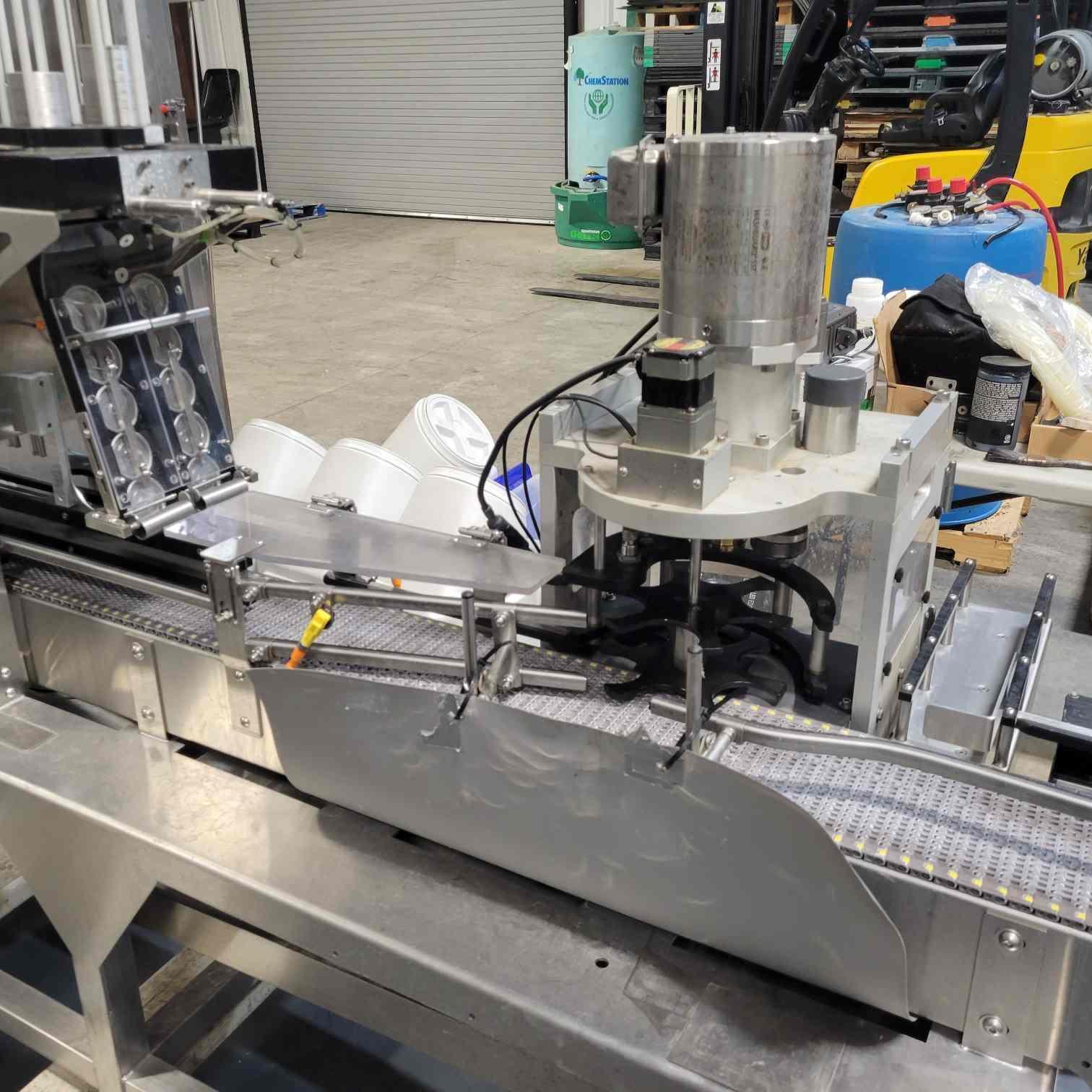

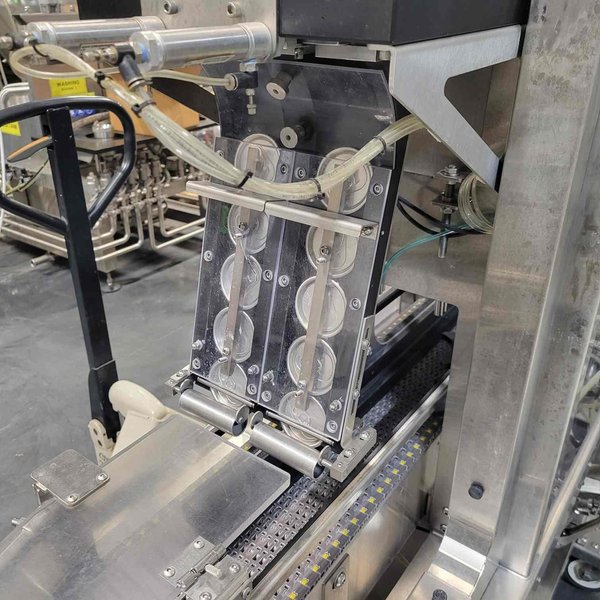

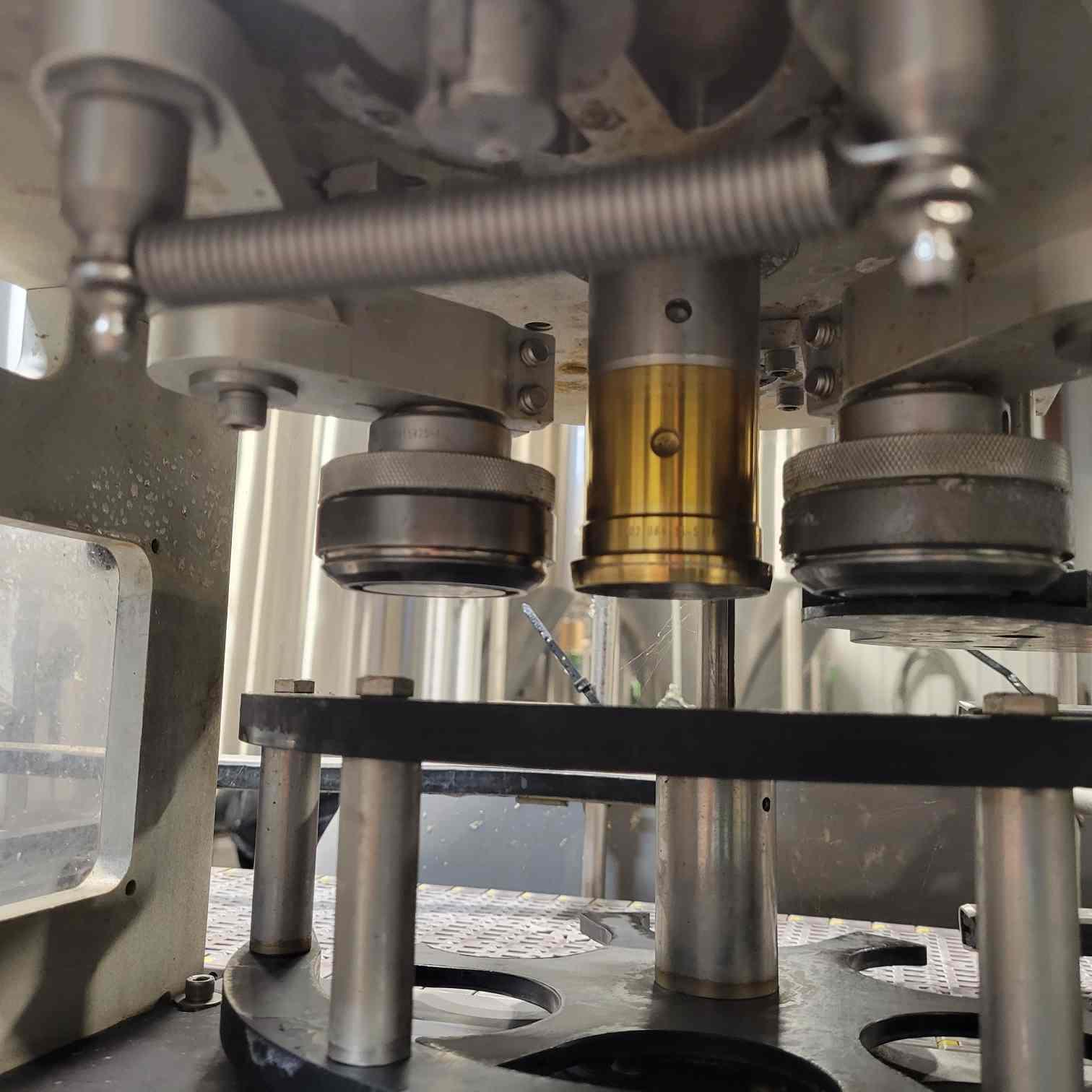

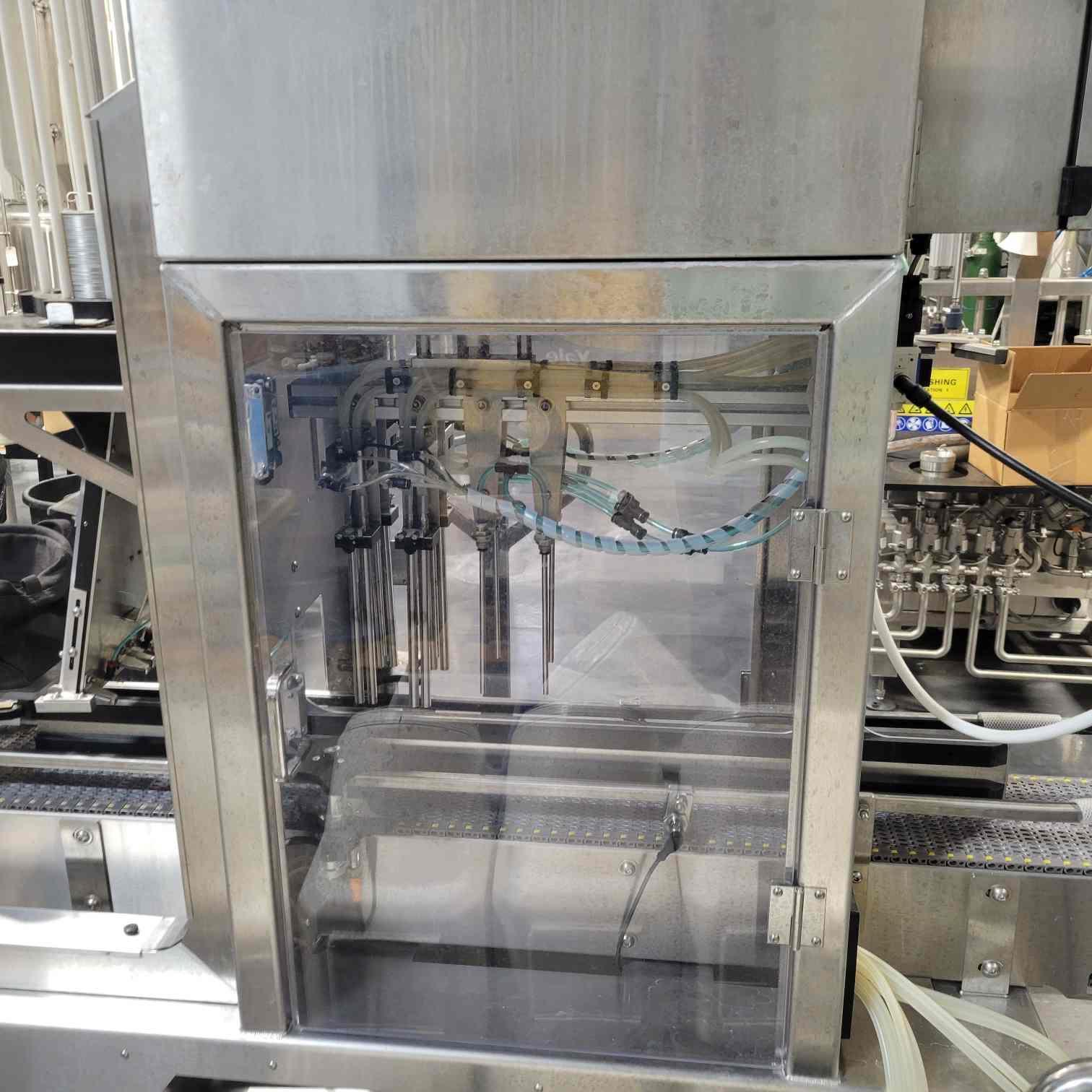

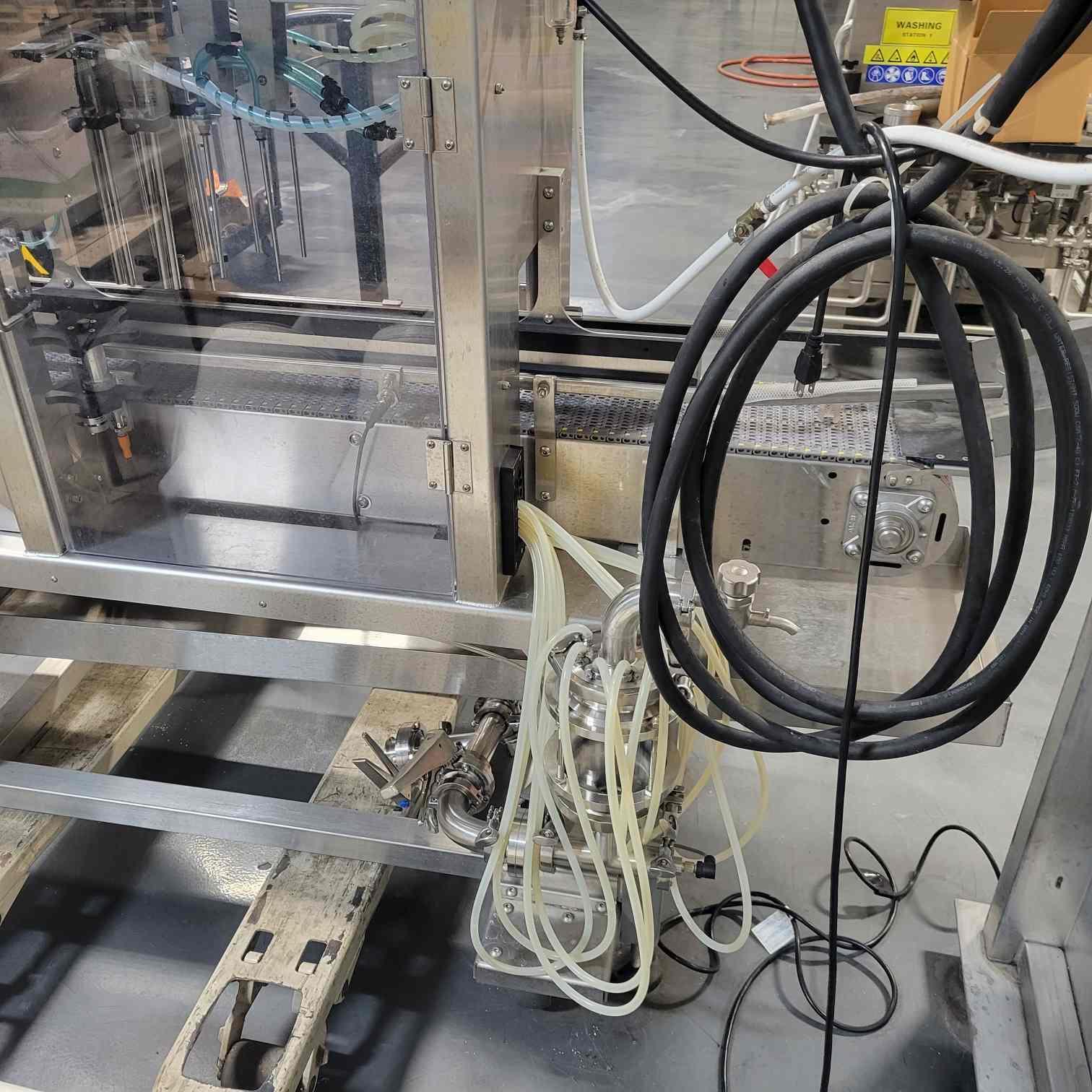

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Line Configuration: -Filler: 4-head Beer Cannon servo filler (expandable) -Seamer: Servo-driven precision rocker cam seamer -Lid Delivery: “Beer Cannon” lid pick & placement system w/ CO₂ blanketing -Labeler: Inline Pack Leader PL-501 labeler integrated at discharge -Reject Station: Smart reject based on fill weight or lid absence -Rinse Station: Burst rinse with air dry (post-seamer)

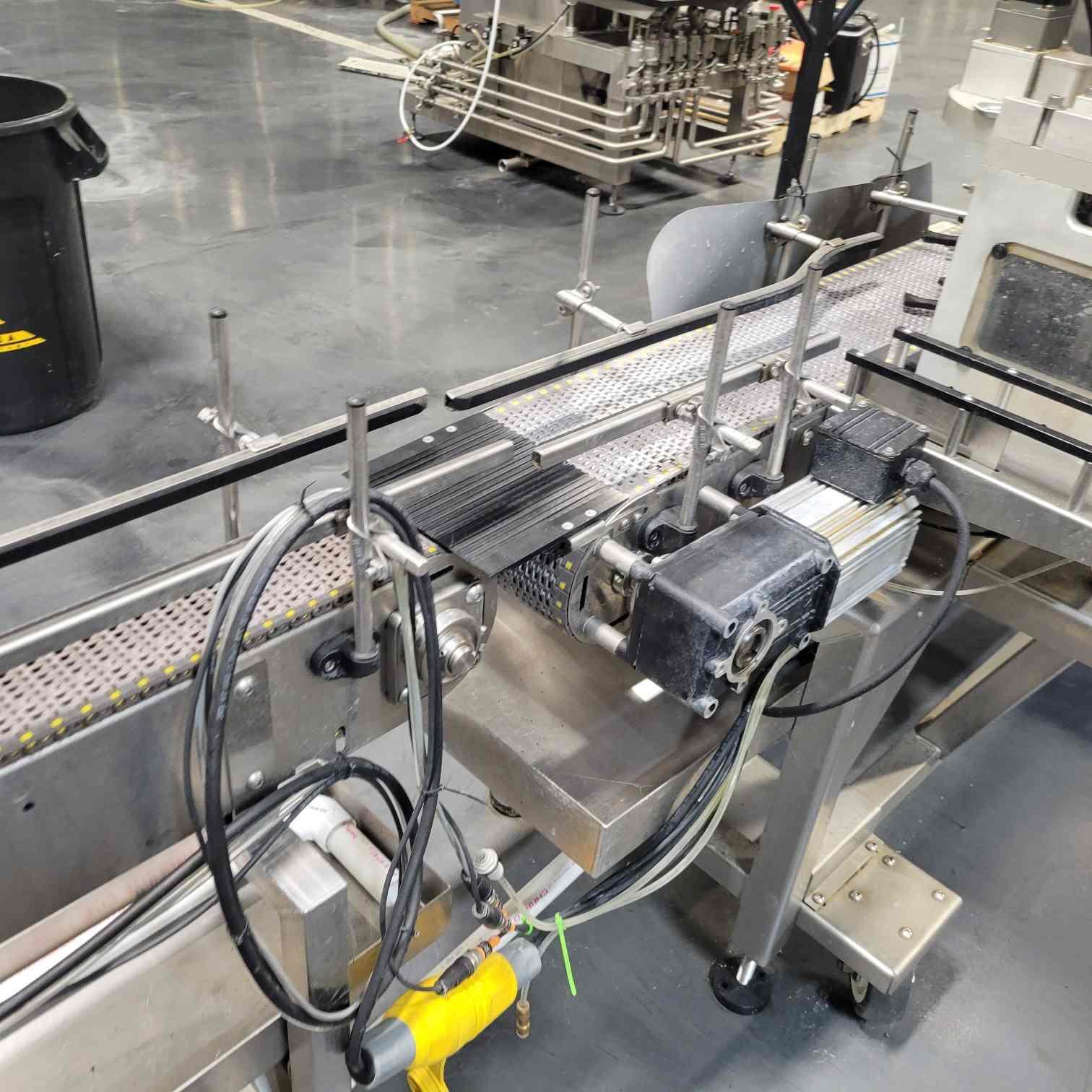

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,-Material Flow: Linear feed with sensor-triggered indexing

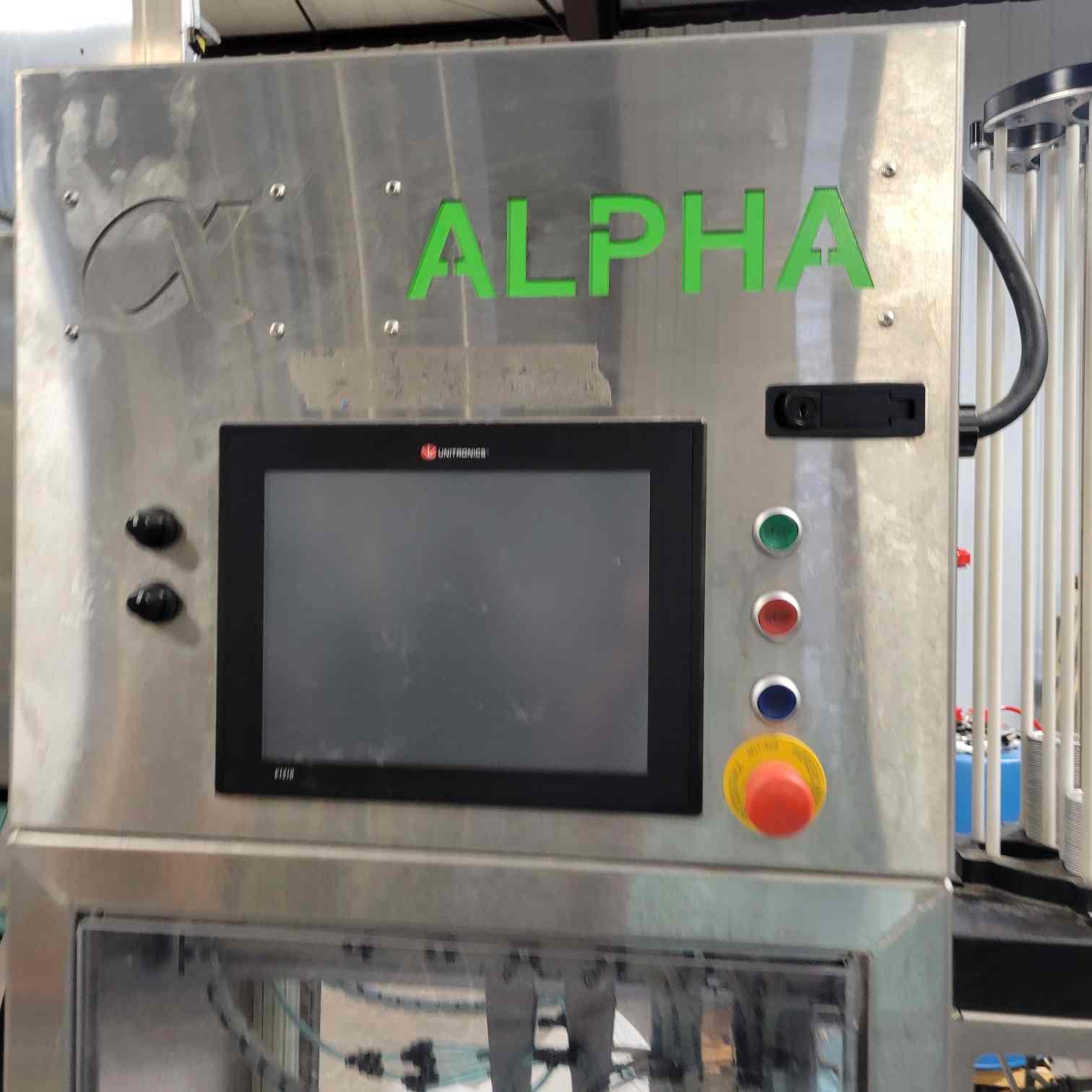

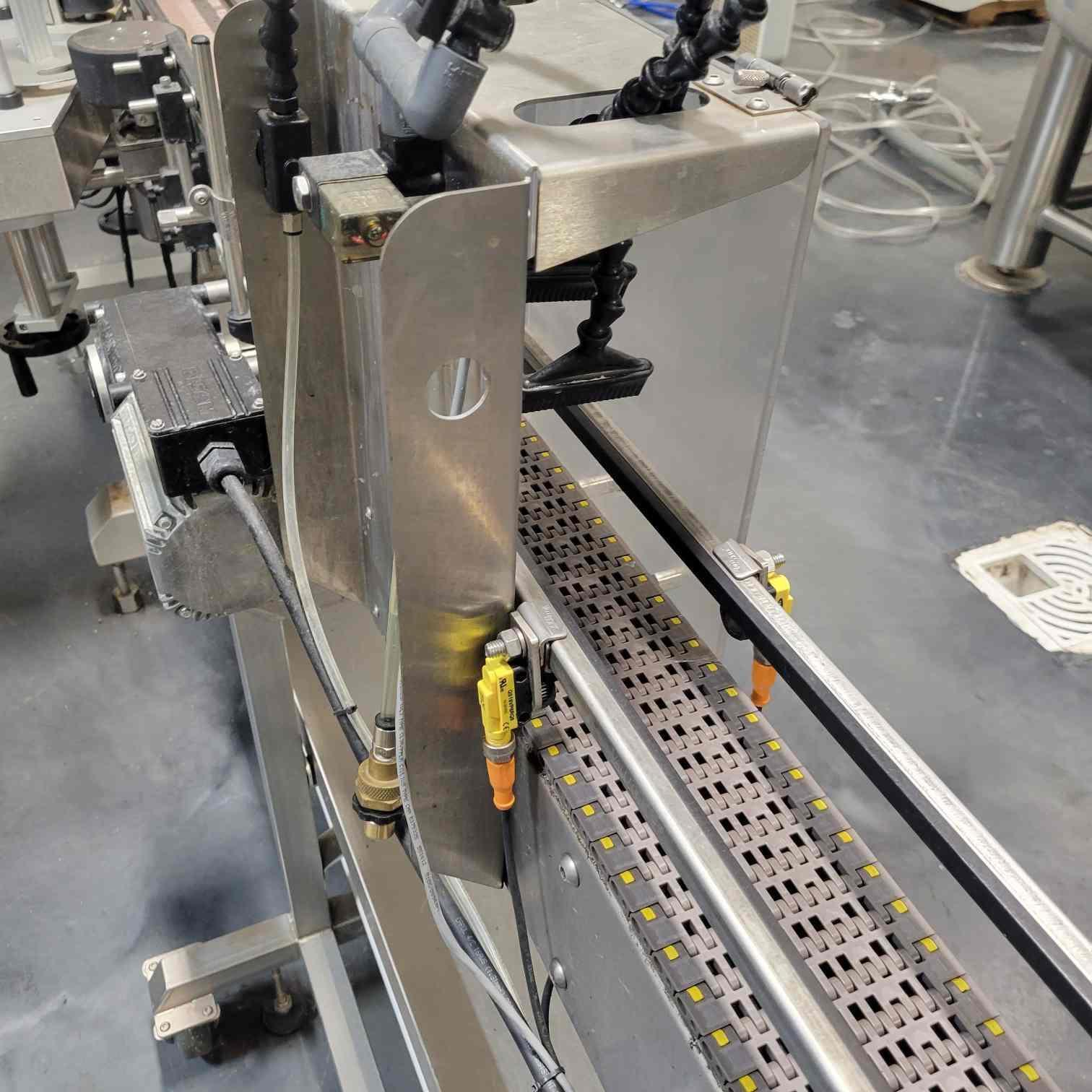

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Automation: -PLC-controlled via integrated HMI touchscreen -Manual override and e-stop integrated -Photo-eye and sensor logic used throughout line

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Construction: -304 Stainless Steel frame -Lexan safety guards and splash panels -Modular expansion-ready structure

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Utility Requirements: -Power: 208V 3-phase, 60Hz, ~12A -Air: 6 SCFM @ 80 PSI -CO₂: 2.5 SCFM @ 15 PSI -Water: < 1 GPM

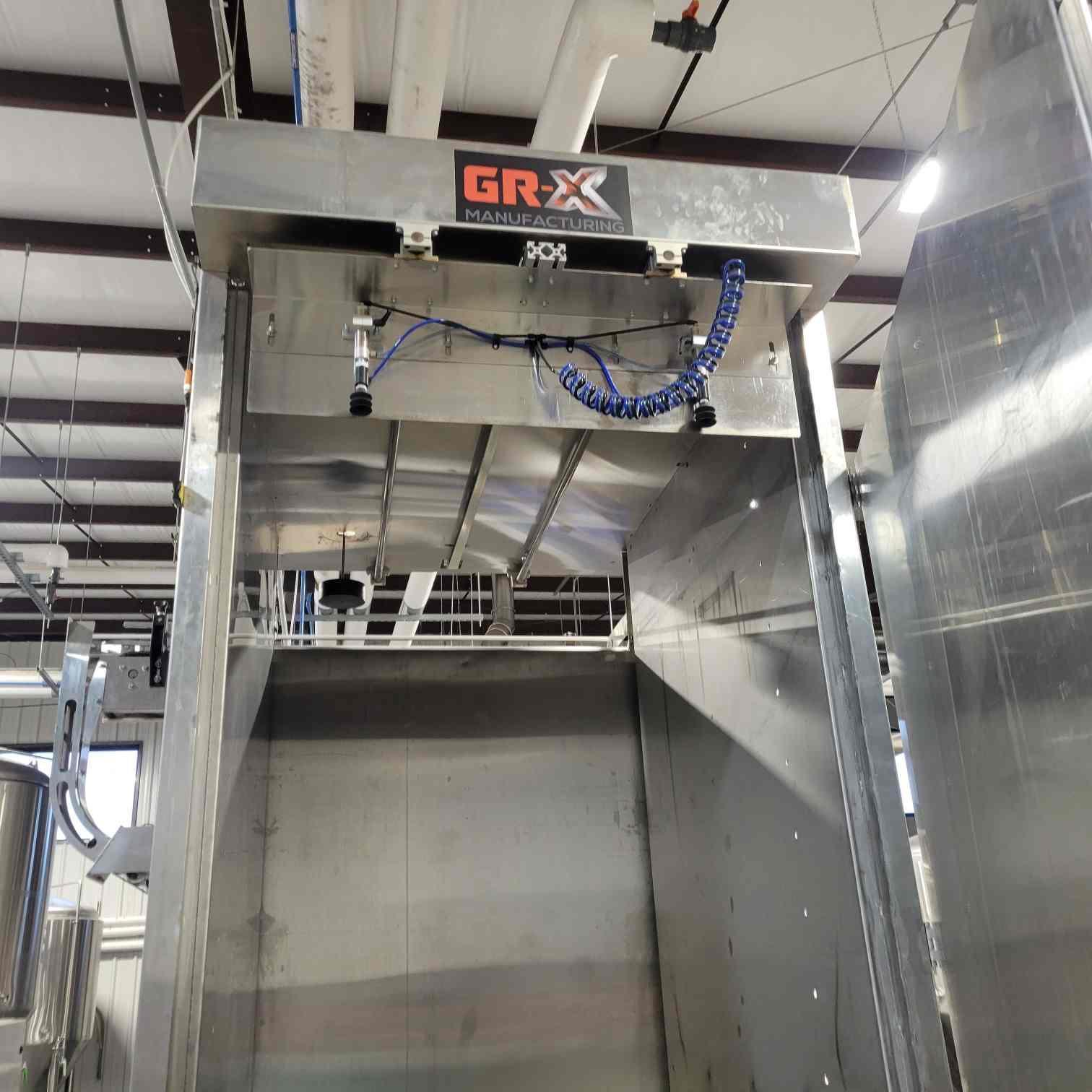

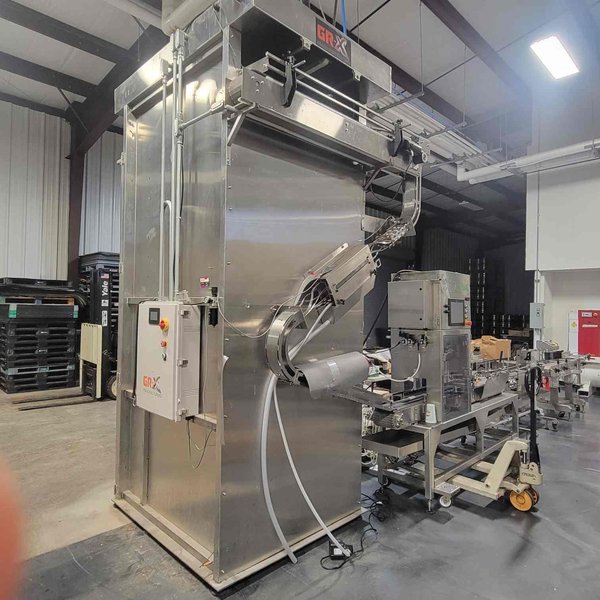

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Howitzer Depalletizer + GR-X Can Rinser Elevator

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Manufacturer: GR-X Manufacturing

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Integration: Installed as a vertical twist rinse feeder to Alpha canner

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Depalletizer Features: -Automatic lift & sweep system -Accepts 44×56" pallets (half/full height) -Slip-sheet removal: pneumatic -Speed: Up to 80 CPM (line rate match) -Discharge Conveyor: 6" Rexnord mat-top

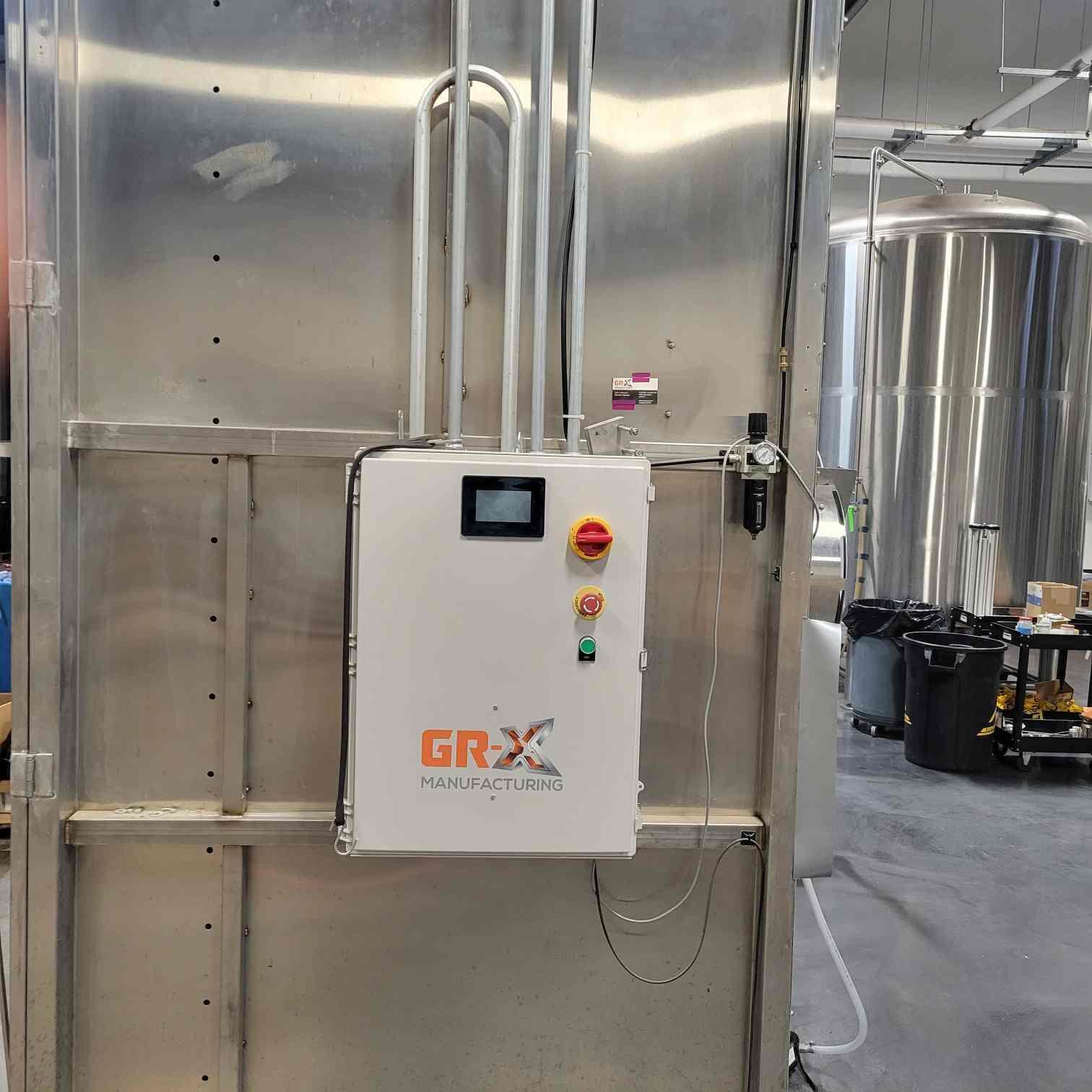

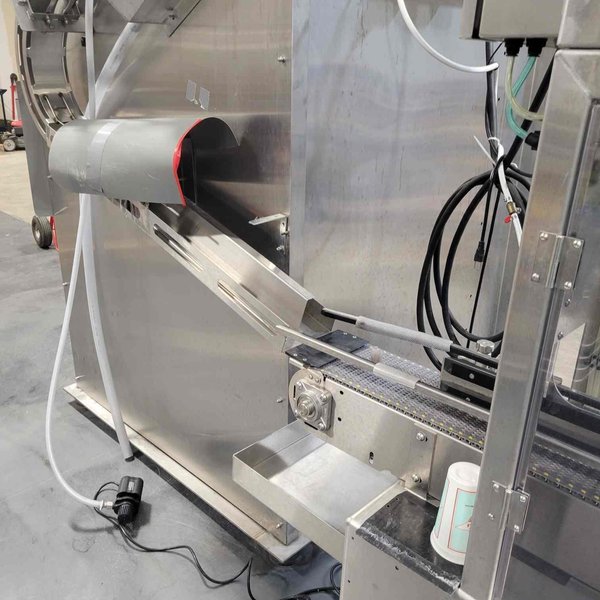

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Rinser Elevator Features: -Internal twist rinse chute with spray manifold -S-curve drop design for clean entry to conveyor -Safety enclosure with Lexan doors -Independent HMI panel (GR-X branded) -Stainless steel housing, vertical structure

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Purpose: Feeds cans from pallet to canning line automatically while rinsing interiors pre-fill

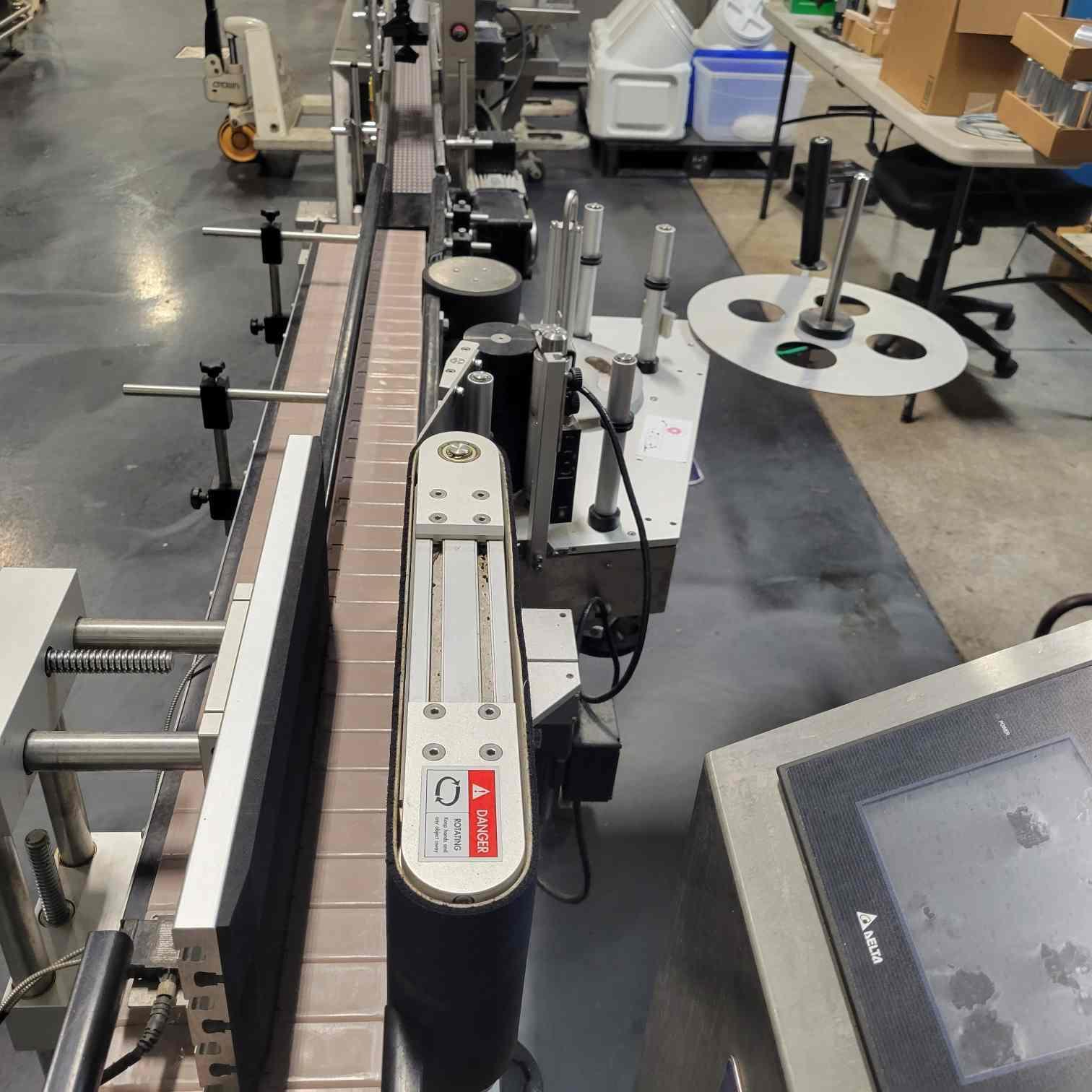

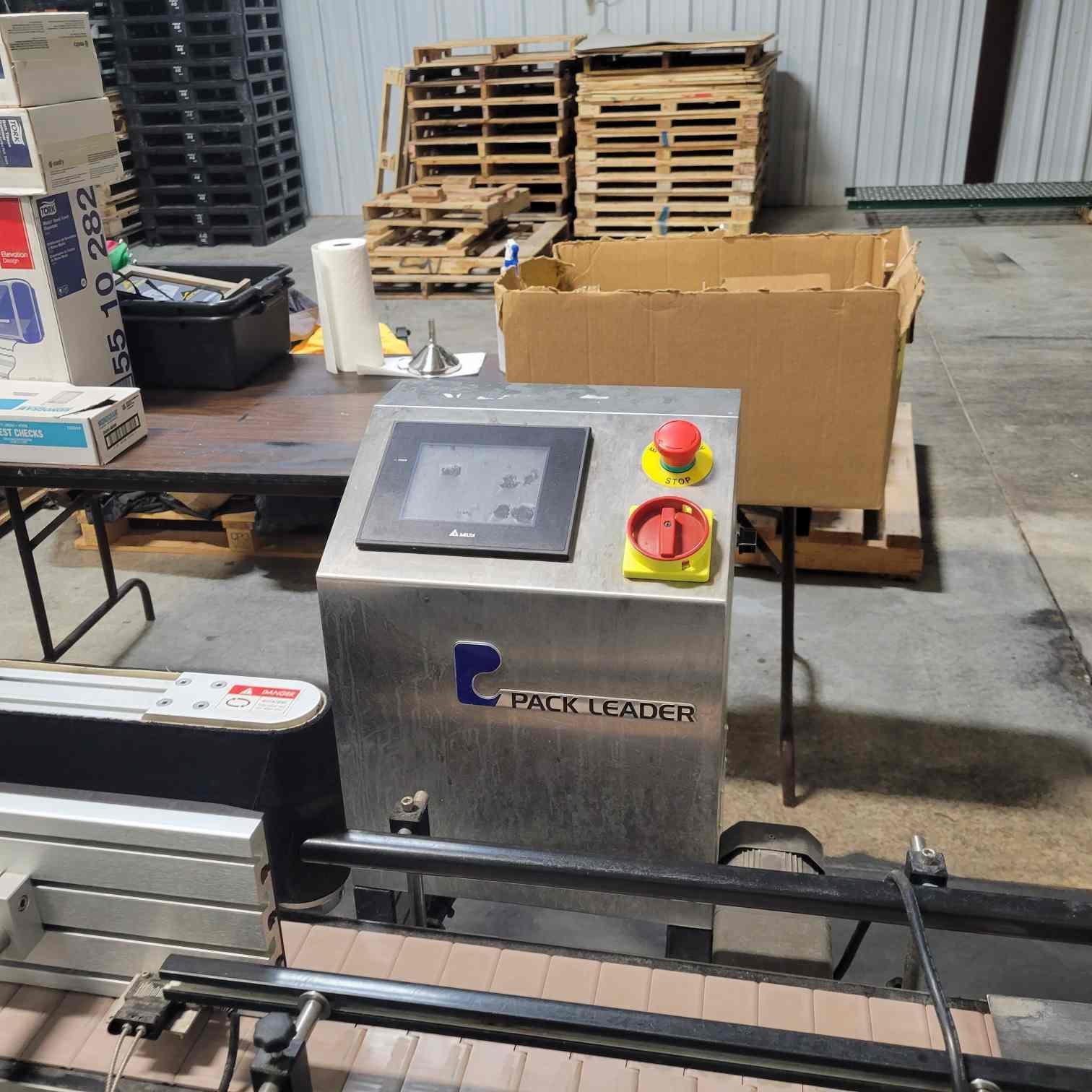

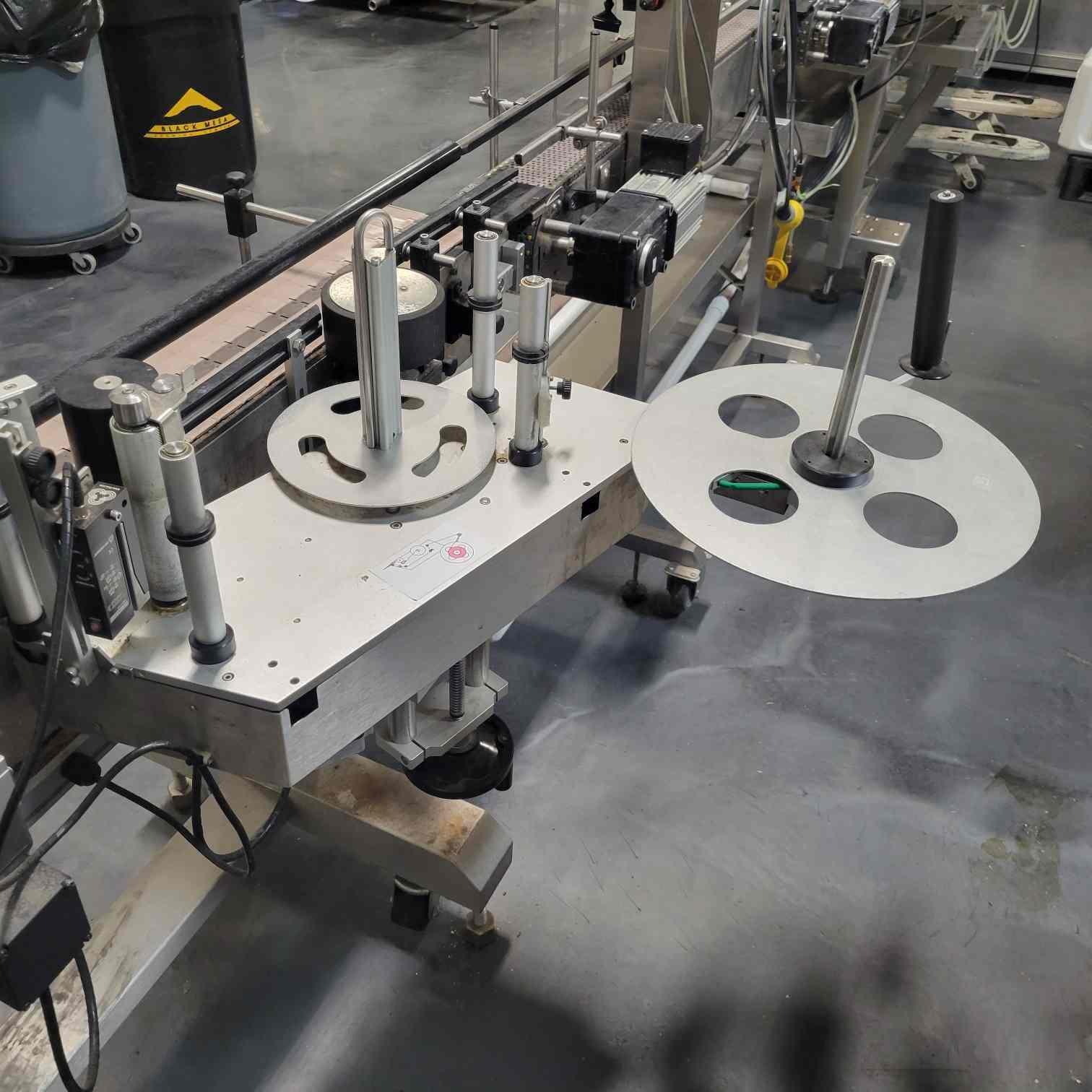

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Pack Leader PL-501 Labeler

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Label Type: Pressure-sensitive wraparound

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Speed: -Dispensing: Up to 40m/min (131 ft/min) -Conveyor: Up to 22m/min (72.2 ft/min)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Label Sizes Supported: -Height: up to 152mm (6") -Length: up to 300mm (11.8")

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Container Support: -Width: up to 101mm (4") -Height: from 6.35mm (0.25") upward

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Conveyor Width: 82.55mm (3.25")

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Drive System: Stepper motor

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Spool Diameter: 356mm (14"), 76mm (3") core

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Construction: -Frame: #304 stainless steel -Components: Anodized aluminum

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Controls: Delta color touchscreen interface

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Power: -110V, 1-phase, 60Hz -Draw: 0.76 kW

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Net Weight: Approx. 150 kg (330 lbs)
