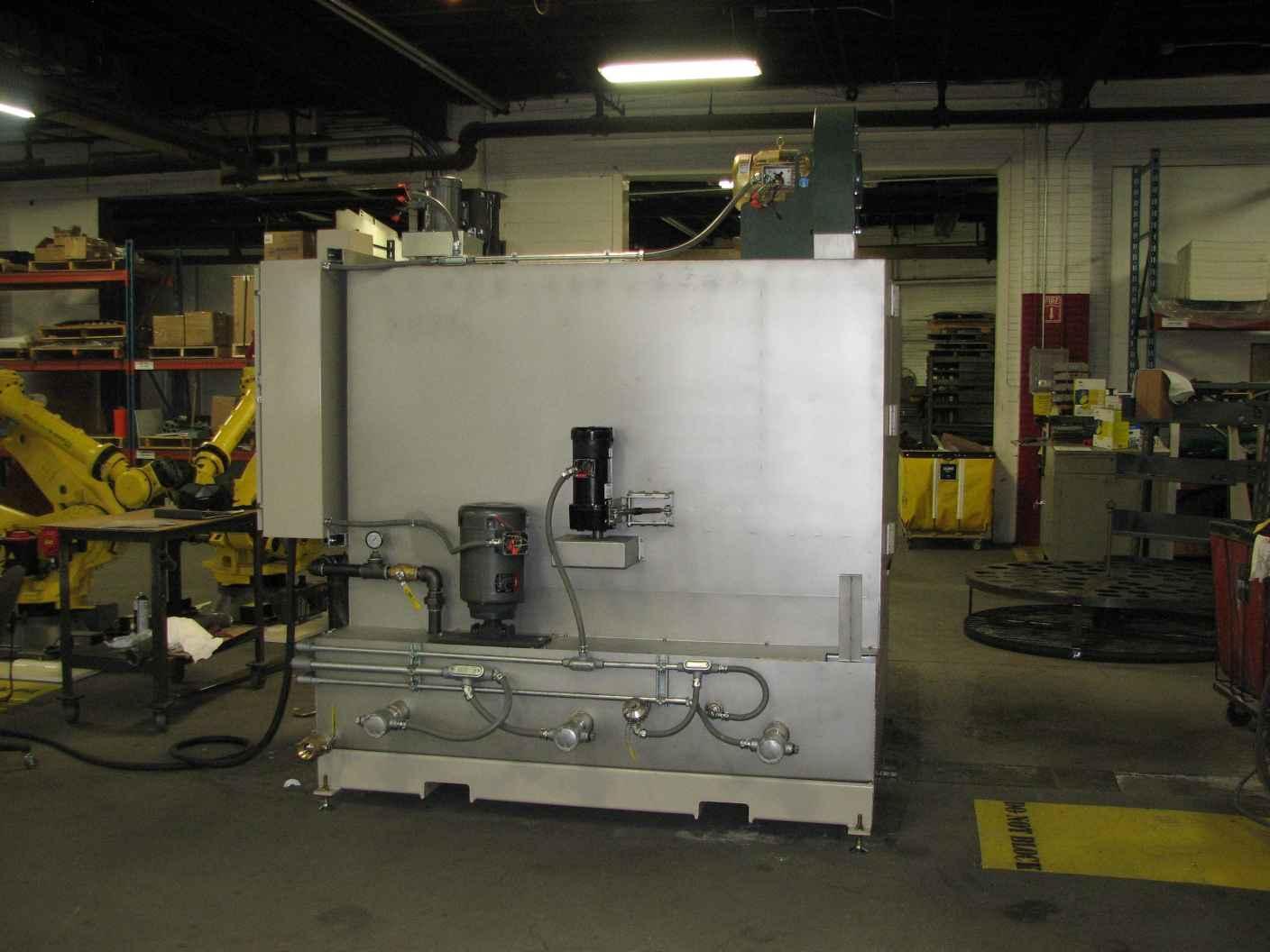

Almco RCWB-72E Cabinet-Style Parts Washer – 2020

Almco Model RCW-72E Cabinet-Style Parts Washer GENERAL SPECIFICATIONS: Length: 96″ (approx. overall, front to back) Width: 86″ (approx., including main electrical enclosure) Height: 78″ (approx. top of cabinet, less blower and exhaust fan) Work Opening Size: 72″ x 36″ high Turntable Load Height: 42″ (estimated) Turntable Capacity: 4000 pounds

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Wash Tank and Pump: The solution tank is capacity of 330 gallons with a 1-1/2″ drain fitting. Gusher brand vertical, end[1]suction, centrifugal unit with cast iron housing and impeller, with a 7-1/2 HP, 3450 RPM motor. The pump delivers solution to the spray system which is sized to flow up to approximately 160 GPM @ 40 PSI. Blow-Off and Exhaust System Wiring for the machine is 480 Volts, 3 phase, 60 Hz, and full-load current draw is 90 amps. Electric Heat for Wash Tank Low Level Float Switch in Wash Tank Hydrominder (Water/Solution Make-Up System). Painting. Taupe. All external stainless-steel surfaces are matte finish and are left unpainted.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
