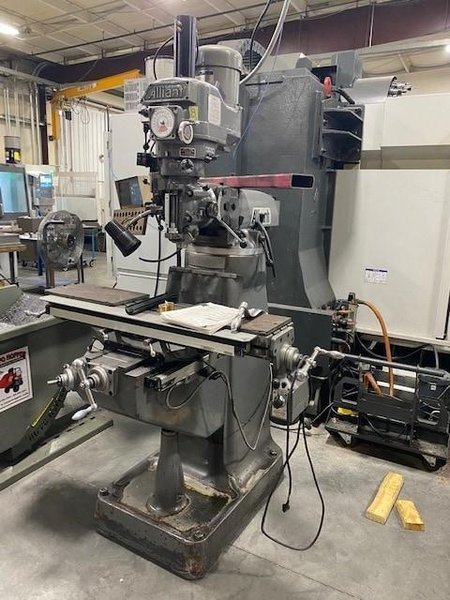

Alliant RT 2V Vertical Knee Mill, 1993 – Digital Readout, Available Immediately

Table: 9″ x 42″ X-Axis Longitudinal Travel: 30″ Y-Axis Cross Feed Travel: 12″ Knee Vertical Travel: 16″ Max. Table Height Above Floor: 47.5″ Max. Workpiece Weight: 750 lbs.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Ram Travel: 12″ Quill Travel: 5″ Spindle Nose to Table Gage Line (min.): 2.5″ Spindle Center to Column (min.): 6.75″ (max.): 18.75″ Swivel (Right/Left): 90 Degrees Tilt (Up/Down): 45 Degrees

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Spindle Motor: Horsepower: 2 RPM: 1720 Spindle Taper: R-8 RPM Speed Range: 8 Speeds Low: 80 140 230 350 High: 650 1100 1800 2760 Spindle Diameter: 1.875″ Quill Diameter: 3.375″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Feed Rates: Low Rev.: 1.5 i.p.r Medium Rev.: 3 i.p.r. High Rev.: 6 i.p.r.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Floor Space and Weight: Max. Machine Height: 82″ Floor area: 7 x 10 feet Net Weight: 2227 lbs. Shipping Weight: 2400 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Electrical Supply: 220V/440V 3 Phase – 60 Hz

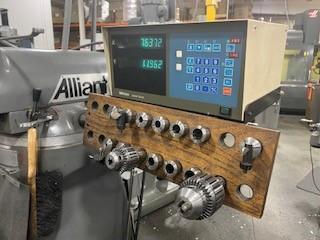

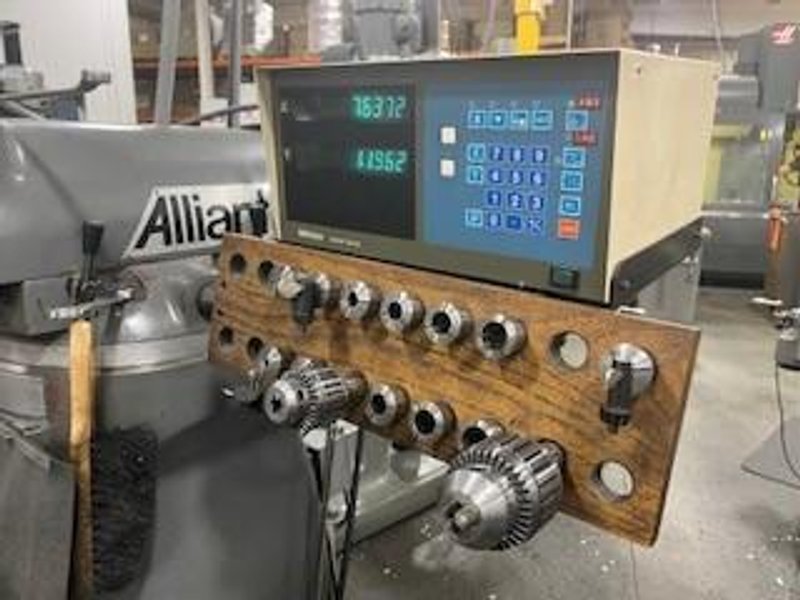

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped with: Digital Readout

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
