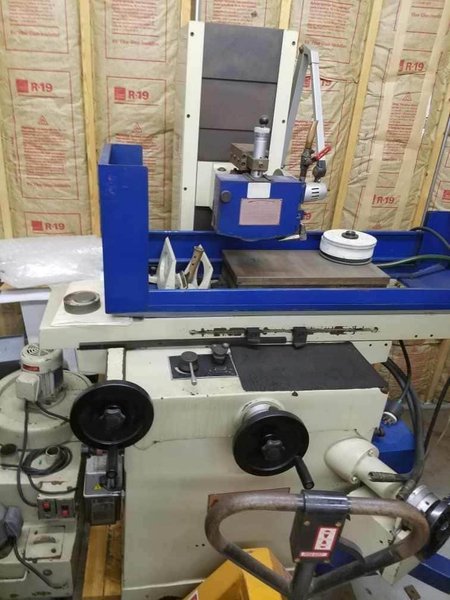

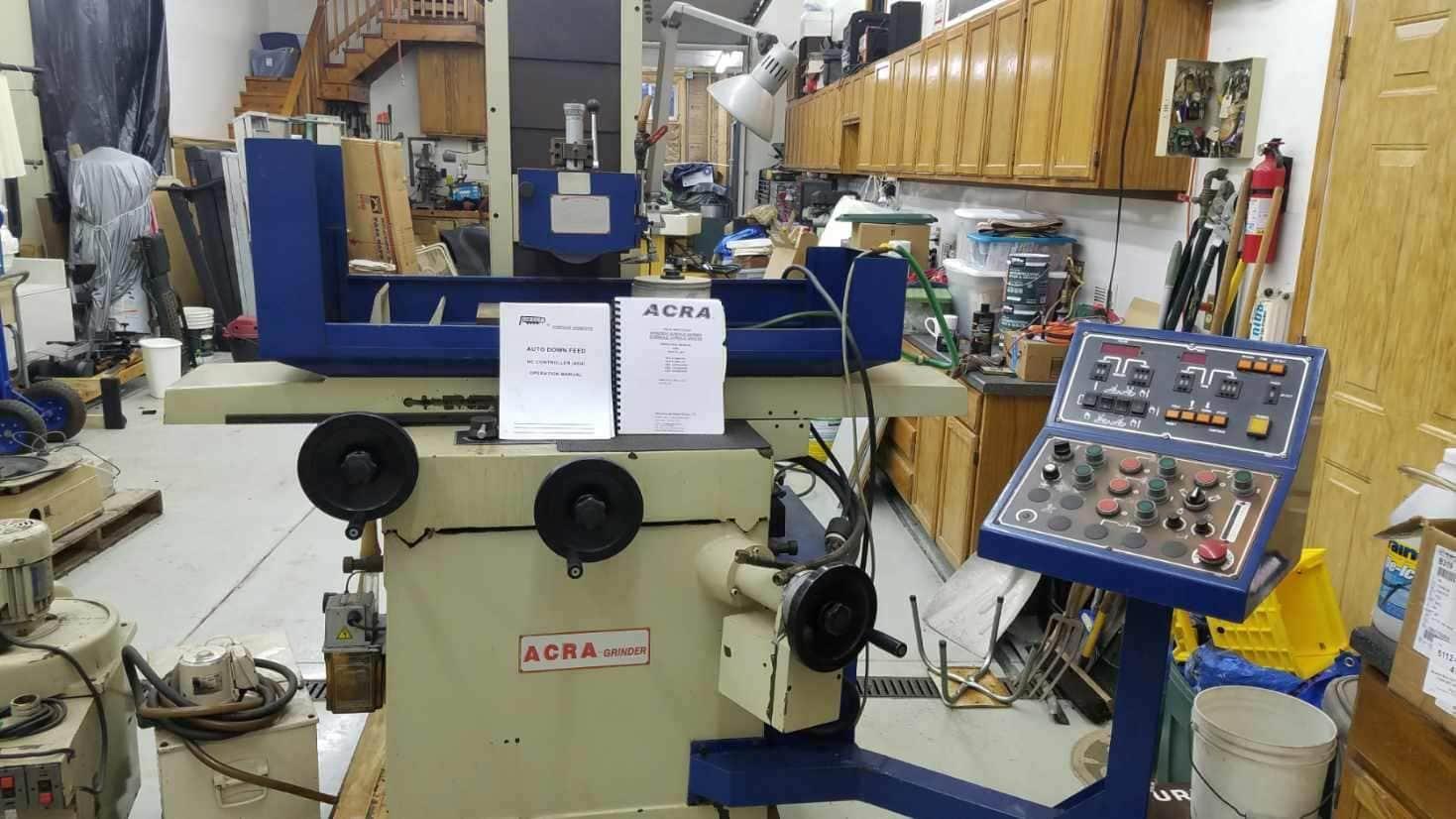

ACRA ASG-1020HS Surface Grinder, 1997

Grinding Capacity:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Maximum grinding length: 20 inches (510 mm) Maximum grinding width: 10 inches (255 mm) Maximum distance from table surface to spindle centerline: 19.7 inches (500 mm) Maximum table load: 660 pounds (300 kg) Grinding Wheel:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Wheel size: 8 x 1 x 1.25 inches (203 x 25 x 32 mm) Spindle speed: 3,600 RPM Motor power: 2 HP (1.5 kW) Wheelhead feed increment: 0.0001 inch (0.0025 mm) Table:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Table size: 20 x 10 inches (510 x 255 mm) Longitudinal feed rate: 16 to 80 FPM (5 to 24 m/min) Cross feed rate: 0.02 to 0.4 inches (0.5 to 10 mm/stroke) Machine Dimensions:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machine height: 69 inches (1,750 mm) Machine width: 70 inches (1,780 mm) Machine depth: 75 inches (1,900 mm) Machine weight: 4,400 pounds (2,000 kg)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
