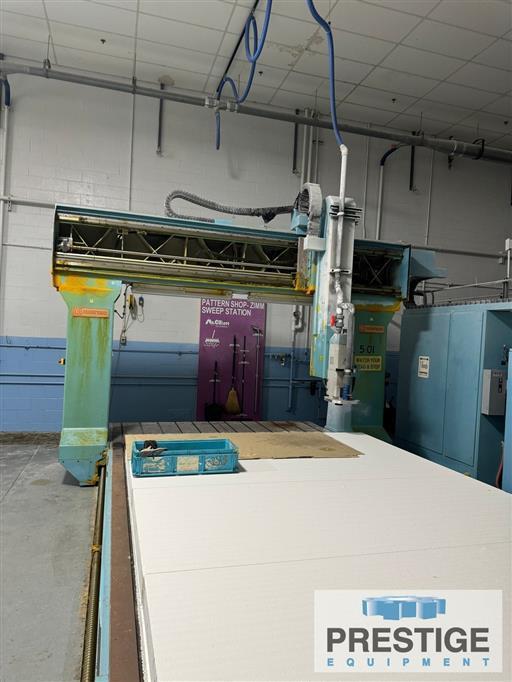

ZIMMERMANN FZ-30 Gantry-Type CNC Milling Machine

Brand
ZIMMERMANN
Category
Machining Centers
Type
Machining Centers, Gantry (incld. Bridge & Double Column)
Model
FZ-30
Stock #
43633
Year
1996
Condition
Not specified

Location

Not specified
REQUEST FINANCING
SPECIFICAITONS:
X-Axis Gantry Travel 216.53
Y-Axis Head Travel 132.28"

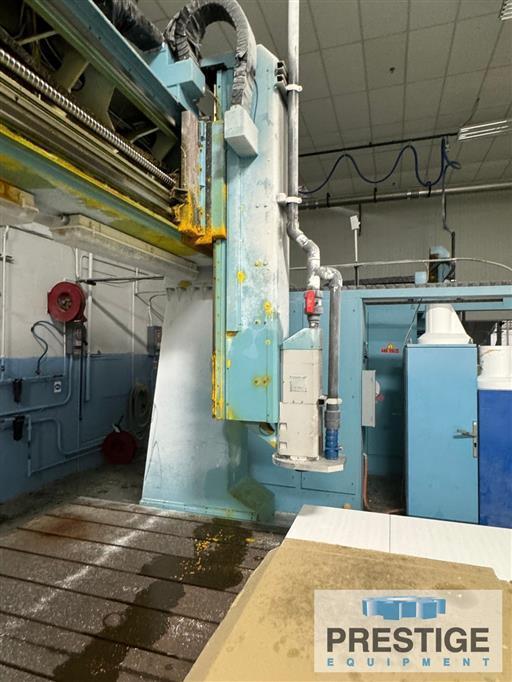

Z-Axis Ram Vertical Travel 49.21"
Distance Between Columns 121.25"
Portal Clear Height 74.80"
Maximum Cutting Height 52.55"
Table Size W x L 118.11" X 295.27"
Feed Rate, All Axes 787.4 IPM
Machine Weight 64,240 Lbs

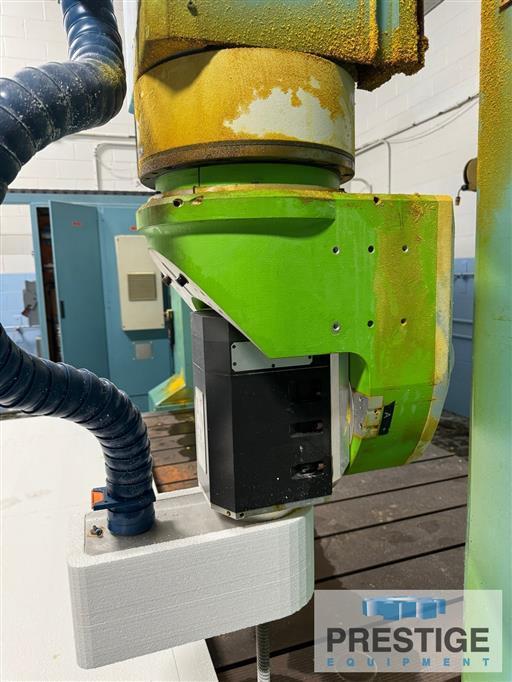

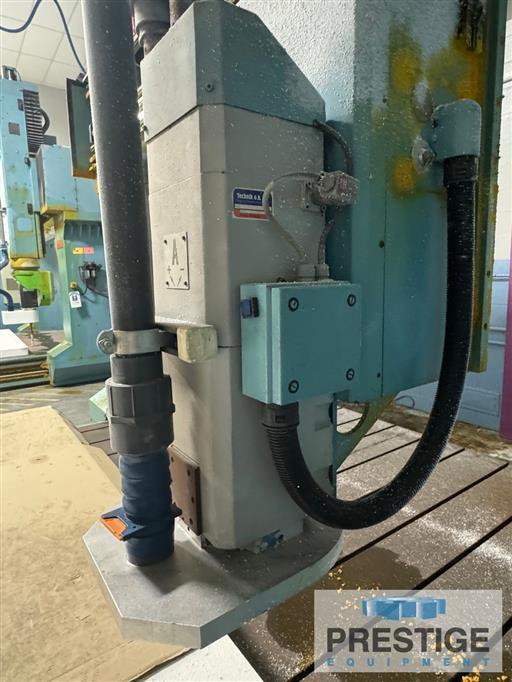

Milling Spindle:
Spindle Speeds 100 to 6,000 RPM
Motor Power, Constant 8.46 HP
Spindle Taper Tool Holder for Hollow Cutter



Equipped With:

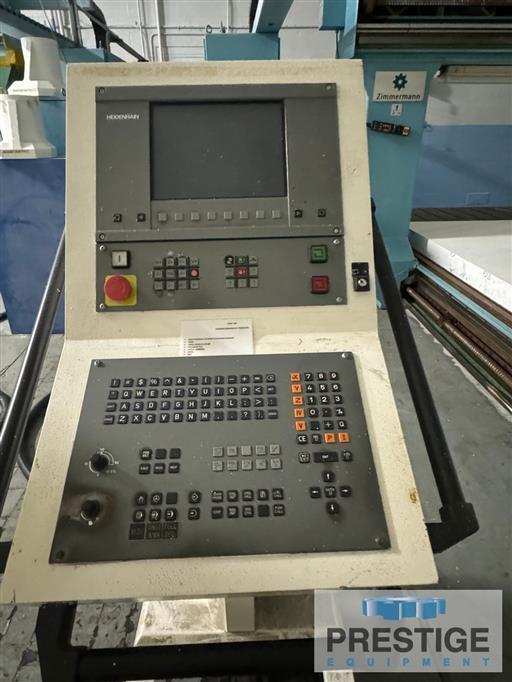

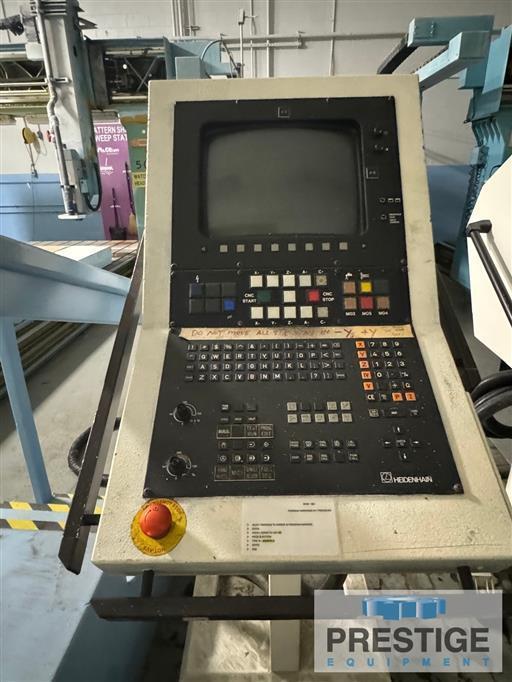

Heidenhain TNC 426 CNC Control
Hydraulic Clamping

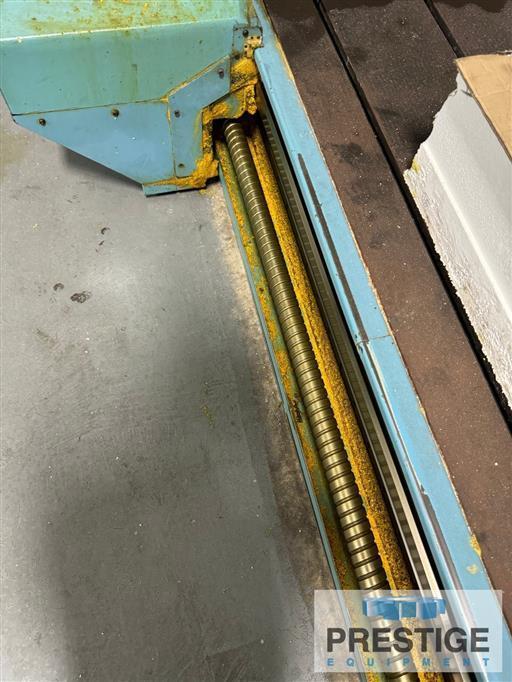

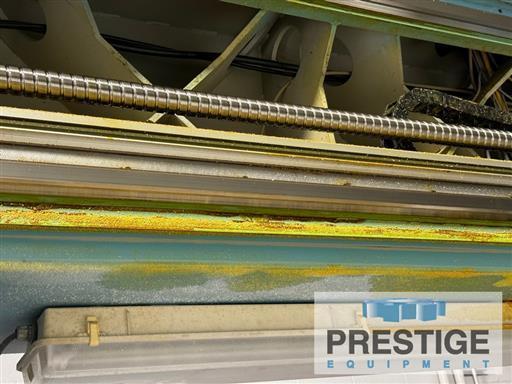

Ball Screws on X,Y,Z Axes


NOTE: Used for Cutting Styrofoam for Mould Patterns
