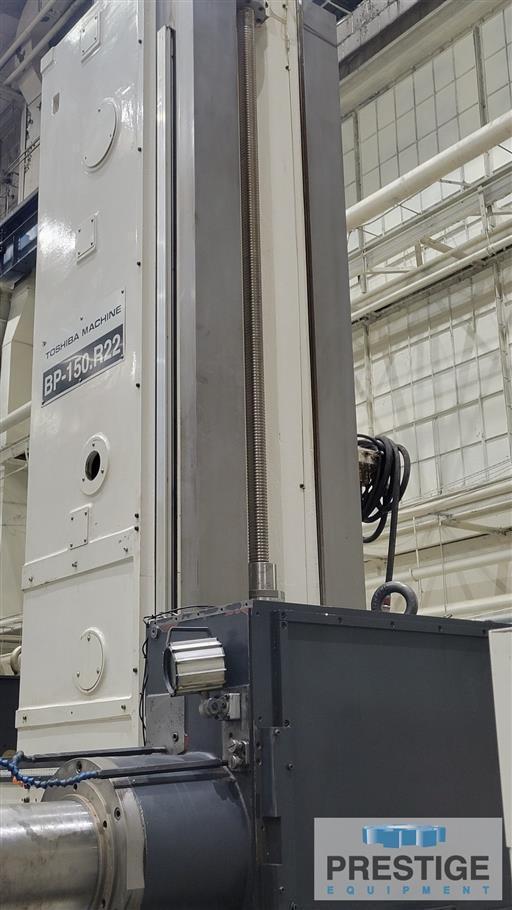

Toshiba BP-150.R22 5.9" CNC Horizontal Boring Mill

SPECIFICATIONS:
Spindle Diameter 5.9"
Taper In Spindle CAT 50
Y-Axis Vertical Travel 120"
X-Axis Table Travel 160"
Z-Axis Spindle Travel 28"
W-Axis Column Infeed Travel 60"
B-Axis Rotary Table 0.001 Degrees
Rotary Table Size 70.9" X 86.6"
Table Load Capacity 44,000 LBS
Spindle Speeds (3-Ranges) 5-2500 RPM
Rapid Traverse X,Y,Z Axes 708.7 IPM
Rapid Traverse B-Axis 720 Deg/Min
Machine Footprint 300" x 402"
Machine Height 225.3"
Machine Weight 96,800 lbs



Equipped With:
Tosnuc 999 4-Axis CNC Control
60-Station Automatic Tool Changer
Pendant For Manual Operation
Scale Feedback
Thru-Spindle Coolant
Flood Coolant
Built-In B-Axis Rotary Table

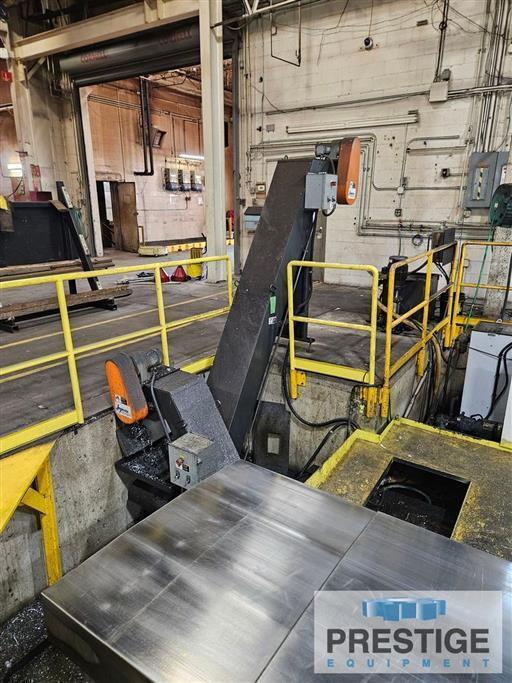

Chip Conveyor
50 HP/40 HP Spindle Motor


Also Available: Toshiba Right Angle Head at Additional Cost. Reference # 43737
