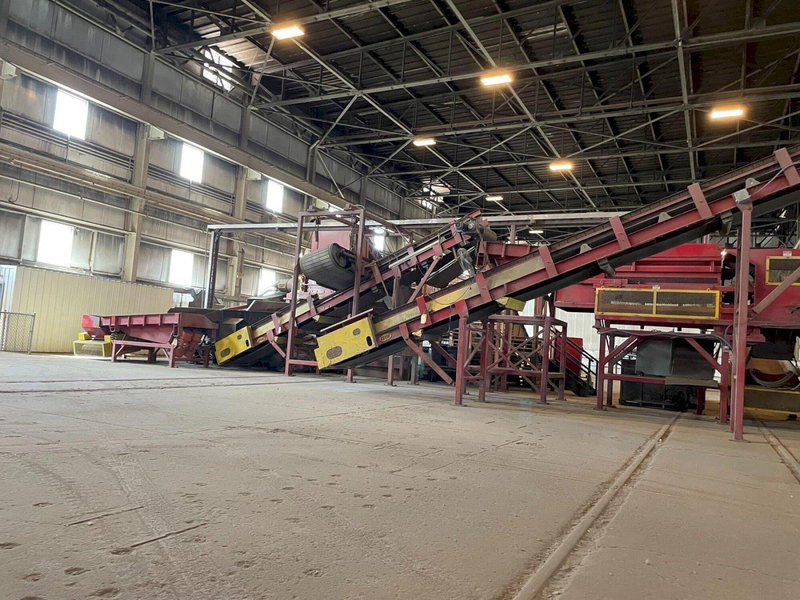

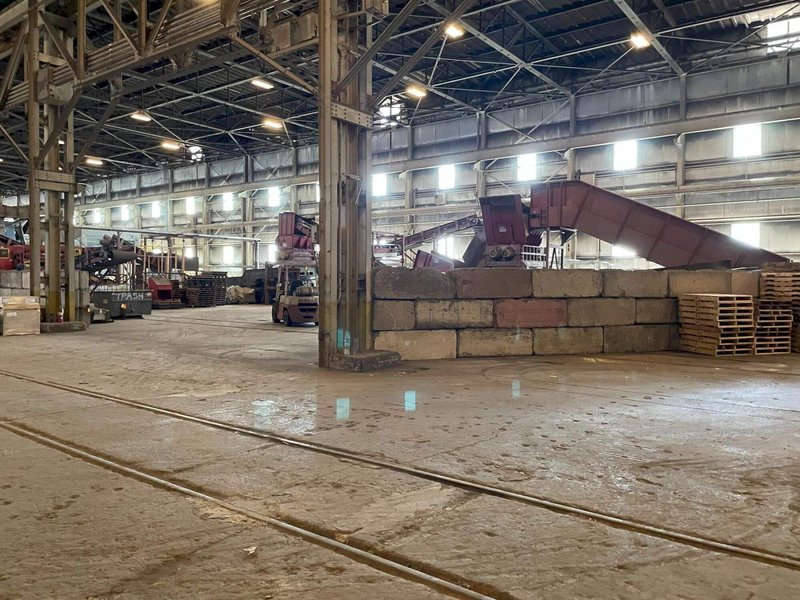

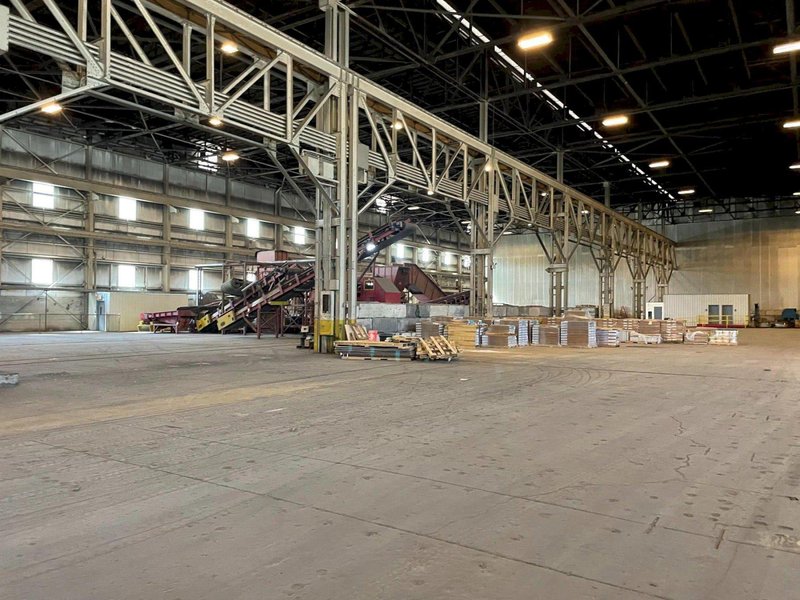

IDM RAPTOR SERIES 23 COMPLETE SHREDDING/RECYLCLING LINE. STOCK # 0895624

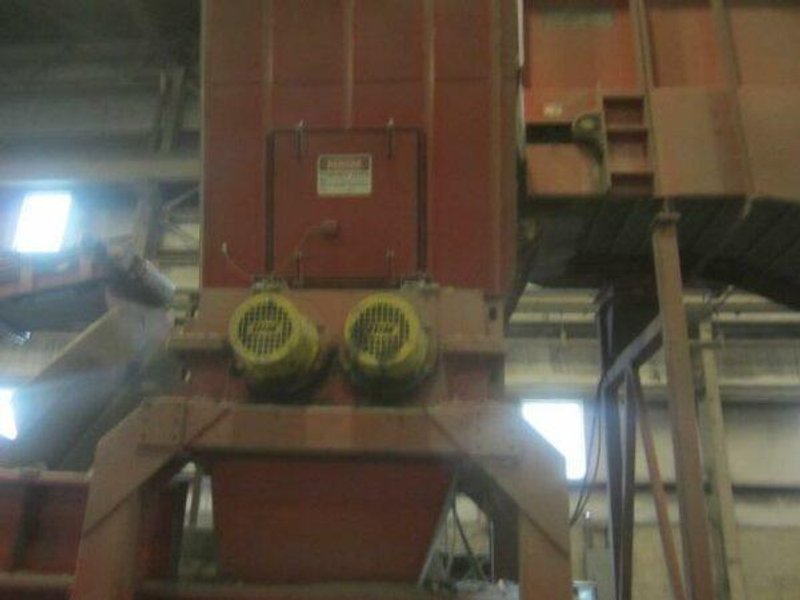

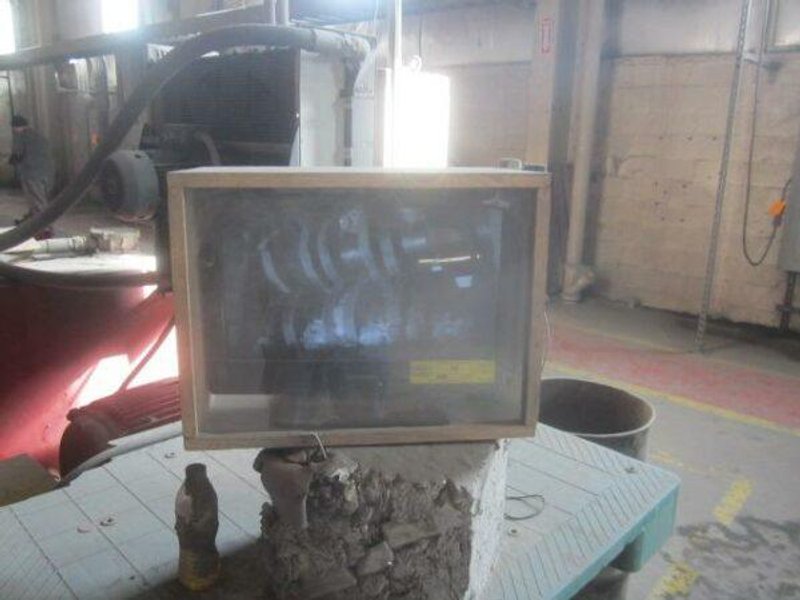

Primary Shredder Model: PS-200-56-23-HD (2007 Unit) Rebuilt before Seller Purchased
– Base Model: IDM Raptor Series Model 23
– Cutter Shaft Size: Hexagonal: 10-1/4″ diameter and 9-1/4″ flat to flat
– Cutters: 3” thick two and 3 hook blades on a 8.7”” stagger stack, 4140 alloy heat treated.
– Maximum Per Shaft Torque 62,000 ft-lb’s. x 2-drives = 124,000 ft lbs. total torque
– Maximum shaft speed is 10 RPM
– Standard Chamber Size: 56″ long by 58″ wide
– Split Shredder Box design, where the machine is split in half for easy lift-out of cutter shaft assemblies for cutter maintenance and replacement.
– Shaft Center Distance: 23-1/2″
– Standard Blade tip diameter: 27″
– Drive End Bearing: 10-1/4″ bore spherical roller bearing
– Locker End Bearing: 11″ bore spherical roller bearing
– Cutter Locking System: Slip and turn locker with 3/4″ jacking screws
– Bearing Protection:
– Splash Plates keep material away from seals and bearings
– Bearings are enclosed in a replaceable housing
– Inner and outer seal rings 1-1/8″ thick steel.

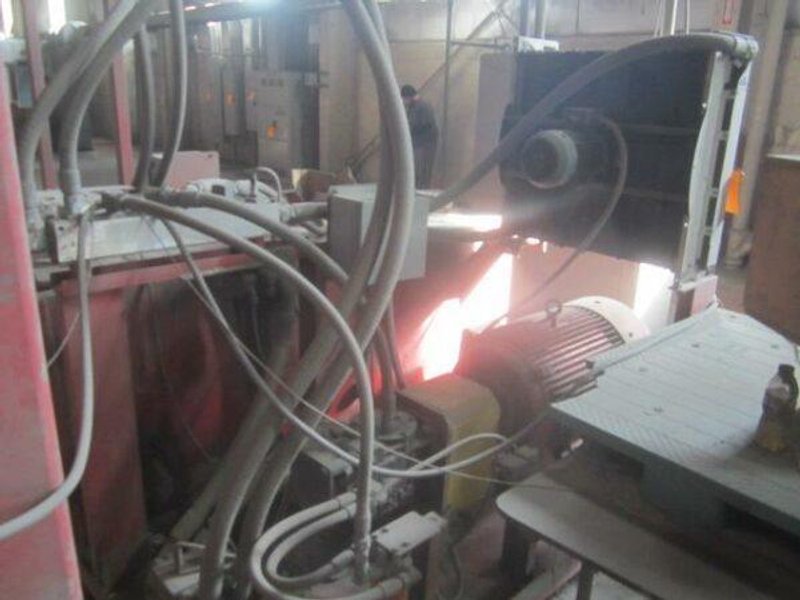

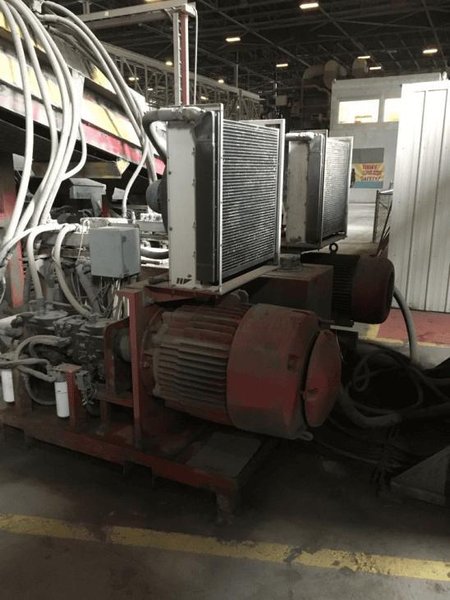

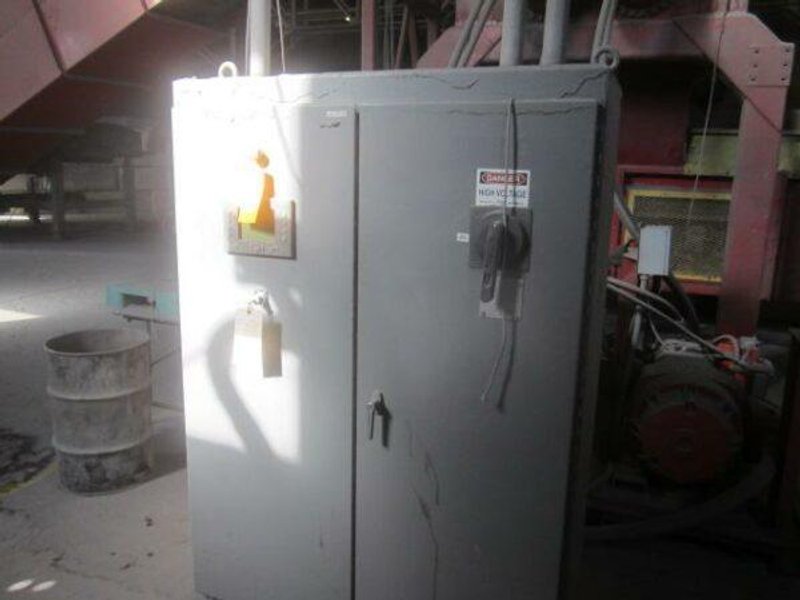

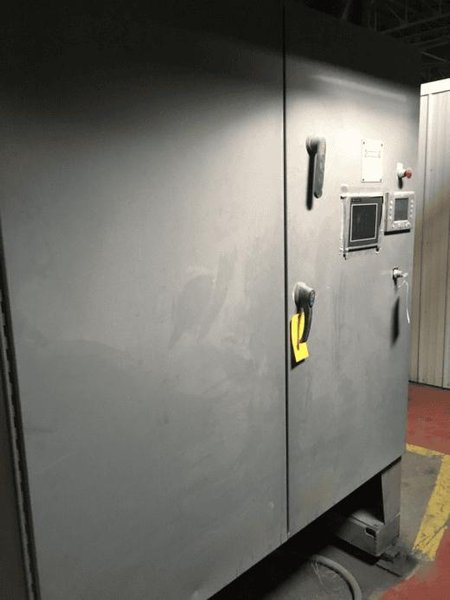

– 200 HP Closed Loop Hydraulic Drive
– Dual Hydraulic Drives using Fairfield planetary gearboxes and Rineer hydraulic motors. This system with each shaft having direct drive has the advantage that if one shaft stalls, the other may keep going and break a stall without the need for reversing.

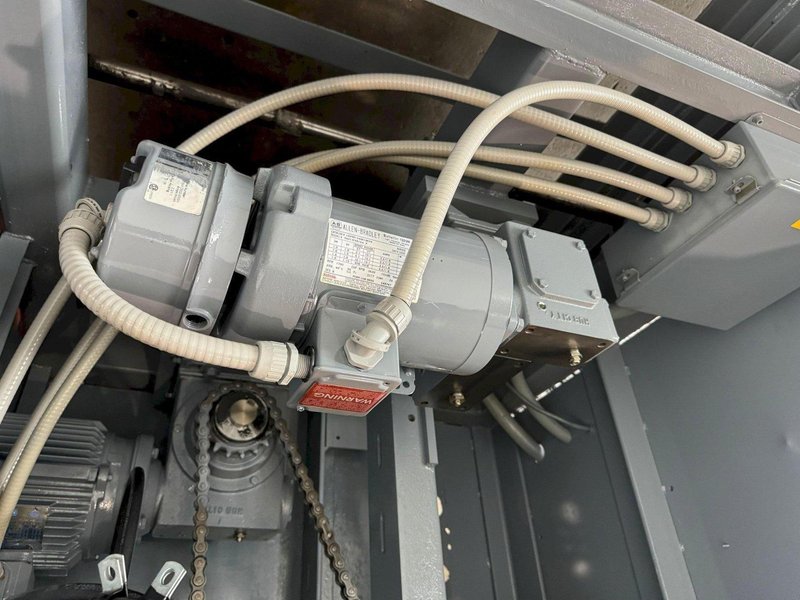

– 200 HP electric motor
– Approximately 120 GPM maximum total flow
– Approximately 5,000 PSI maximum pressure
– Pressure and charge filtration
– Top Access Hydraulic tank
– Gross Weight: 48k LBS

Secondary Shredder Model: TC/TG-300-60-25 HD (2001 Unit) Rebuilt before Seller Purchased
– Base Model: IDM Raptor Series Model 25
– Cutter Shaft Size: Hexagonal: 11” diameter and 10-1/4″ flat to flat
– Cutters: 2-1/2” thick 3-hook blades on a single stack, 4140 alloy heat treated
– Standard Chamber Size: 60″ long by 64″ wide
– Split Shredder Box design, where the machine is split in half for easy lift-out of cutter shaft assemblies for cutter maintenance and replacement.
– Shaft Center Distance: 25-1/2″
– Standard Blade tip diameter: 29″
– Drive End Bearing: 11″ bore spherical roller bearing
– Locker End Bearing: 11-7/8″ bore spherical roller bearing
– Cutter Locking System: Slip and turn locker with 1″ jacking screws
– Bearing Protection:
– Splash Plates keep material away from seals and bearings
– Bearings are enclosed in a replaceable housing
– Inner and outer seal rings 1-1/8″ thick steel.
– 300 HP Closed Loop Hydraulic Drive
– Shaft Speed is approximately 11 RPM
– Maximum Per Shaft Torque is 102,000 ft-lb’s. x 2 drives = 204,000 ft-lb’s. Total Torque
– Gross Weight: 61k Lbs

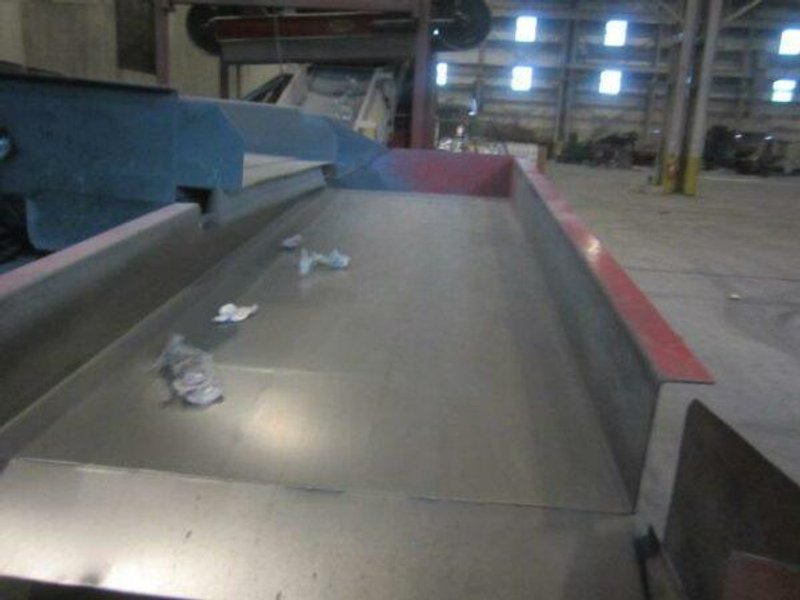

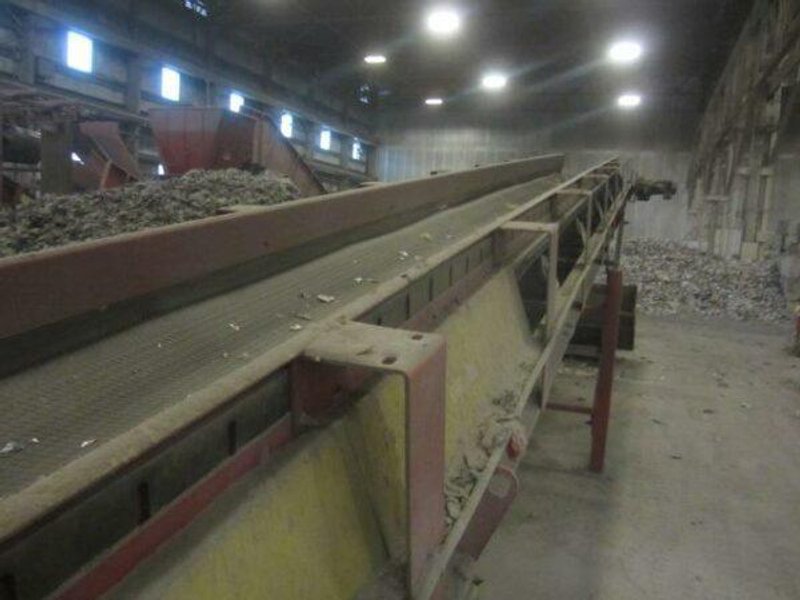

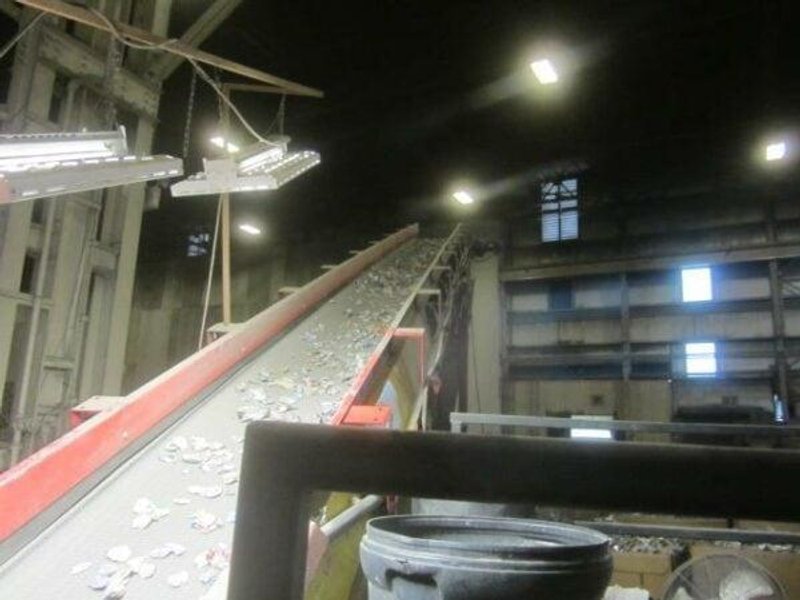

Infeed Conveyor To Bale Beaker Shredder, C-1 Model STBP-9-48-10-29A25-5:
– Belt Width: 48″
– Belt Path Style: “S” shaped with a lower horizontal loading area of 10’ (top of belt to be 30” above grade), an incline section of 29 feet at 25 degrees and an upper horizontal section of 5 feet.
– Belting: 1/4” plate 9” pitch precision formed Beaded Pan (See PDF For More)
– Drive: 10 HP / 1800 RPM Variable Speed Electric motor
– Speed: Max 40fpm

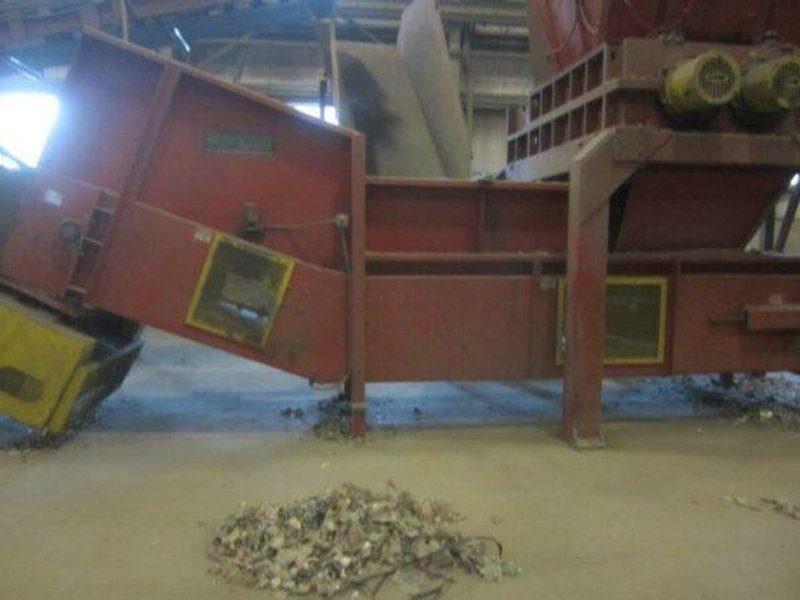

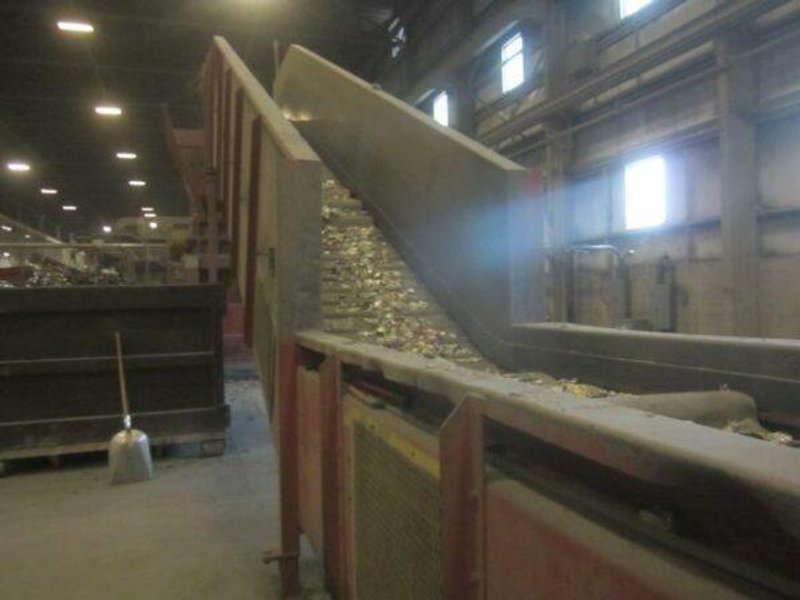

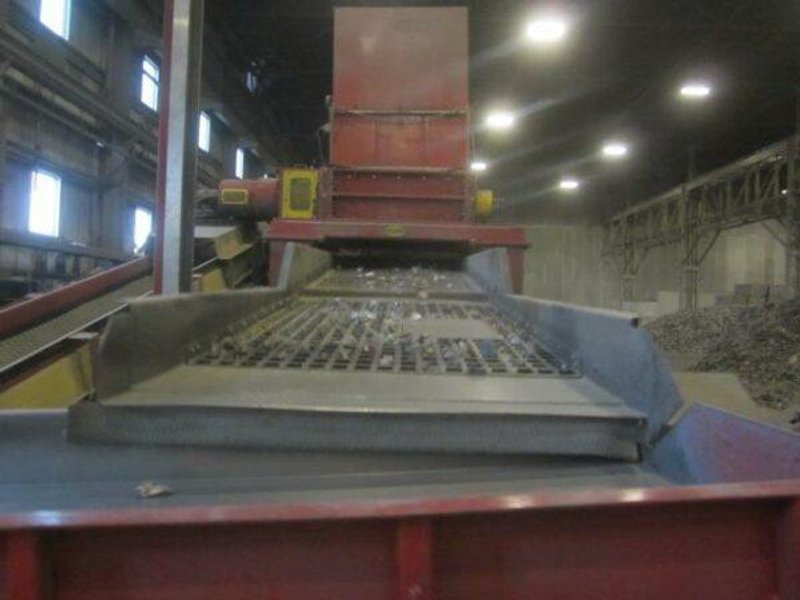

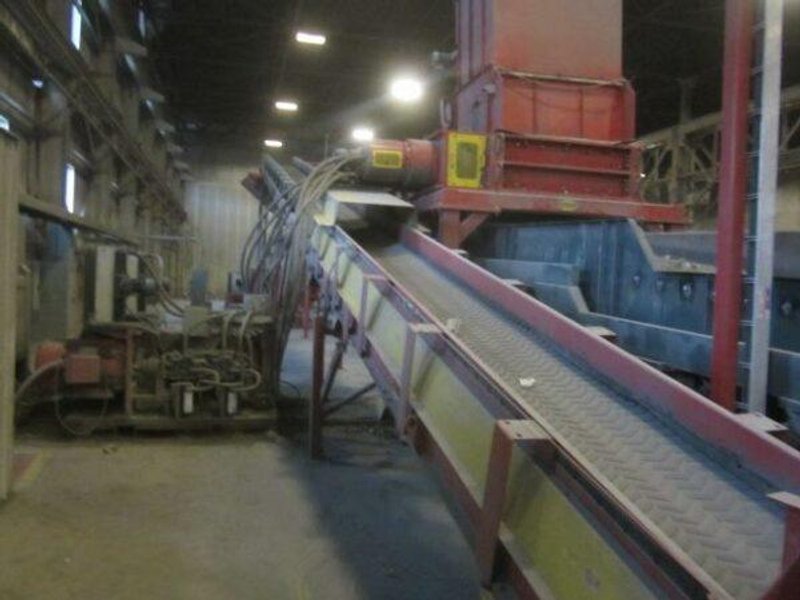

Discharge Conveyor From Primary Shredder C-2 model STBP-9-48-12-6A20
– Heavy duty closed-open frame style conveyor built to industry standards with a steel roller chain belt.
– Belt Width: 48″
– Belt Path Style: “C” shaped with a lower horizontal loading area of 12 feet (top of belt to be 36” above grade), and an incline section of 6 feet at 20 degrees.
– Belting:1/4” plate, 9” pitch precision formed Beaded Pan,
– Drive: 7.5 HP 1800 RPM Variable Speed Electric Motor
– Speed: Maximum 40 F.P.M

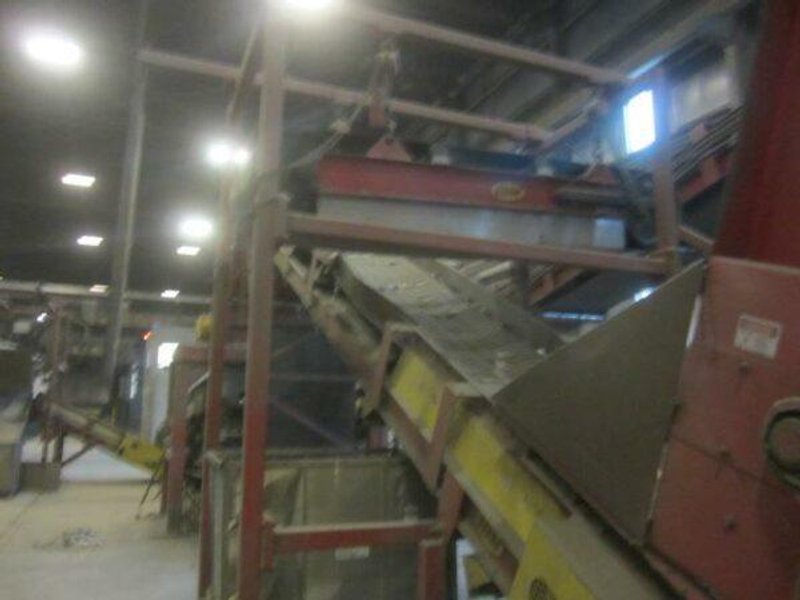

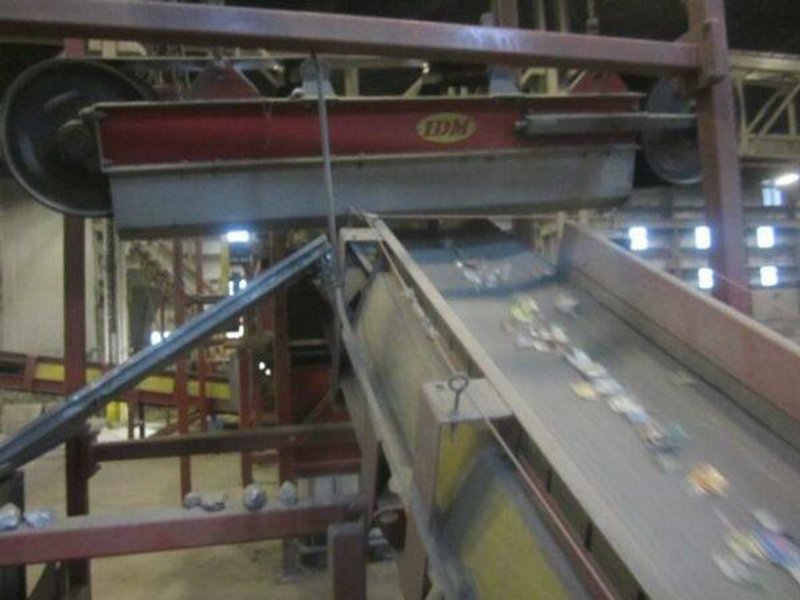

Transition Conveyor: 5HP 48″ x 33″ Idler belt Conveyor With 18″ Magnetic Head Pully
– 48″ wide Cross Belt Permanent Magnet
– 17” wide by 70” long (consisting of two individual magnets each 17” wide x 35” long).
– Belt: 36” wide x 13 feet long
– 5Hp

- UNIT UNDER POWER AND AVAILABLE FOR INSPECTION
- DECOMMISSION AND RIGGING QUOTE AVAILABLE
