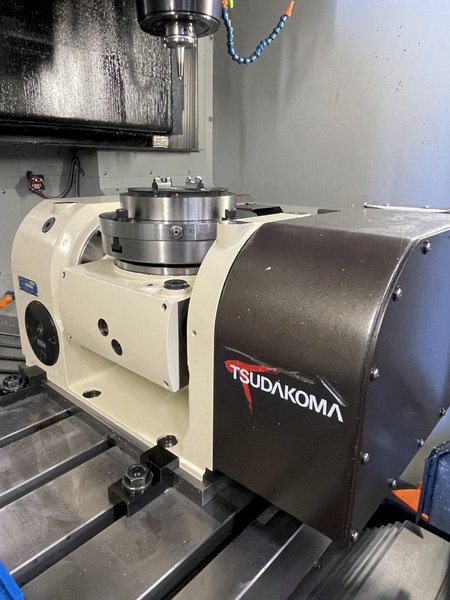

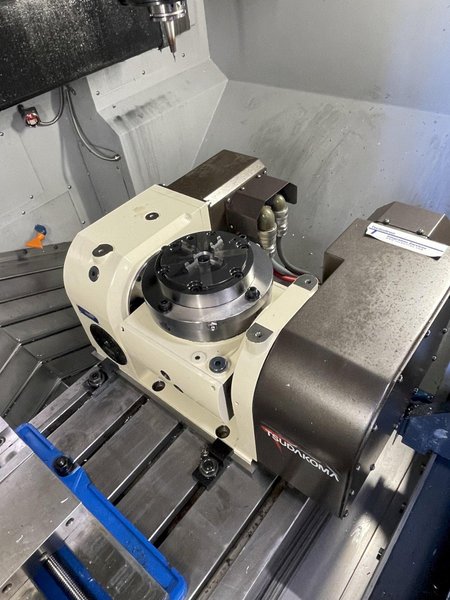

Tsudakoma TWA-160 High Speed Tilting Rotary Table

Brand
TSUDAKOMA
Category
Tables
Type
Tables, Rotary
Model
TWA-160
Stock #
MC17115
Year
2022
Condition
Used

Location

Michigan
REQUEST FINANCING
Table Diameter 160 mm
Tilt Range -30/+110 Deg
Table Height At 0 Position 235 mm
Center Height At 90 Position 180 mm
Center Bore 40 mm
Servo Motor (fanuc) Tilt/Rotary Alpha 2i/Alpha 2i
Weight 279 pounds
High Speed, High Power, High Accuracy Tilting Rotary Table
No files or videos to display
