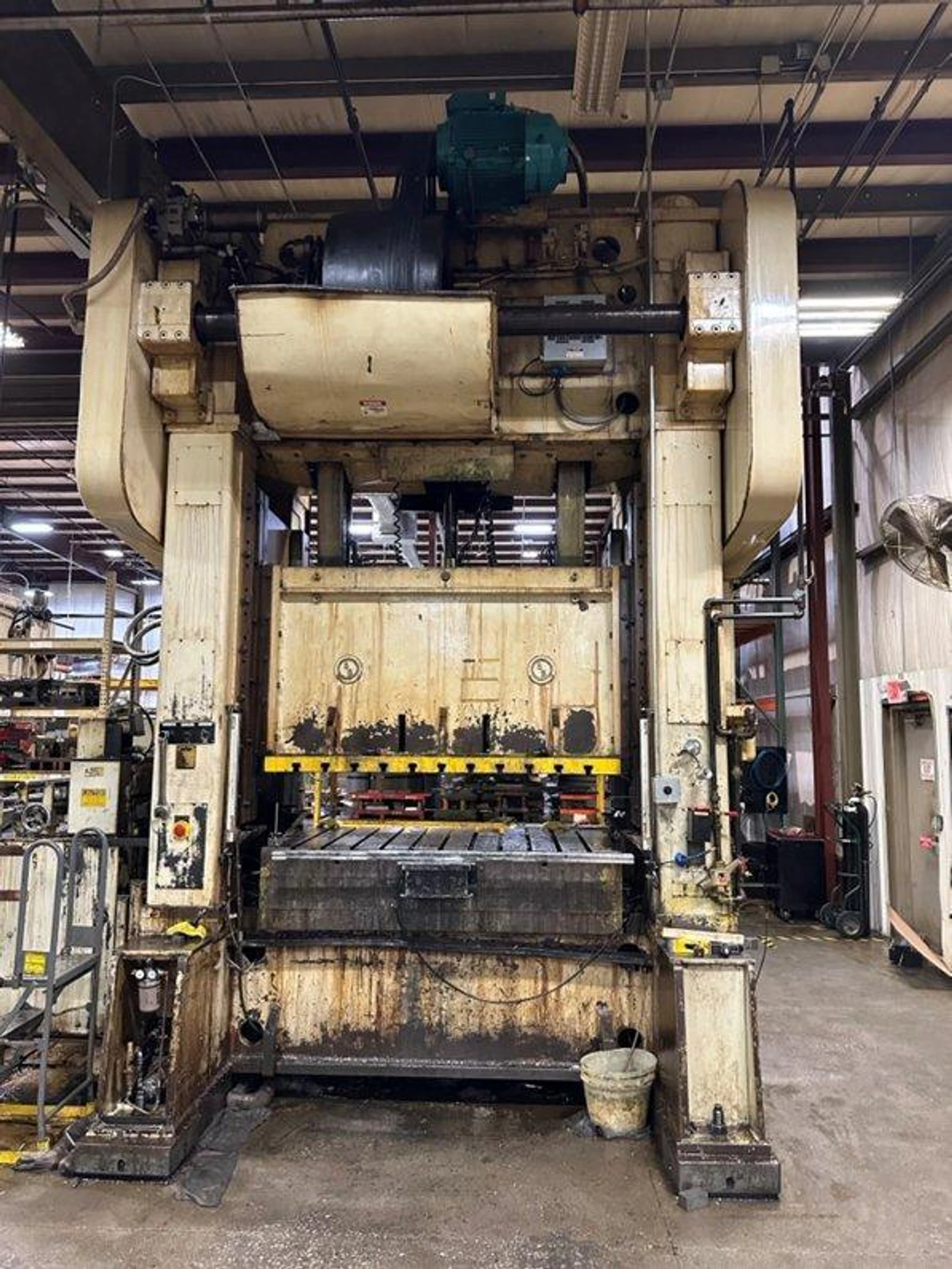

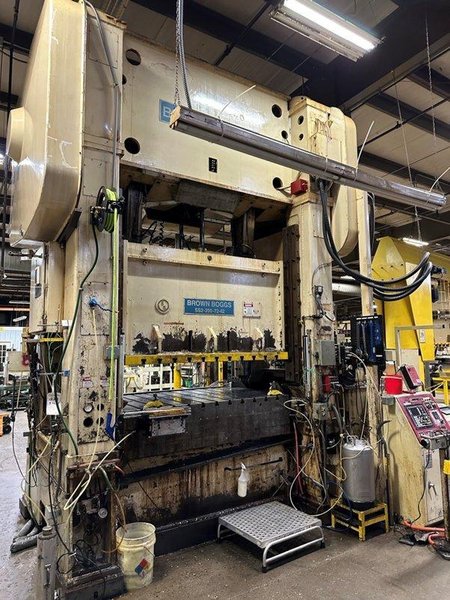

200 ton Brown Boggs SS2-200-72-42 Straight Side Mechanical Press For Sale
Brand
Category
Model
SS2-200-72-42
Stock #
2903 C
Year
Not specified
Condition
As-Is
Location
Wisconsin
Price
$59,500.00
| Tonnage | 200 |
| Stroke | 10 inches |
| Shut Height | 24 inches |
| Adjustment | 10 inches |
| Bed Size | 72" LR x 42" FB |
| Ram Area | 72" LR x 42" FB |
| SPM | 30-60 VSPM |
|
Standard Specifications
Brown Boggs Straight Side Double Crank Mechanical Progressive Die Press Press Model SS2-200-72-42 200-ton Capacity 10" Stroke 24" Shut Height 10" Adjustment 72" LR x 42" FB Bed Area 72" LR x 42" FB Slide Area 30-60 VSPM Equipment and Features Air Clutch and Brake Air Counterbalances Recirculating Lube System T-Slotted Ram and Bolster Free Standing Console Control Hydraulic Tie Rod Nuts Wintriss Smart Pac Controls 30.5" Wide Windows Light Curtains Vibro Dynamic Floor Pads Floor Standing Press Weight 76,000 lbs. 200-ton Brown Boggs Straight Side Press For Sale From Running Service... Can be seen under power in the plant! Progressive Straight Side Mechanical Press For Sale |
|
