AEC 50 Ton Chiller System, GPRC175 with Remote Condenser and C150 Chiller Tank Set
Brand
Category
Type
Model
GPRC175
Stock #
10716
Year
2020
Condition
Used
Location
North Carolina
|

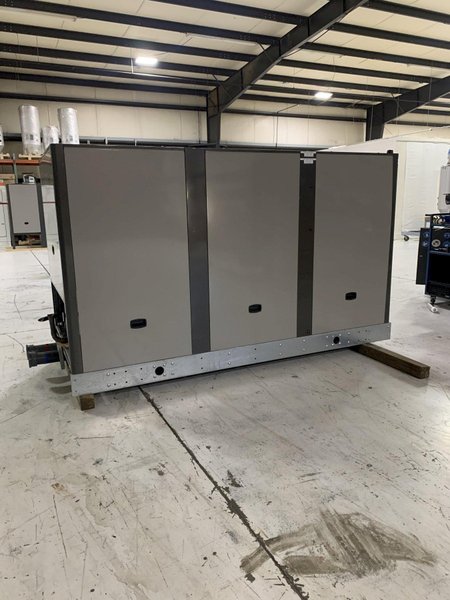

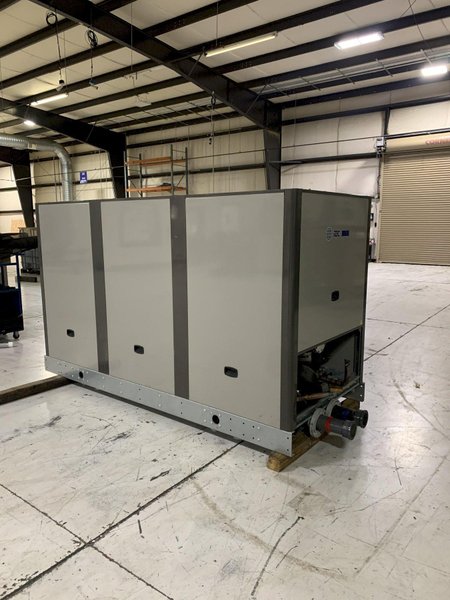

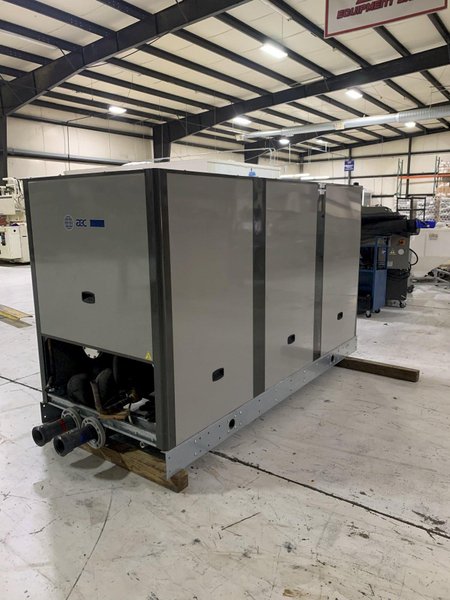

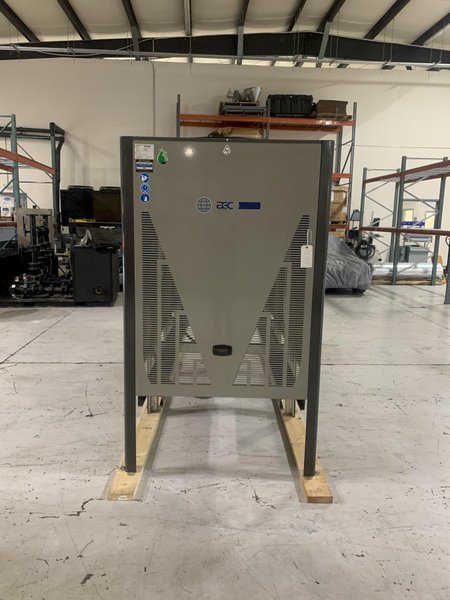

GPRC175 Remote Air-Cooled 50 hp (37 kW) Packaged Chiller
OPERATING TEMP: 95 F Ambient Operation
CONDENSER: Remote Air-Cooled Chiller
VOLTAGE: 460/3/60
FLOW RATE: Recommend 2.4 gpm / ton
LEAVING COOLANT TEMP: 50 F
GENERAL FAULT ALARM: 80 dB Audible 108K Candle Power
Warning/Fault Light
REAL TIME CLOCK and SENSOR PACKAGE:
CERTIFICATIONS: UL/cULus Listed Electrical Subpanel

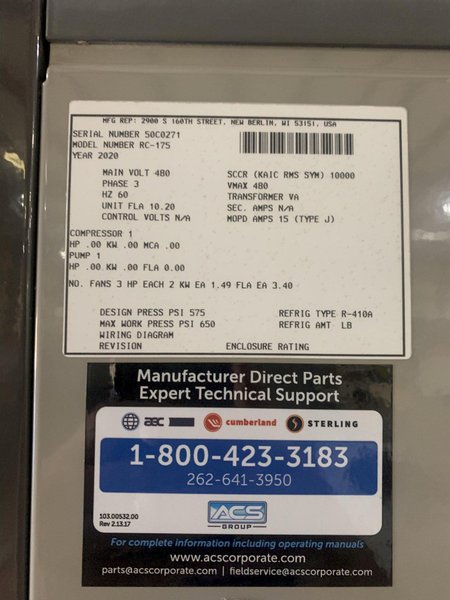

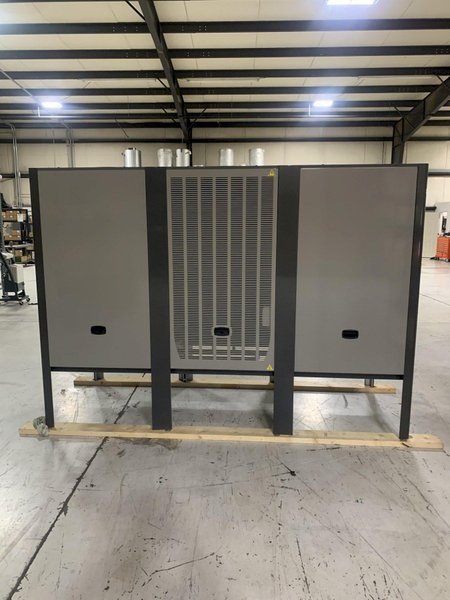

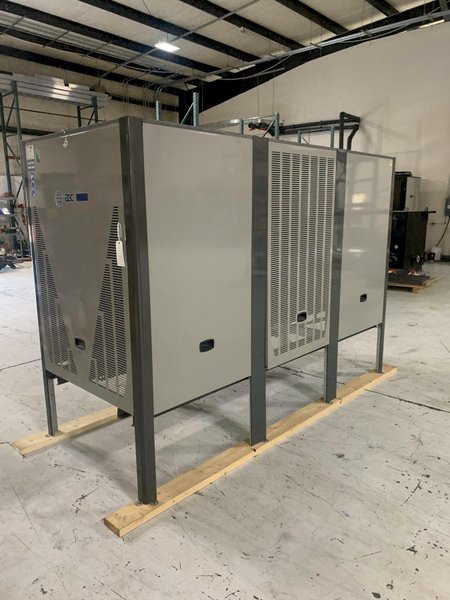

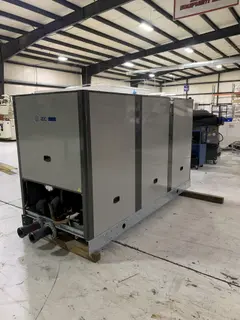

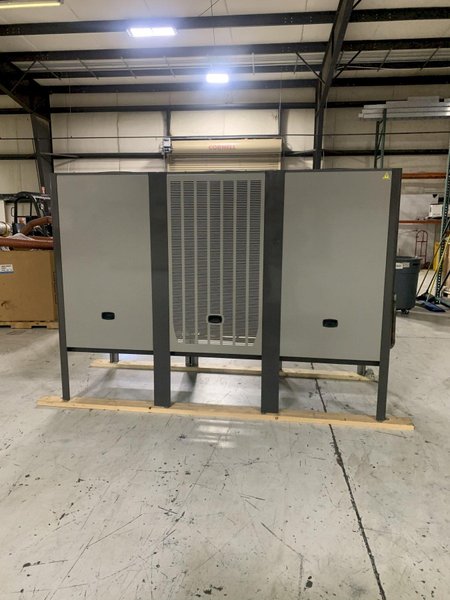

RC175 Remote Condenser
VOLTAGE: 460/3/60
E-COAT: with Electrofin Coating
SENSOR: Sensor Package

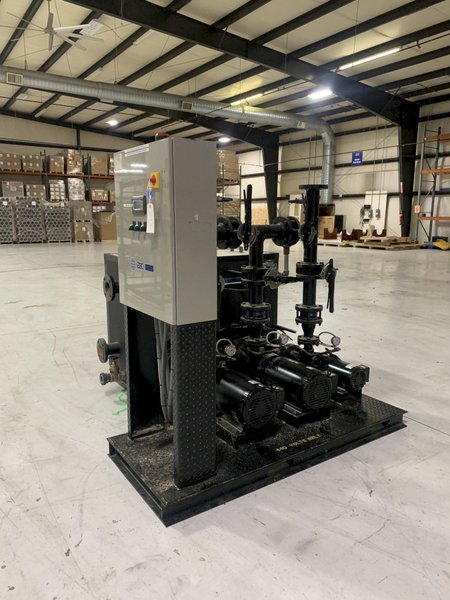

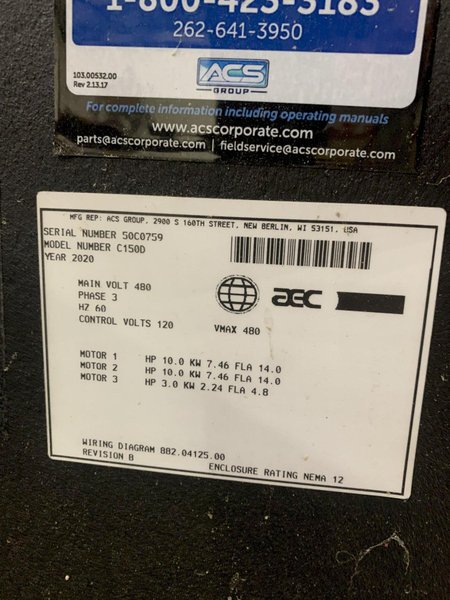

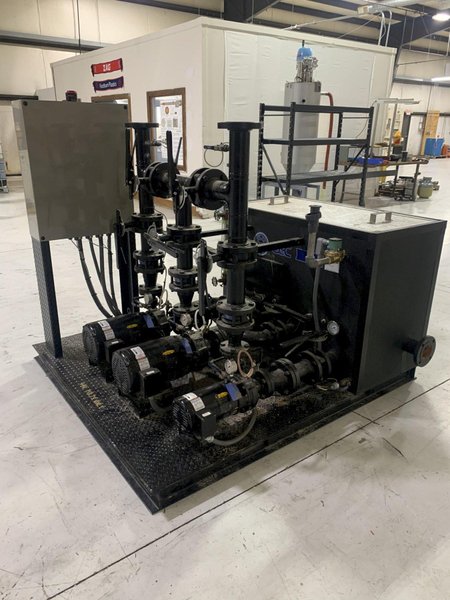

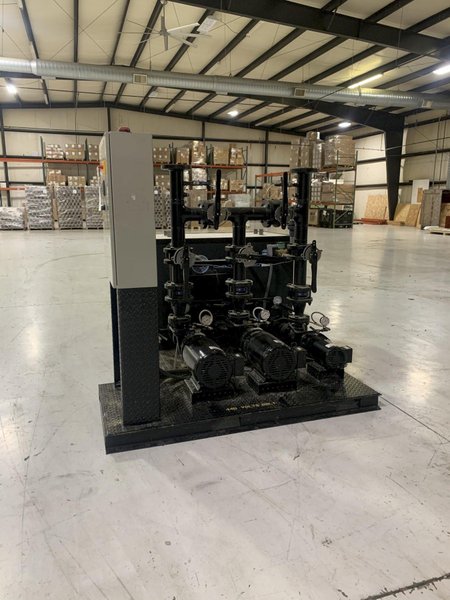

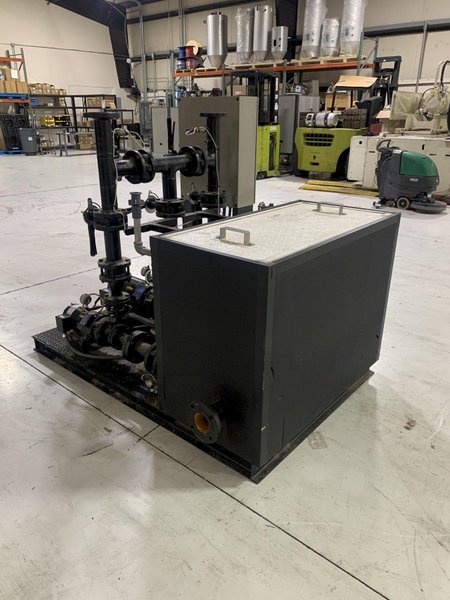

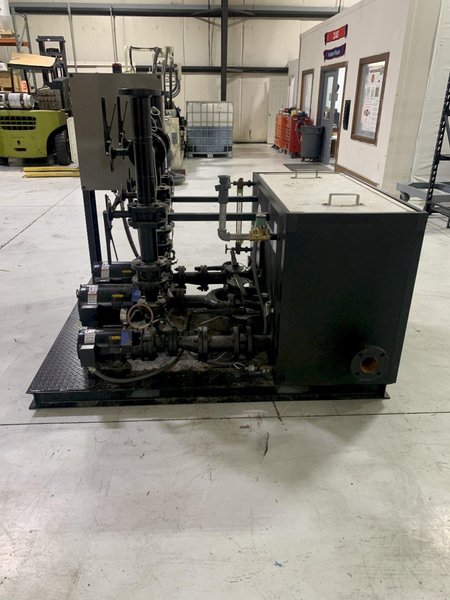

Chilled Water Pump Tank, C150D Stainless Steel
WELL TYPE: Dual Compartment
TANK SIZE: 150 gallons
PUMP LEDGE: Single Ledge Pump Tank
VOLTAGES: 460V/3/60Hz
OPERATING CAPACITY: 152 gallons
OVERFLOW CAPACITY: 160 gallons
RETURN CONNECTION SIZE: 3"

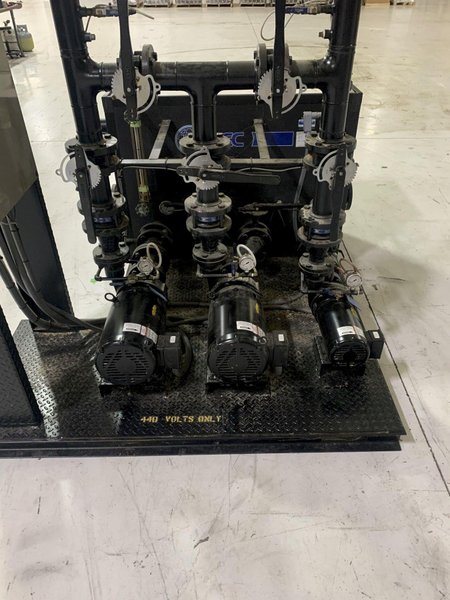

10 hp - Primary Pump Process - 3500 RPM - 150gpm -60psi
TRIM TYPE 1: 3" - Standard
MOTOR 2: 10 HP DUAL STANDBY 3500 RPM 150 GPM 60 PSI
TRIM TYPE 2: 3" DUAL SUCTION STANDARD
MOTOR 3: 3 hp - Primary Recirc Pump - 3500 RPM - 120gpm - 25psi
TRIM TYPE 3: 3" - Standard
MANIFOLD SIZE: 3" Discharge manifold for process, recirculation and
standby pumps

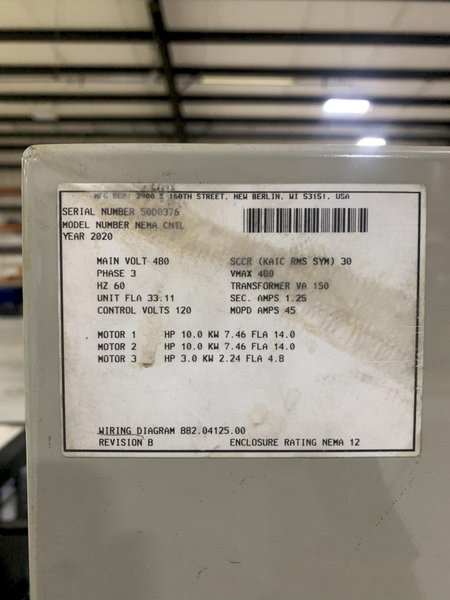

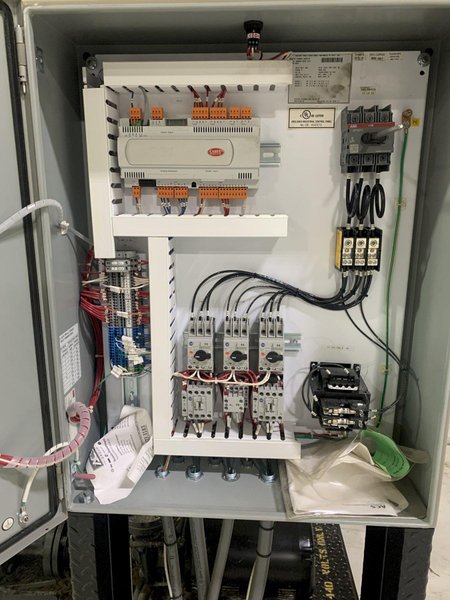

NEMA 12 CNTL PANEL
UNIT: Pump Motor Control Pan VOLTAGE: 460V/3/60Hz
MOUNTING: Mounted Control Panel
Sold As Is; Test Prior to Sale |
