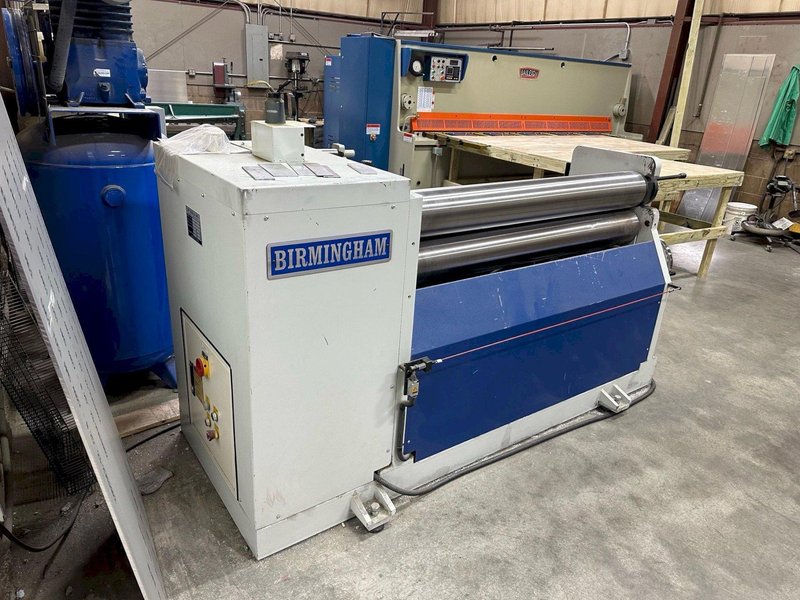

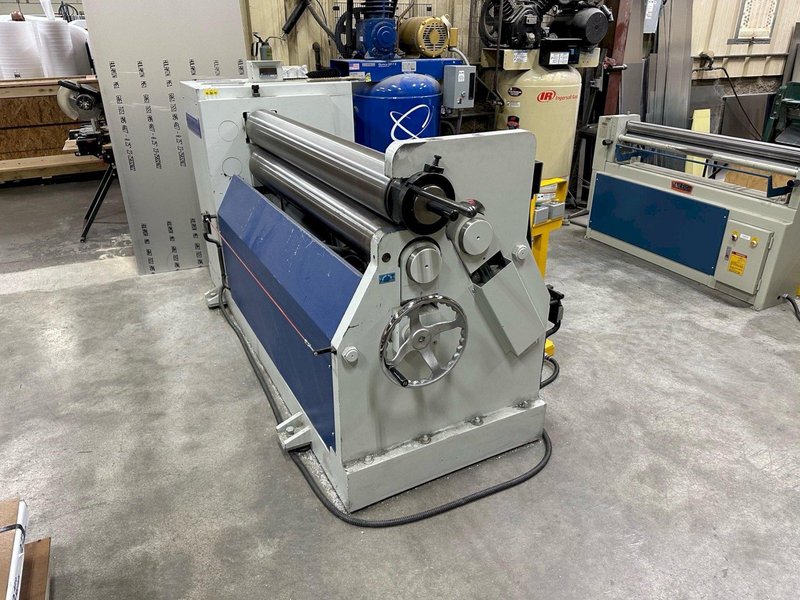

5' x 9/32" BIRMINGHAM MODEL R-0570H HEAVY DUTY SINGLE PINCH HYDRAULIC PLATE ROLL

Description

• All three rolls driven by hydraulic system.
• Pinch roll cylinders adjustment synchronously.
• Pinch roll is hydraulic powered up/down with digital counter for showing pinch roll position, up/down parallel and tilting is ideal for cones.
• All rolls are made of top-grade alloy steel hardened up to HRC55! with non-friction surface.
• Rigid construction for precise and smooth operation, and long life.
• The top roll can be swiveled out for easy removal of the finished workpiece.
• Removable foot control pedal for forward/reverse, fitted with a protective housing.

Specifications

• Mild steel capacity:                                      5'1" x 9/32" (0.28125")
• Roll Length & diameter:                              7"
• Pinch Adjustment:                                       Standard
• Motor:                                                          5 HP
• Net weight:                                                  6,600 lbs.
• Packing size:                                               98" x 35" x 55"
