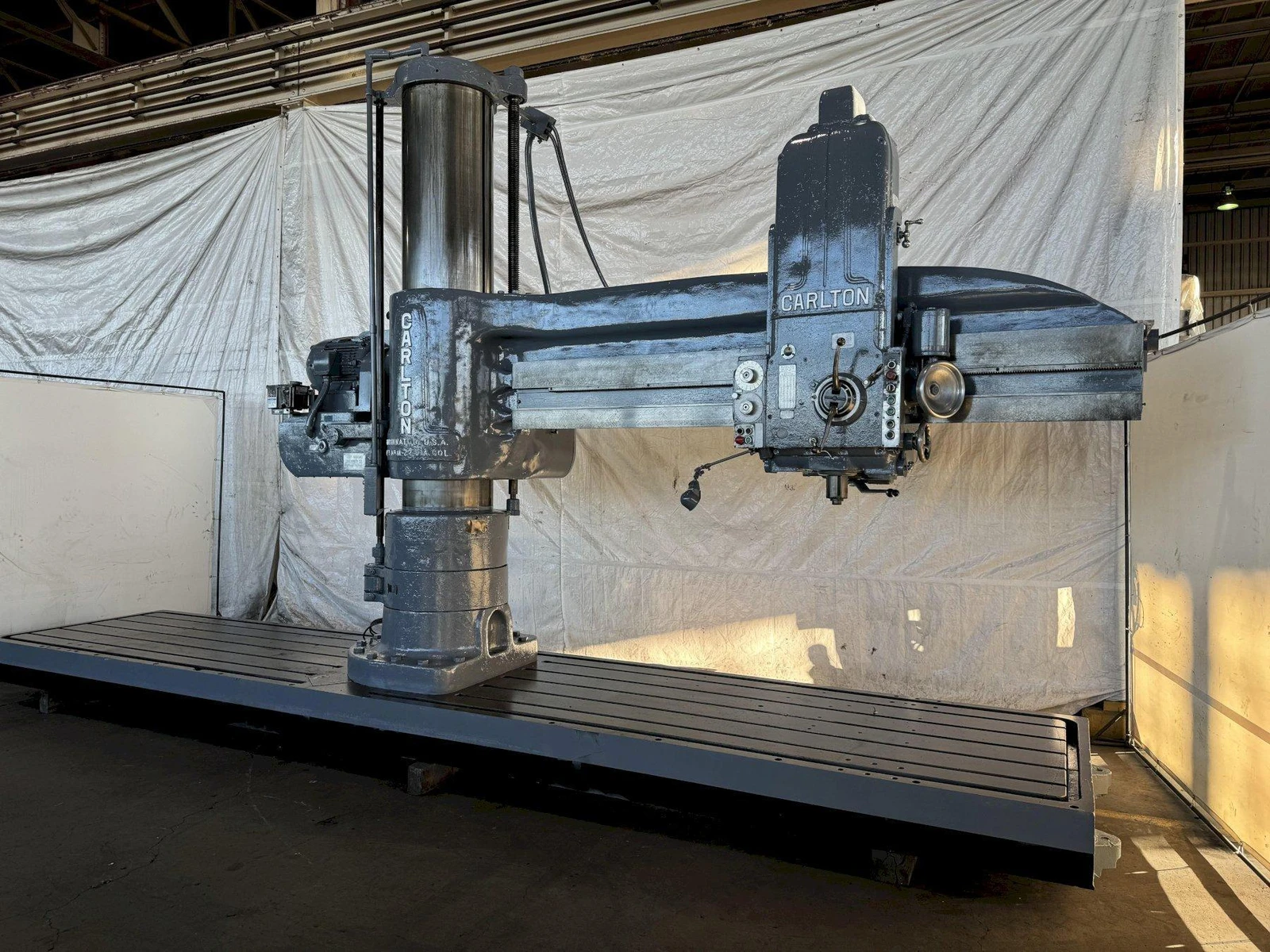

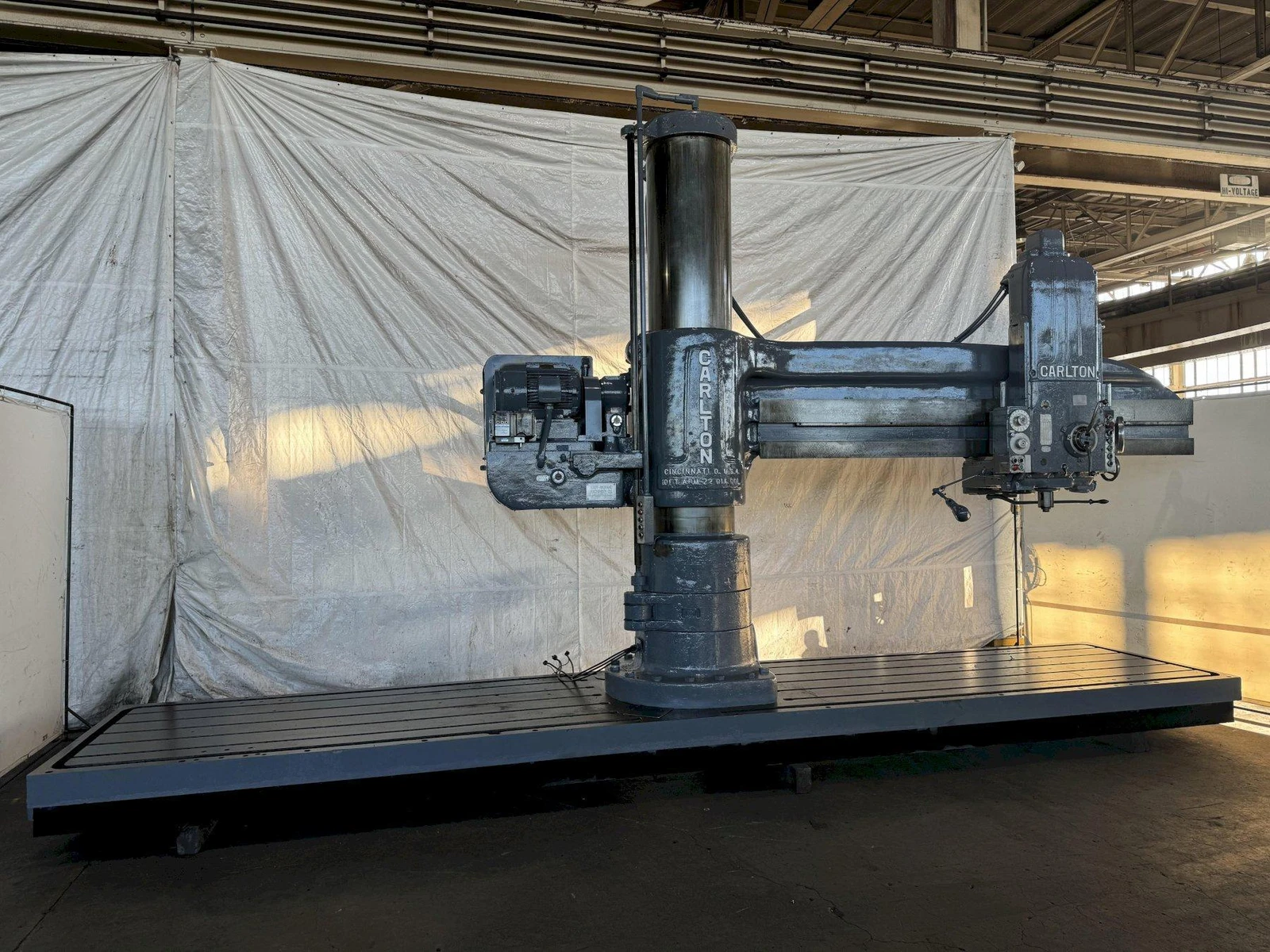

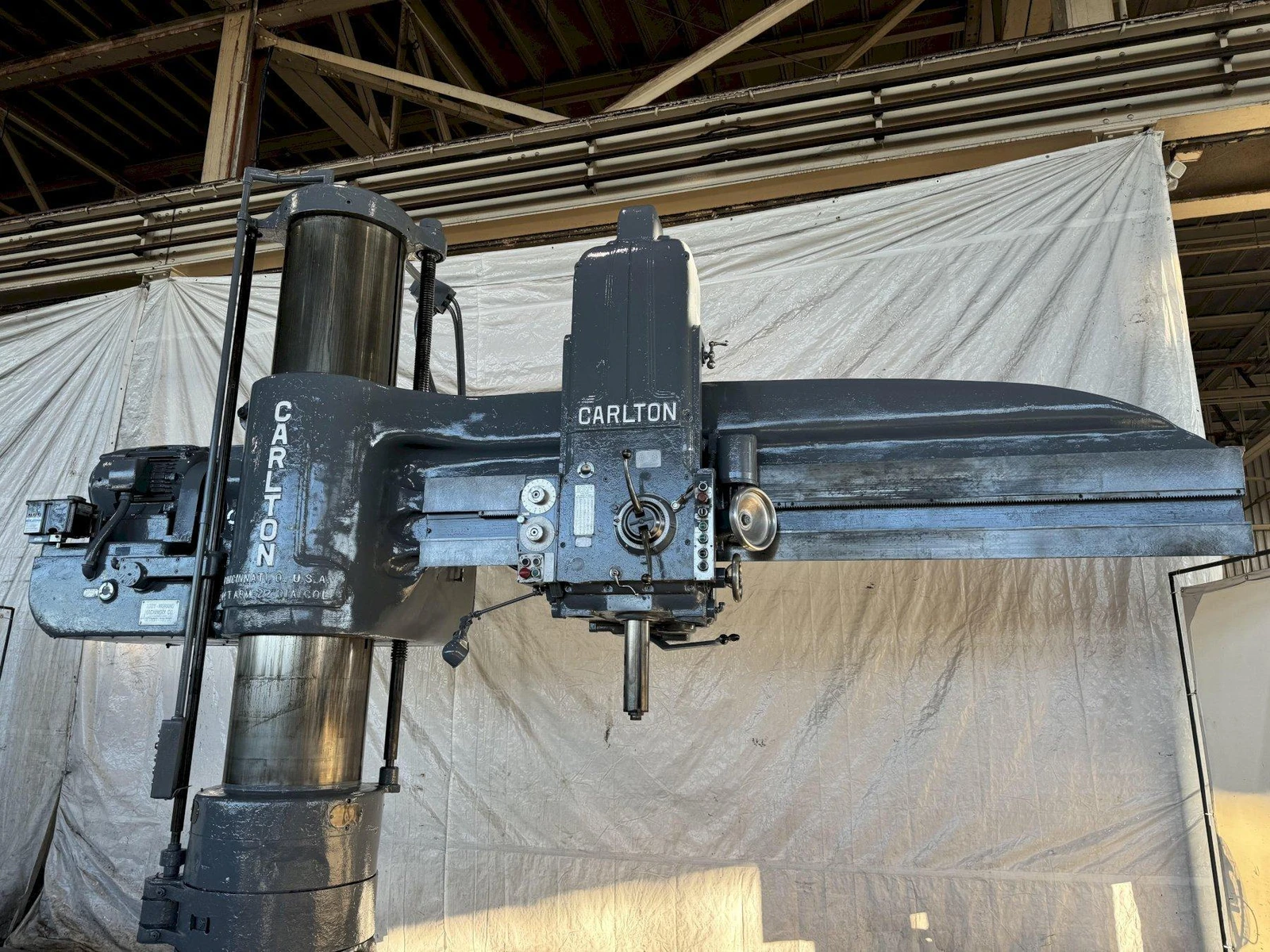

10' X 22" CARLTON 5A RADIAL ARM DRILL. STOCK # 0894024

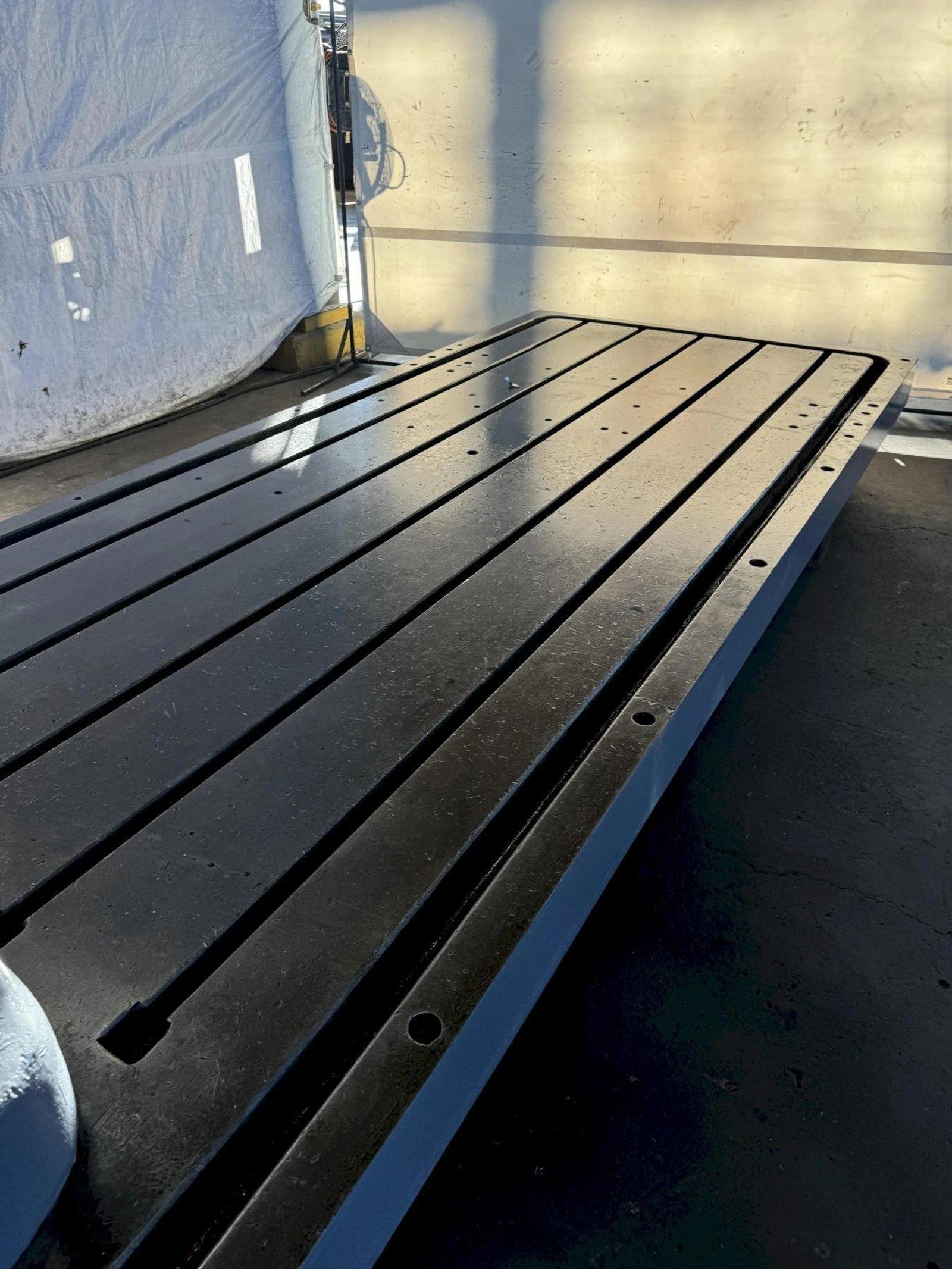

AREA OF BASE ......................... 130" X 58"

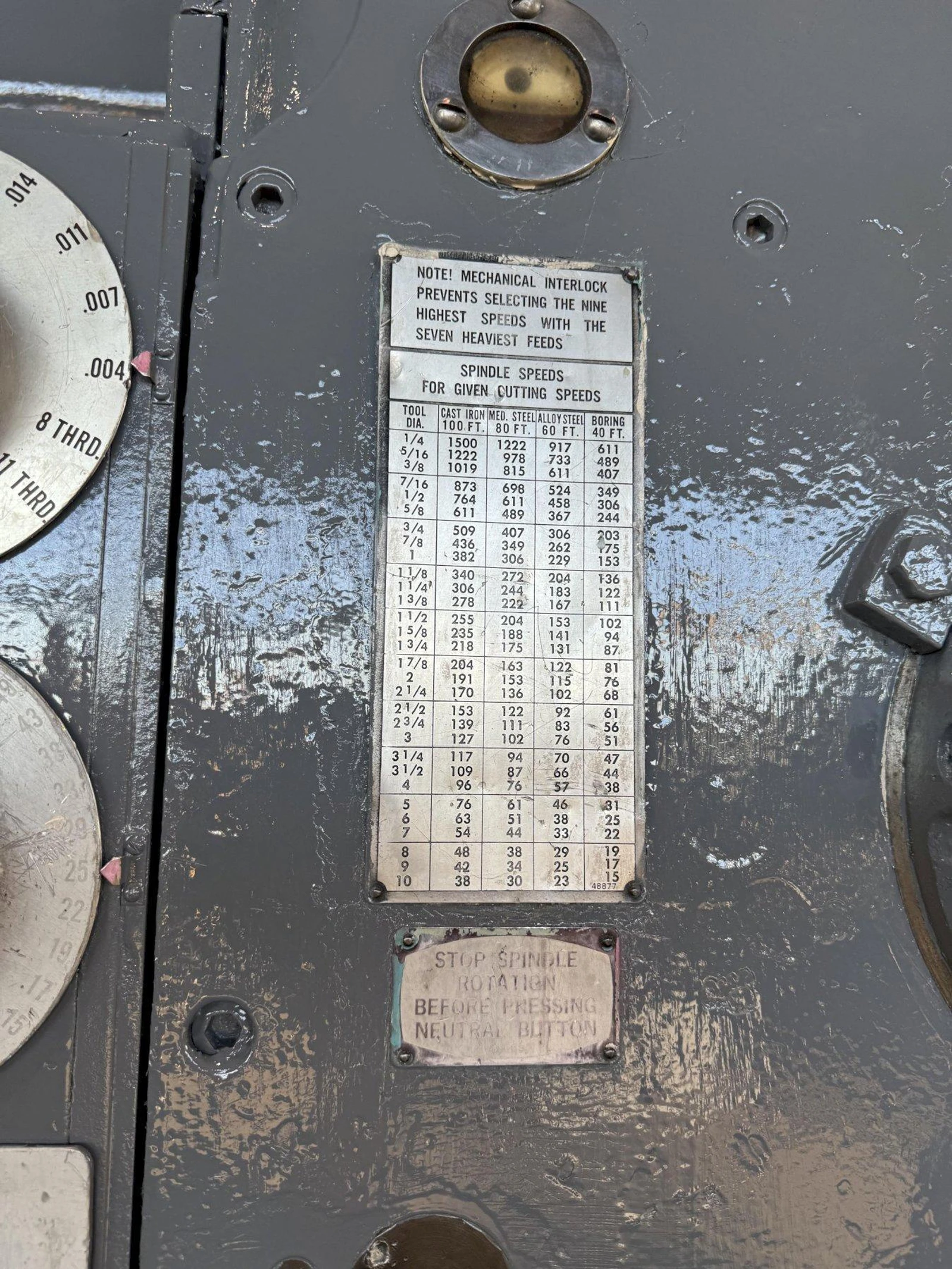

SPINDLE SPEEDS ....................... (8) 8 TO 800 RPM
THREADS .............................. (5) 6, 7, 8, 11-1/2, 18
DISTANCE SPINDLE TO BASE ............. 18-1/2" TO 98" MAXIMUM
SPINDLE TRAVEL ....................... 24"
FIXED BASE DRILLS .................... 14'
TAPER IN SPINDLE ..................... #6 MT
DIAMETER OF SPINDLE .................. 4"

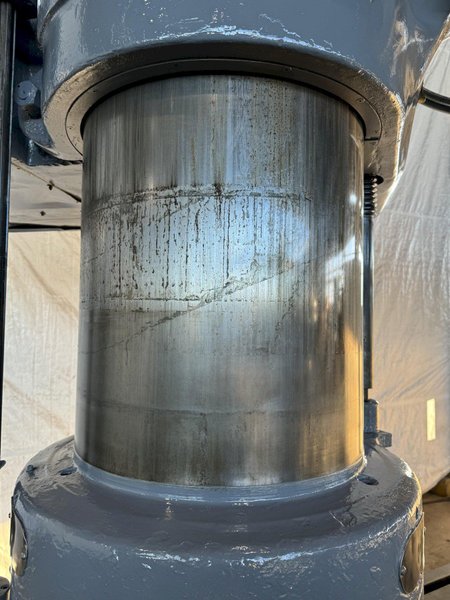

TRAVEL OF ARM ON COLUMN .............. 54"

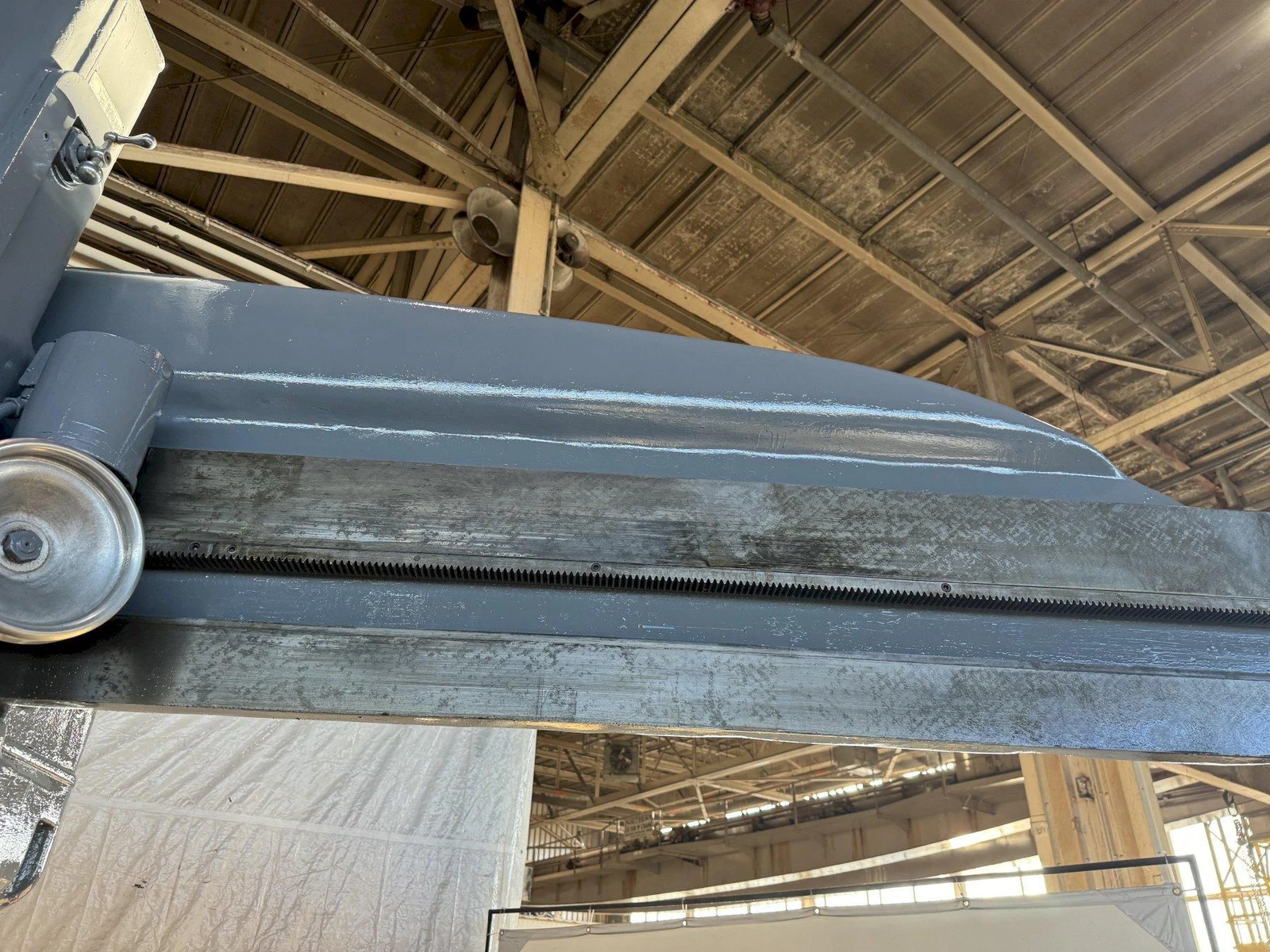

TRAVEL OF HEAD ON ARM ................ 105"
POWER HEAD CLAMPING .................. YES
POWER HEAD TRAVERSE .................. YES

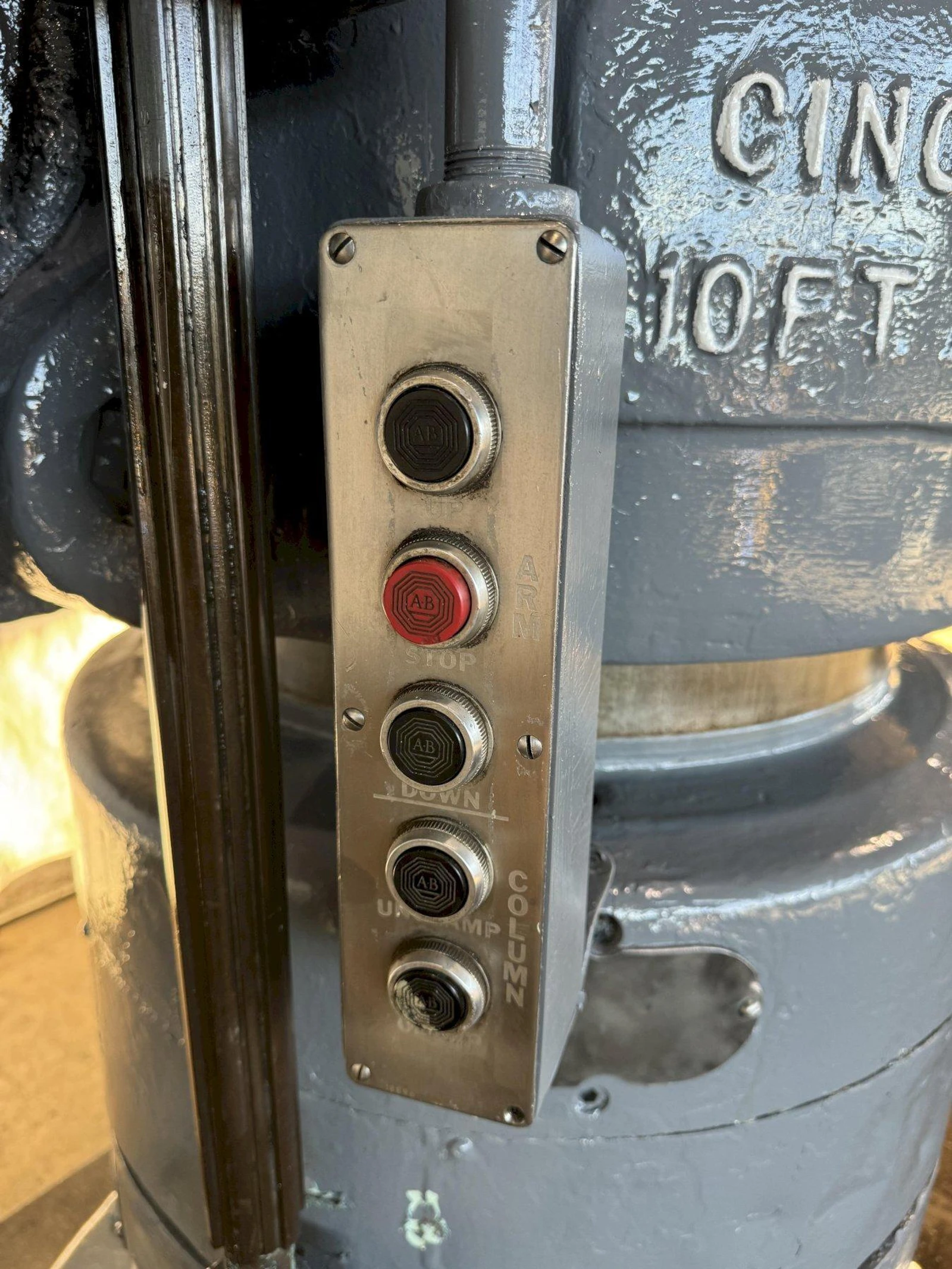

POWER ELEVATION ...................... YES
COOLANT .............................. YES

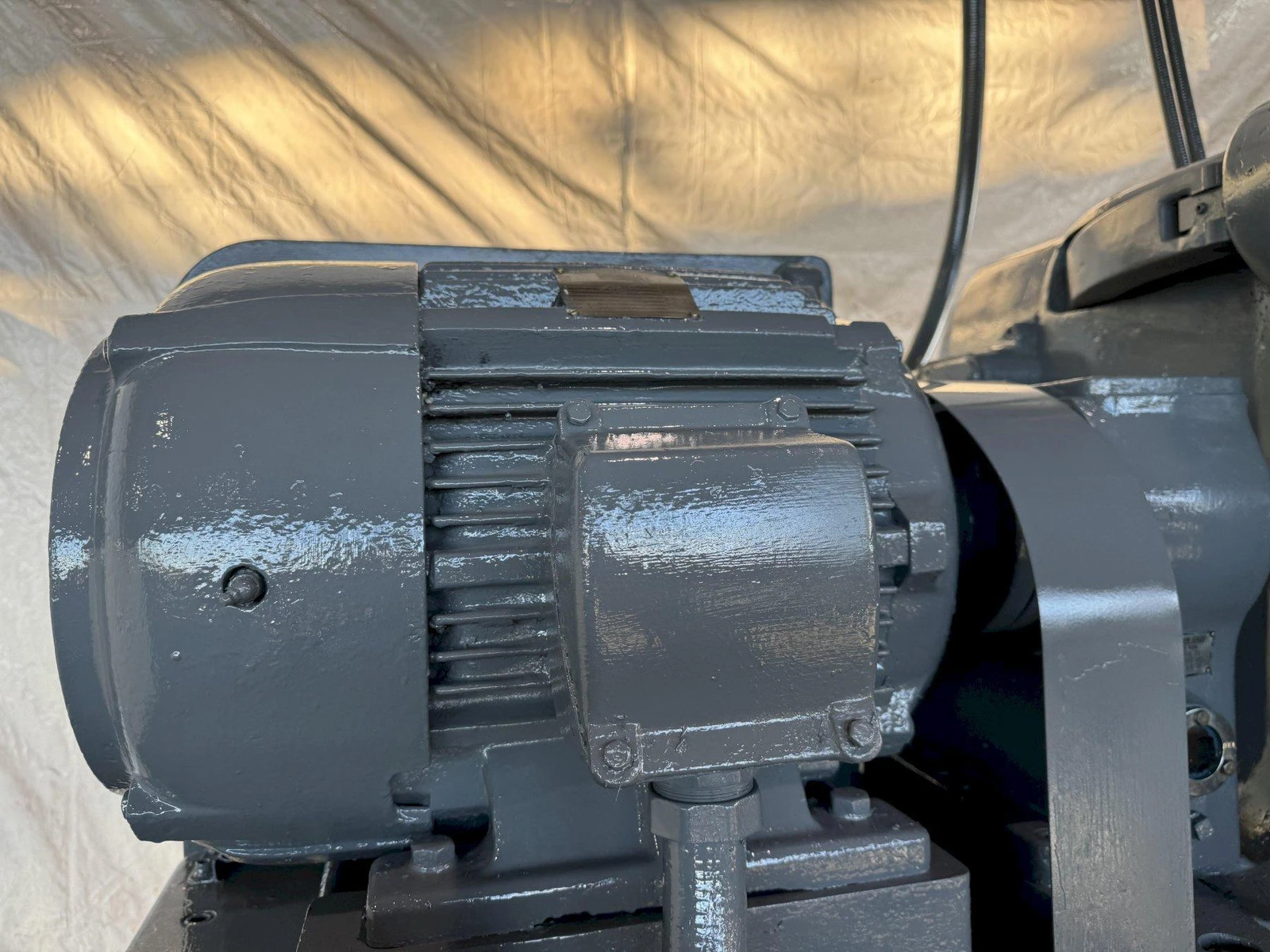

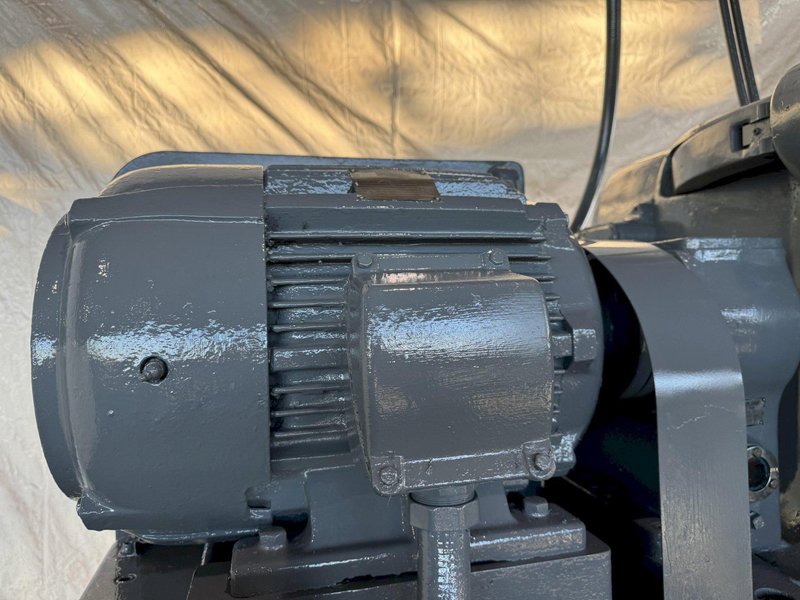

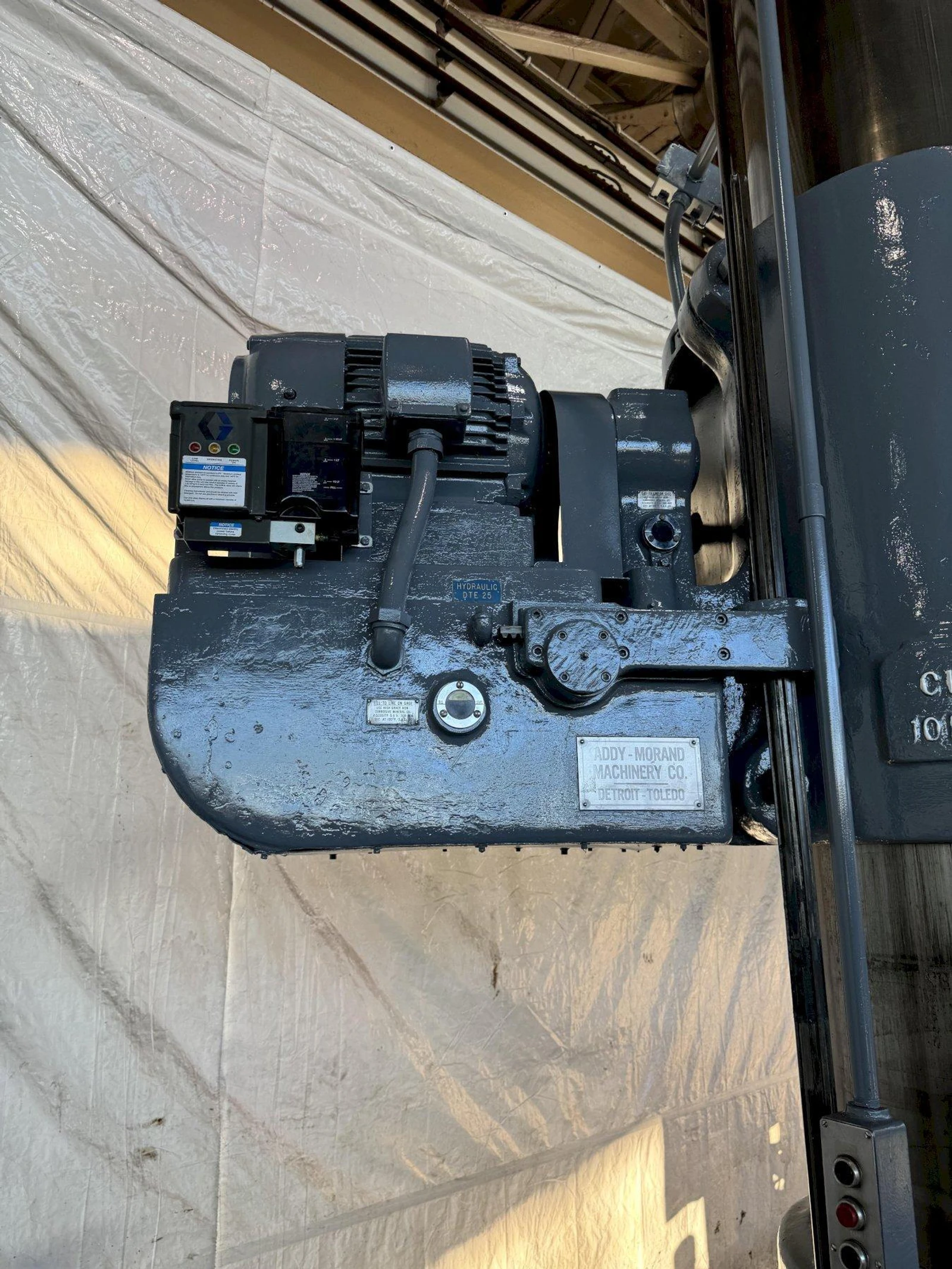

MAIN MOTOR ........................... 30 HORSEPOWER
180 BASE DESIGN WITH (1) HALF BASE. COMPLETE 180 DEGREE COVERAGE
