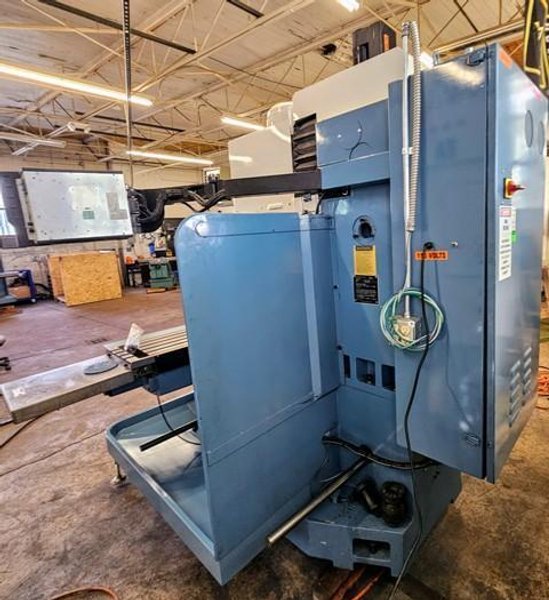

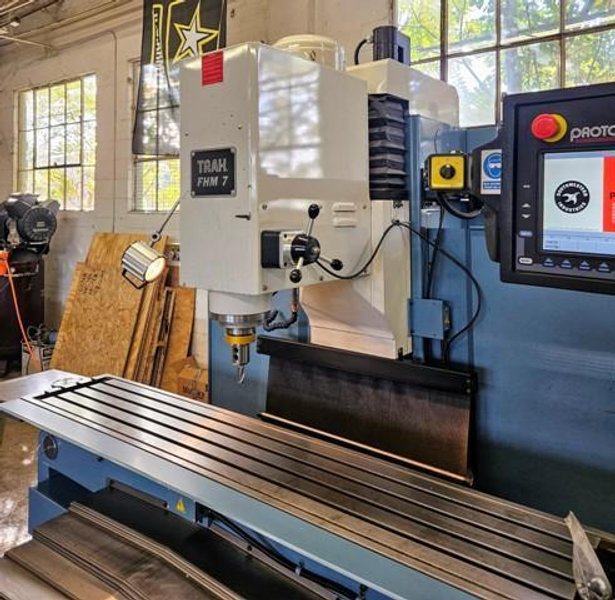

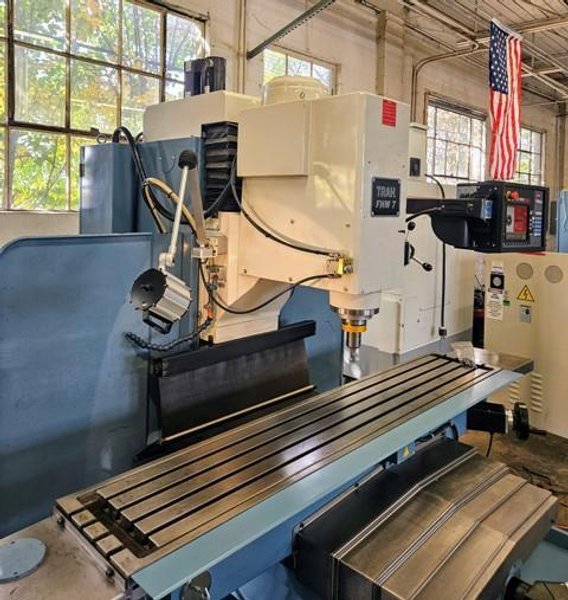

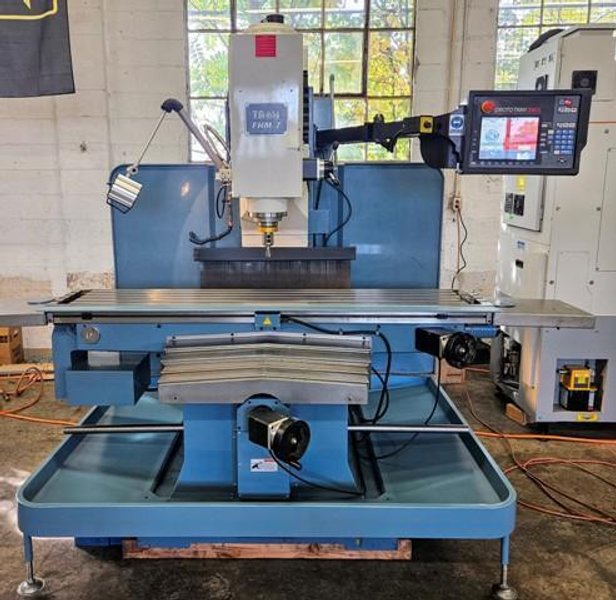

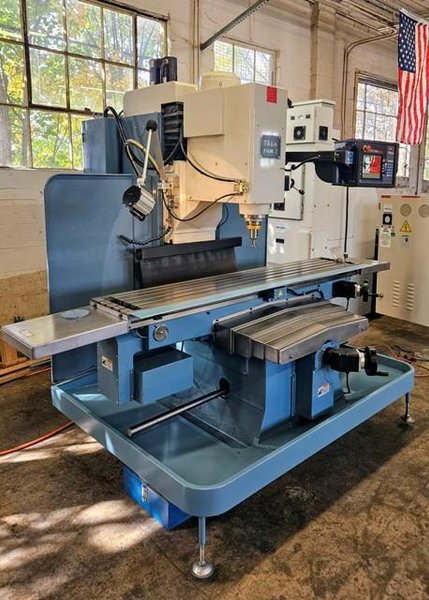

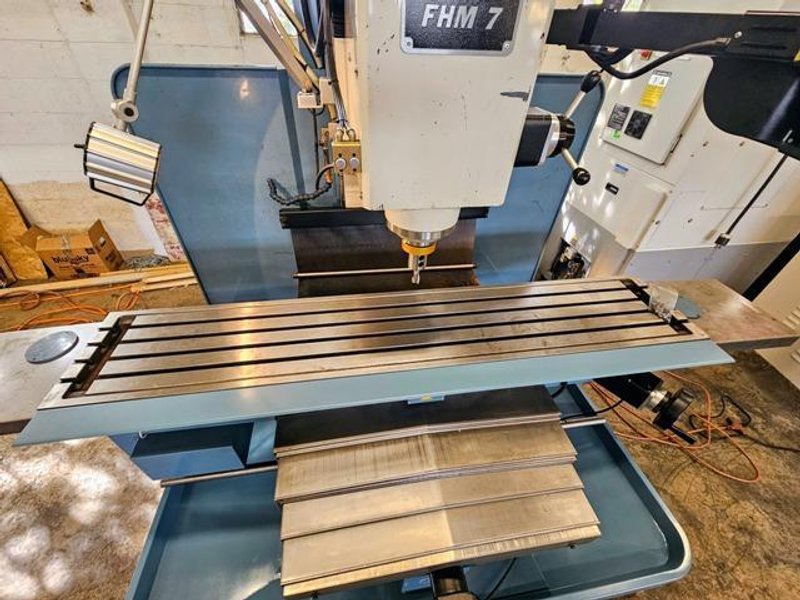

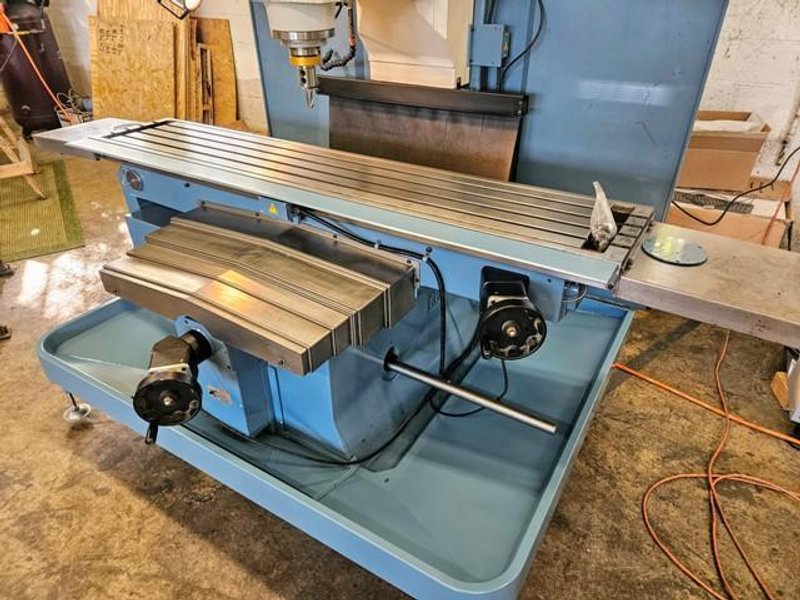

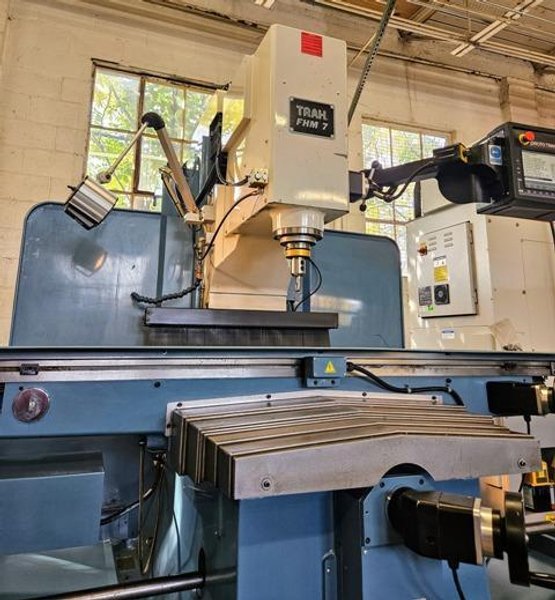

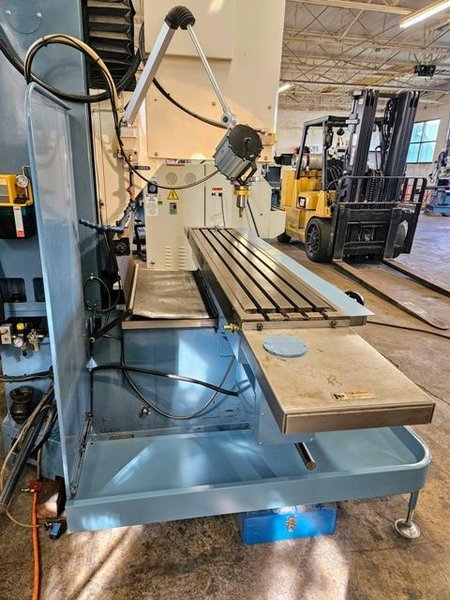

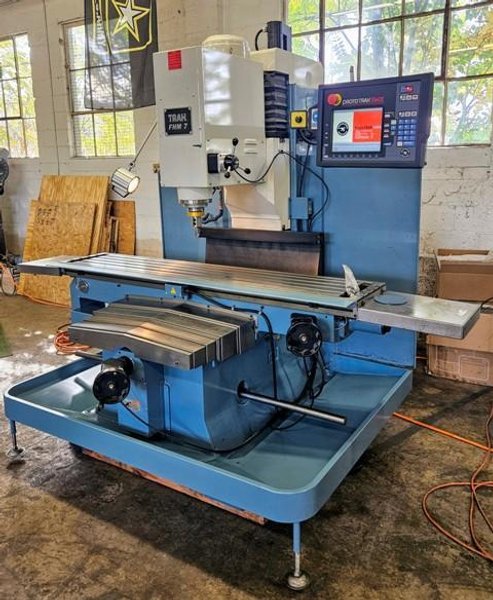

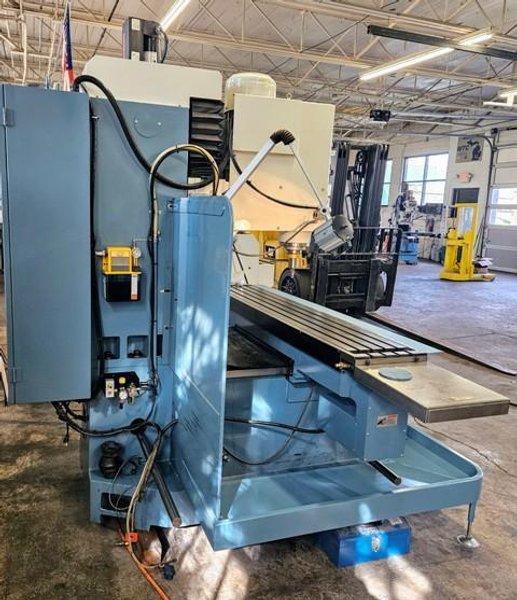

Southwestern Industries Trak FHMSX-7 (2014)
Brand
Category
Type
Model
Trak FHMSX 7
Stock #
104300
Year
2014
Condition
Used
Location
Not specified
|

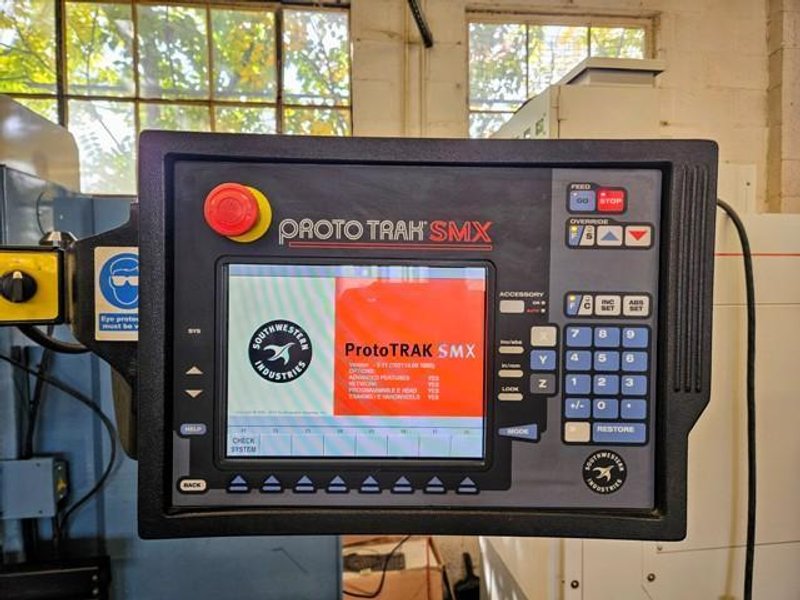

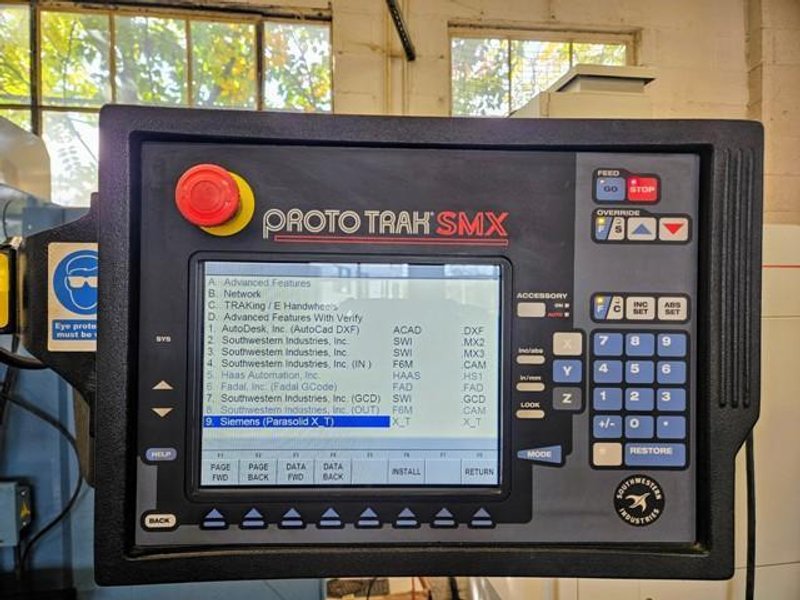

Specifications Table Size: 76" x 14"T- Slots: 4 x 16mm x 63.5mm Travel X: 60" Travel Y: 23" Travel Z: 20.5" Quill Diameter: 5.06" Spindle Taper: 40 Spindle Speed Range: 200-5000 RPM Spindle Center to Column Face: 23" Spindle Motor Power: 7.5 HP Power Requirement, Control: 110V, 1P, 15A Power Requirement, Machine: 220V, 3P, 60HZ Current, Full Load Amps: 37.5 FLA Maximum Weight of Workpiece: 2200 lbs. Height of Table from Bottom of Bed: 38.25" Maximum Spindle Nose to Table: 21.5" Way Surface: Dovetail X axis Way Surface: Square Ways Y and Z axis Drilling Max Capacity: 1" dia. Tapping Max Capacity: 5/8" Milling Max Capacity: 7" 3"/min Automatic lubrication pump Auxiliary function hardware Limit switches Equipped With Prototrak SMX CNC Control Power Draw Bar Advanced Features with Verify Networking Programmable E Head DXF file Traking/E Handwheels |
