220mm x 8.0mm Mannesmann Meer Pipe Mill Line with Quick Change Injector Tooling
Brand
Category
Type
Model
Not specified
Stock #
116485
Year
1993
Condition
Used
Location
Not specified
|
Year 1993
Updated Mechanically and Electrically
Welder New in 2005
Tube Diameter Range: 88.9mm - 220mm
Wall Thickness: 2.6mm - 10.0mm
Rounds Thickness: 10mm
Square & Rectangles Thickness: 8mm
Shaft Diameter: 160mm
Tube Lengths: 2.6M - 12M
Line Speed: 100 Meters/Min
Squares: 70mm x 70mm - 155mm x 155mm
Rectangular: 90mm x 50mm - 200mm x 100mm
(Rectangular sections with max diagonals 220mm)
Yield Point: Max 648 N/mm2 (94,000 PSI)
Strength: Max 720 N/mm2 (104,000 PSI)
Entry Coil Details:
Coil OD: 1200mm - 2000mm
Coil ID: 482mm - 508mm
Strip Width: 260mm - 700mm
Yield: 648 N/mm2
Strength: 720 N/mm2
Coil Weight: 10,000 Kg
Complete Mill With:
3 Coil Storage Cradle
(Below 4 Items are on a sliding Base for Coil Feed Up)
Pit Type Coil Car with Powered Rolls
Hold Down Roll
Peeler Table
Clamp
Mandrel Uncoiler
Sliding Base
Hydraulic Expansion
Feed Up Drive
DC Drag Generator Brake
5 Roll Flattener 3 over 2
2 Rows of 2 Edge Guides
Entry & Exit Pinch
Crop Shear
Automatic Shear & End Welder
2 Clamping Stations
Hydraulic Cross Cut Shear
Siemens Digital Readouts
Esab MiG 5000i Power Supply
Entry Accumulator Strip Rotation Guides

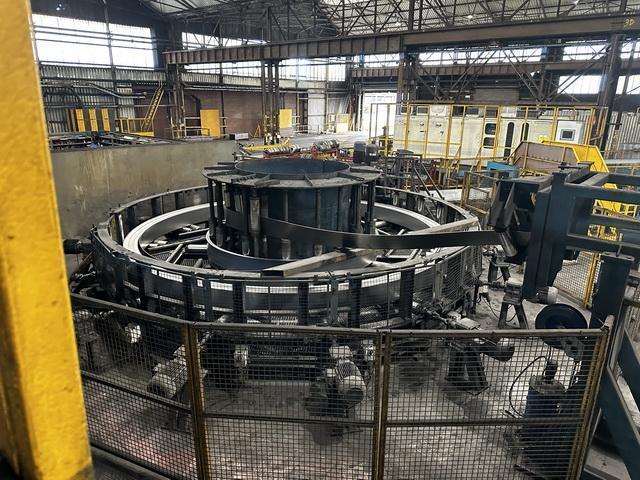

Horizontal Accumulator
9.5 Meter OD
45 Ton Coil Capacity
Digital Readouts

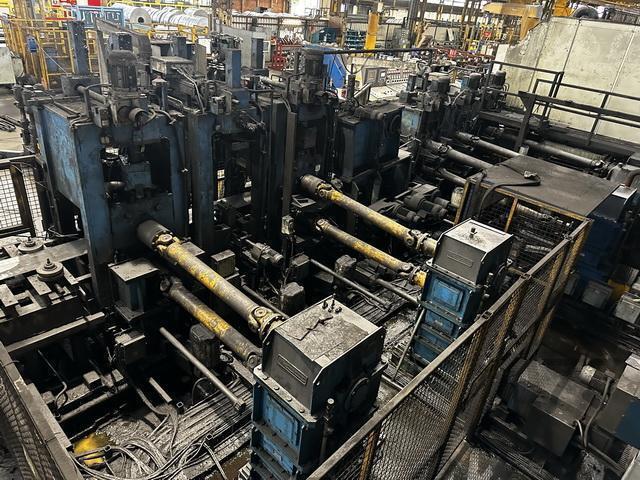

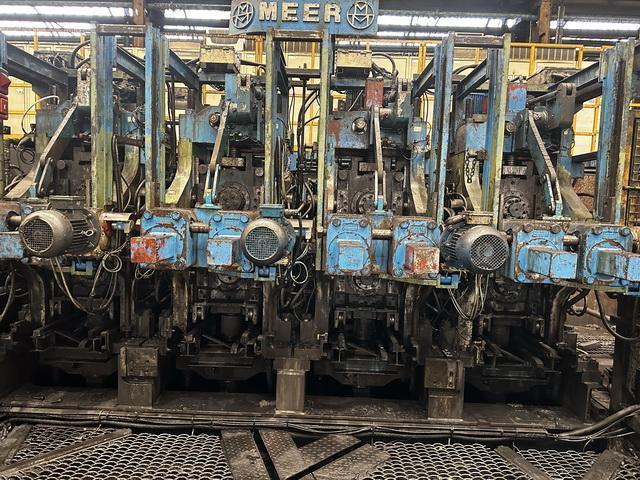

Mannesmann Meer Forming Mill
2 Sets of Entry Edge Guides
3 Break Down Forming Stands
Linear Forming Cage Stands
3 Finn Pass Stands
Top & Bottom Motorized Stand Adjustments
Programmable Roll Positioning

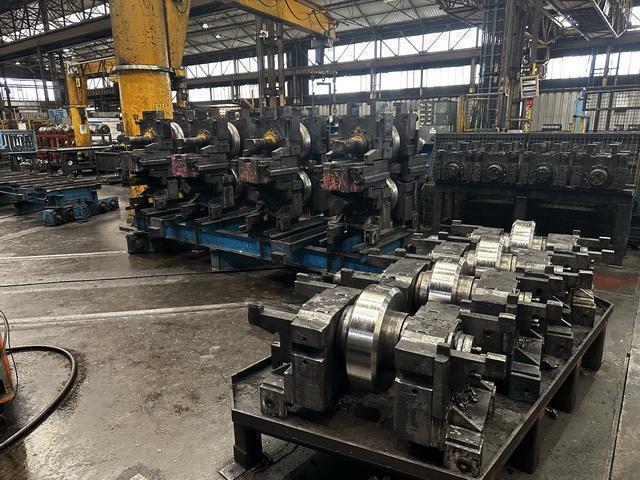

Quick Change Injector System for Roll Chocks and Tooling
Universals Stay Locked In Place During Tooling Change
79KW DC Drive on Each Forming and Finn Pass Stands
(6 x 79KW DC Motors)
Welding Section:
1000 KW EFD Solid State Welder
New in 2005
Model Weldac G2
REC 1450
1450 KW
Cycle: 50 / 60 HZ
Siemens Digital Touch Screen Simatic Panel
Siemens Simatic HMI
5 Roll Weld Box
Exit Squeeze Roll
ID Scarfing
OD Scarfing with Rotary Bead Notcher
Scrap Discharge Conveyor
Laser Camera Weld Monitoring System
Cooling Fans, Heat Exchangers, Impeder Pumps
Spare 5 Roll Weld Box
Spray Type Cooling Trough
Weld Bead Orientation Stand
Forster Defectomat CI Eddy Current Tester

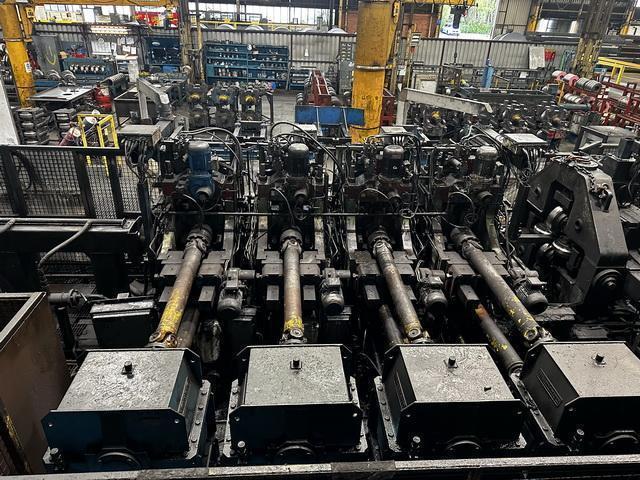

Mannesmann Meer Sizing Mill

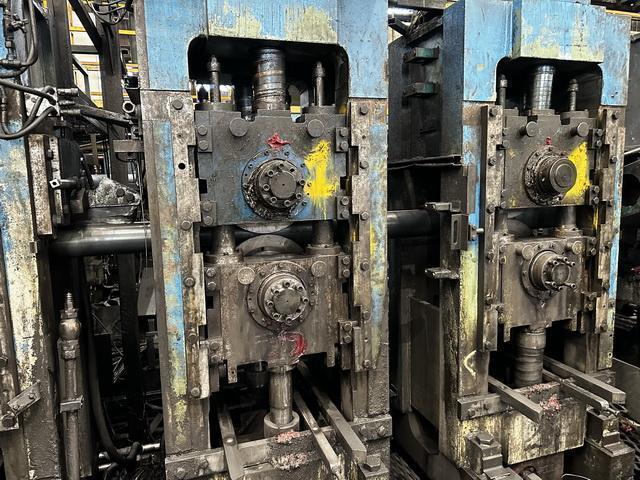

4 Stand Sizing Mill
Top & Bottom Roll Stand Adjustments
Each Stand has Side Roll Clevis’s for Squaring
Driven Squaring in Sizing Mill
Programmable Roll Positioning
Quick Change Injector System for Roll Chocks & Tooling
Universals Stay Locked In Place During Tooling Change
79 KW DC Drive on each Sizing Stands
(4 x 79KW DC Drives)

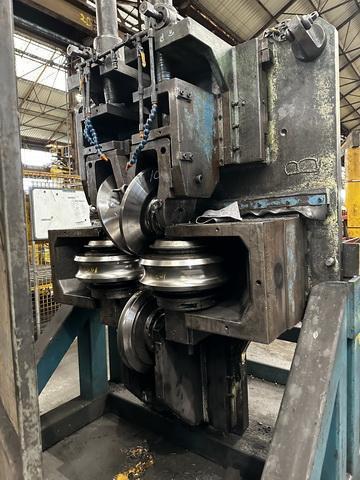

4 Roll Turks Head (Used Mainly for Straightening)
Spare Turks Heads
Friction Saw
Rack & Pinion Carriage Accelerator
109 KW DC Accelerator
7 Meter Bed Length
Water Cooled Saw Blade Motor
Dual Hydraulic Clamping
Plastic Eurothane Clamps with Metal Inserts
Siemens Servo for Saw Blade Actuation

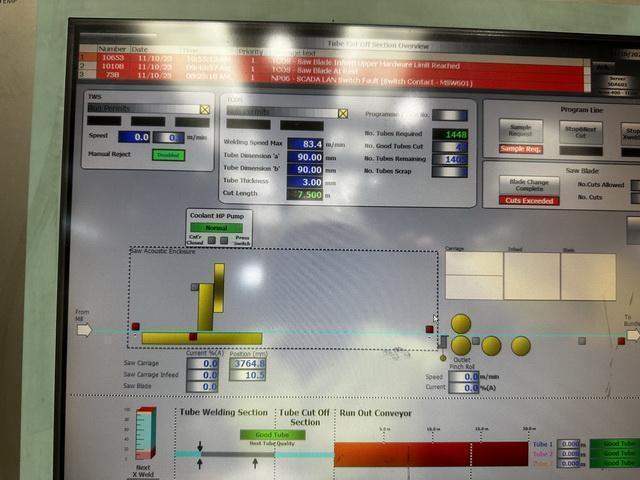

Siemens Touch Screen Digital Controller
Run Out Table with Side Reject Discharge

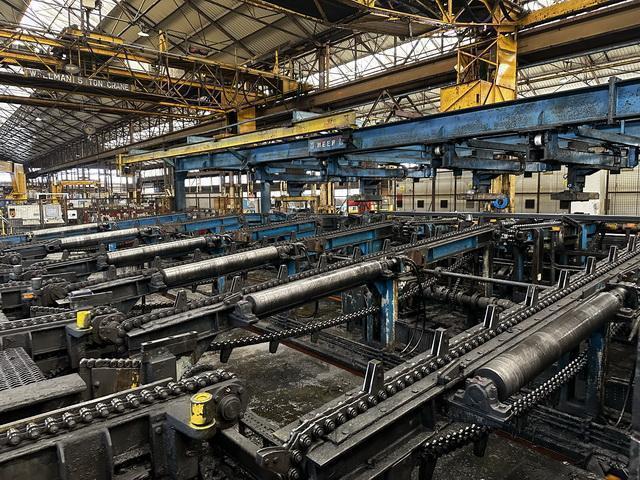

Mannesmann Meer Packaging Line
Chain Cross Conveyor
Sortation Table
Magnetic Stacker
Bundle Conveyor / Lift Table
Exit Bundle Cionveyor
2 Signode Banding Heads. (Double In Line Banding)
Model PSM-M400N-114-BRP
Bundle Storage Conveyor
Tilting for Fluid Drainage

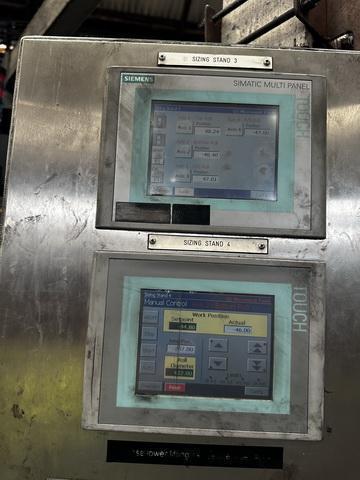

Siemens Simatic Digital Readouts with Touch Screen
Coolant Pumps and Filtration System
Hydraulic Tooling Change Press
Siemens PLC S7300
Mill Drives: ABB DCS800
Entry Line: ABB DCS800
Accumulator: Siemens Sinamics
Packaging Line: Siemens Sinamics
Spare Turks Heads
Spare Weld Box

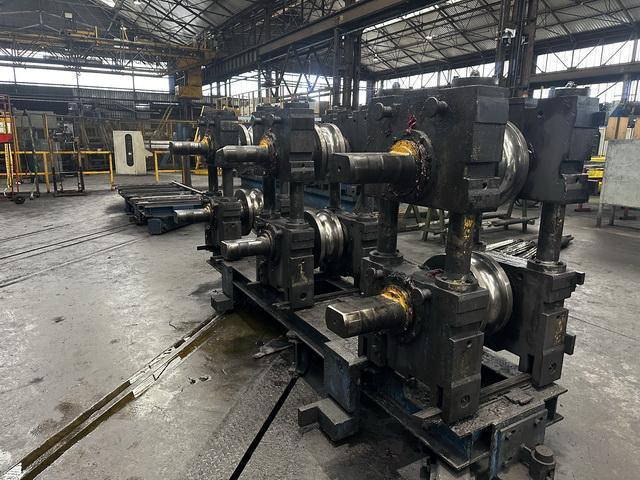

Quick Change Bearing Blocks and Tooling
Saw Blades
Saw Clamps
Impeders
ID Scarfing
Tooling:
Rounds: 88.9 , 114.3 , 139.7
RHS: 90 x 50 , 100 x 50 , 100 x 60 , 120 x 60 , 120 x 80 , 150 x 100 , 160 x 80 , 200 x 100
SHS: 70 x 70 , 75 x 75 , 80 x 80 , 90 x 90, 100 x 100 , 120 x 120, 140 x 140 x 150 x 150 |
