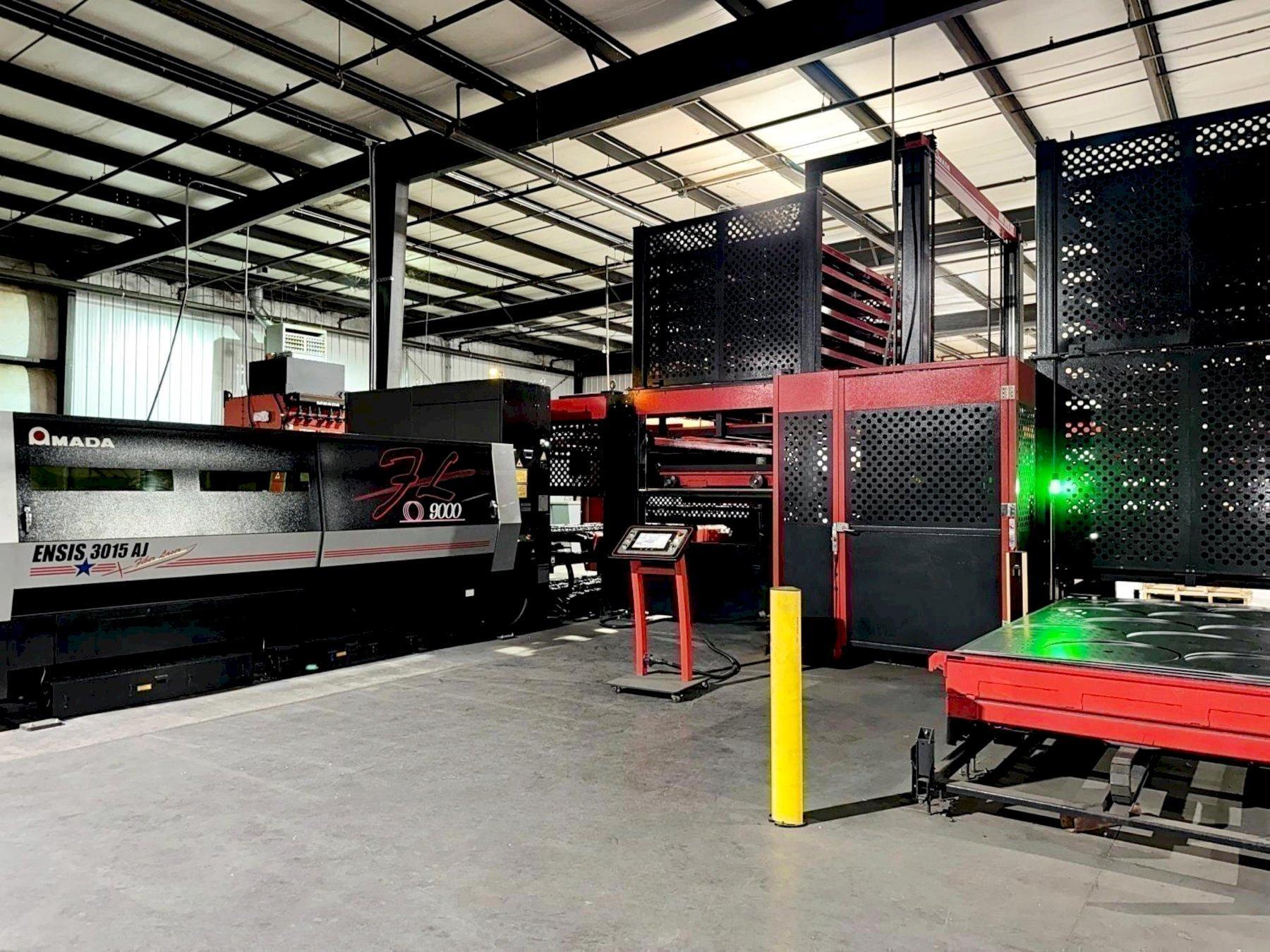

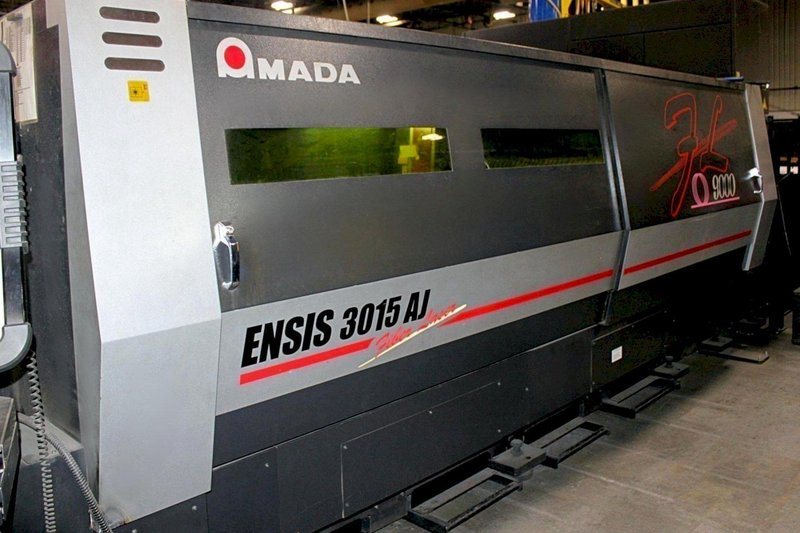

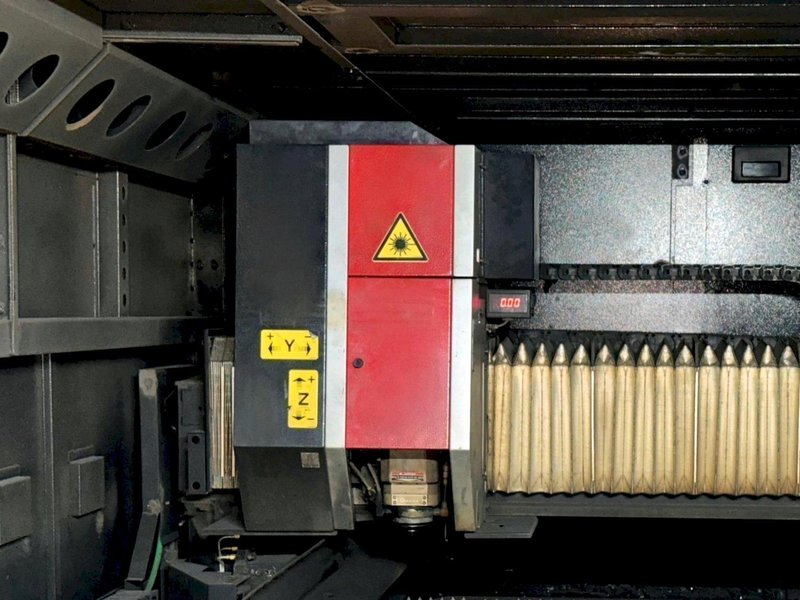

Amada Ensis 3015 AJ 9KW Fiber
Brand
Category
Type
Model
Ensis 3015 AJ Fiber
Stock #
100537
Year
2019
Condition
Excellent
Location
Not specified

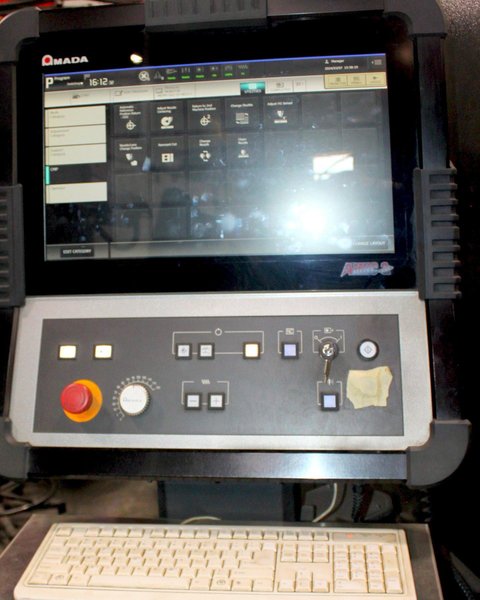

| Control | AMNC 3i CNC |

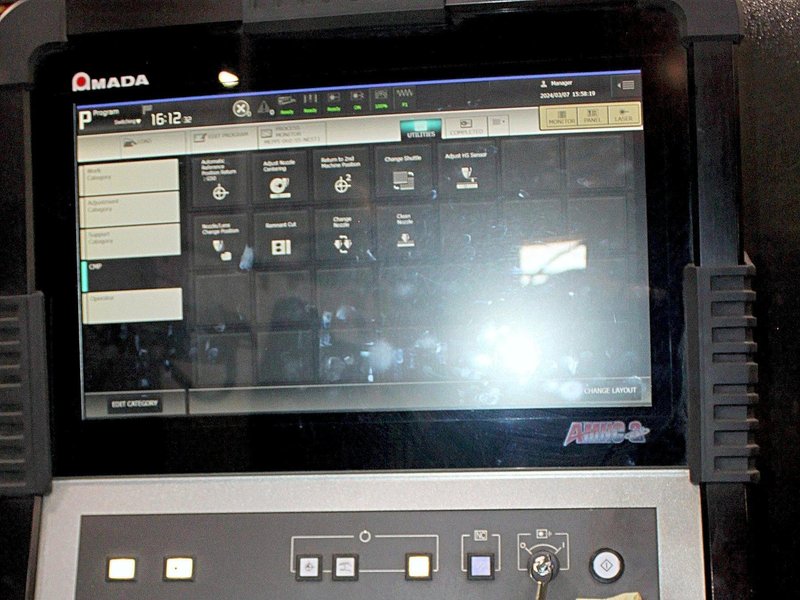

| Display | Touchscreen Color LCD |
| Control Function X,Y,Z | Sim. Focus Lens B-Axis |
| Max. Sheet Size X,Y | 120" x 60" |
| Max. Axis Travel X,Y,Z | 121" x 61" x 3.93" |

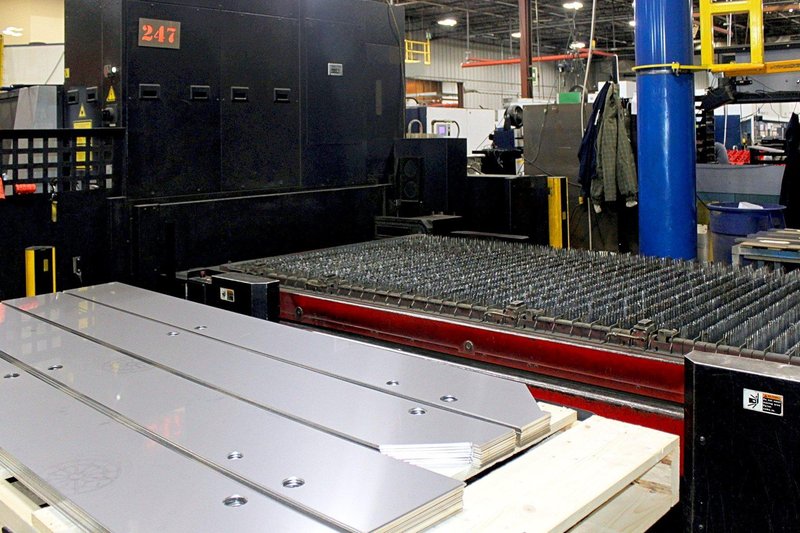

| Travel Method | X,Y-Axis Stationary Table |
| Travel Method | Z-Axis Movement Cutting Head |
| Control Method X,Y,Z | Sim. 3-Axis Control |
| Drive Motors | Fanuc AC Servo Motors |
| Max. Axis Pos. Speed X,Y | 4,724"/min. Per Axis |
| Max. Axis Pos. Speed X,Y | 6,693"/min. 45° Vector |
| Max. Z-Axis Speed | 4,724"/min. |
| Repeatability | 0.00039" |
| Max. Material Weight | 2,028 lbs. |
| Data Storage | Compact Flash Drive |
| Resonator Type | Fiber |
| Resonator | LD Excited YB Fiber |
| Power Output | 9KW (9,000 Watts) |
| Laser Wavelength | 1.08 m |
| Power Stability | ±2% |
| Beam Divergence | < 3mm-mrad |
| Pulse Frequency | 1–10000Hz |
| Pulse Duty | 0–100% |
| Max Cut Mild Steel | .98” |
| Max Cut Stainless Steel | .98” |
| Max Cut Aluminum | .98” |
| Max Cut Brass | .70” |
| Max Cut Copper | .46” |
| Assist Gas | 4 Ports w/ NC Pressure Control |

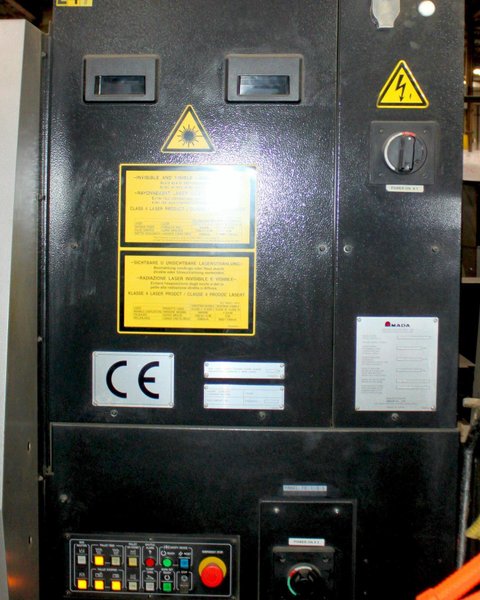

| Electrical Req. | 200V, 3-Phase, 60Hz, 65kVA Max |
|

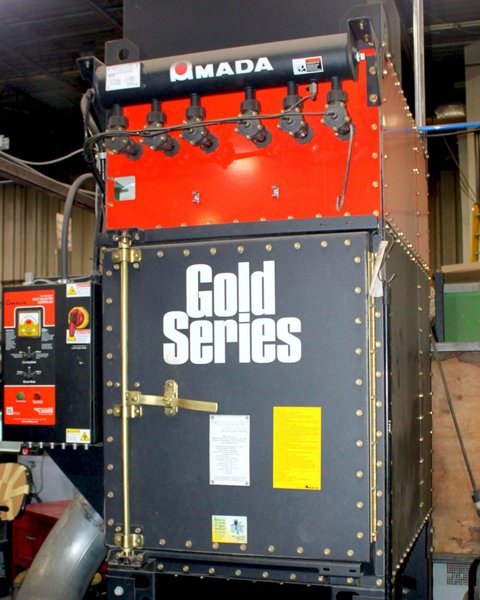

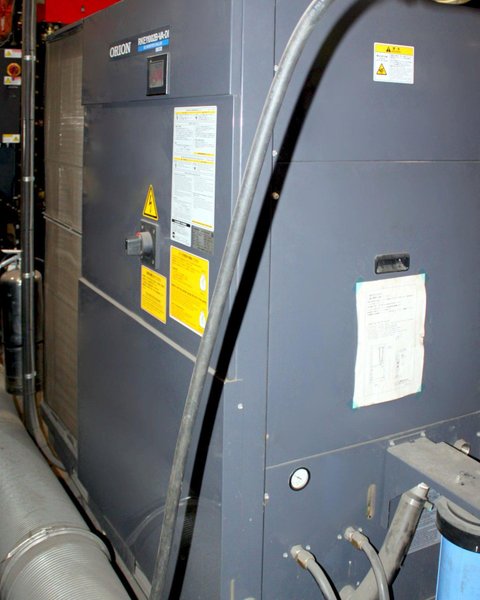

Equipped With: LD Excited YB 9kW Fiber Power Source Interlocked Enclosure NC Assist Gas B-Axis NC Focus Integrated Beam Purge High-Speed Cutting Head Active Cut™ Camfil Dust collector Orion Chiller Unit
|
|
