SPECIFICATIONS
SPINDLE DIAMETER 4″
SPINDLE TAPER 5 MT
SPINDLE SPEEDS: 10-1300 RPM
SPINDLE LONGITUDINAL TRAVEL: Manual & Power 26½”
SPINDLE HEIGHT Center of Spindle to top of Table 63″
FEED RANGES (18) Spindle, Standard 0.005 – 0.250 IPM
(18) Spindle, High 0.002 – 0.116 IPM
(18) Range of Milling Feeds to Headstock, Saddle &
Table Movement 0.5 – 25 IPM

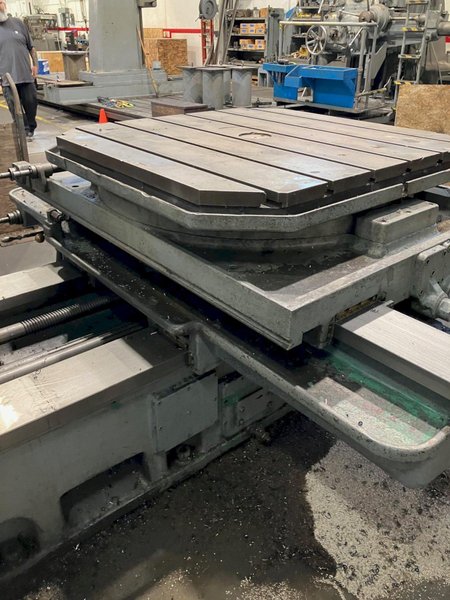

TABLE: (7) T-Slotted
Working Surface 36″ x 74″
Longitudinal Travel 53½”
Cross Travel 60″
EQUIPPED WITH:
Rapid Traverse of Table, Saddle and Headstock.
CONTROL: Start/Stop Buttons. Spindle Direction Switches
DRIVE: Wired 440 volts, 3 phase
20 Hp. 220/440 volts
COMPLETE FACTORY SAFETY GUARDS
Dimensions 184” F-B x 80” L-R
Approximate Weight 27,000 lbs.
