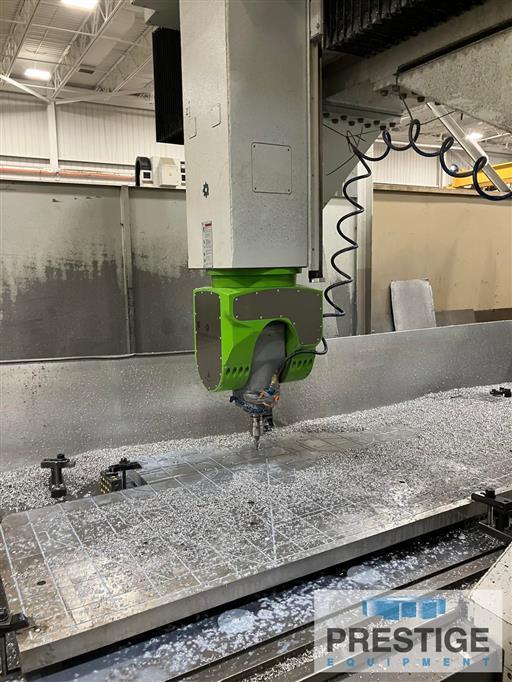

ZIMMERMANN FZ-30 5-AXIS CNC BRIDGE MILL
Brand
Category
Type
Model
FZ-30
Stock #
43543
Year
2010
Condition
Not specified
Location
Not specified
|
CAPACITY:

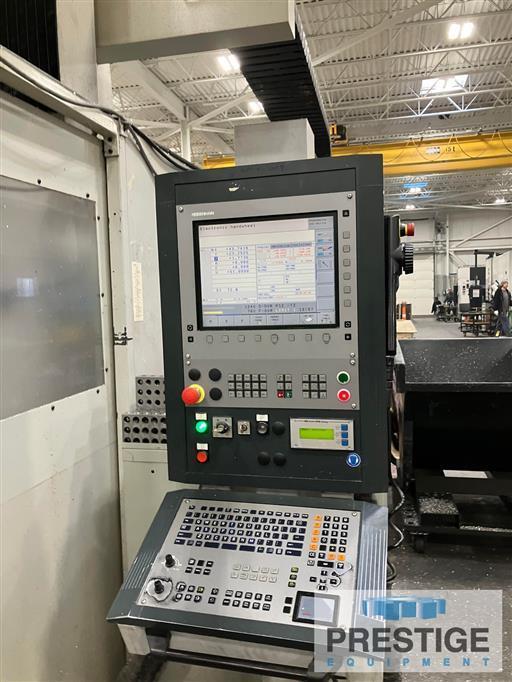

TABLE SIZE 196" x 78" TABLE LOAD CAPACITY 66,000 Lbs. X-Axis Gantry Travel 159" Y-Axis Head Travel 92.8" Z-Axis Ram Vertical Travle 49" SPINDLE SPEEDS 25,000 RPM max. SPINDLE DRIVE 53 HP SPINDLE TAPER HSK 63A CONTROL TYPE HEIDENHAIN TNC 530i SWIVEL RANGES, A AXIS +95 deg./ -125 deg./ +/- 110 deg. SWIVEL RANGES, C AXIS +/- 360 deg. FEED RATED X,Y,Z AXIS 787 IPM PERFORMANCE TORQUE: TORQUE A AXIS 800Nm TORQUE C AXIS 800Nm Equipped With: AXIS CLAMPING HYDRAULIC C AXIS CLAMPING SPRING LOADED TOOL CHANGER 16 ATC RACK TYPE AIR OVER MIST COOLANT TRUE 5 AXIS HEAD MACHINING |
