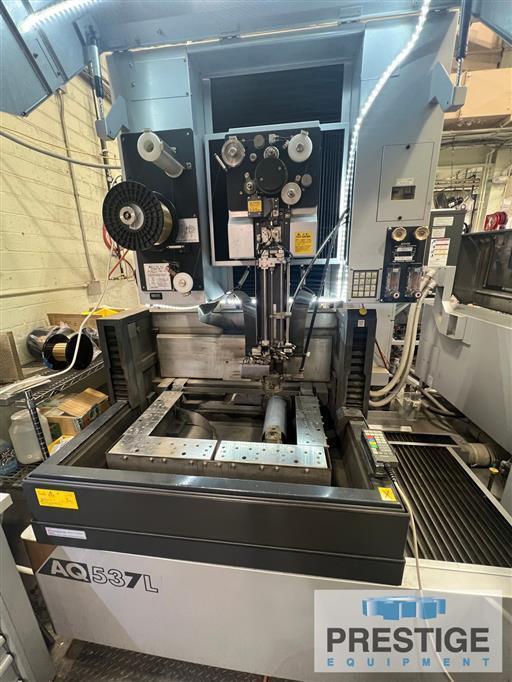

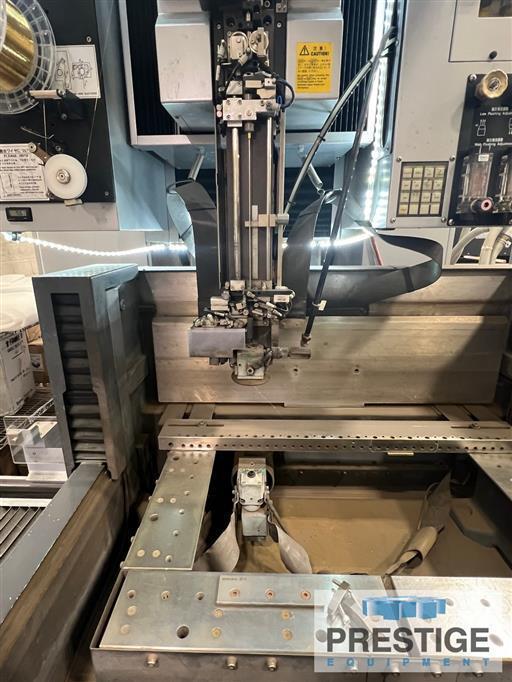

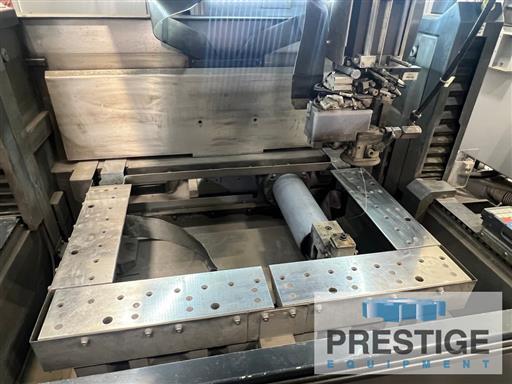

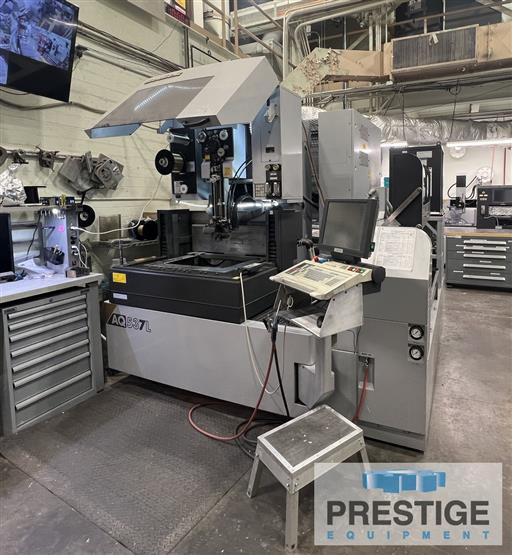

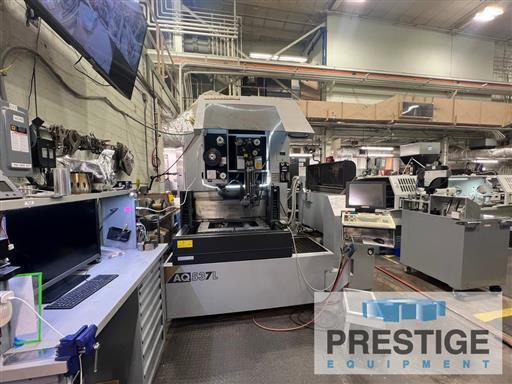

Sodick AQ-537L CNC 5-Axis Wire EDM

SPECIFICATIONS:
Maximum Workpiece Dimensions 41.3” x 28.3” x 13.7”
X-Axis Travel 22.45"
Y-Axis Travel 14.57"
Z-Axis Travel 13.78"
U/V Axis Travel +/-4.72"
Work Table Size 31.73" x 19.53"
Work Tank Dimension 41.34" x 28.35"
Max. Workpiece Height 13.39"
Max. Workpiece Height, Submerged 11.02"
Max. Workpiece Weight 2200 Lb.
Distance, Floor To Table Top 39.17"
Taper Angle At 3.9" +/-25 Degrees
Wire Tension 0.66 LB-5.06 LB
Wire Feed Speed 16.54 Inches Per Second
Wire Diameter 0.006"-0.012" (.010” Guides)
Wire Spool Volume 17.6 LB
Machine Dimensions 96.46" x 101.57" x 94.09"
Machine Floor Space Required 139.76" x 145.67"
Machine Weight 9900 LBS

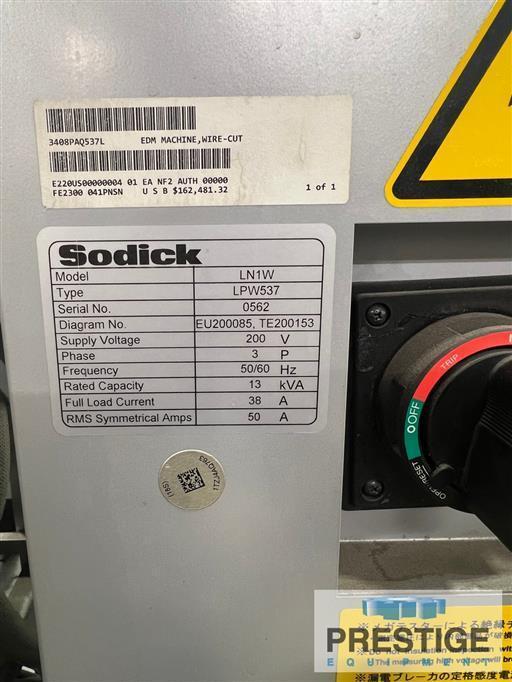

Total Input Power 200-208V, 3 Phase, 15KVA



Equipped With:

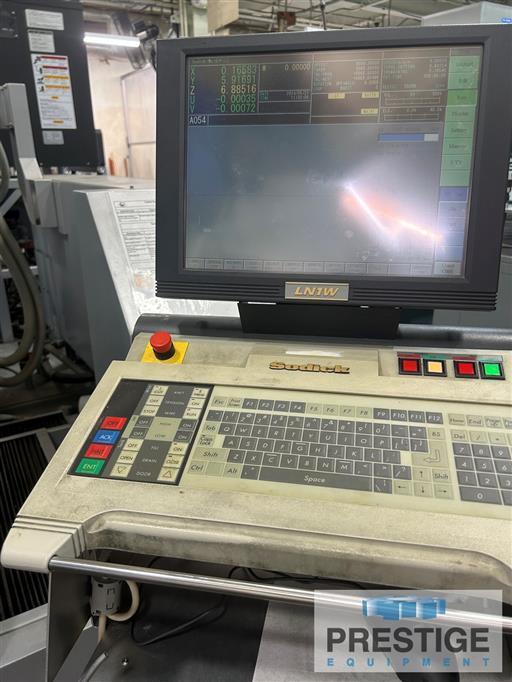

Sodick LQ33W CNC Control w/15” LCD Screen
Submerged Cutting
Drop Tank
Auto Wire Threading

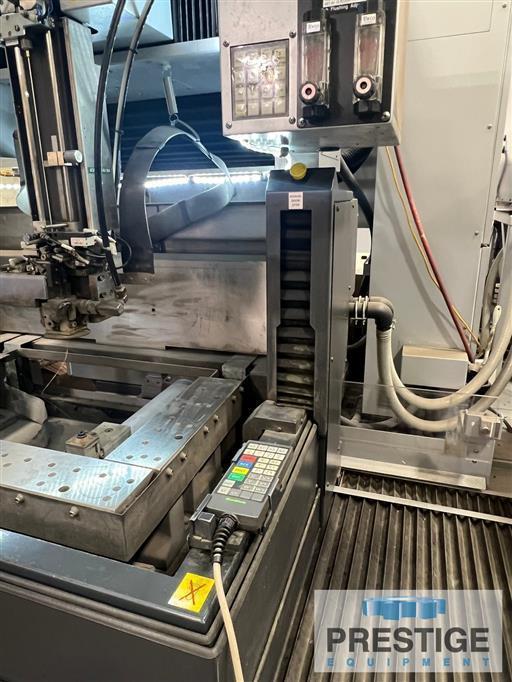

Pendant

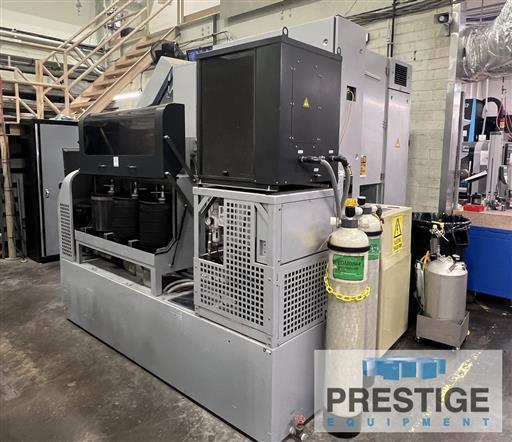

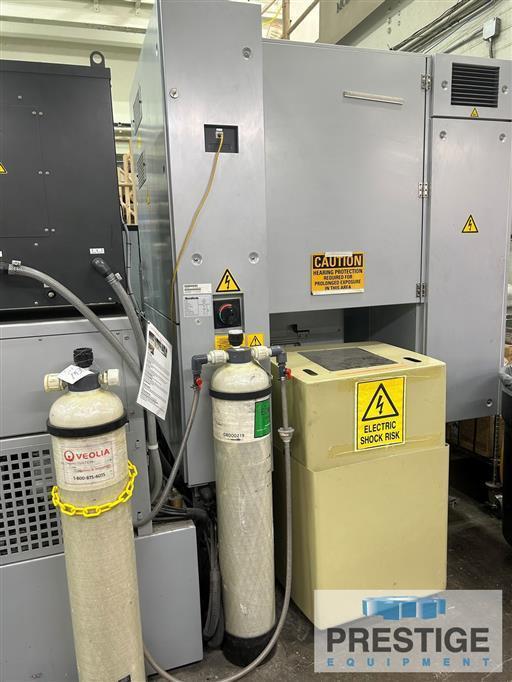

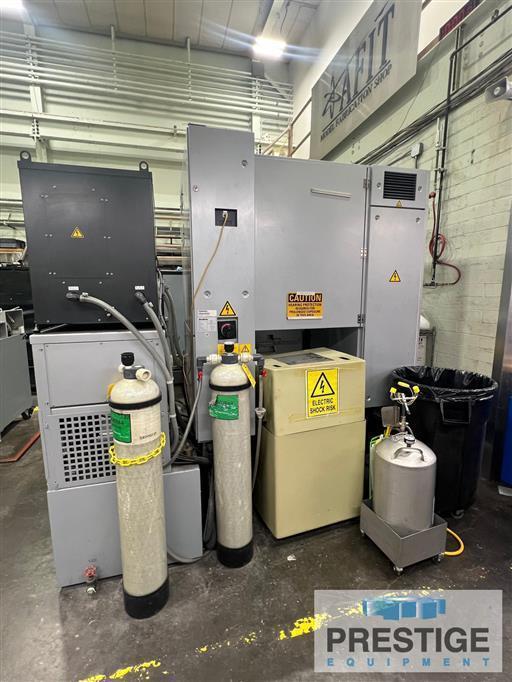

Dielectric Tank

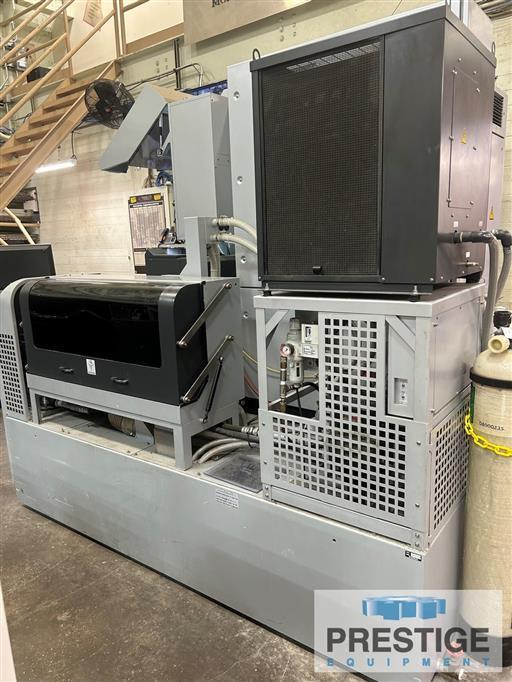

Chiller
Linear Drives


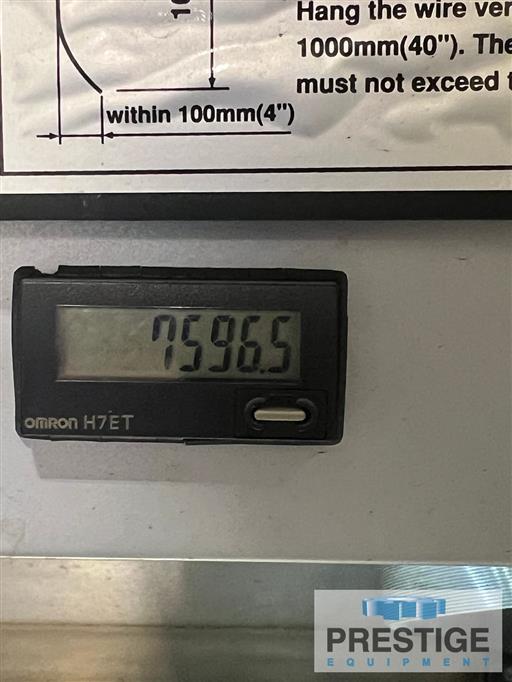

MACHINE HOURS: 7,161


NOTE: Inspect In Plant Under Power
