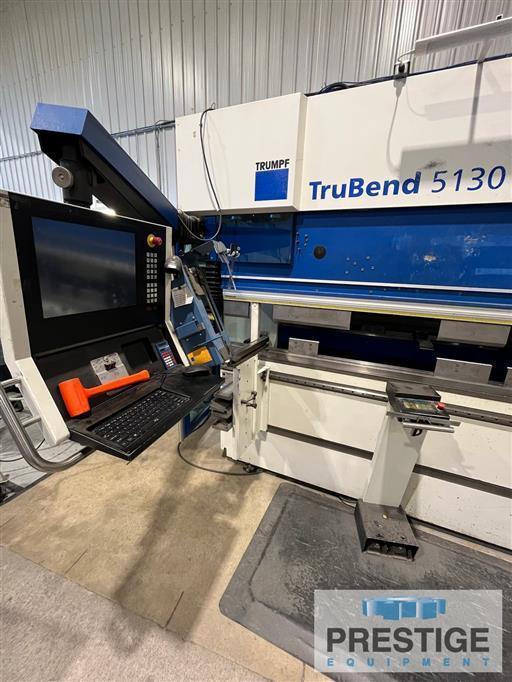

Trumpf TruBend 5130 6-Axis CNC Hydraulic Press Brake

Brand
TRUMPF
Category
Automation, Motors & Drives
Type
Hydraulic & Pneumatic Brakes
Model
TruBend 5130
Stock #
43499
Year
2007
Condition
Not specified

Location

Not specified
REQUEST FINANCING
CAPACITY:
Tonnage Capacity 143 Tons
Maximum Bending Length 127"
Distance Between Housings 106"
Stroke Length ................ 8.46"
Throat Depth 16.50"
Travel In X-Axis 24"
Travel In R-Axis 10"
Operating Speed in X-Axis 2362 IPM
Operating Speed in Y-Axis 520 IPM
Operating Speed in R-Axis 780 IPM
Operating Speed in Z-Axis 2362 IPM
Weight 24,034 Lbs.



Equipped With:

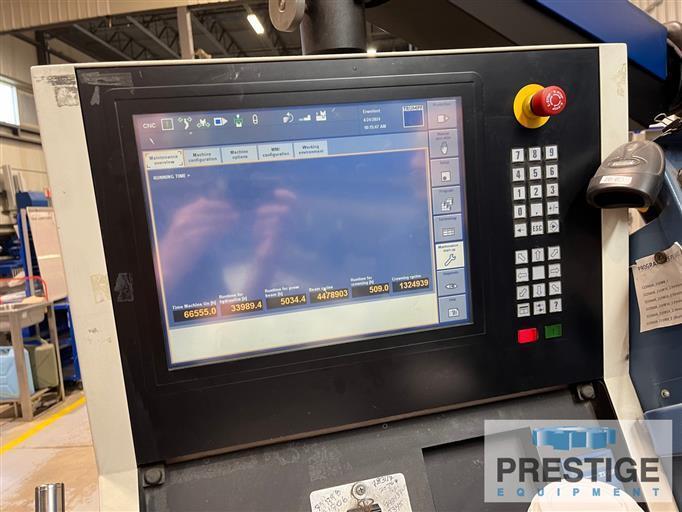

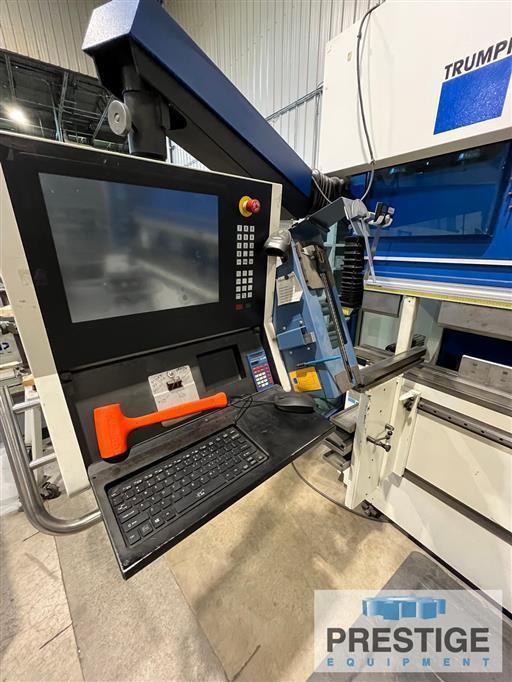

Trumpf CNC Press Brake Control

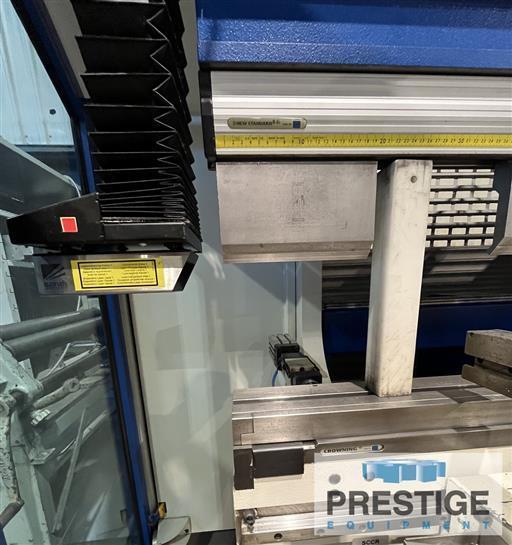

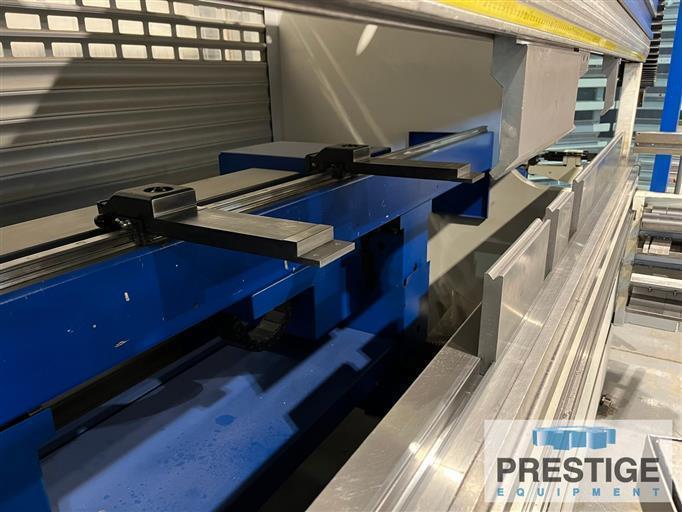

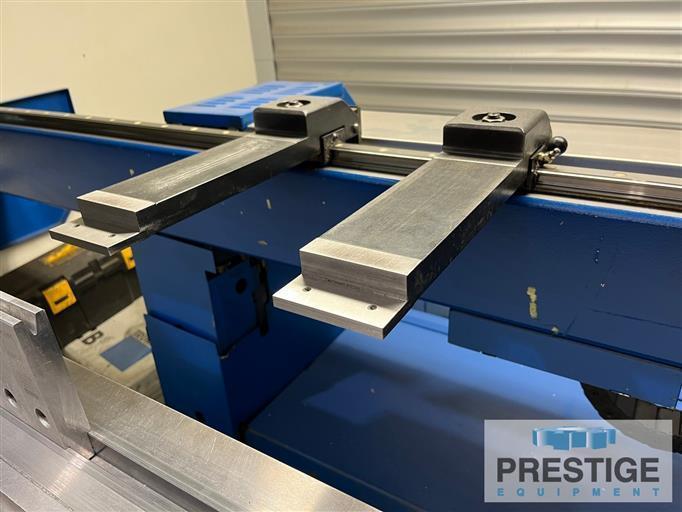

4-Axis CNC Back Gauge, R,X,Z1,Z2
CNC Programmable Crowning
Upper & Lower Hydraulic Clamping
CNC I-Axis
ACB Angle Sensor Tool
Safety Light Curtain
(2) Sheet Supports


NOTE: Inspect In Plant Under Power
