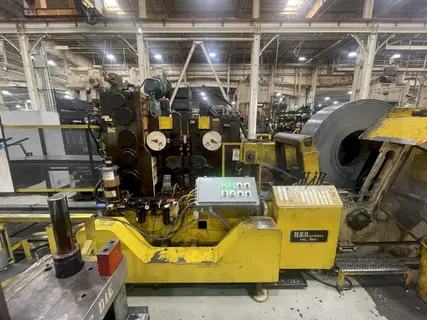

US Machine Heavy Duty Coil Cradle Straightener Combination 20,000 Lbs. x 30" Wide x .150" (.380" x 10" Wide)

Name: Used US MACHINE Coil Cradles & Straighteners For Sale 5502
Brand: US MACHINE
SKU: 5502

Brand

US MACHINE

Michigan

Coil Weight Capacity:	20000 pounds
Stock Width Capacity	30 inches
Max Stock Thickness Capacity At Full Width	.150 inches
Coil O.D. Capacity:	72 inches
US Machine Heavy Duty Coil Cradle Straightener Combination Specifications: Coil weight capacity: 20,000 Lbs. Coil width capacity: 30" Stock thickness capacity: .150 @ 30" Wide Stock thickness capacity: .250" @ 24" Wide Stock thickness capacity: .300" @ 12" Wide Max stock thickness capacity: .380" x 10" Wide 45,000 Yield) Max stock thickness capacity: .380" x 03" Wide 90,000 Yield) Coil O.D. Capacity: 72" US Machine Heavy Duty Coil Cradle Straightener Combination Equipment and Features: Entry pinch rolls Air operated entry pinch roll adjustments Seven straightening rolls Dial indicators for upper straightening roll position Motorized upper straightening roll adjustment Heavy duty stock width edge guides Powered nest rolls in coil cradle Coil restrictor side plates Coil restrictor side plate adjustments Combination Coil stop peeler threading assist and de-kinker assembly Coil storage / load ramp Automatic lubrication system Self contained hydraulic pump unit Updated AC VFD control system Laser loop control Unit offered cleaned and cycling
