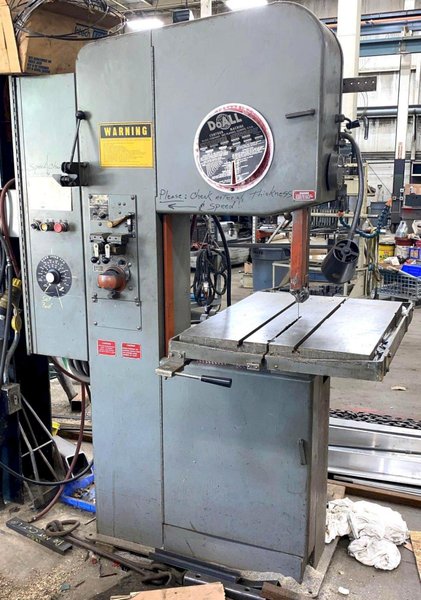

20” DOALL MODEL #2012-2A VERTICAL BANDSAW: STOCK #78601

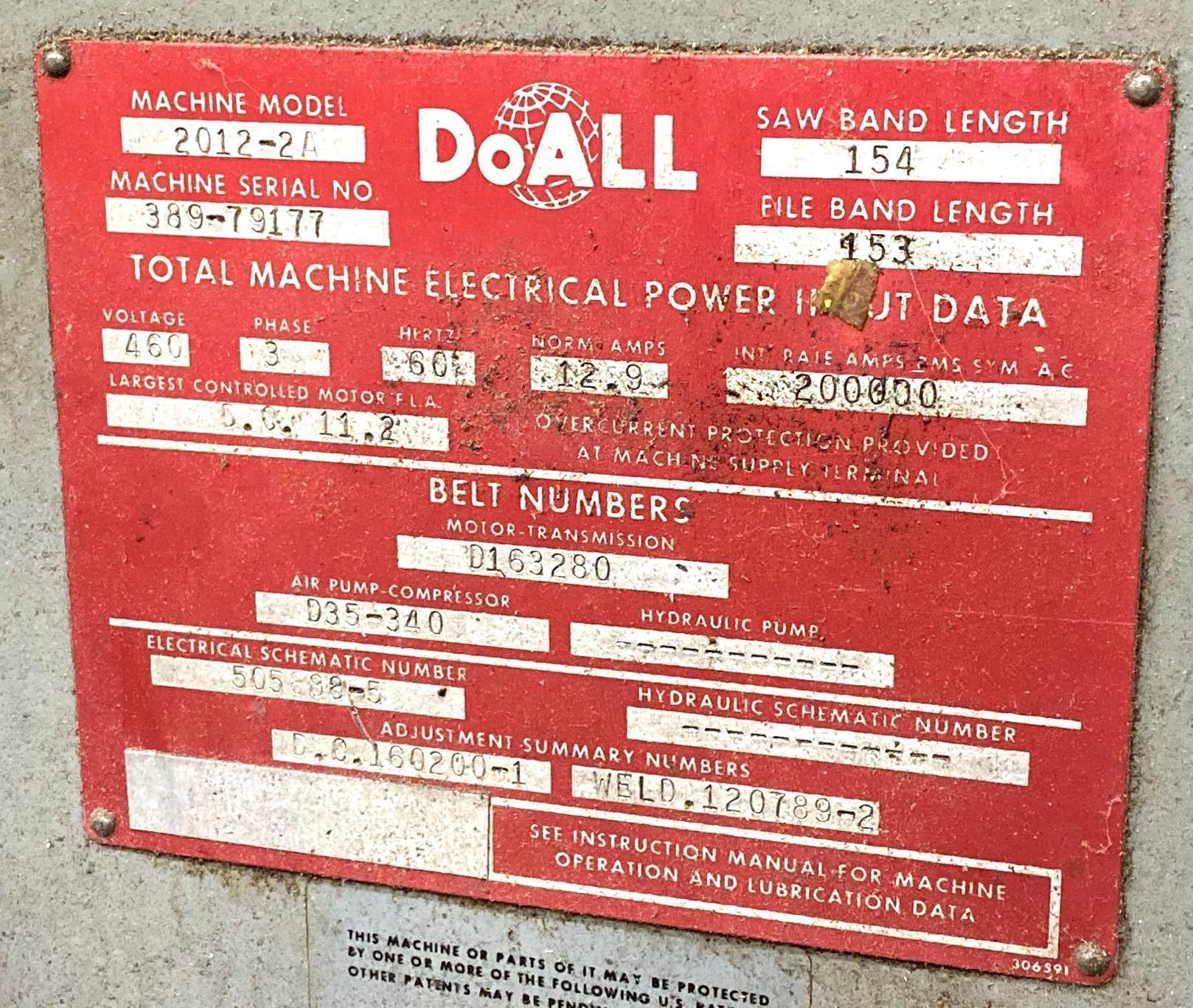

SERIAL ............................. 389-79177

MODEL .............................. 2012-2A

YEAR NEW .... 1979

THROAT.............................. 20"

MAXIMUM WORK HEIGHT ................ 12"

BAND WIDTH CAPACITY ................ 1-1/16" TO 1"

SAW BAND LENGTH .................... 154"

BAND SPEED RANGE ................... 5 TO 5200 FPM, VARIABLE

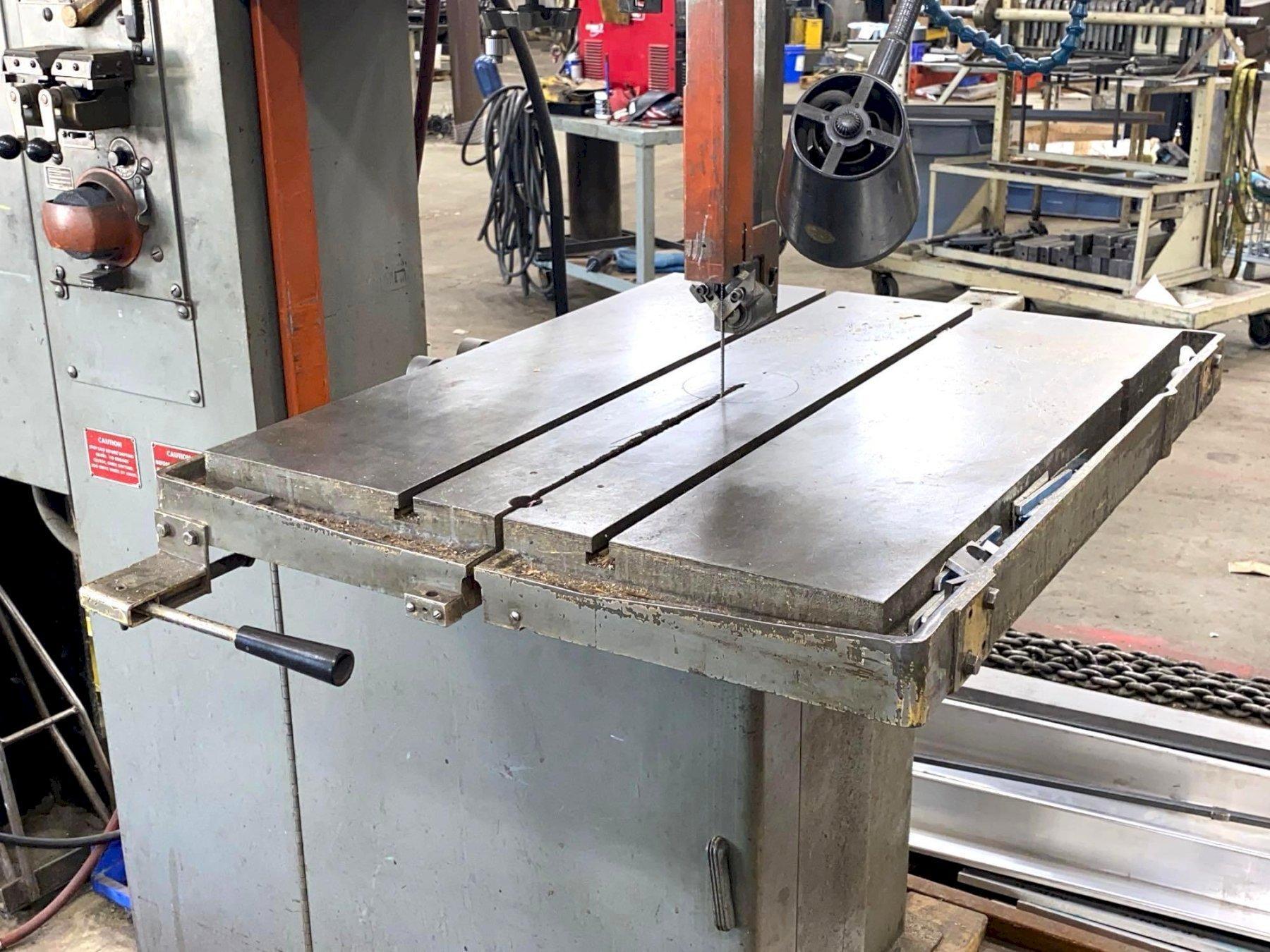

TABLE SIZE ......................... 26-1/2" X 33-1/2"

TABLE STROKE HYDRAULIC ............. 12"

TABLE FEED ......................... 0 TO 12 FPM

FOOT PEDAL FORWARD & REVERSE ....... YES

WORK PIECE GUIDES .................. YES

TABLE TILTS LEFT & TIGHT ........... 45 & 10 DEGREES

HEIGHT FLOOR TO TOP OF TABLE ....... 40-1/2"

BLADE WELDER SERIAL ................ 471-89424

BLADE WELDER MODEL ................. DBW-15

MOTOR .............................. 5 HORSEPOWER
