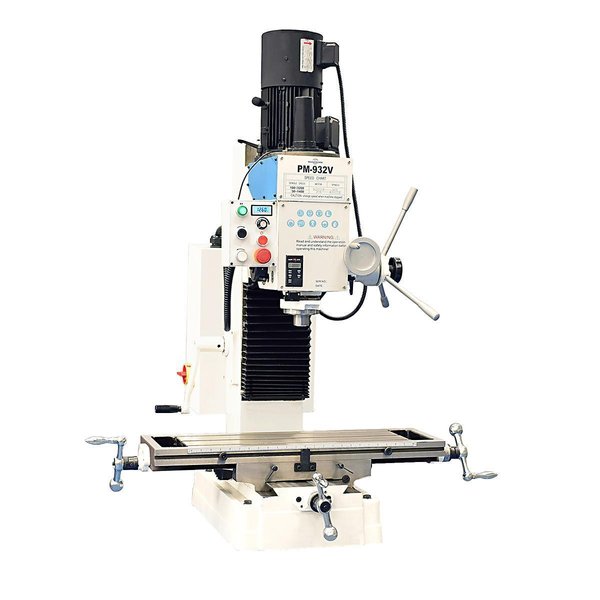

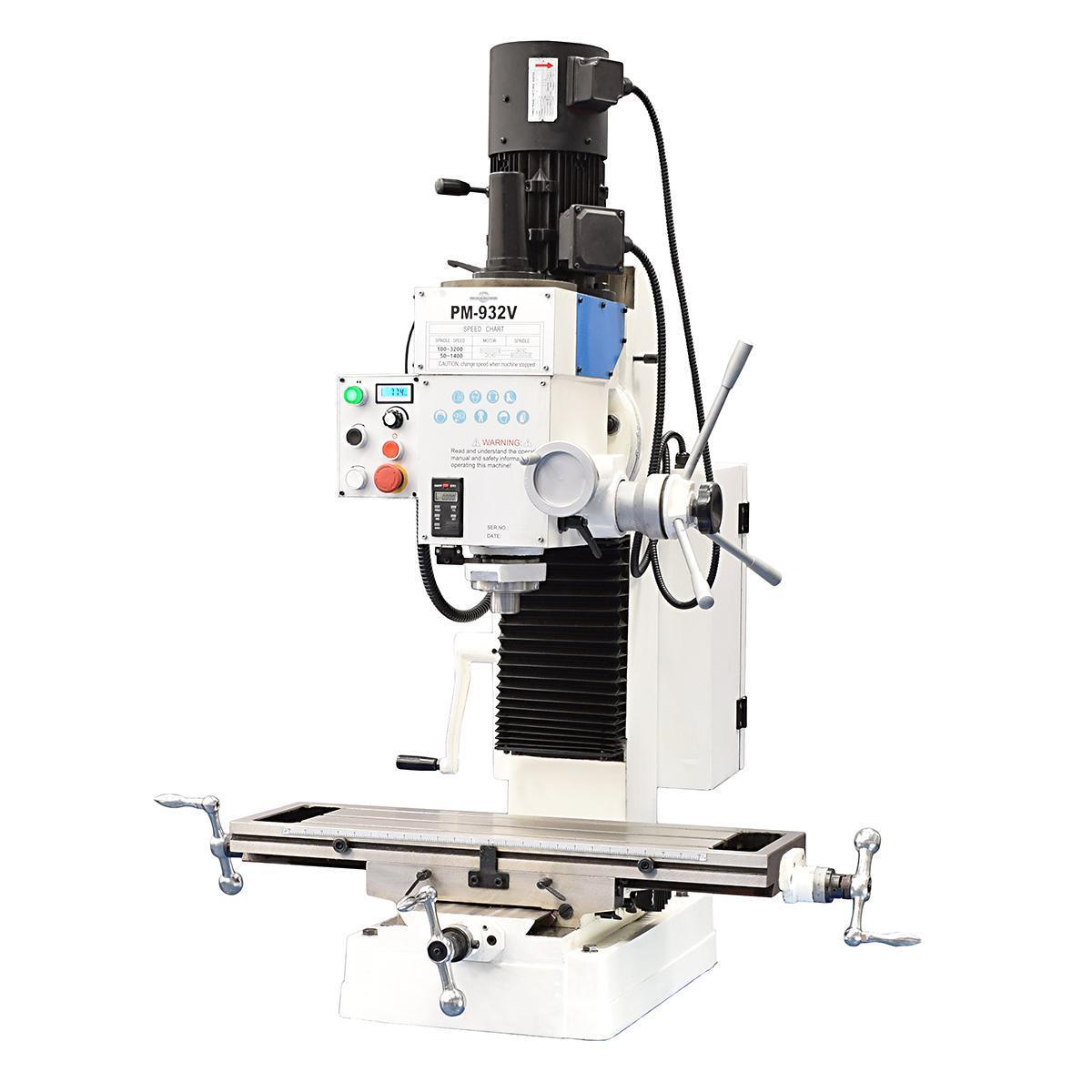

Precision Matthews PM-932V Precision Milling Machine

• Heavier Class Milling Machine, (1000 LBS With Base) For More Rigidity, And Greater Cutting Ability
• Variable Spindle Speeds, offer the ability to fine tune the speed for the job, along with a higher top RPM then geared head models
• Larger Knee Mill Style Table Handles, for Much Better Control By Hand
• True Inch Pitch Leadscrews on X and Y Axis, 10 TPI Screws (.100" Per Turn) For Easier Operation
• Optional Stand is Heavy Duty Cast Iron, For Better Vibration Dampening and Rigidity
• Longest In Class, 3 Year Warranty

1. Quill DRO
2. Manual Down Feed on spindle
3. Variable spindle speeds 50-3200 RPM
4. Knee Mill Style crank handles for better feel and easier operation by hand

MAIN SPECIFICATIONS:

General Specifications:

• Power Requirements: 220V, Single Phase, 12 Amp Circuit
• Weight: Machine Net Weight: 750 Lbs, Shipping Weight 840 Lbs
• Optional Stand Weight: Net Weight: 230 Lbs, Shipping Weight 250 Lbs
• Country of origin: China

Table Specifications and Travels:

• Table Size: 9” x 31.5″
• Cross Travel (Y Axis): 8″
• Longitudinal Travel (X Axis): 22-3/8” With Full Way Support, 19.5” to Travel Stop
• Vertical Travel: (Z Axis): 17″
• Max Distance Spindle to Table: 18″
• Spindle to Column Distance: 10”
• Max Table Load: 300 lbs.
• Table Leadscrew Pitch: Inch Pitch Acme Threads
• T Slot Size Actual size: 14mm, our 9/16″ Clamp kit listed is sized for this machine
• Head/Spindle/Motor Specifications:
  • Taper of Spindle: R-8, with 7/16-20 Drawbar Thread (U.S. Standard)
  • Quill/Spindle: Travel 5″
  • Quill Diameter: 3″
  • Range of Spindle Speeds: 5-3200 RPM, 2 Ranges (50-1400 in Low and 100-3200 in High)
  • Headstock Tilt Left & Right: ±90°, With Worm Gear Movement For Easier Tram Adjustments

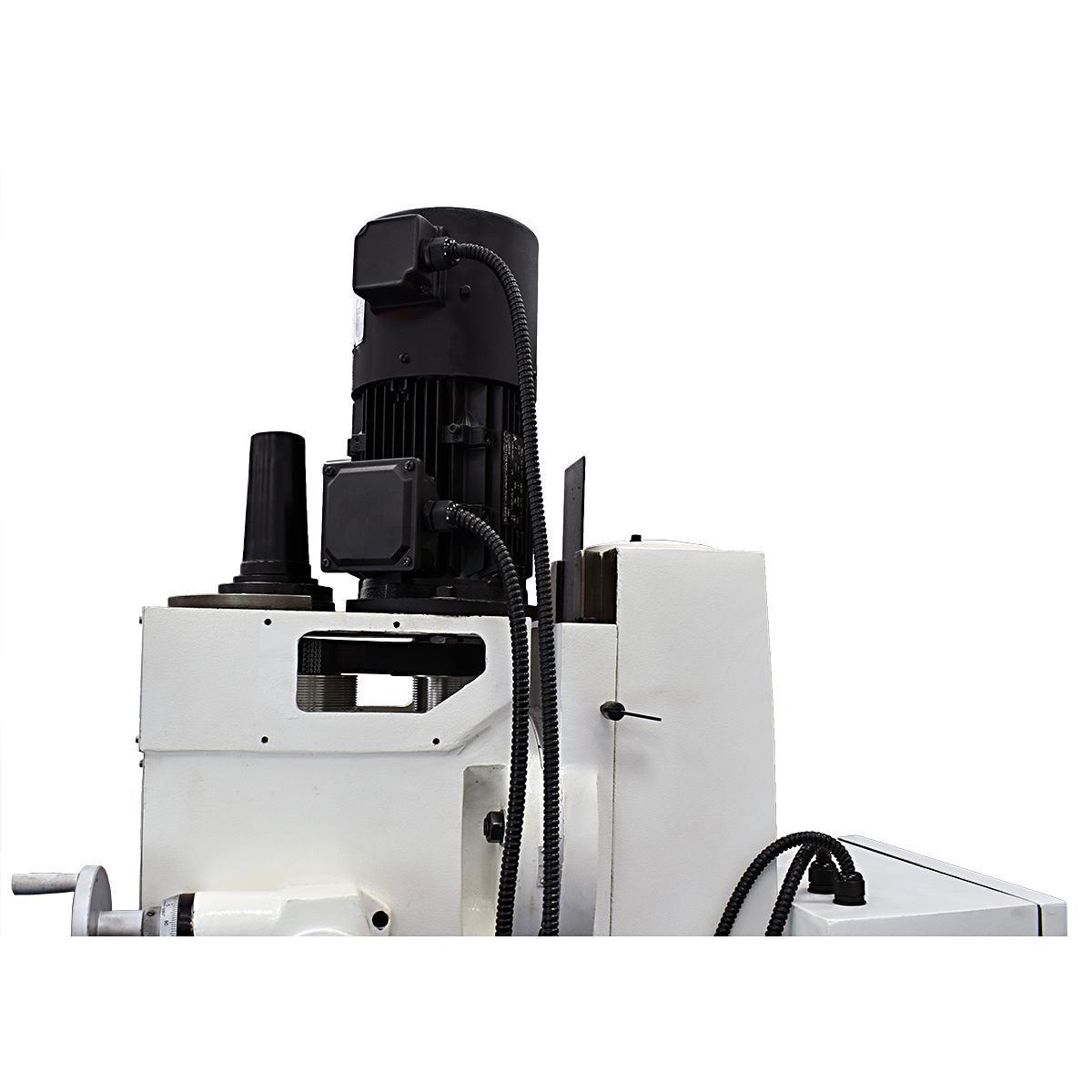

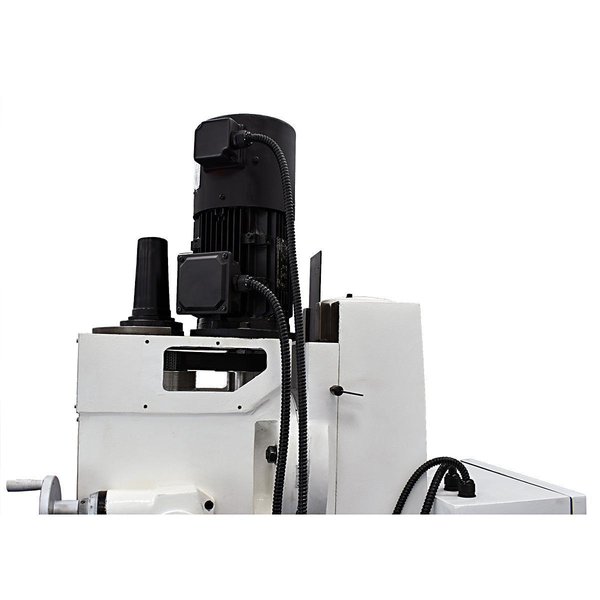

  • Motor: 2 HP

Dimensions:

• Height (Without Stand) Head At NORMAL Working Height: 52.5”
• Height (Without Stand) Head At MAX Working Height: 57.5"
• Table Surface to Machine Bottom (Where it sits on the stand or a table): 10-3/4”
• Bolt Mounting Pattern of Machine (Where it bolts to the stand): 10-1/8”W x 17-1/2” D, 1/2” Holes
• Stand Height (Stand is optional): 24”
• Max Width, Table Handle Tip to Tip: 41”
• Cord Connection/Type: Cord approximate 5 foot in length, Purchaser to supply plug needed for outlet (20A, 240V with Ground, No Neutral Required)
