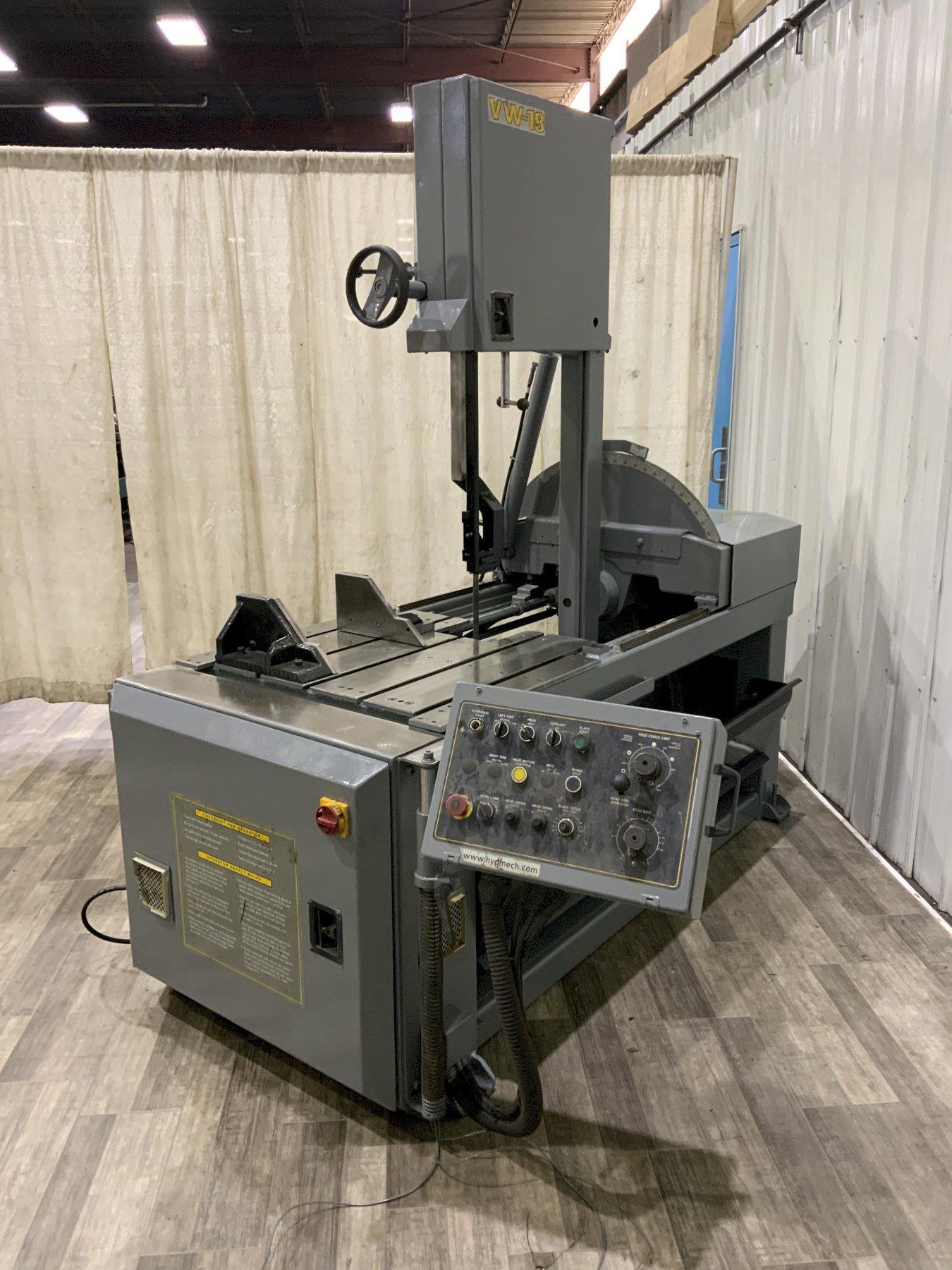

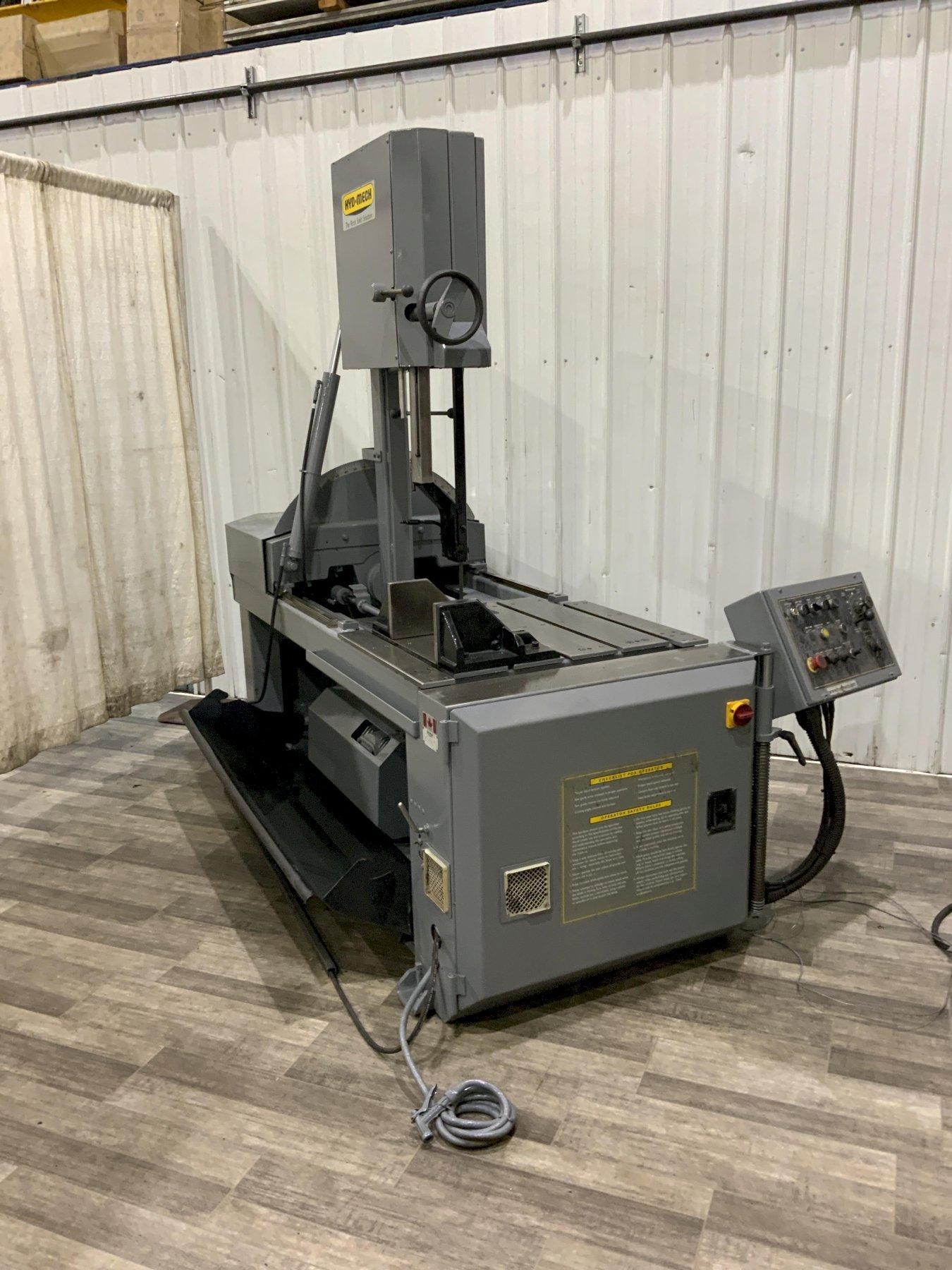

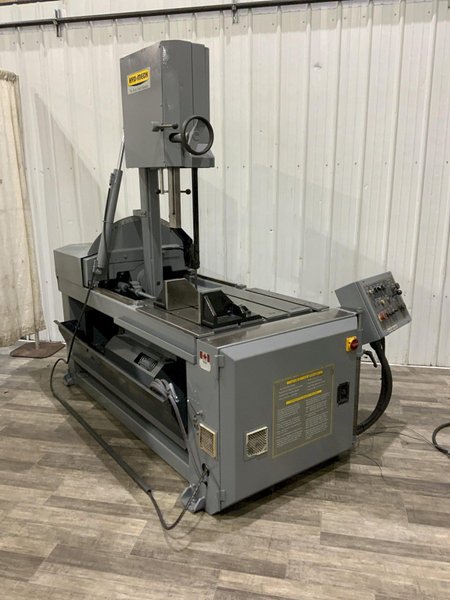

18" X 22" HYDMECH MODEL # VW-18 MITERING VERTICAL BAND SAW: STOCK #78584

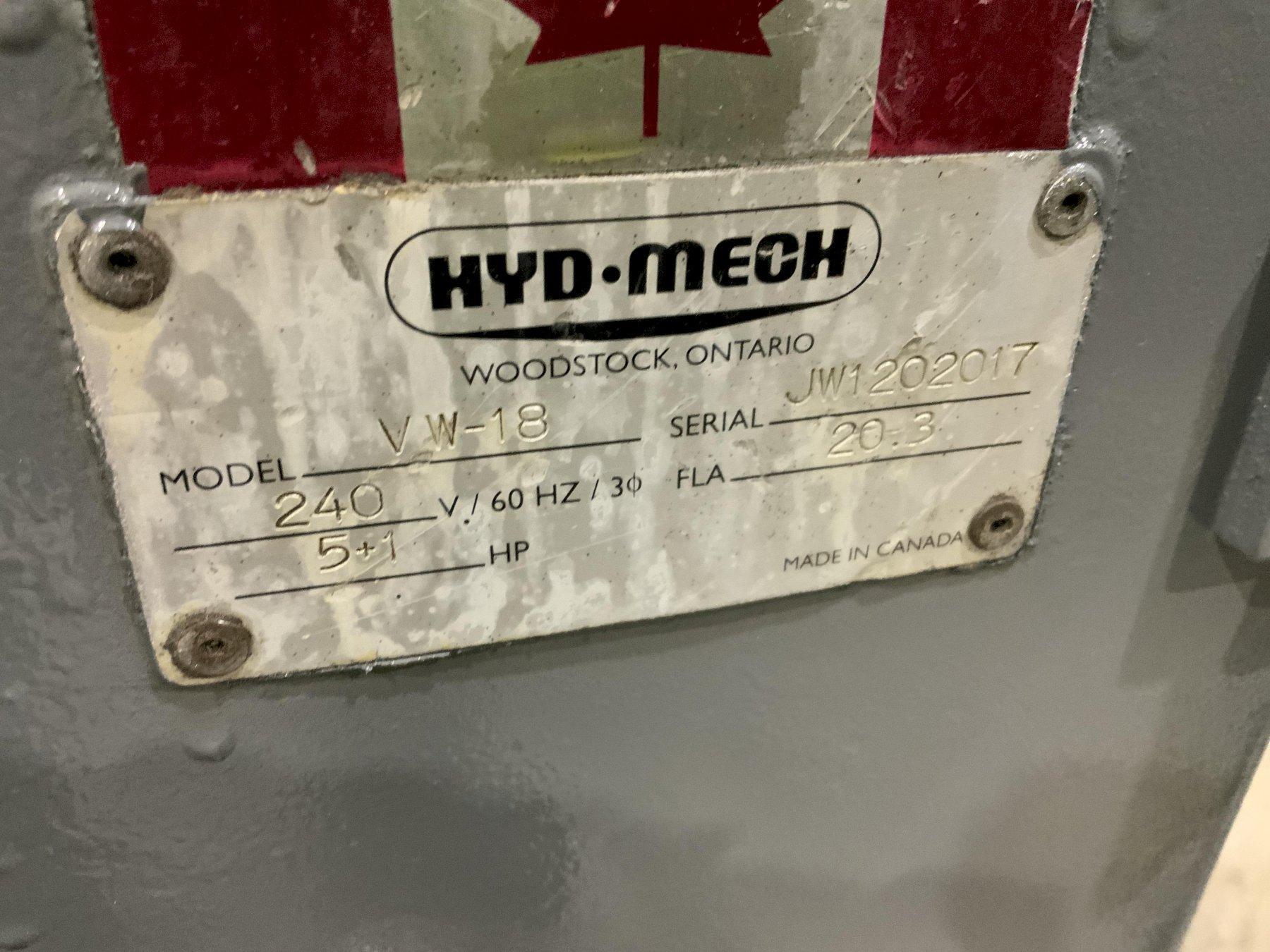

SERIAL .............................. JW1202017

MODEL ............................... VW-18

YEAR NEW ............................ 2003

CAPACITY (RECTANGLAR) ............... 18" X 22"

CAPACITY (ROUND) .................... 17.5"

CAPACITY AT 45 DEGREE HOR X VER ..... 15" X 18"

CAPACITY AT 45 DEGREES ROUNDS .. 12.5"

CAPACITY AT 60 DEGREE HOR X VER ... 10.25"X 18"

CANTED HEAD ..... ADUSTABLE TO 3 DEGREES

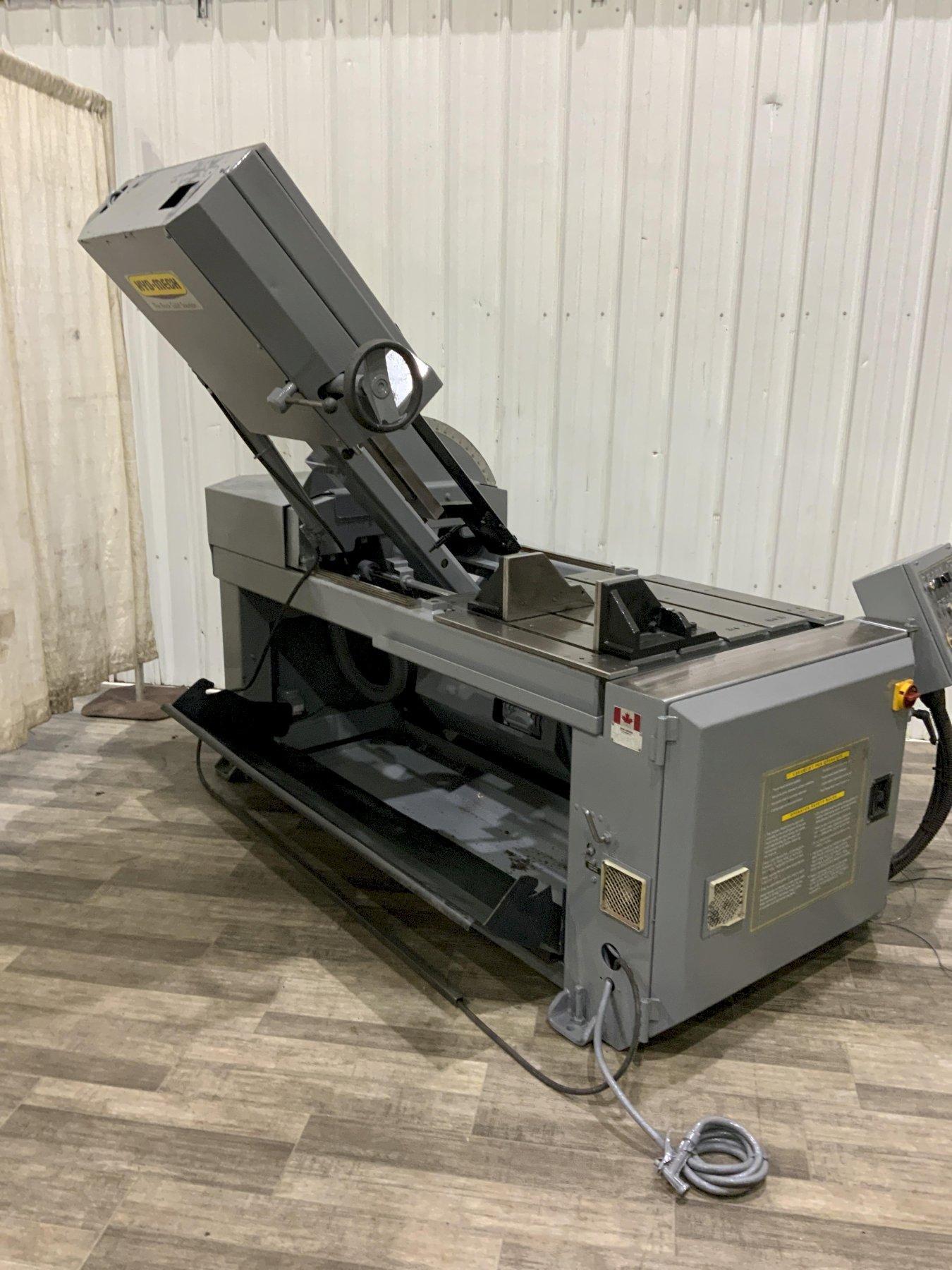

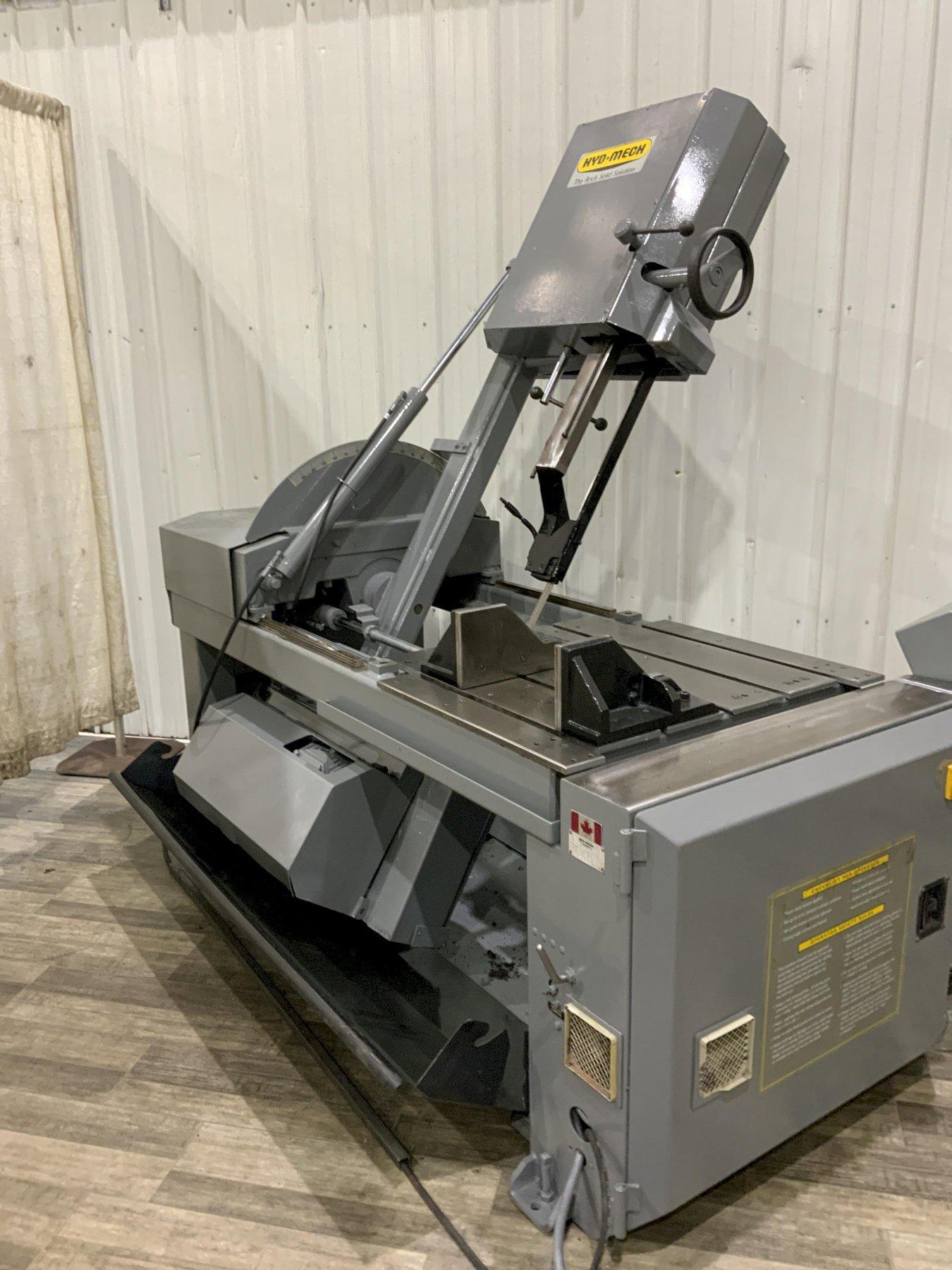

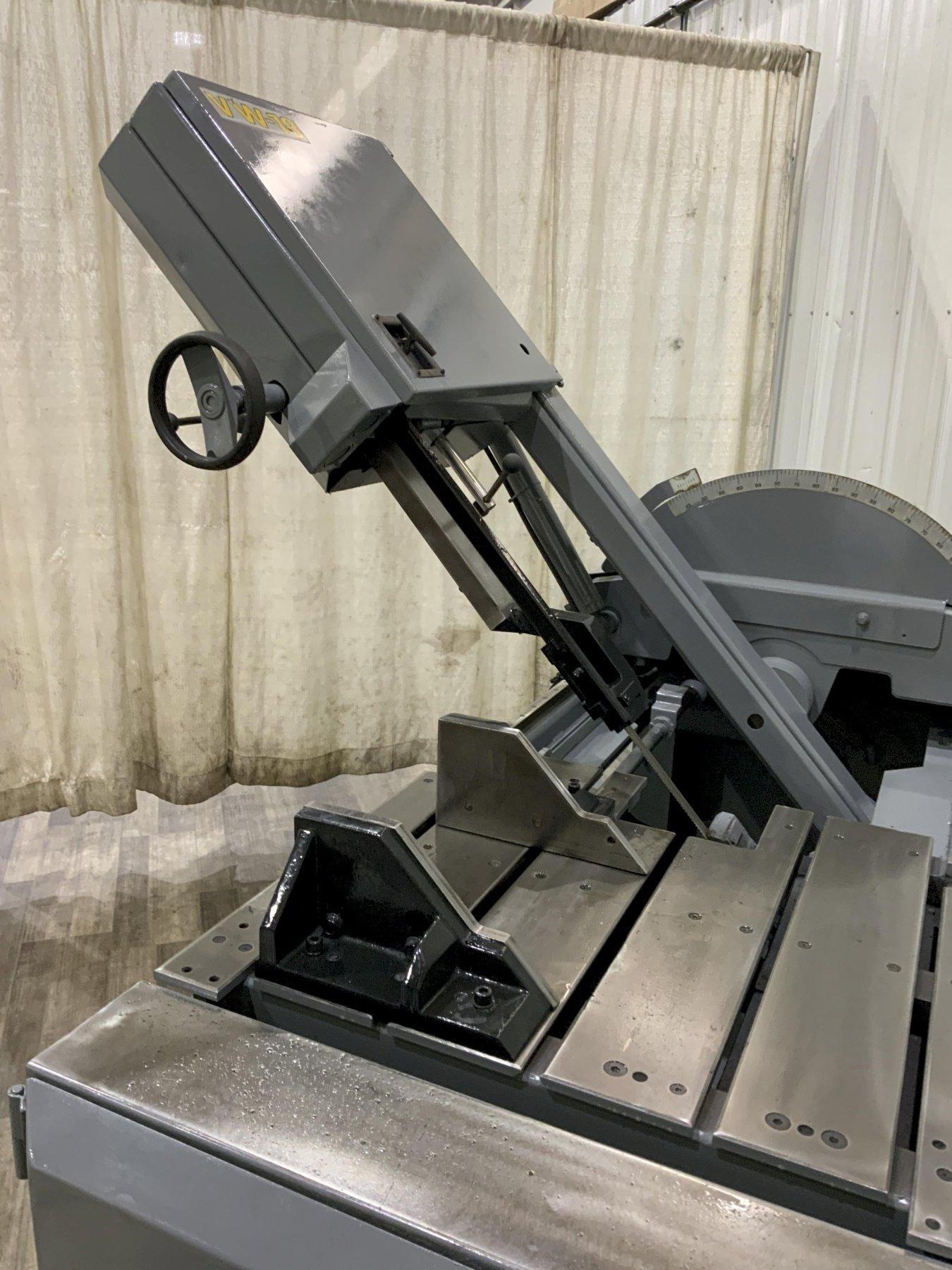

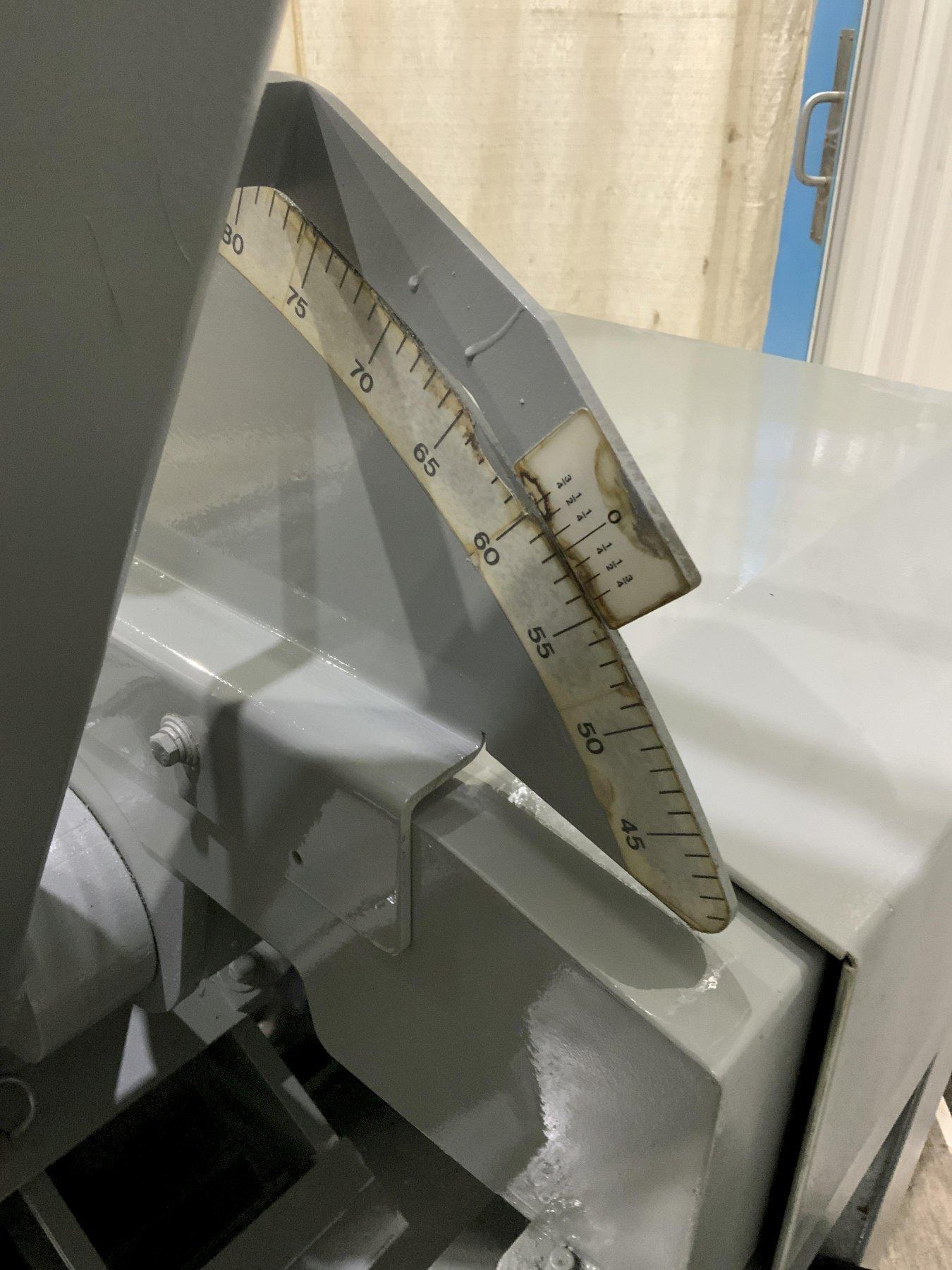

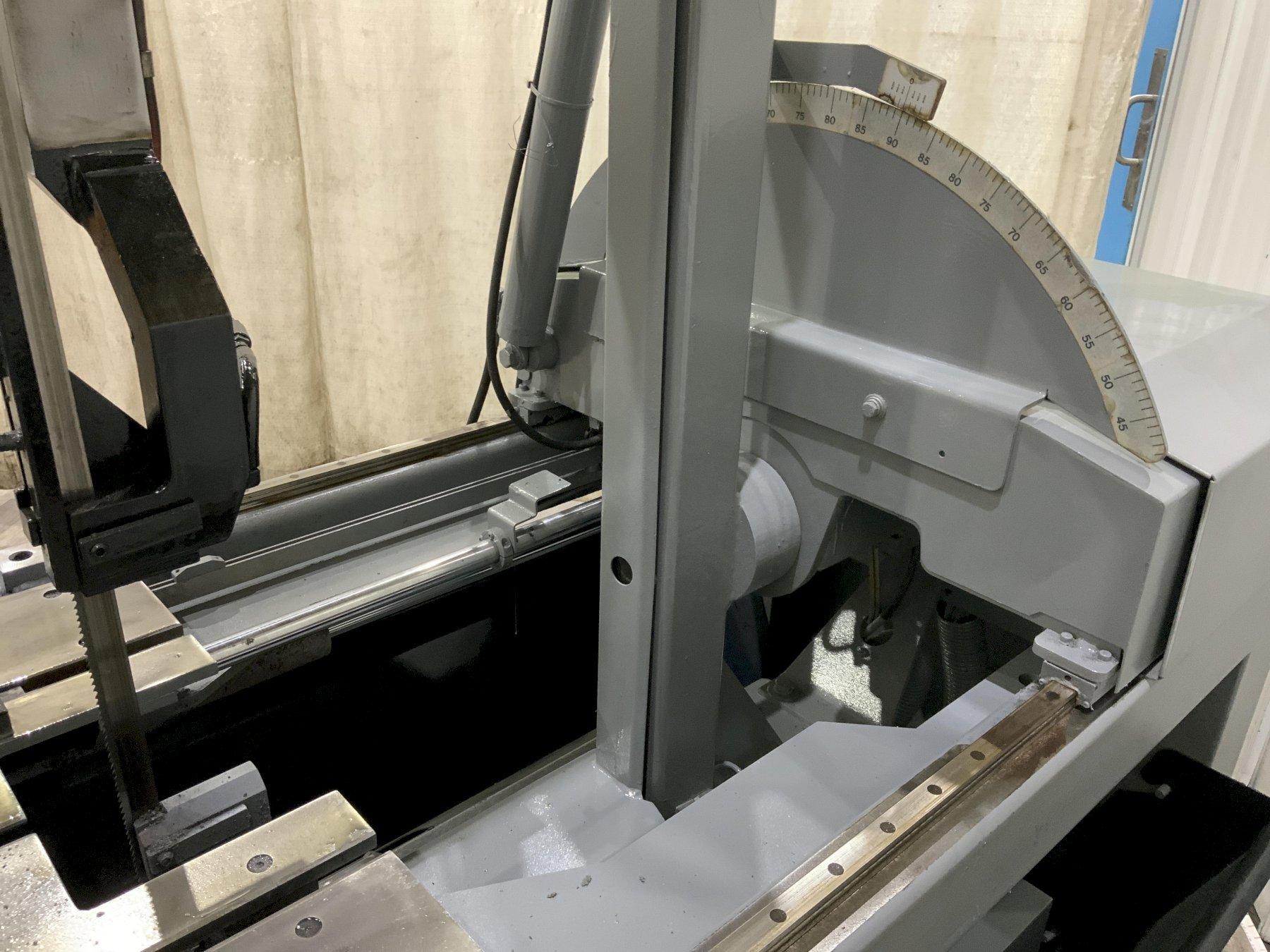

HYDRAULIC HEAD TILTS .......................... 60 DEGREE EITHER WAY

BLADE SPEEDS, VARIABLE .............. 65 TO 385 FPM

WIDTH OF BLADE ...................... 1-1/4"

LENGTH OF BLADE ..................... 16'3"

HEAD FEED RATE ...................... 0 TO 15 IPM

FEED PRESSURE ....................... 0 TO 300 PSI

HYDRAULIC TILT ...................... YES

HYDRAULIC BLADE TENSION ............. YES

HYDRAULIC BLADE GUIDE ADJUSTMENT .... YES

COOLANT ............................. YES

HYDRAULIC DRIVE MOTOR ............... 2 HORSEPOWER

BLADE DRIVE MOTOR ................... 5 HORSEPOWER
